Description

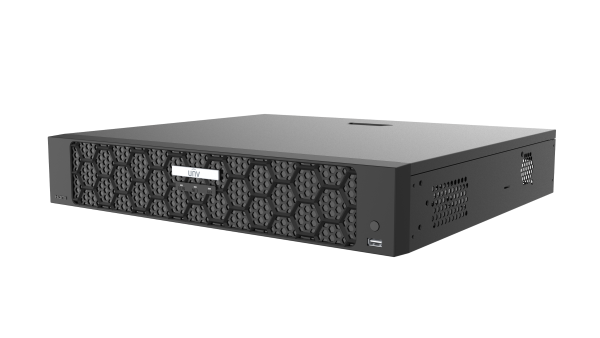

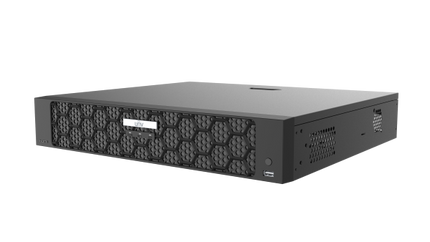

Uniview NVR504-32B-P16-IQ is a high-performance 32-channel Network Video Recorder designed for large-scale and intelligent surveillance systems. It features 16 built-in PoE ports, Ultra 265 compression, 4K HDMI output, RAID storage support, and powerful AI-based video analytics. With high decoding capacity, advanced smart search, and enterprise-grade reliability, this NVR is ideal for commercial, industrial, and city surveillance deployments.

Key Features

32-Channel IP Video Input – Supports up to 32 IP cameras with ONVIF (Profile S/G/T) and RTSP compatibility.
Ultra 265 / H.265 / H.264 Compression – Reduces bandwidth and storage requirements while maintaining image quality.
16 Independent PoE Ports – Plug & Play PoE camera connection, up to 150W total PoE budget.
Up to 16MP Recording – Supports ultra-high-resolution cameras.
4K HDMI Output – HDMI up to 3840 × 2160 @30Hz with independent VGA output.
Advanced Smart VCA – Face detection, vehicle detection, SIP, UMD, people counting, heat maps, and metadata search.
ANR Technology – Ensures video continuity during network interruptions.
RAID 1 / RAID 5 Support – Enhanced data protection and storage reliability.
Cloud Upgrade Support – Easy firmware updates and maintenance.
128 Remote Users – Simultaneous multi-user remote acces

Perfect For:

Commercial buildings and office complexes
Retail chains and shopping malls
Warehouses, factories, and logistics centers
Transportation hubs and parking systems
Large-scale surveillance systems (up to 32 cameras)

Installer Tips

Plan PoE Power Carefully: Total PoE budget is 150W; high-power cameras may require external power.
Use RAID for Critical Systems: RAID 1 or RAID 5 is recommended for data redundancy.
Enable Smart Recording: Combine VCA rules with recording schedules to save storage.
Clear VGA Preview for Full 4K HDMI: Required to output maximum HDMI resolution.
Use Surveillance-Grade HDDs: Supports up to 4 SATA drives, 16TB each.

Downloads

Datasheet	Datasheet – NVR504-32B-P16-IQ
User Manual	User Manual - NVR504-32B-P16-IQ
Quick Guide	Quick Guide - NVR504-32B-P16-IQ

Quick-Read Specs

Category	Specification
Model	NVR504-32B-P16-IQ
IP Video Input	32-channel
PoE Ports	16 × RJ45, IEEE 802.3af/at, max 30W per port, 150W total
Video Compression	Ultra 265, H.265, H.264
Max Recording Resolution	Up to 16 MP
Decoding Capability	Smart Off: Up to 2×16MP@30fps, 4×4K@30fps, 32×720P@30fps Smart On: Up to 2×12MP@30fps, 24×720P@30fps, 32×D1
HDMI Output	4K (3840 × 2160) @30Hz
VGA Output	Up to 1920 × 1080
Incoming Bandwidth	320 Mbps (Smart Off) / 160 Mbps (Smart On)
Outgoing Bandwidth	160 Mbps
Storage	4 × SATA HDDs, up to 16TB per HDD
RAID Support	RAID 1, RAID 5
Two-Way Audio	1-ch RCA input/output
USB Ports	Front: USB 2.0 ×1 / Rear: USB 3.0 ×1
Network Interface	1 × RJ45 10/100/1000 Mbps
Power Supply	AC 100–240V
Power Consumption (No HDD)	≤ 12W
Working Temperature	-10°C to 50°C
Dimensions	400 × 368 × 74 mm (1.5U)
Certifications	CE, FCC, UL, RoHS, WEEE
