Description
UNV NVR has high quality genes to ensure the reliability of devices and the whole system, focusing on user experience to simplify every operation process.

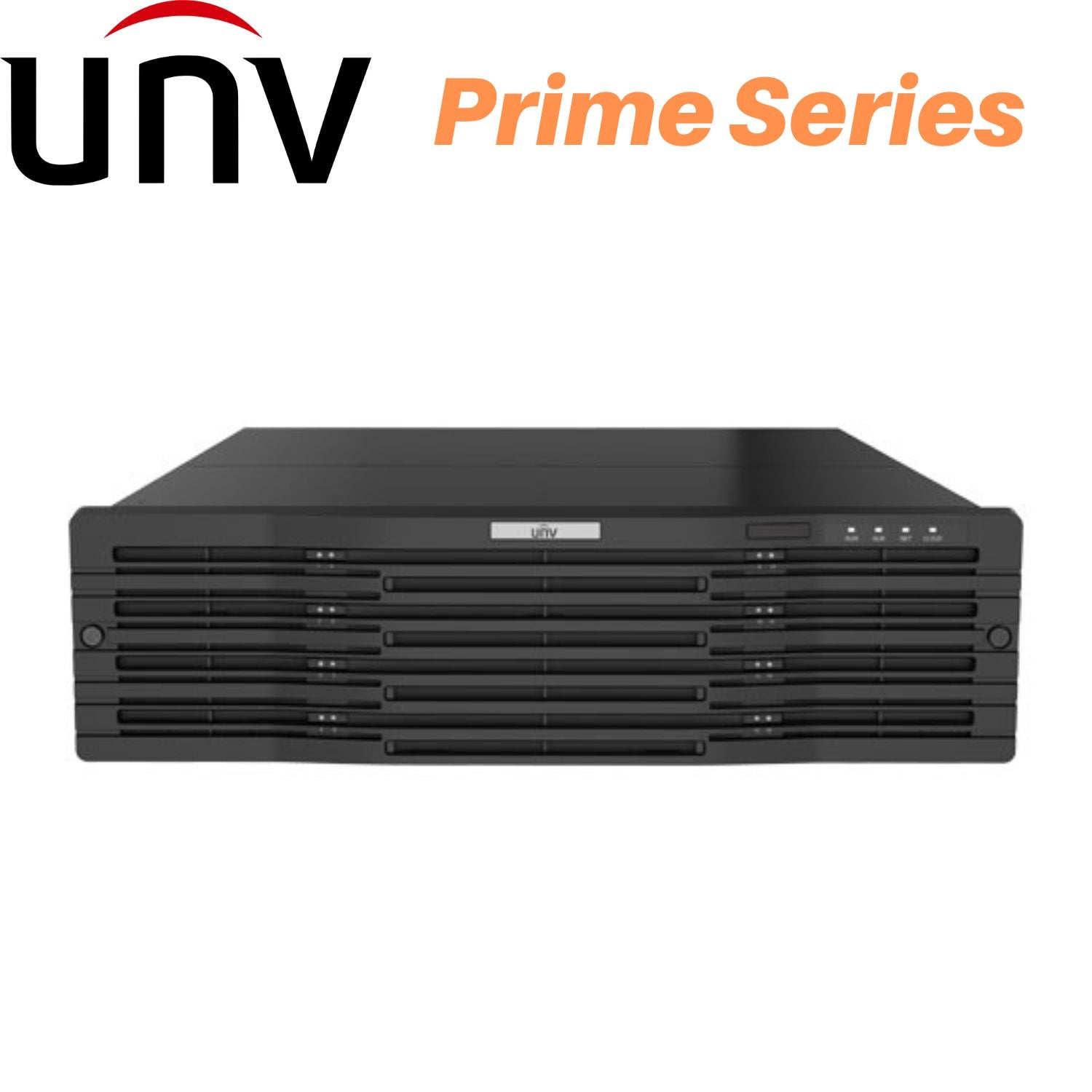

Prime Series
Equipped with many practical functions and powerful decoding ability, Prime series fits well with projects and empowers the SMB market.
Features
- Support Ultra 265/H.265/H.264 video formats
- 64-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
- HDMI1/VGA and HDMI2 independent outputs provided
- Up to 12 Megapixels resolution recording
- Support HDD hot swap with RAID 0, 1, 5, 6, 10,50,60 storage scheme configurable
- 16 SATA HDDs, up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Datasheet
Tech Specs

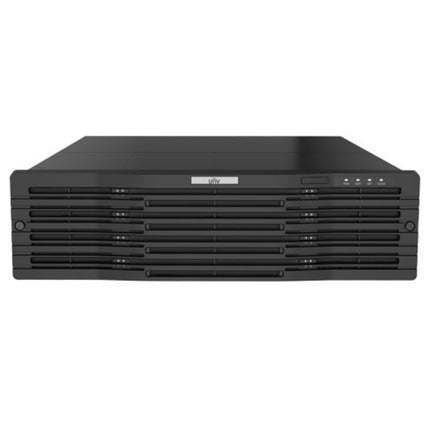

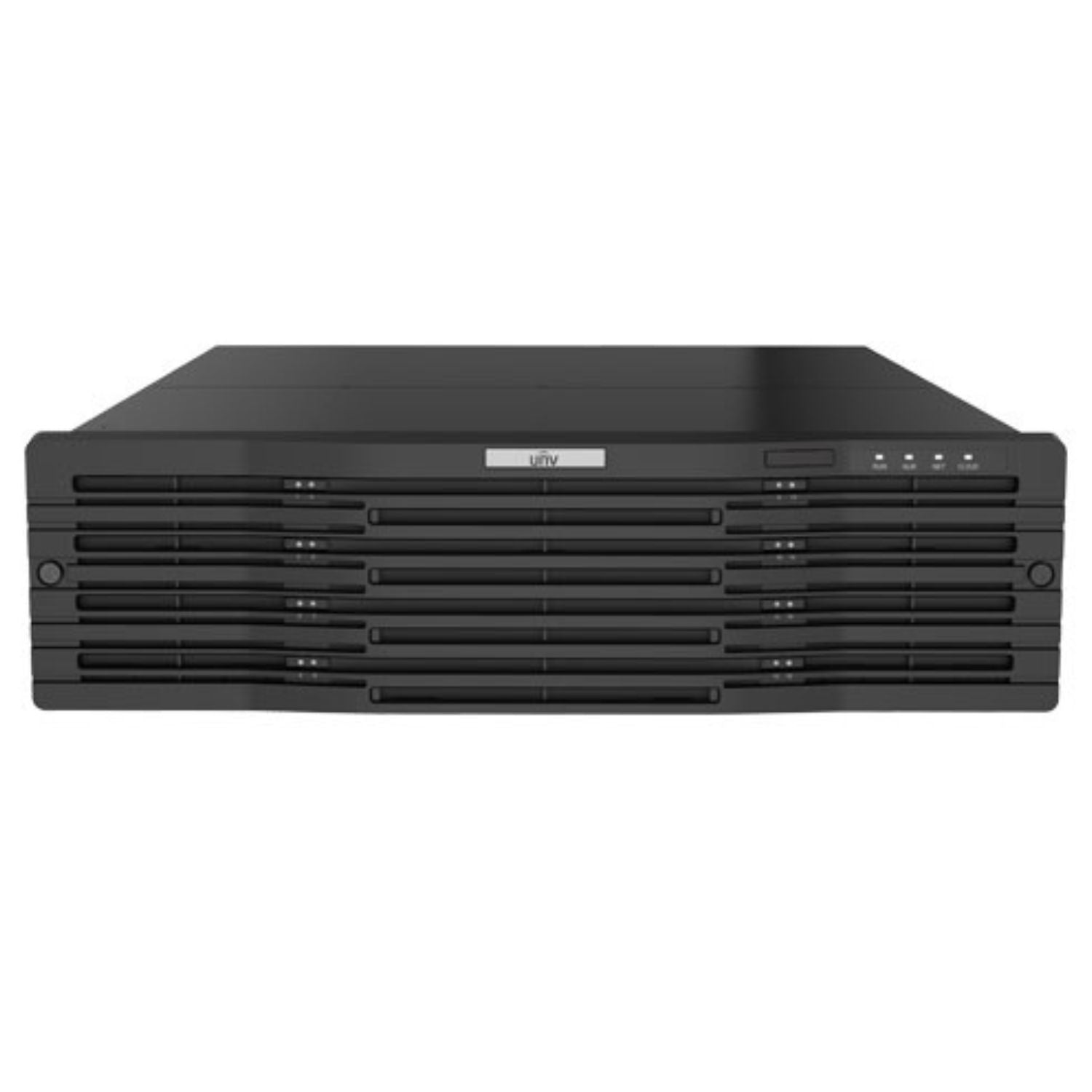

Uniview Network Video Recorder: 64 Channel 16 HDDs RAID NVR, Prime - NVR316-64R-B
| Model |
NVR316-32R-B |
NVR316-64R-B |
| Video/Audio Input |
| IP Video Input |
32-ch |
64-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
320Mbps |
| Outgoing Bandwidth |
320Mbps |
| Remote Users |
128 |
| Protocols |
SNMP,P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI1/VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI2:
4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
| Decoding |
| Decoding format |
Ultra 265, H.265, H.264 |
| Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF |
| Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| Hard Disk |
| SATA |
16 SATA interfaces |
| Capacity |
Up to 10TB for each HDD |
| eSATA |
1 eSATA interface |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |
| Disk Array |
| Array Type |
RAID 0, 1, 5, 6, 10,50,60 |
| External Interface |
| Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Serial Interface |
1 x RS232, 1 x RS485 |
| USB Interface |
Rear panel: 2 x USB2.0, 1 x USB3.0 |
| Alarm In |
16-ch |
| Alarm Out |
10-ch |
| General |
| Power Supply |
100~240 VAC
Power Consumption: ≤ 23 W(without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
482mm ×477mm ×131mm (18. 8" × 19.06"×5.2") |
| Weight (without HDD) |
≤ 8.19 Kg (18.1 lb) |
