| Category |
Specification |
| Models |

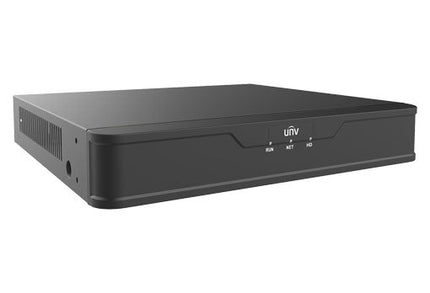

NVR501-04B-P4 (4-ch PoE)
NVR501-08B-P8 (8-ch PoE) |
| Video Compression |
Ultra 265, H.265, H.264 |
| IP Video Input |
4-ch (P4 model)
8-ch (P8 model) |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
64 Mbps |
| Supported Browsers |
Chrome 45+, Edge 79+, Firefox 52+, IE10/11 |
| Video Output |
HDMI: 4K(3840×2160)@30, 1080p@60/50, 1600×1200@60
VGA: 1080p@60, 1600×1200@60, 1280×1024@60 |
| Recording Resolution |
16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p |
| Decoding Capability |
Ultra 265/H.265:
2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30
H.264:
2×16MP, 2×12MP, 2×4K, 4×5MP, 6×4MP, 8×3MP |
| SATA |
1 × SATA port (Up to 8TB per HDD) |
| Audio |
1-ch RCA in, 1-ch RCA out, G.711A/U |
| Synchronous Playback |
4-ch (P4 model)
8-ch (P8 model) |
| PoE Interface |
4-ch model: 4× RJ45 PoE (50W total)
8-ch model: 8× RJ45 PoE (75W total) |
| PoE Standard |
IEEE 802.3af/at |
| Network Interface |
1× RJ45 (10/100M) |
| USB |
Rear: USB2.0 + USB3.0 |
| Smart VCA by Camera |
Intrusion, line crossing, enter/leave area, defocus, scene change, object left/removed, UMD, auto tracking |
| VCA Search |
Vehicle search, non-motor vehicle search, human body, people counting |
| General Alarms |
Motion, tampering, human detection, video loss, audio detection |
| System Alerts |
IP conflict, network disconnected, disk offline/abnormal, illegal access, disk full/low, recording error |
| Power Supply |
4-ch: 48V DC / 1.35A
8-ch: 52V DC / 1.8A
Power consumption ≤10W (no HDD) |
| Working Environment |
-10°C to +55°C, ≤90% RH (non-condensing) |
| Dimensions |
260 × 222 × 47 mm |
| Weight |
≤ 0.98 kg (without HDD) |
| Certifications |
CE, FCC, UL, RoHS, WEEE |
