Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.
Prime Series
It is unbelievable that you can always find ideal products in UNV Prime series which has more advanced functions to implement excellent performance. Prime series contains standard and enhanced cameras and NVRs which have a wide range of smart functions, resolutions and high-quality video content intelligent analysis. Various mainstream resolutions such as 2/4/5/8MP are available for whole series and can present different levels of image quality. VCA of recorders, including face detection, intrusion detection, and defocus detection, are able to improve management efficiency greatly. Therefore, products from Prime family are commonly used in commercial building, park, and small project application to effectively guarantee security.
Features
- Starlight illumination
- 33x optical zoom
- Accurate and fast focusing
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
- ONVIF Conformance
- IP67
- IK10
Datasheet
Videos
Tech Specs

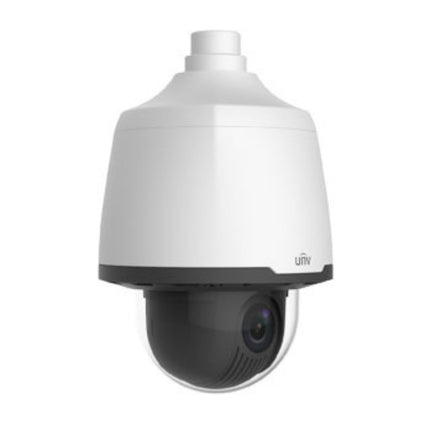

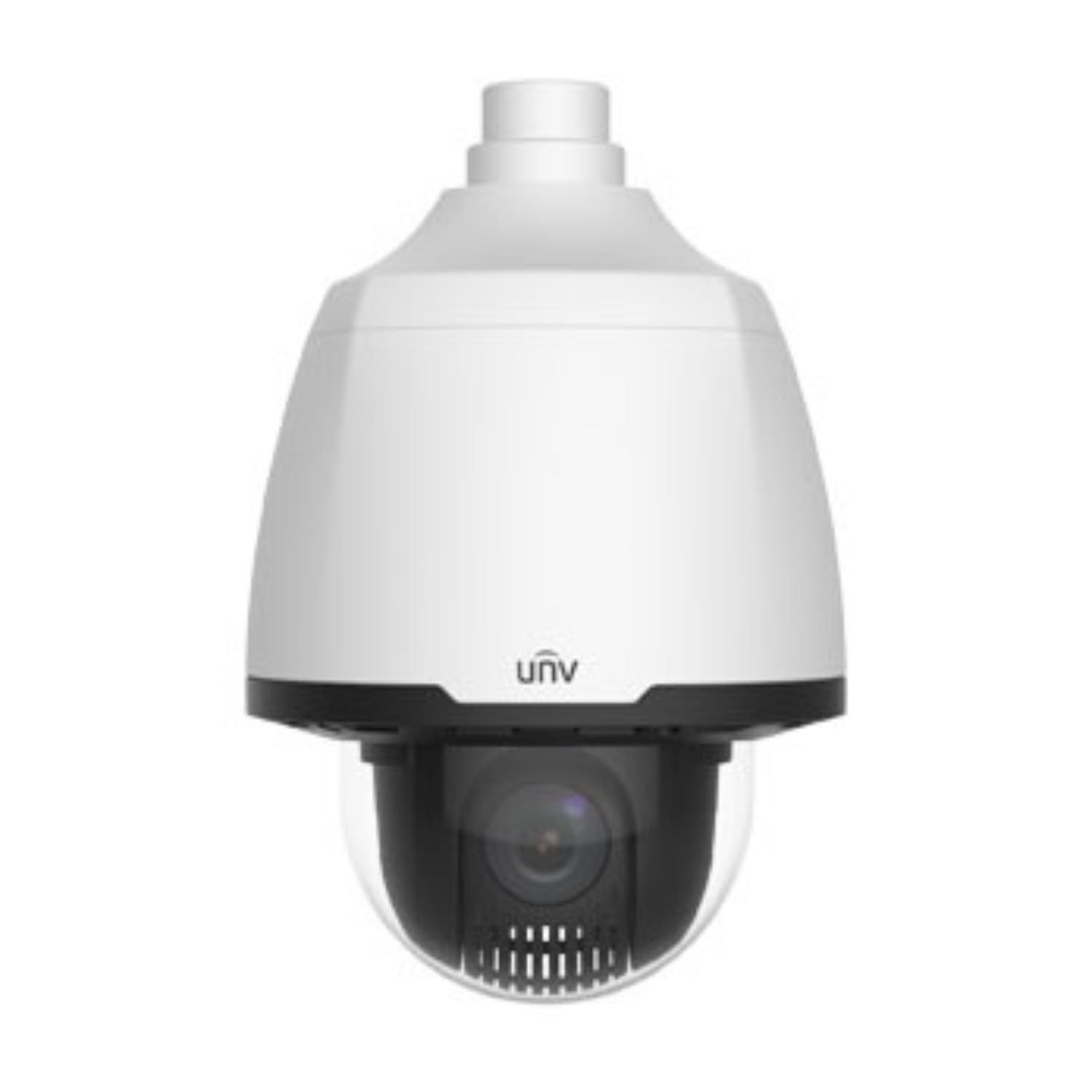

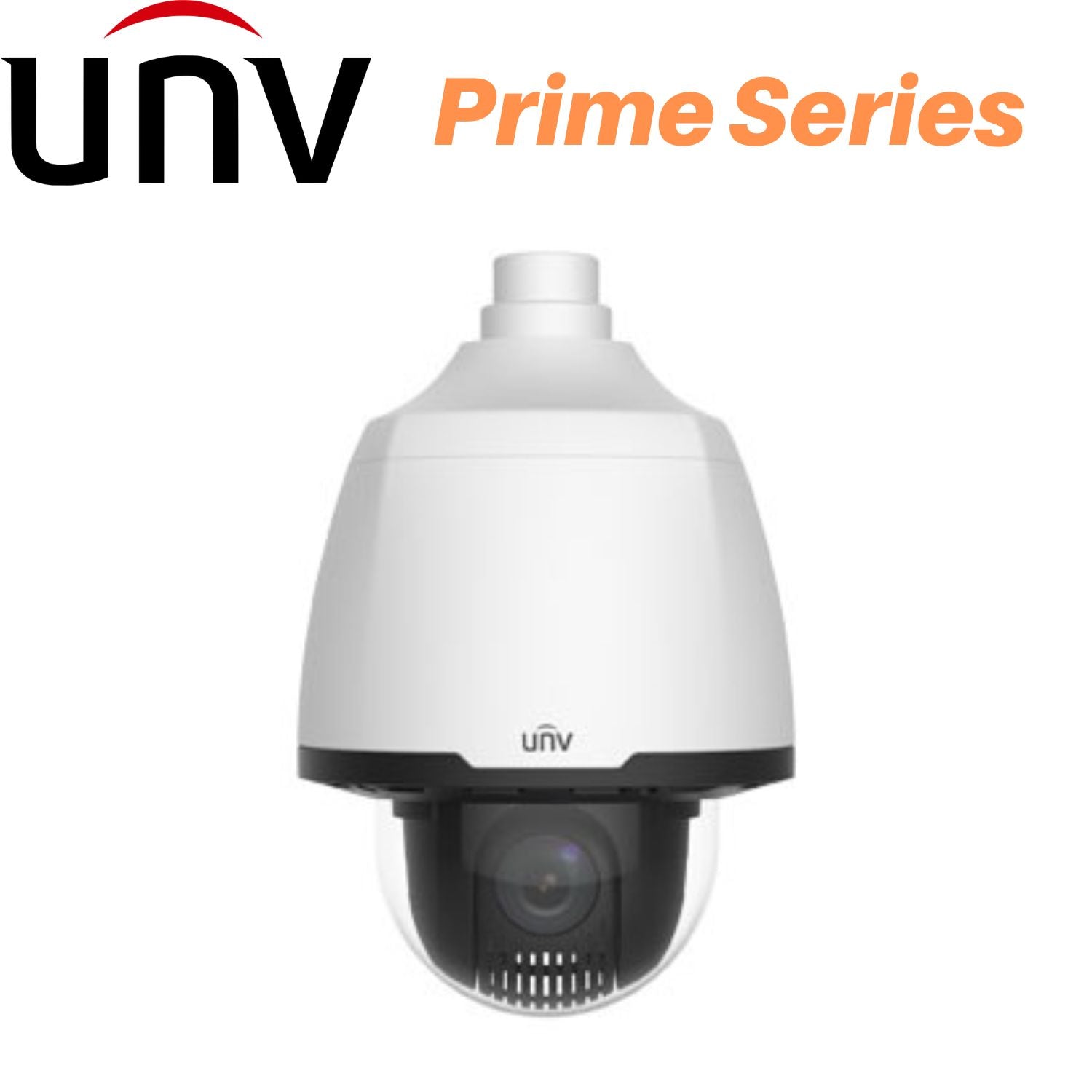

Uniview Security Camera: 2MP Dome PTZ, 4.5-148.5mm, Prime - IPC6222E-X33UP
| IPC6222E-X33UP |
| Camera |
| Sensor |
1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Lens |
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom |
16 |
| Optical Zoom |
33 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4.5 |
69.8 |
27.9 |
14 |
7 |
| 148.5 |
2094.8 |
837.9 |
419 |
209.5 |
| Angle of View (H) |
62.67° ~ 2.82° |
| Angle of View (V) |
38.4° ~ 1.3° |
| Angle of View (O) |
77.1° ~ 3.3° |
| Shutter |
Auto/Manual; shutter time: 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.001Lux (F1.5, AGC ON)
B/W: 0.0001Lux(F1.5, AGC ON) |
| Iris |
Auto; F1.5 ~ F4.0 |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>52dB |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Smart |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711 |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Pan & Tilt |
| Pan Range |
360° (endless) |
| Pan Speed |
2 °/s ~ 200°/s |
| Preset speed:400°/s |
| Tilt Range |
1° ~ 90° |
| Tilt Speed |
2° ~ 200°/s |
| Preset speed: 240°/s |
| Number of Presets |
1024 |
| Patrol |
Preset patrol, route patrol, recorded patrol |
| Home Position |
Supported |
| Interface |
| Audio I/O |
Audio cable |
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] |
| 1 Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
2/1 |
| Serial Port |
1 RS485 |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| General |
| Power |
AC 24V±25%, DC 24V±25%, PoE (IEEE 802.3at) |
| Power consumption: Max 16W |
| Dimensions (Ø x H) |
Φ218 × 298mm (Φ8.6” x 11.7”) |
| Weight |
4.2kg (9.3lb) |
| Working Environment |
-30°C ~ 70°C (-31°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
| Reset Button |
Supported |
