Description

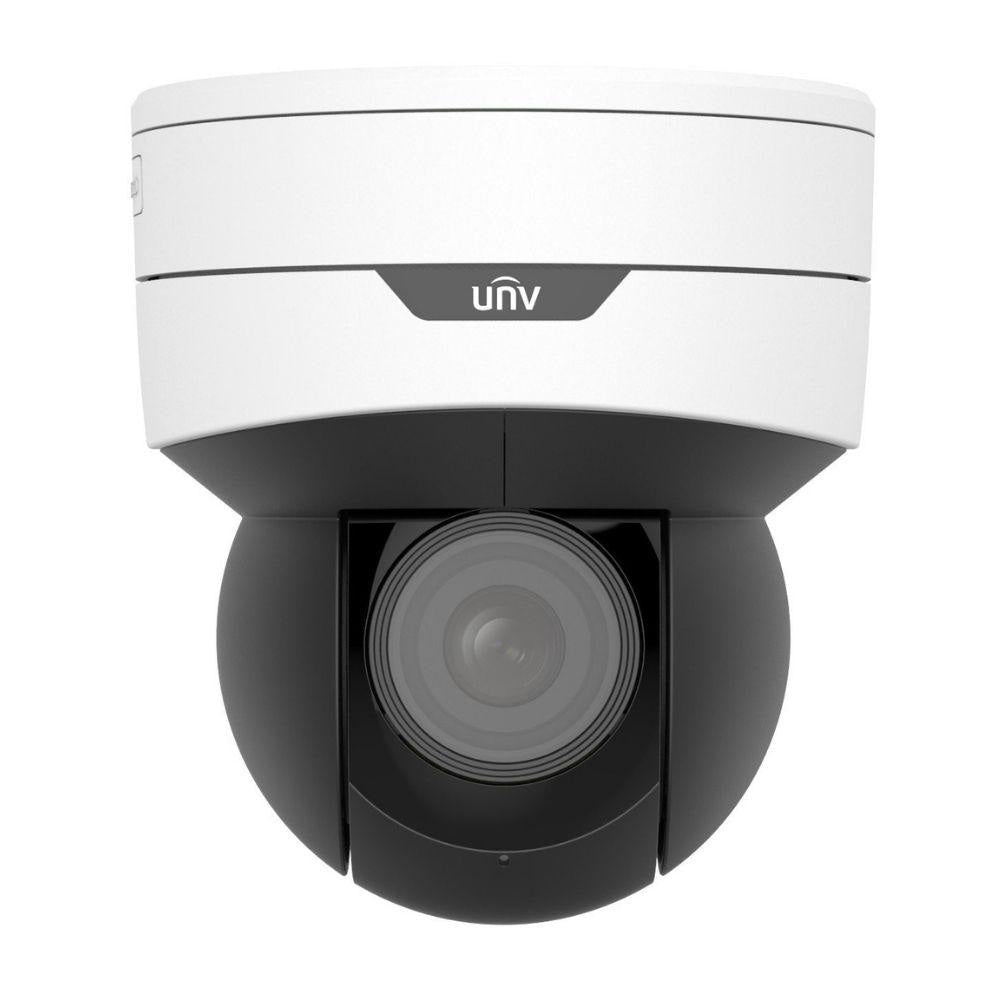

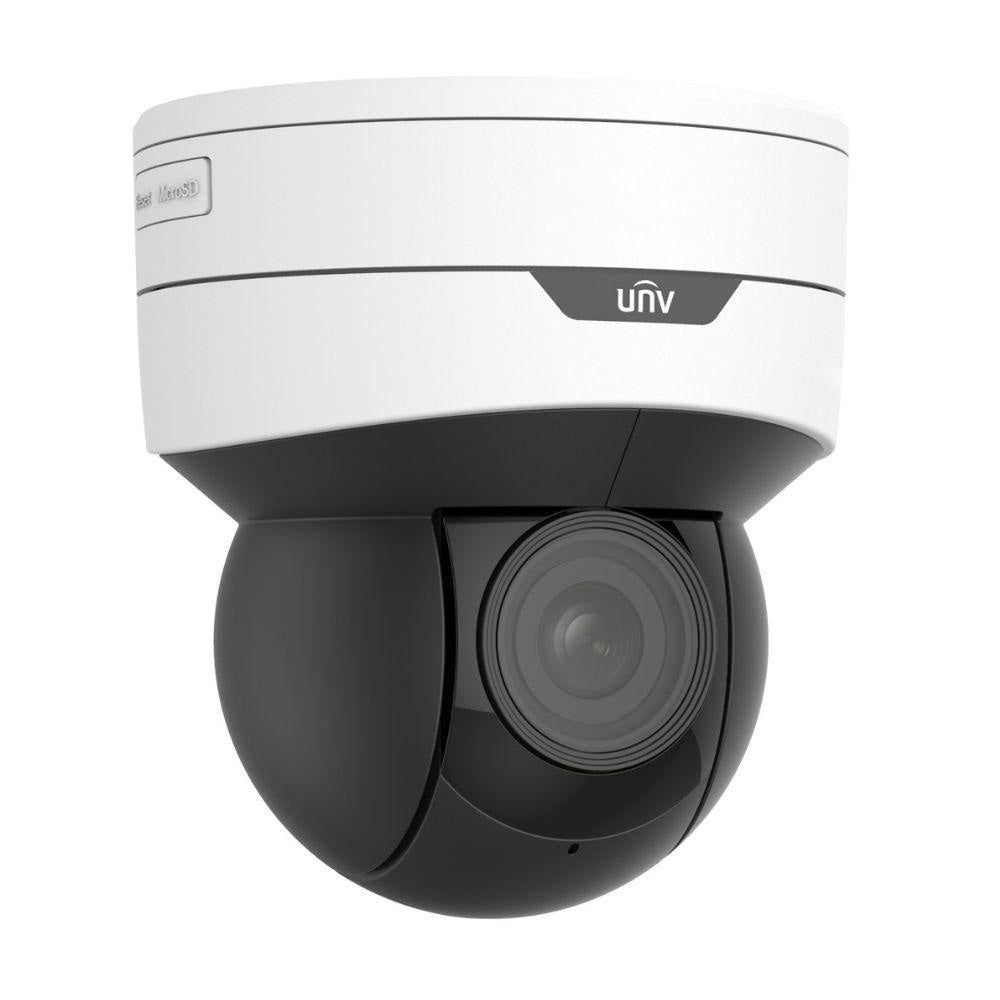

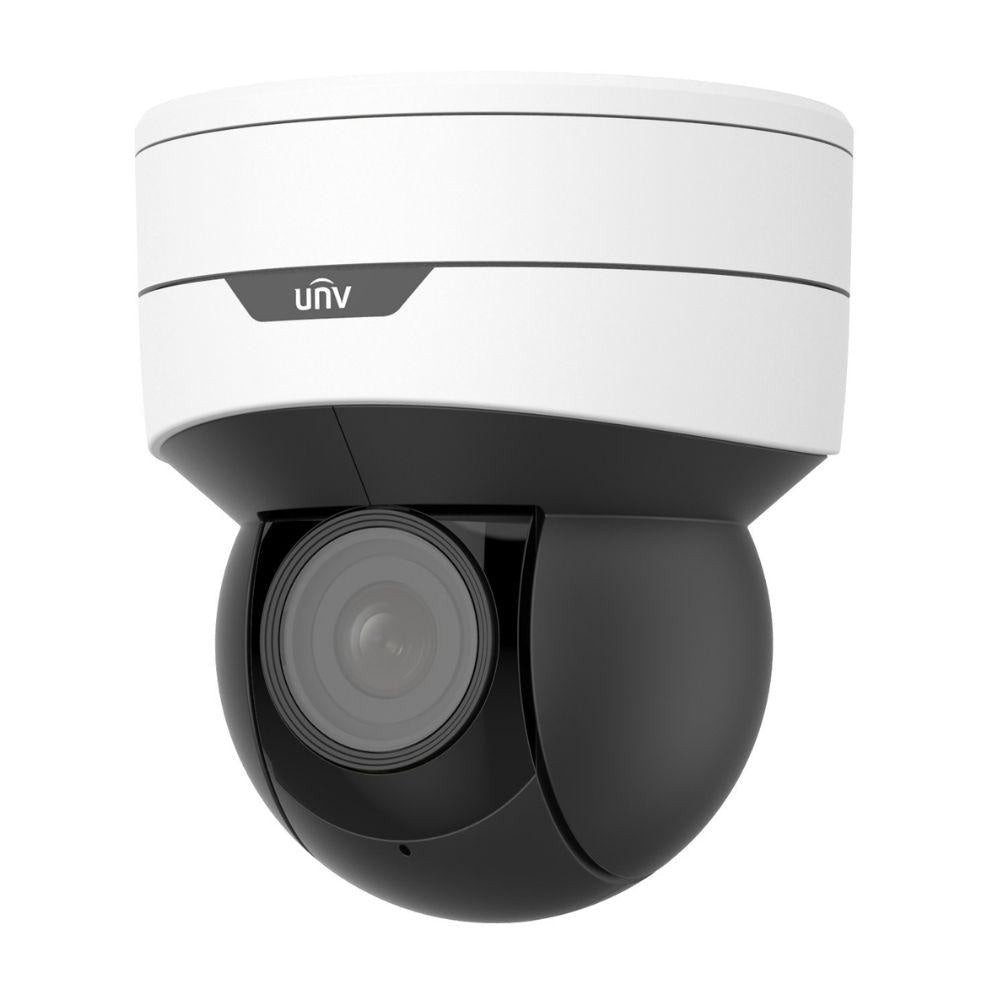

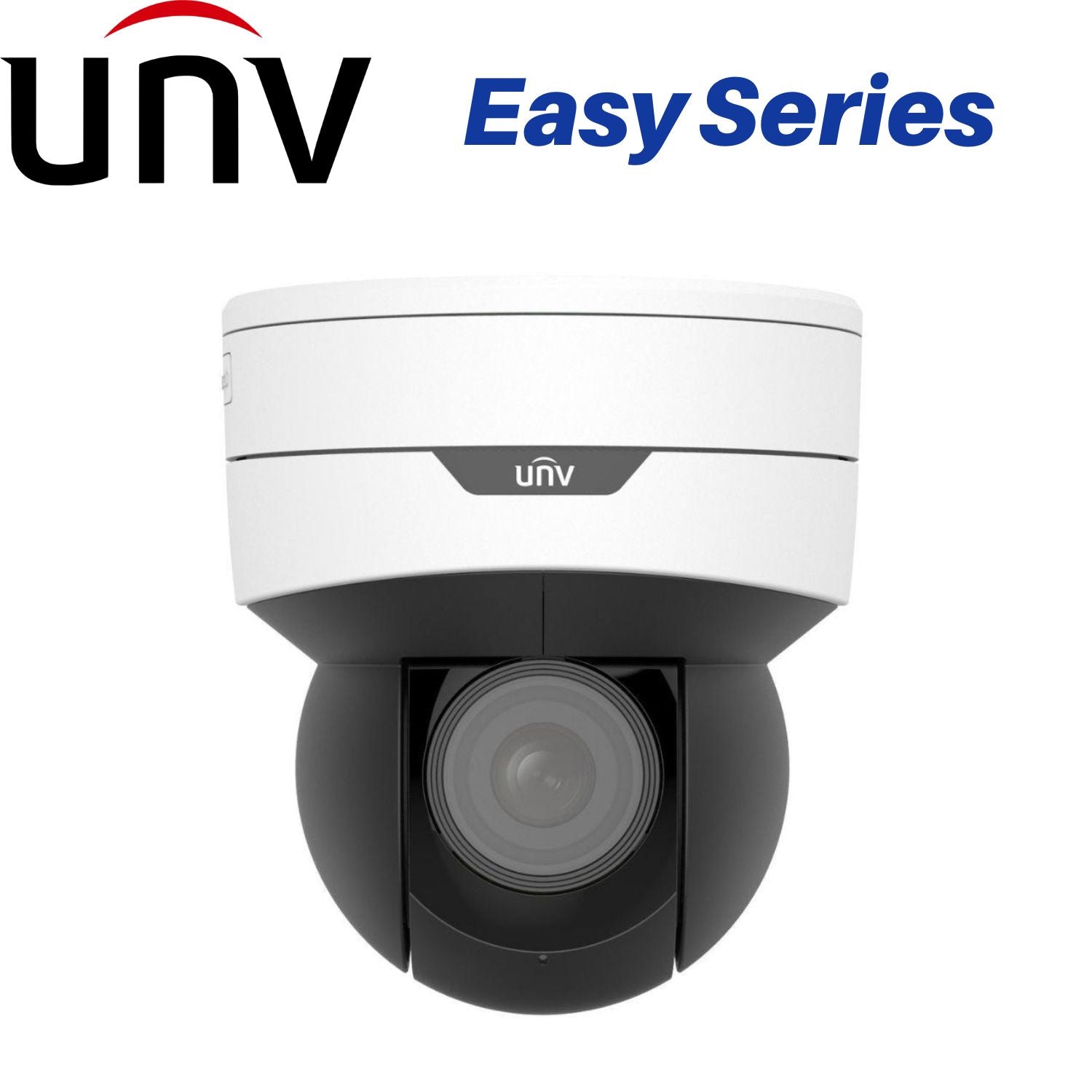

The Uniview IPC6412LR-X5P is a mini indoor PTZ camera with 2MP resolution for Full HD clarity. It has a motorised 5X optical zoom lens with a focal range of 2.7mm to 13.5mm. The camera has a pan range 0 - 350 degrees, tilt 0 - 90 degrees. It supports 30m distance infrared range and is designed with a higher light transmittance and anti-reflection glass.

FEATURES

2MP Full HD Resolution, 1/2.9",progressive scan,CMOS
1920×1080 resolution,30fps
Pan range 0° ~ 350°, Tilt Range 0° ~ 90°
Supports Home Position and up to 1024 Presets
Optical 5X Zoom 2.7~13.5mmAF automatic focusing and motorised zoom lens
Ultra 265,H.265, H.264, MJPEG
Smart Infrared, up to 30m IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR, ROI, WDR
Supports micro SD card
DC12V, Wide voltage range of ±25%,PoE, Operating Temperature –10°C ~ +50°C
Built In Mic
WARRANTY: 3 years back-to-base manufacturer warranty

Tech Specs

Uniview Security Camera: 2MP Mini PTZ Dome - IPC6412LR3-X5P

Camera
Sensor	1/2.9" progressive scan, 2.0 megapixel, CMOS
Lens	2.7~13.5mm?AF automatic focusing and motorized zoom lens
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)	Identify(m)
	2.7mm	43.4	17.4	8.7	4.3
	13.5mm	217	86.8	43.4	21.7
Angle of View (H)	29.1°~104.3°
Angle of View (V)	16°~55.1°
Angle of View (O)	34.5°~142.9°
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination	Colour: 0.03 lux (F1.2,AGC ON) 0 lux with IR
Iris	F1.2
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52 dB
IR Range	UP to 30m (98ft)
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:1080P (1920×1080):Max. 30 fps; Sub Stream:720P (1920×1080):Max. 30 fps; Third Stream: CIF (352×288): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range	0° ~ 350°
Pan Speed	0.1°/s ~ 60°/s
	Preset speed: 60°/s
Tilt Range	0° ~ 90°
Tilt Speed	0.1° ~ 50°/s
	Preset speed: 50°/s
Number of Presets	1024
Home Position	Supported
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
General
Power	DC 12V±25%, PoE (IEEE802.3 af)
	Power consumption: Max 12W
Dimensions (Ø x H)	?129mm×143mm(?5.07” x5.63”)
Weight	0.75kg(1.65lb)
Working Environment	–10°C ~ +50°C (14°F ~ 122°F), Humidity:?95% RH(non-condensing)
Reset Button	Supported
