Description

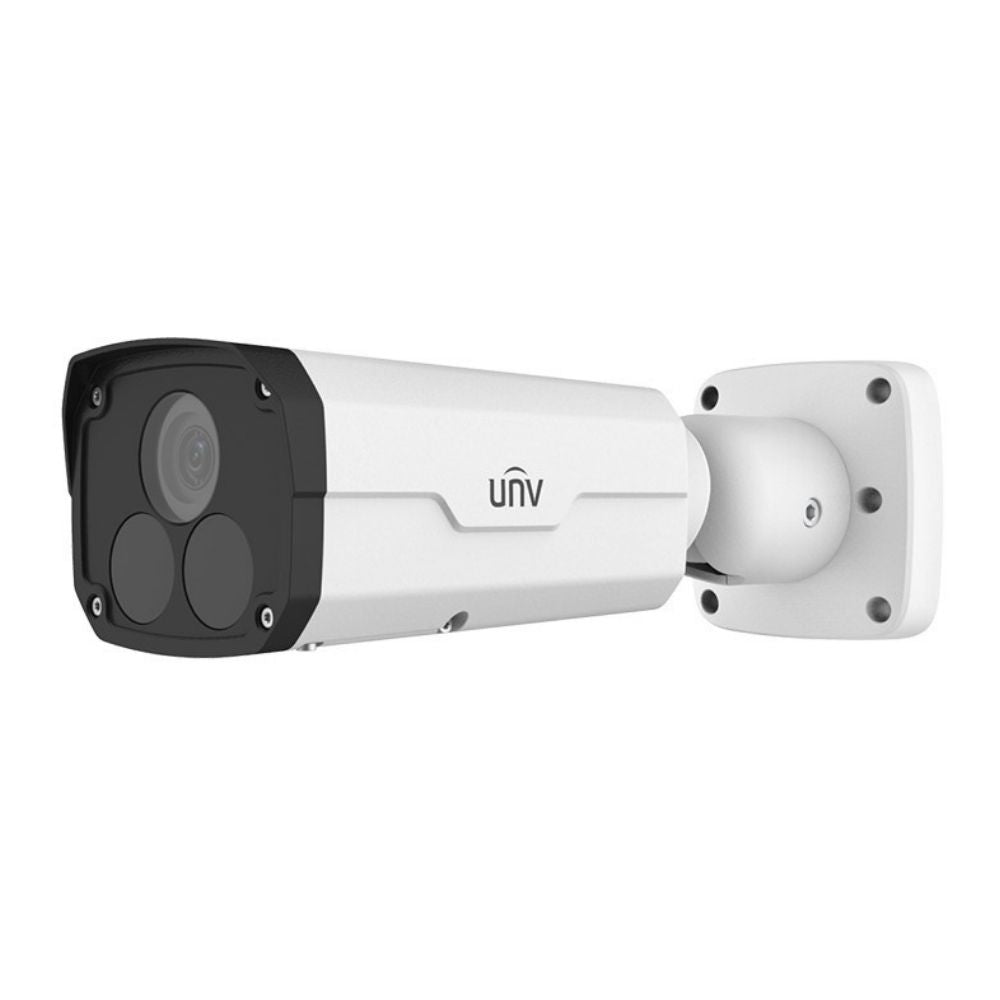

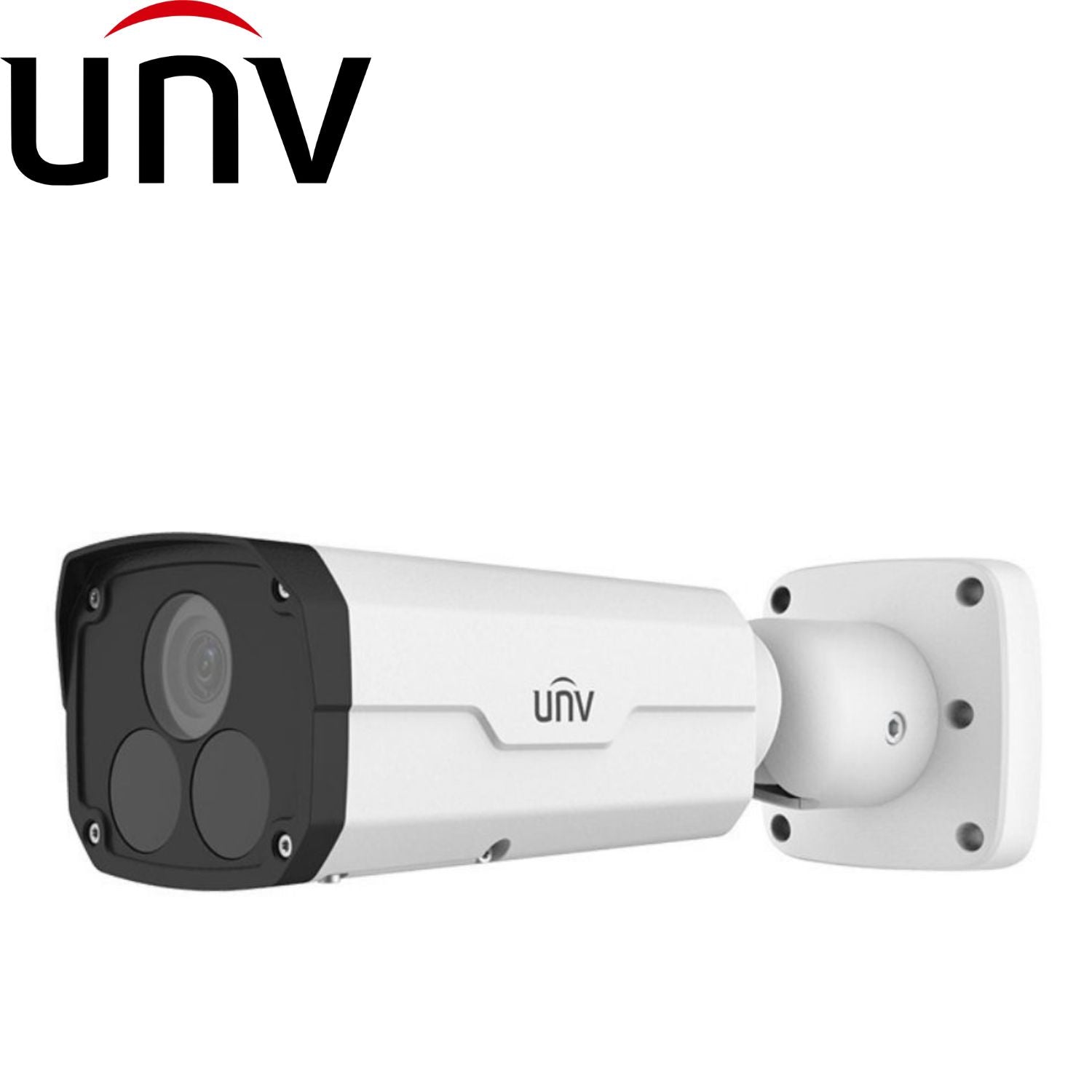

The Uniview IPC2222SR5-UPF40-B comes equipped with a 2MP Starlight Bullet Camera. It features a Starlight Illumination technology that allows clear and crisp recording under very low light conditions, ideal for indoor and outdoor 24/7 monitoring. The Ultra 265 video compression technology significantly reduces storage consumption. It also comes with a No-Hassle, No Worry, 3 Years back-to-base Manufacturer Warranty.

Features

2 Megapixel 1080p Full HD Bullet, 1/2.9" Progressive Scan CMOS Sensor, 4.0mm @ F1.6 Fixed Lens.
Starlight Illumination and Enhanced Sensor for color recording in very low light conditions - 0.003Lux.
Digital Wide Dynamic Range 120dB, 2D/3D DNR Noise Reduction, Digital Defog.
Smart Features: Intrusion, Cross Line, Motion Detection, Face Detection, Audio Detection, and more. ONVIF Conformance.
Micro SD, up to 128 GB. ANR Network Storage.
Smart Infrared technology, 50m IR distance. Day/night functionality.
Video compression Ultra 265, H.265, H.264, MJPEG - Triple streams - Embedded Smart Algorithm.
Support Power Over Ethernet power supply with a wide voltage range of ±25%
Capable of 24/7 Live View from anywhere via smartphones using the EZView app.
Wide temperature range: -35°C ~ +60°C (-31°F ~ 140°F)
Durable and Weather Resistant - IP67 Rating.
WARRANTY: 3 Years back-to-base Manufacturer Warranty.

More Info

Optics

Starlight illumination
Day/night functionality
Smart IR , up to 50 m (164 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Compression

Ultra265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67

Tech Specs

Camera
Sensor	1/2.9", progressive scan,2.0 megapixel, CMOS
Lens	4.0mm@F1.6
DORI Distance	Lens: 4mm Detect(m): 64.3 Observe(m): 25.7 Recognize(m): 12.9 Identify(m): 6.4
Angle of View(H)	82.0°
Angle of View (V)	41.4
Angle of View (O)	100.9
Adjustmentangle	Pan: 0°~360° Tilt:0°~90° Rotate:0°~360°
Shutter	Auto/Manual, 1/6~1/100000 s
Minimum Illumination	Colour: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 50m (164ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra265, H.265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor Mode	Supported
ROI	Supported
HLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection?Audio detection
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SSL, TLS
Compatible Integration	ONVIF(Profile S, Profile G), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 9 W
Dimensions (L × W × H)	253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
Weight	0.58kg (1.28lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP67
