Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

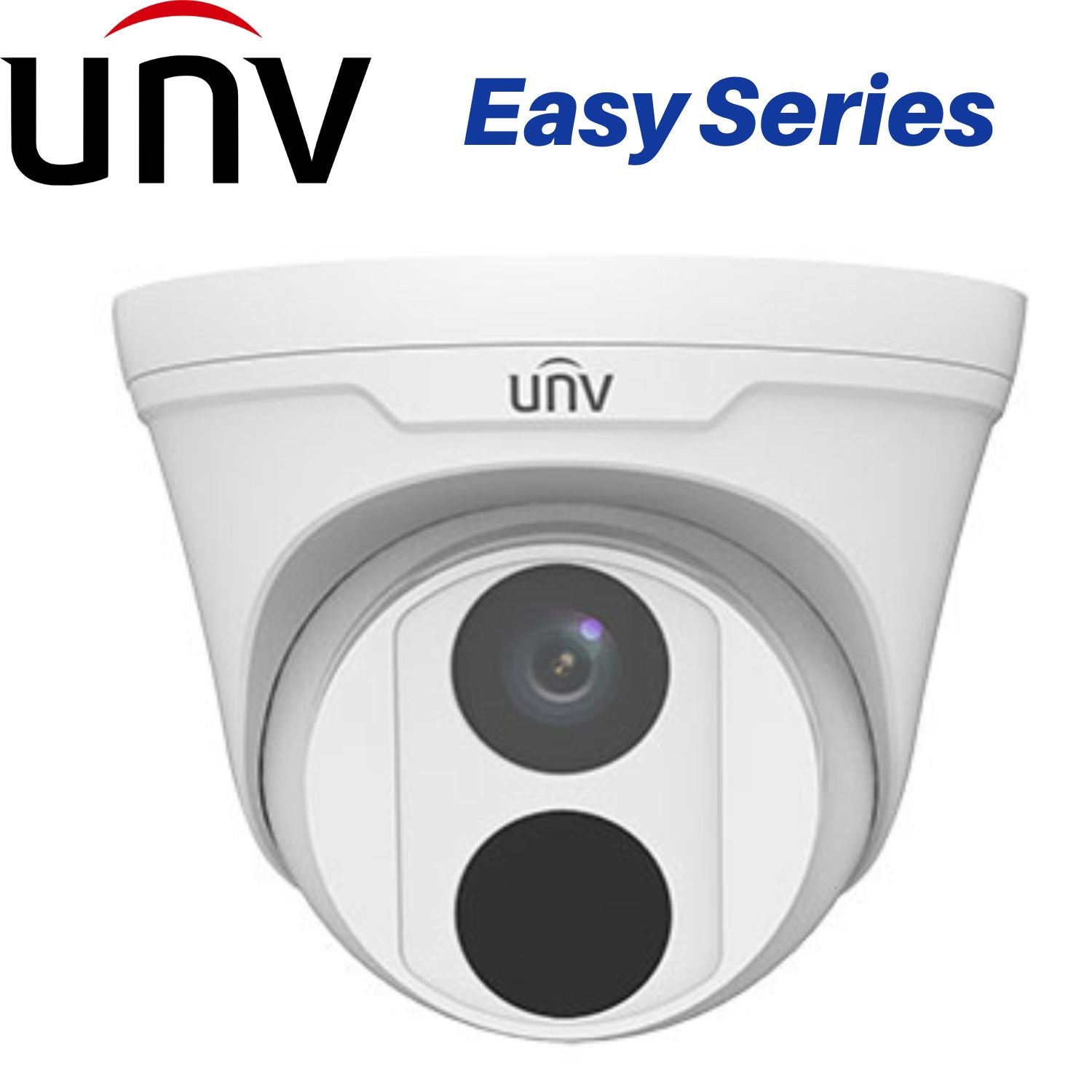

Easy Series
Products from Easy series are most popular choices for entry-level applications such as retail. L series IP cameras, B series NVRs, Ultra 265 PoE kits and Navigator PTZ dome cameras are included. All of them are featured with Ultra 265 compression technology which is exclusively released by Uniview. In addition, they provide excellent performance with affordable price. Meanwhile, Easy series are easy to install and maintain, hence can be utilized anywhere. Easy family products are most cost-effective options for a residence and small business application.
Features
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Datasheet
Videos
Tech Specs

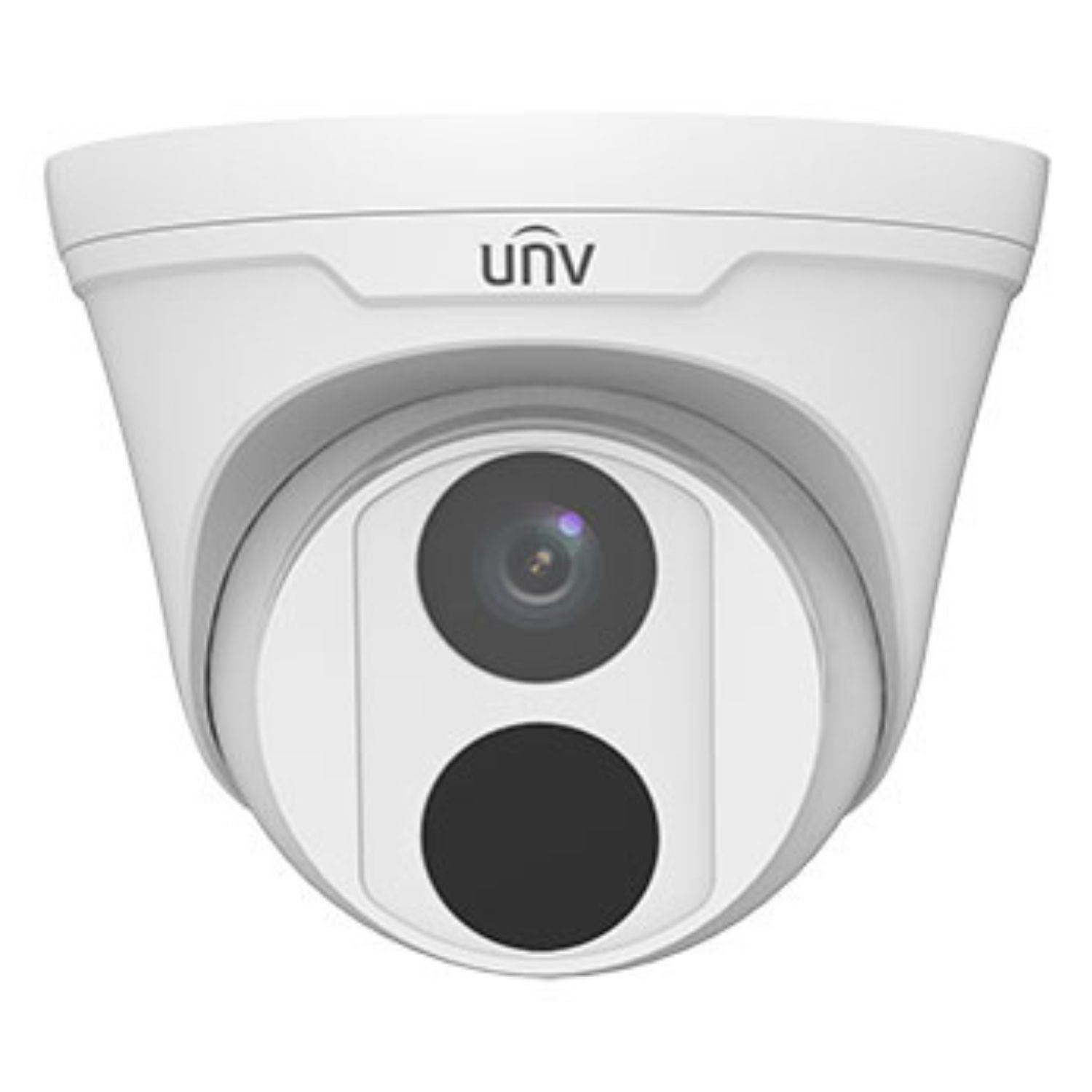

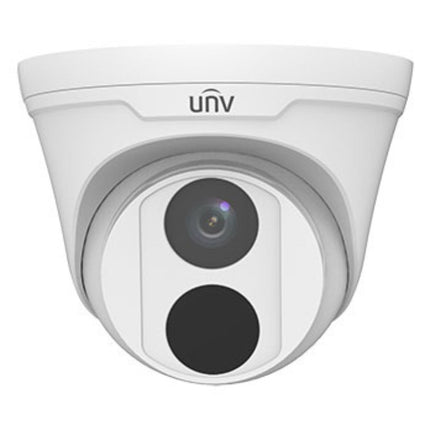

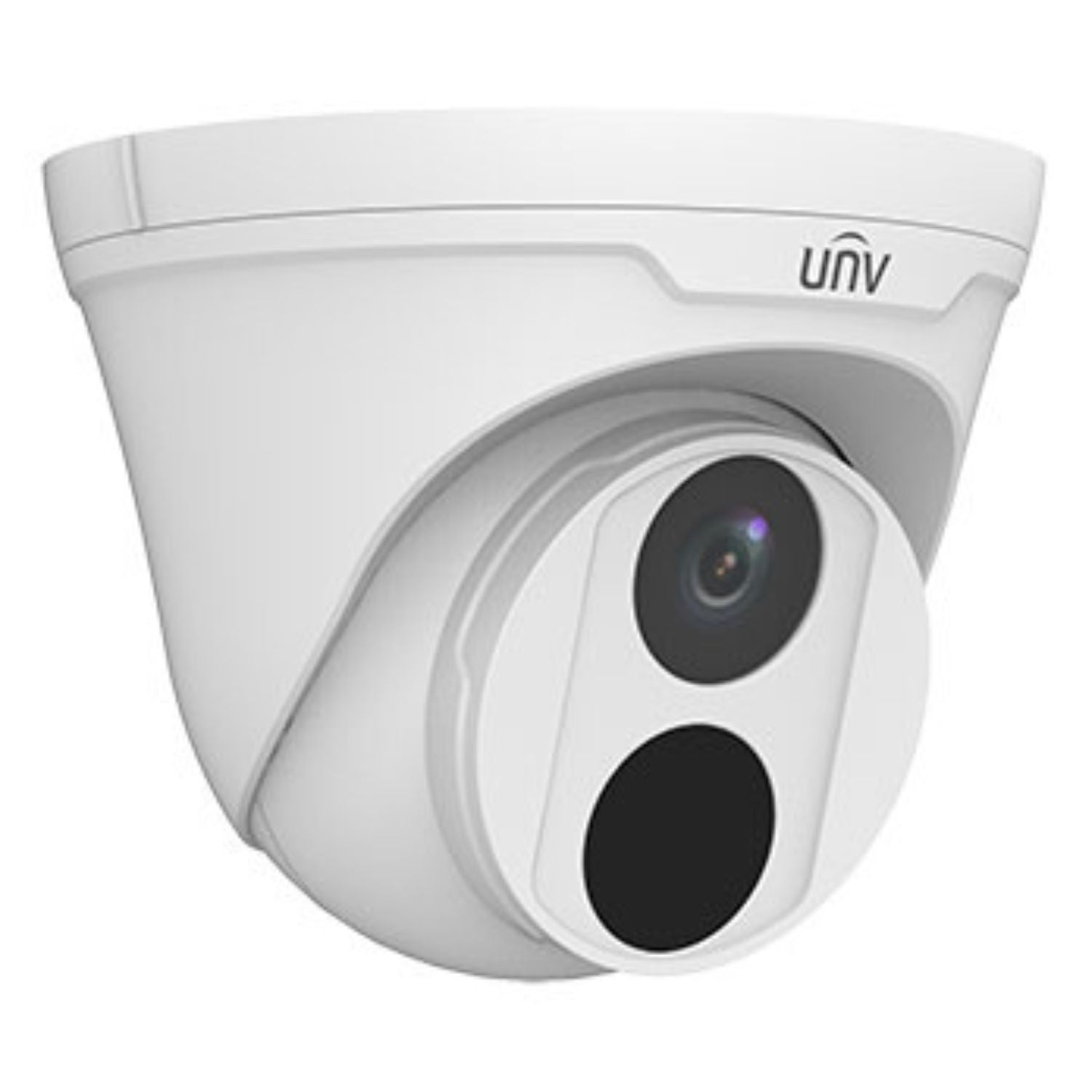

Uniview Security Camera: 3MP Turret, 2.8mm, Easy - IPC3613LR3-PF28-F
| |
IPC3613LR3-PF28-F |
IPC3613LR3-PF40-F |
| Camera |
| Sensor |
1/2.7", 3.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
50.4 |
20.2 |
10.1 |
5.0 |
| 4.0 |
72 |
28.8 |
14.4 |
7.2 |
| Angle of view (H) |
113.1° |
86.9° |
| Angle of View (V) |
60.6° |
44.5° |
| Angle of View (O) |
139.1° |
106.9° |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 80° |
Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>52dB |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264 |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 4CIF (704*576), Max 20fps |
| Video Bit Rate |
128 Kbps~6 Mbps |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
NA |
| HLC |
Supported |
| BLC |
Supported |
| Network |
| Protocols |
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration |
ONVIF (Profile S, Profile T), API |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| Certifications |
| Certifications |
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4W |
| Dimensions (Ø x H) |
Φ118 x 96mm (Φ4.6” x 3.8”) |
| Net Weight |
0.3kg (0.66lb) |
| Material |
Metal + Plastic |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
3-Years Warranty
Uniview 3-Years Manufacturer Warranty!
Our Uniview products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!
✔️ Authorised Uniview Dealer!
✔️ Australian Stock, No Grey Imports!
✔️ 3-Years Manufacturer Warranty!
Uniview offers a 2-year manufacturer warranty and SpyMonkey offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SpyMonkey will repair or replace the faulty product at no cost.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SpyMonkey will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.
Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.
We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.
You can contact us by email at support@SpyMonkey.com.au or phone on 1300 049 519.
