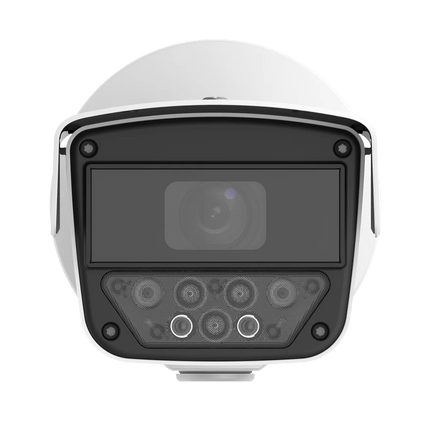

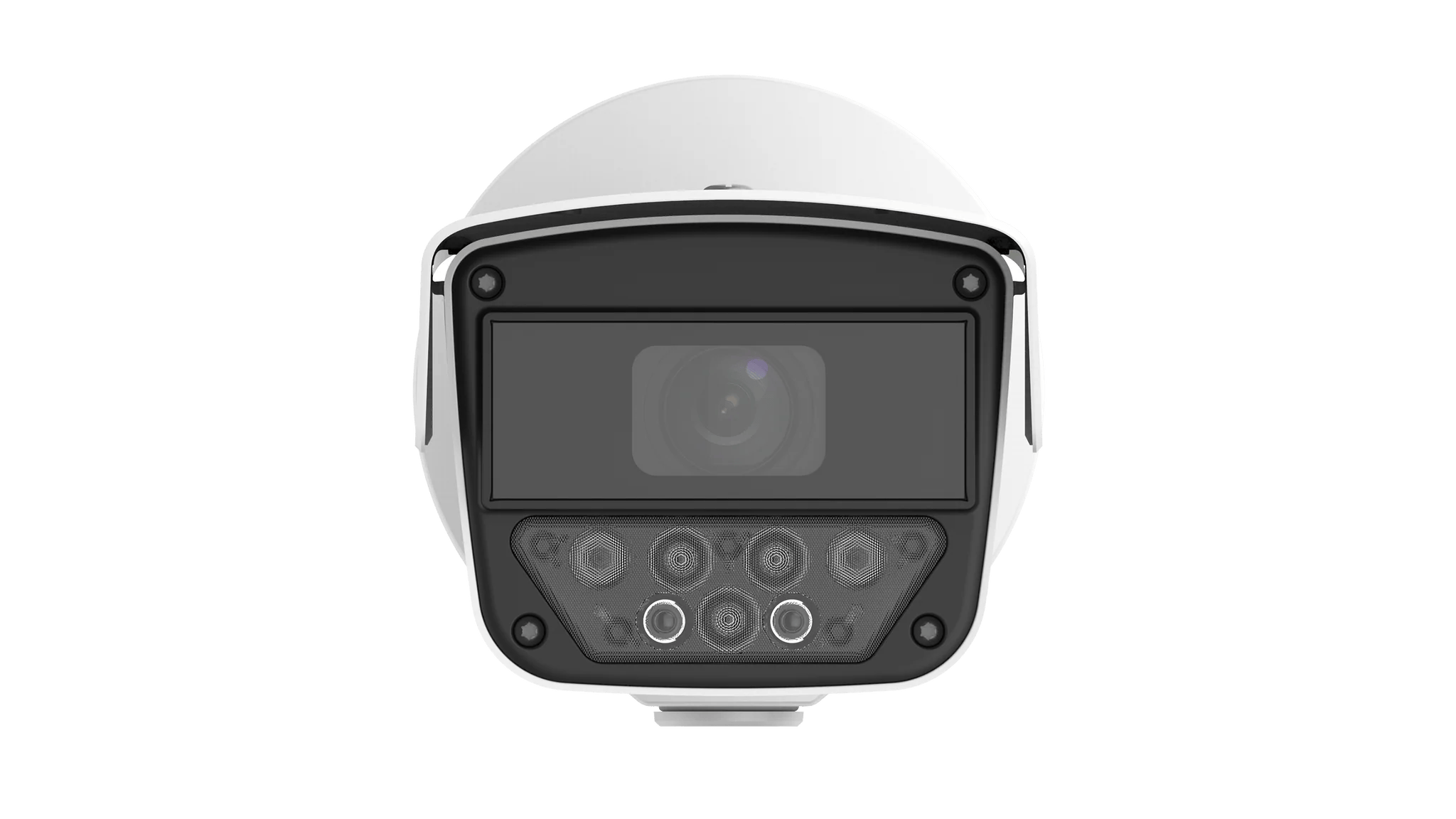

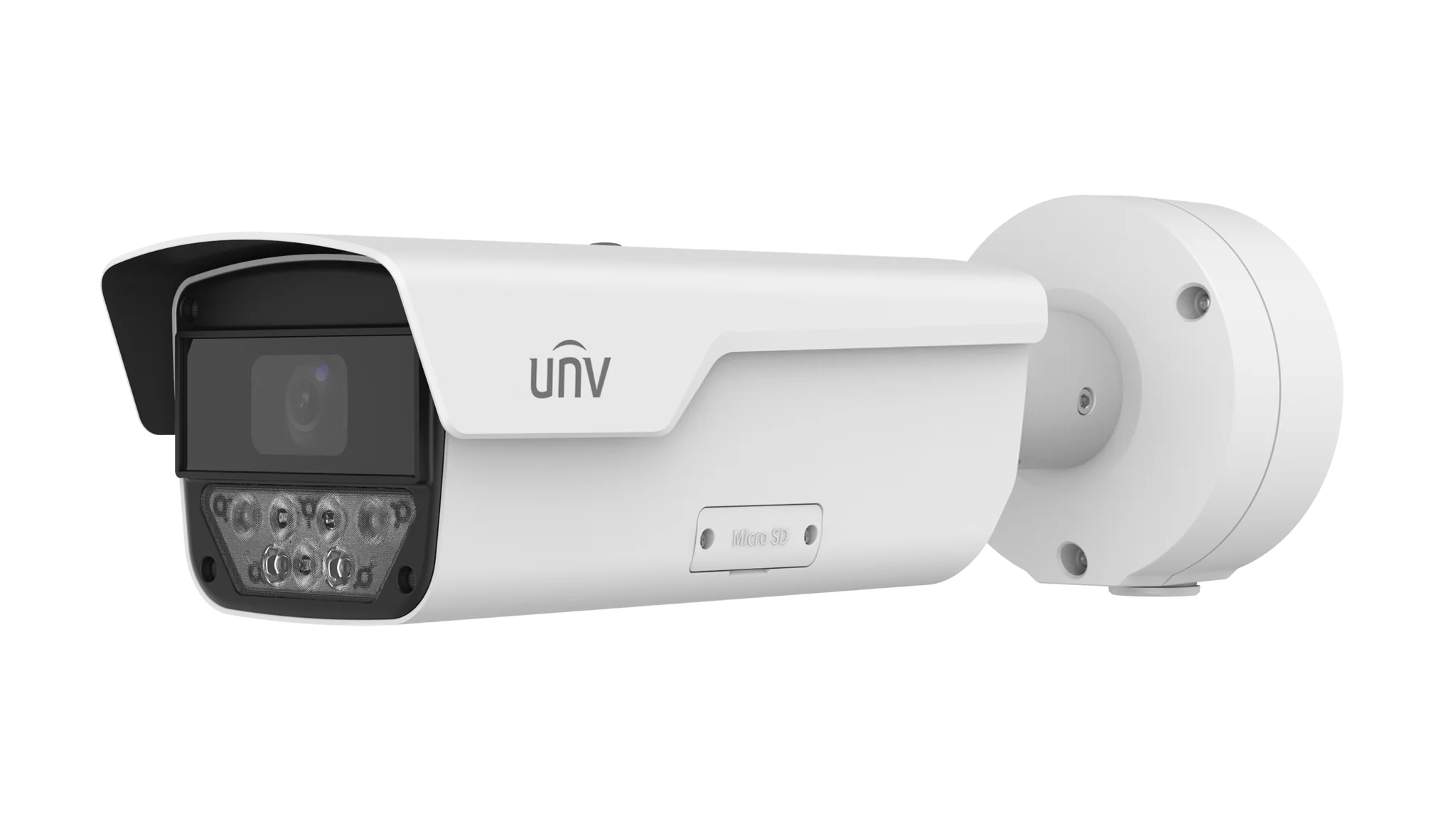

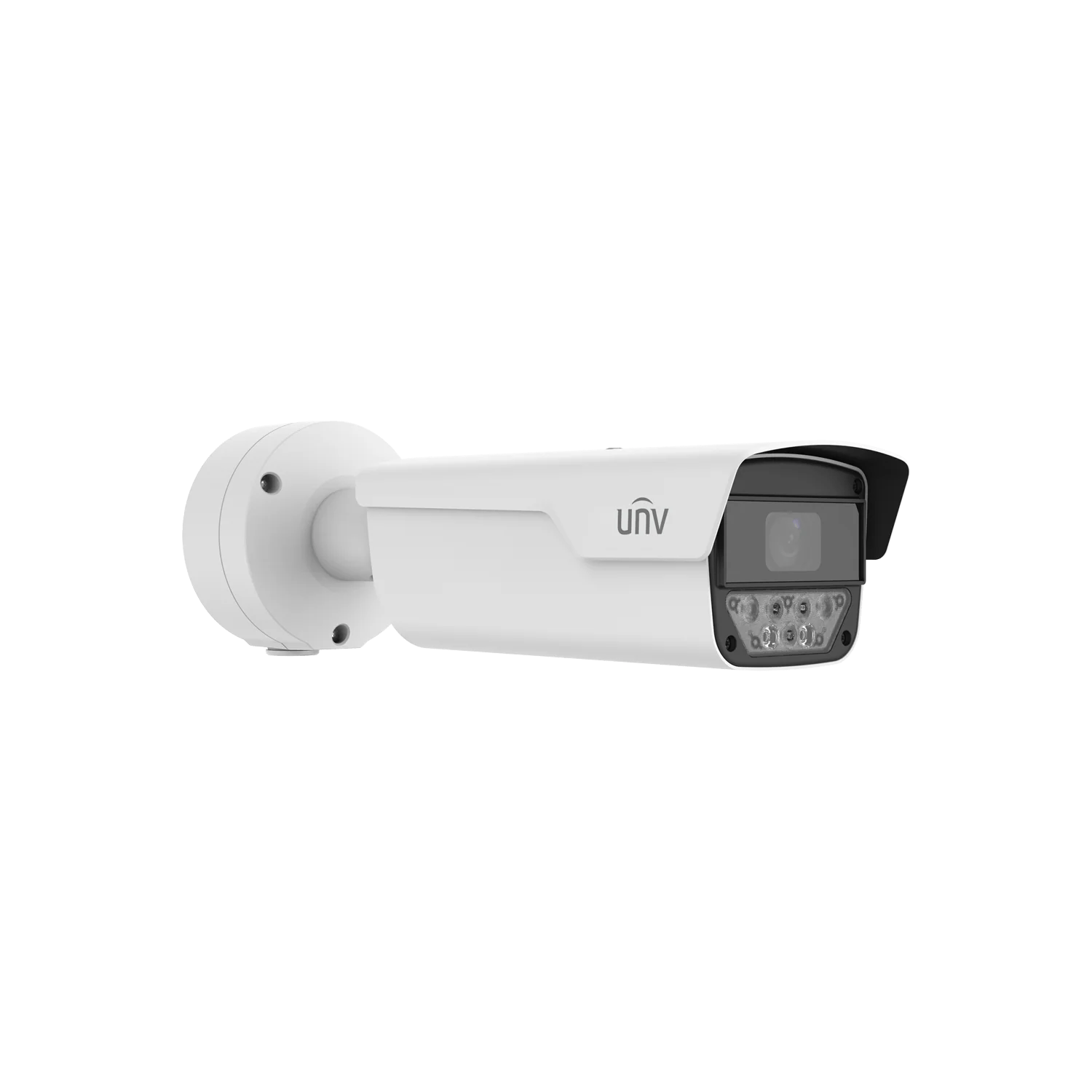

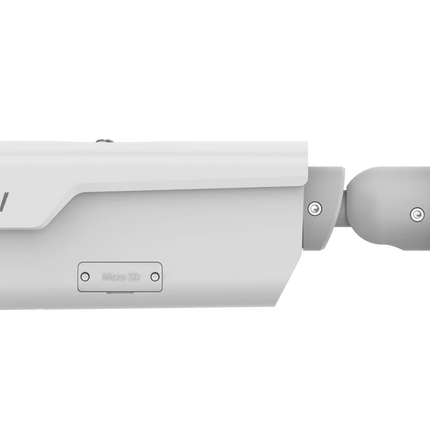

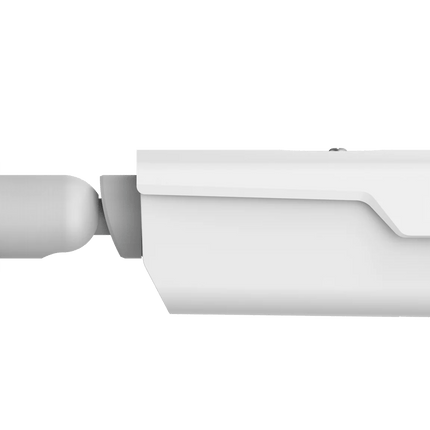

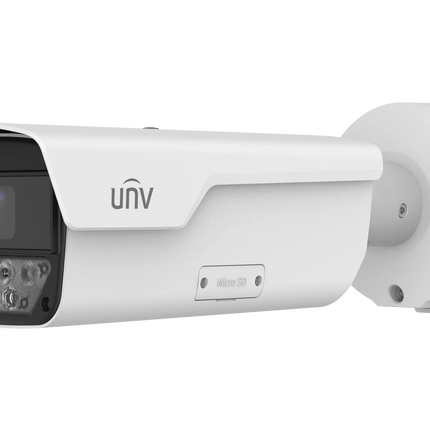

PKC2641-Z80-IR-P is a high-performance 4MP LPR Bullet Camera with PoE and IR, engineered for accurate license plate recognition, advanced AI vehicle detection, and reliable outdoor surveillance. Equipped with a 1/1.8" CMOS sensor, built-in IR LEDs for 50 m illumination, Wise-ISP for enhanced image quality, and durable IP67/IK10 protection, this camera ensures superior detail in both day and night conditions.
Key Features
-
High-Quality 4MP Imaging – Delivers 2688 × 1520 resolution at up to 60 fps for clear, detailed footage suitable for evidence and monitoring.
-
1/1.8" CMOS Sensor – Progressive scan sensor produces high-fidelity images with strong performance across varying light conditions.
-
Wise-ISP Image Enhancement – Automatic gain, white balance, WDR, and defog ensure clear images in diverse lighting conditions.
-
Built-in IR LEDs (50 m) – Provides automatic on/off illumination for clear night-time license plate recognition.
-
Advanced AI-Based Vehicle & Plate Recognition – Recognizes license plates from multiple countries and supports allowlist/blocklist configuration.
-
Smart Video Detection – Supports vehicle detection, barrier control, and configurable Boolean outputs to enhance road or entrance monitoring.
-
Edge Storage: microSD up to 512 GB – Ensures uninterrupted recording and ANR support.
-
IP67/IK10 Protection – Reliable operation under dust, rain, and harsh outdoor environments.
Perfect For:
- Toll booths, parking entrances, and road monitoring
- Vehicle and license plate recognition systems
- Industrial and commercial perimeter monitoring
- Road entrances and exits requiring automated barrier control
- Environments needing high-resolution evidential recording
Installer Tips
-
Use PoE for Easy Setup: Power and data run through one cable, making installation cleaner and faster.
-
Proper Placement: Mount at entrances or road points for optimal license plate detection.
-
IR Adjustment: Ensure proper IR intensity for clear night capture without overexposure.
-
Angle for Detection: Adjust horizontal and vertical angles to maximize plate capture efficiency.
-
Secure Cable Management: Use junction boxes to protect connections from weather exposure.
Downloads
Quick-Read Specs
| Category |
Specification |
| Model |
PKC2641-Z80-IR-P |
| Max Resolution |
4 MP (2688 × 1520) |
| Sensor |
1/1.8" CMOS, progressive scan |
| Minimum Illumination |
0.0005 Lux (F1.4, Color), 0 Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Lens |
8 to 32 mm |
| Video Compression |
H.265/H.264 |
| WDR |
120 dB |
| Network Interface |
1 × 10/100 Mbps RJ45, PoE support |
| Edge Storage |
Micro SD up to 512 GB |
| Ingress Protection |
IP67, IK10 |
| Operating Temperature |
-40℃ to 60℃, ≤90% RH |
| Power Supply |
DC12V ±25%, PoE 802.3at class 4, max 20W |
