Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

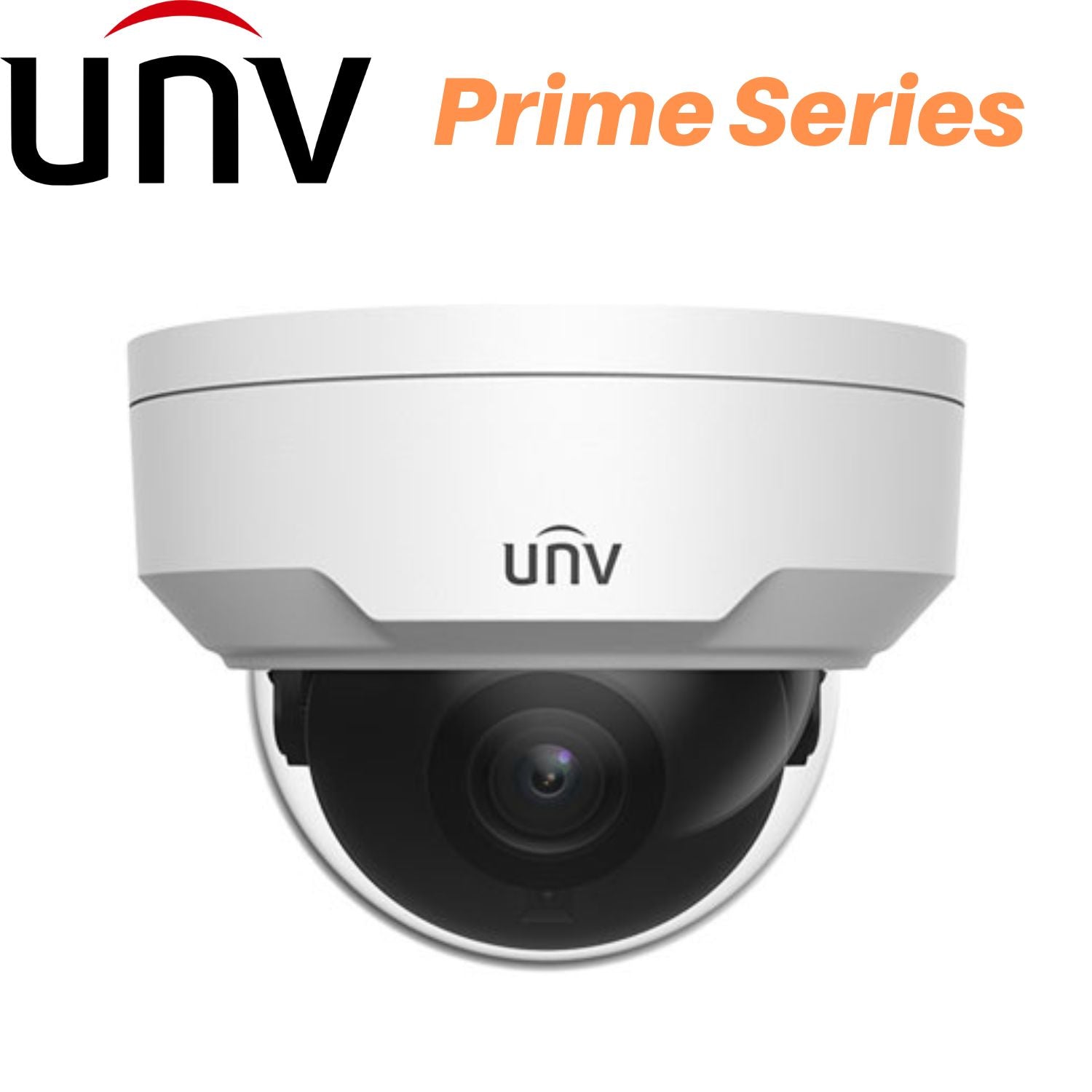

Prime Series
It is unbelievable that you can always find ideal products in UNV Prime series which has more advanced functions to implement excellent performance. Prime series contains standard and enhanced cameras and NVRs which have a wide range of smart functions, resolutions and high-quality video content intelligent analysis. Various mainstream resolutions such as 2/4/5/8MP are available for whole series and can present different levels of image quality. VCA of recorders, including face detection, intrusion detection, and defocus detection, are able to improve management efficiency greatly. Therefore, products from Prime family are commonly used in commercial building, park, and small project application to effectively guarantee security.
Features
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Datasheet
Videos
Tech Specs

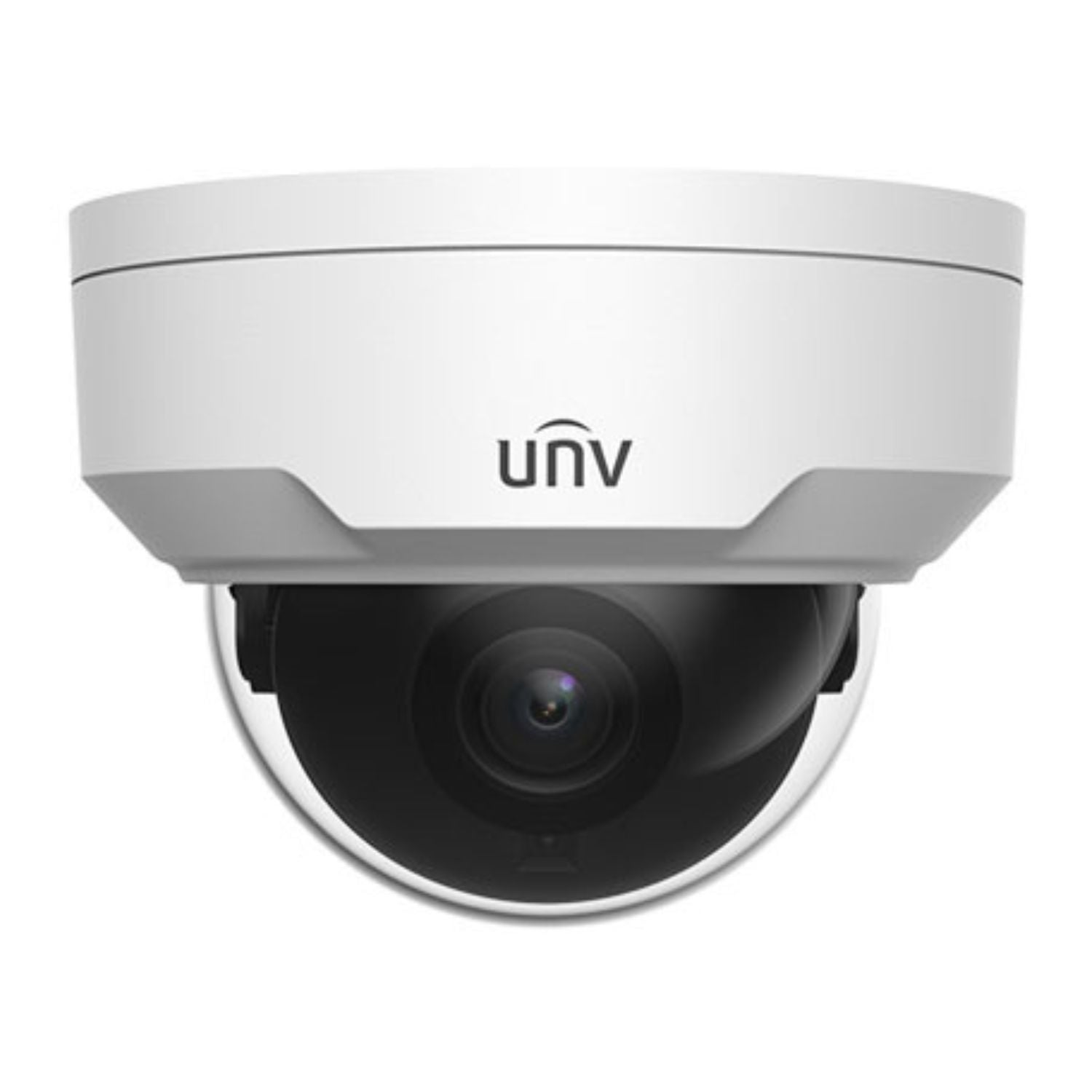

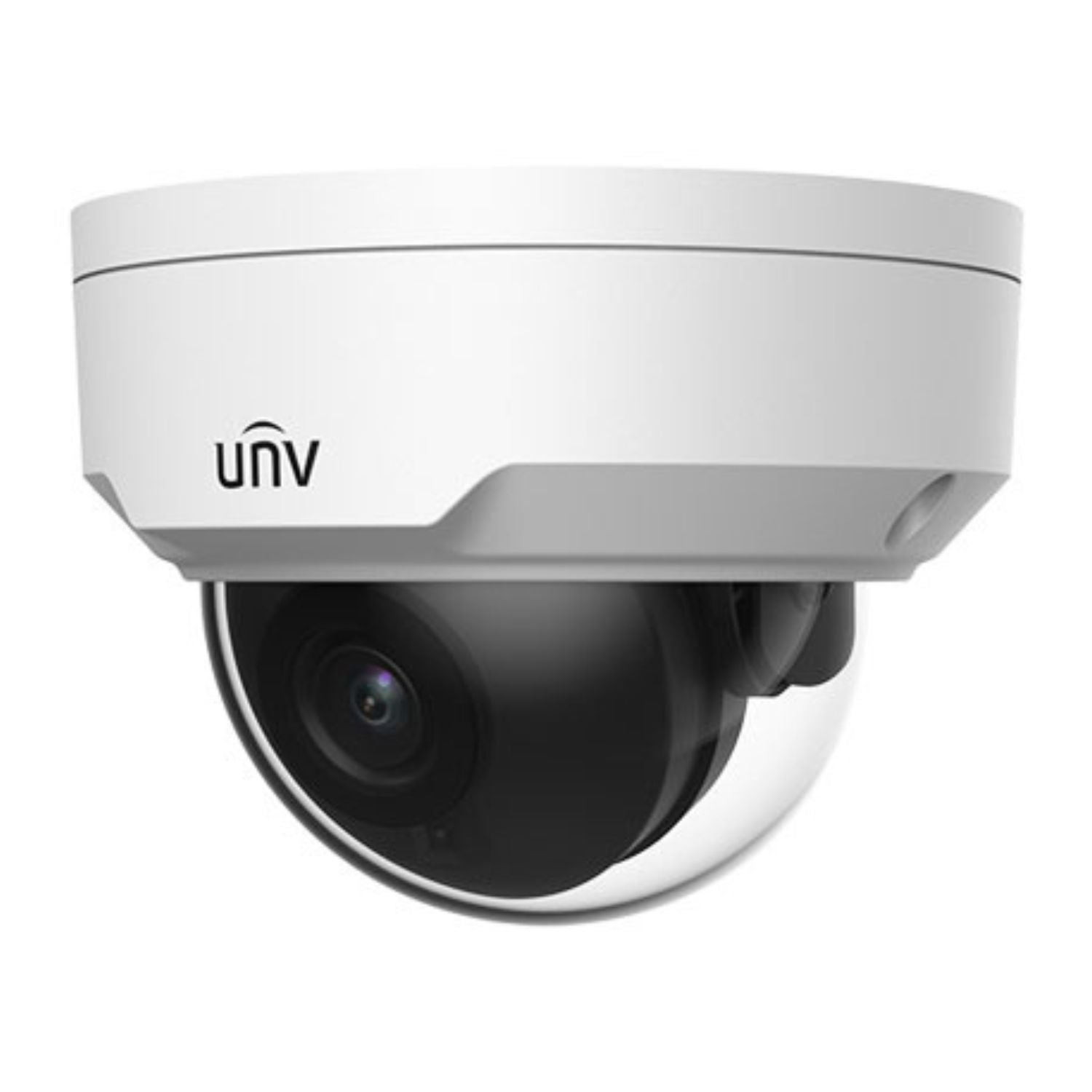

Uniview Security Camera: 4MP Dome, 2.8mm, Prime-I - IPC324SR3-DVPF28-F
| |
IPC324SR3-DVPF28-F |
IPC324SR3-DVPF40-F |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
| 4.0 |
90.0 |
36.0 |
18.0 |
9.0 |
| Angle of View (H) |
95.8° |
82.0° |
| Angle of View (V) |
55.2° |
41.6° |
| Angle of View (O) |
124.5° |
100.9° |
| Adjustment angle |
Pan: 3° ~ 360° |
Tilt: 0° ~ 68° |
Rotate: 3° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>56dB |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 4CIF (704*576), Max 30fps;
Third Stream: CIF (352*288), Max 30fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
NA |
| HLC |
Supported |
| BLC |
Supported |
| Audio |
| Audio Compression |
G.711 |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O |
1/1 |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Certifications |
| Certifications |
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.5W |
| Dimensions (Ø x H) |
Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
| Net Weight |
0.45kg (0.99lb) |
| Material |
Metal + Plastic |
| Working Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
