Description

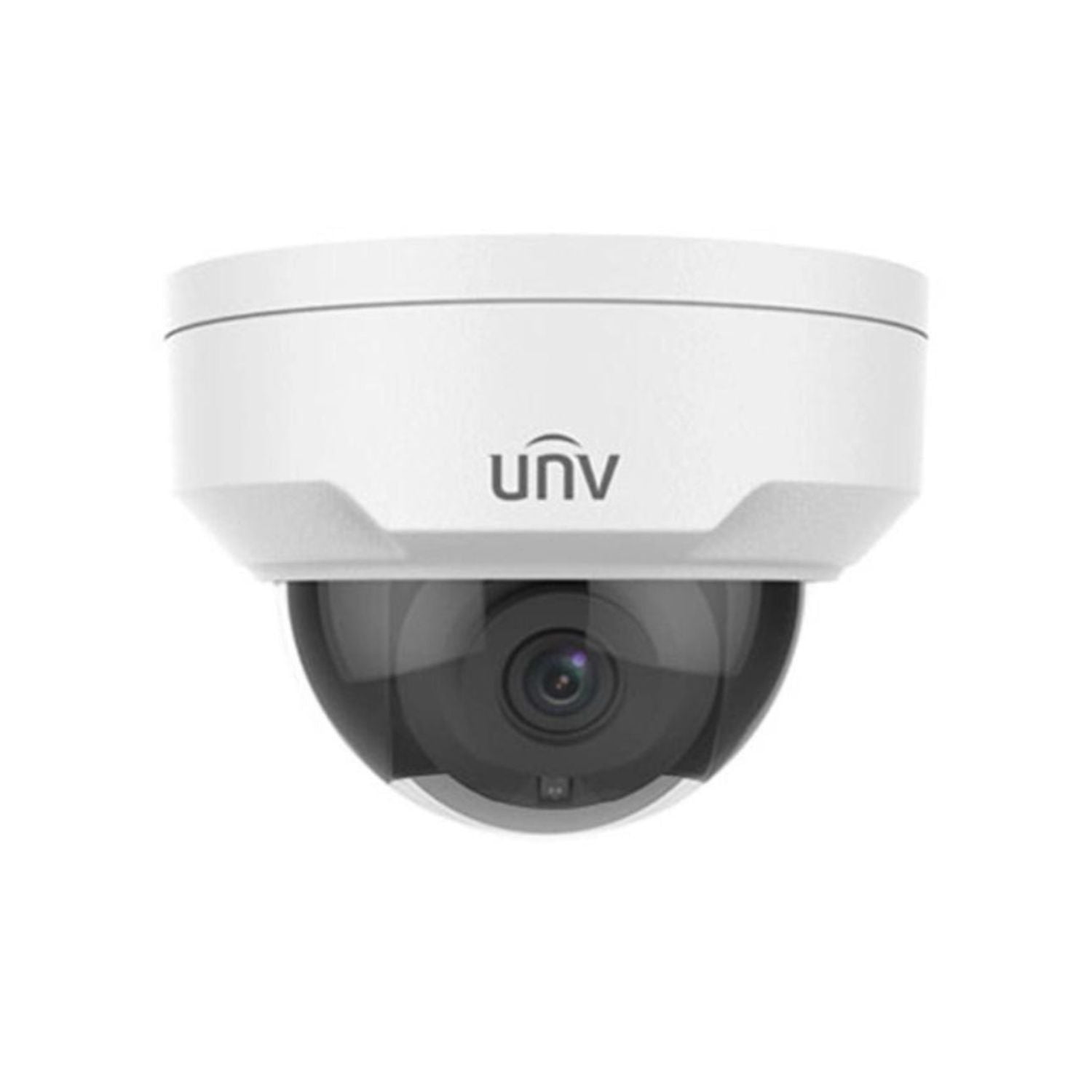

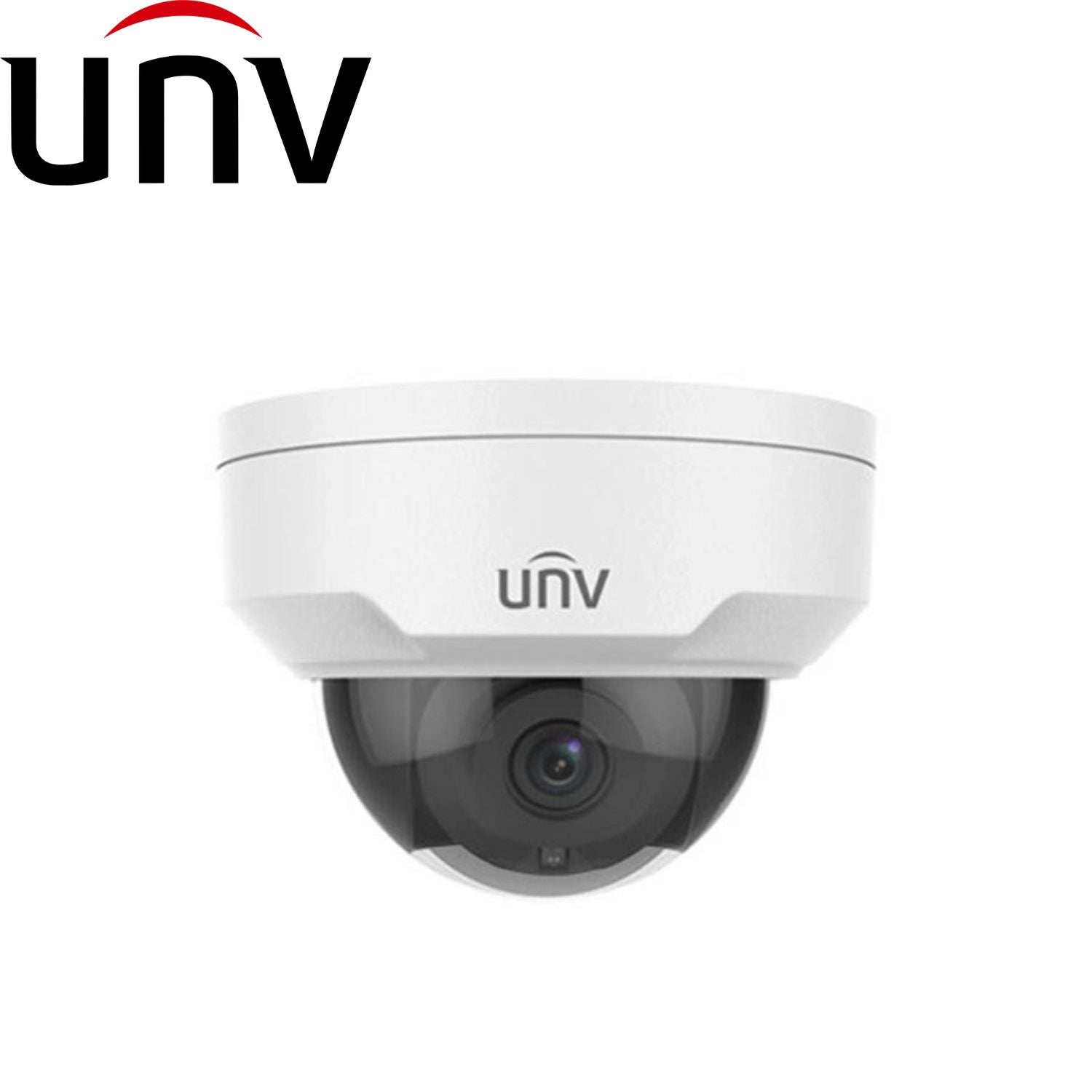

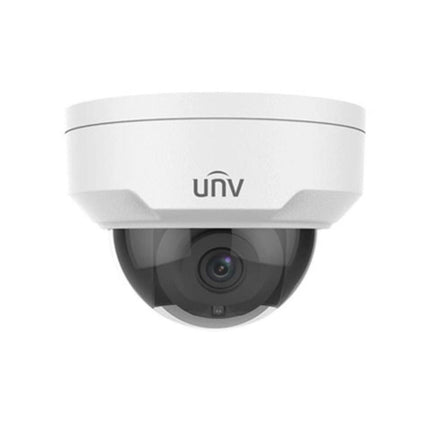

Designed by Uniview, a leading innovator in the surveillance industry, the Uniview IPC324ER3-DVPF28 is a 4 megapixel IP Dome camera equipped with 30m infrared night vision and powerful inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It can be installed outdoors thanks to its IP67 weatherproof and IK10 vandal-proof construction.

FEATURES

1/3", Progressive scan, 4 megapixel, CMOS, 2.8mm or 3.6mm
Supports Power Over Ethernet POE + DC12V Output
Smart IR night vision, up to 30m (98 ft) IR distance
Up to 120 dB WDR (Wide Dynamic Range)
Video compression Ultra 265,H.265, H.264, MJPEG
ANR network storage and edge storage, micro SD card up to 256GB
ROI (Region of Interest), 9:16 Corridor Mode
Smart functions including intrusion and motion detection, face detection, cross-line detection, audio detection, people counting
ONVIF Conformance
IP67 weather protection, IK10 vandal resistant
WARRANTY: 3 years back-to-base manufacturer warranty

Tech Specs

Uniview 4MP Dome Camera - IPC324ER3-DVPF28

IPC324ER3-DVPF28(36)
Camera
Sensor	1/3",progressive scan,4.0 megapixel, CMOS
Lens	2.8mm@F2.0/3.6mm@F2.0
Angle of View (H)	104.4°/86.4°
Angle of View (V)	67°/53.2°
Angle of View (O)	135.7°/112.3°
Adjustment angle	Pan: 0°~360°/ Tilt: 0°~75°/ Rotate:0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55 dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:4MP (2592×1520): Max. 20 fps?4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition:	Face detection?Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/O	Input: impedance 35 k?; amplitude 2 V [p-p]
Audio I/O	Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O	1/ 1
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 5W
Dimensions (Ø x H)	?108.5 x 81 mm (Ø4.28” x 3.2”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
