Uniview Security Camera: 4MP Turret, IP67

Description

Description

This has been superseded by IPC3615SR3-ADPF28-FM

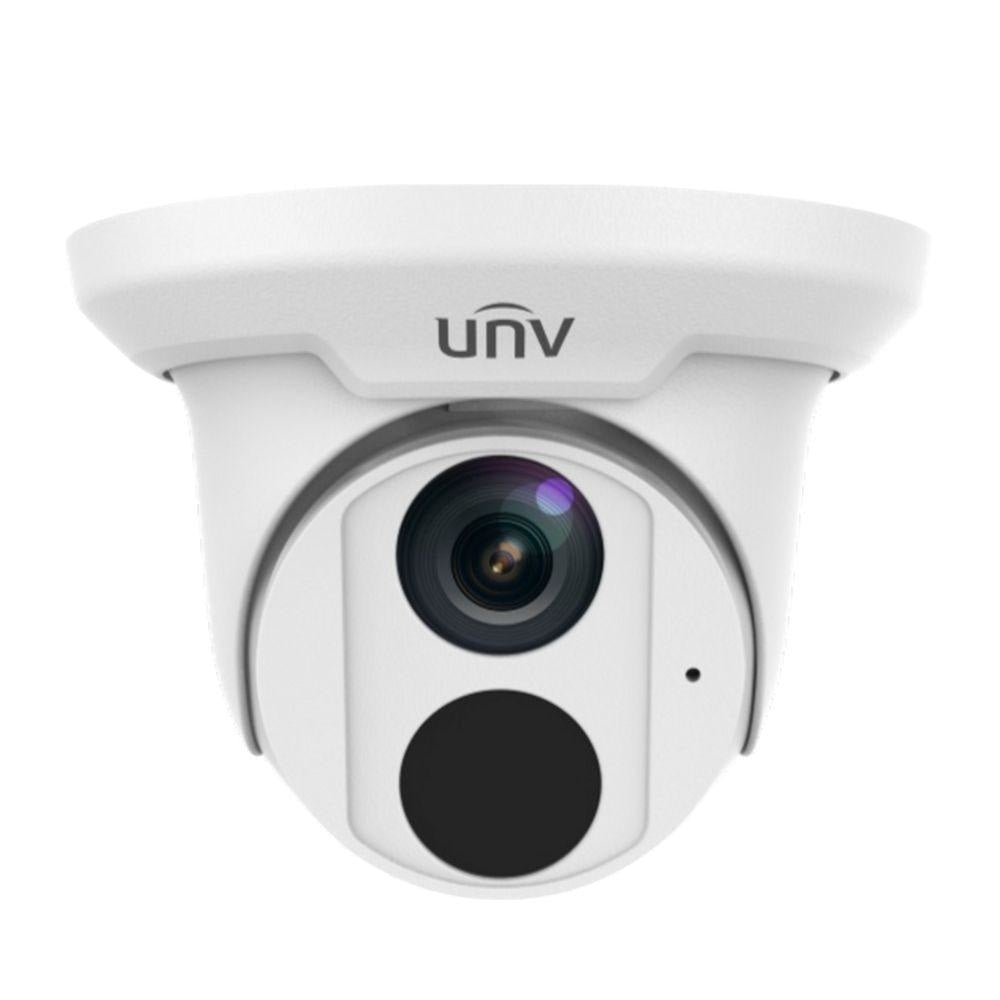

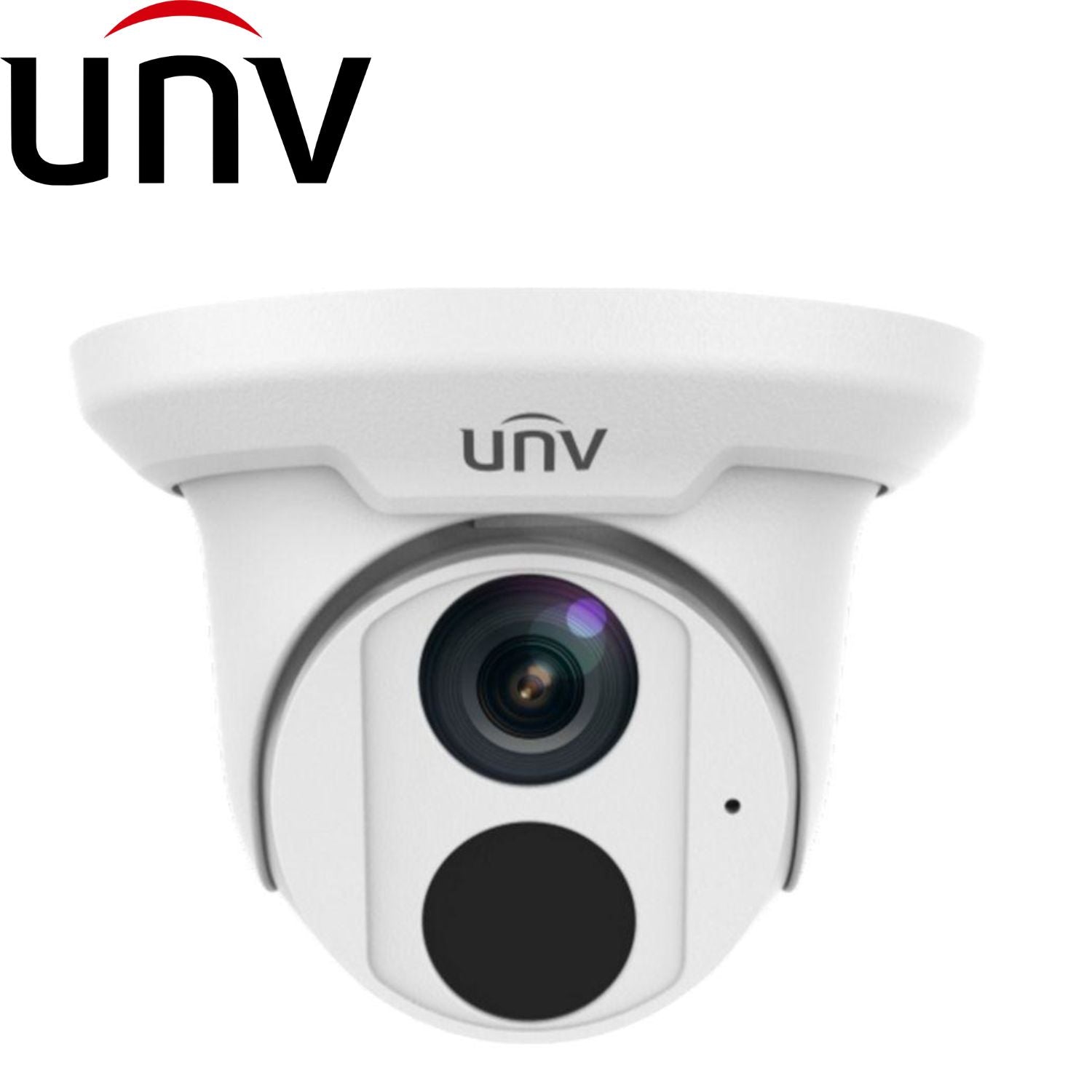

The Uniview IPC3614SR3-DPF28M is a 4MP resolution turret camera by one of the worlds leading security camera manufacturers. The camera has excellent image clarity, infrared night vision with 30m range and powerful inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions.

Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up.

Pair with a Uniview NVR to access all its features including the EZview app and computer software. The camera supports POE Power Over Ethernet connectivity for easy plug-and-play set up with Uniview network video recorders and can be installed outdoors thanks to it's IP67 weatherproof construction.

Features

  • 4 megapixel (4MP) IR turret camera, 1/3" progressive scan CMOS, 2.8mm fixed lens, 2560 x 1440 resolution, 25fps
  • Supports Power Over Ethernet POE + DC12V Output
  • Supports Triple Streams
  • ONVIF conformance
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR cut filter, ROI
  • Smart functions include motion detection, intrusion detection, cross-line detection, face detection, people counting
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG
  • 4 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

UNIVIEW 4MP IR TURRET CAMERA 2.8mm - IPC3614SR3-DPF28

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.

  • DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance

  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

Compression

  • Embedded smart algorithm

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra 265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.

  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
Tech Specs

UNIVIEW 4MP TURRET CAMERA 2.8mm - IPC3614SR3-DPF28

IPC3614SR3-DPF28M
Camera
Sensor 1/3", 4megapixel, progressive scan, CMOS
Lens

2.8mm@F1.8
Angle of view(H) 101.8°
Adjustment Range Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR
IR 30m (98ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
WDR 120 dB
AWB(Auto white balance) Auto/manual
Gain Control Auto/manual
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.265, H.264, MJPEG
Frame Rate 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps
3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF,API
Interface
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.5W
2
Dimensions (Ø x H) ?126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.45 kg (0.99lb)
Operating Conditions -35°C ~ +60°C (-31°F ~ 140°F), Humidity ? 95% RH(non-condensing)
Ingress Protection IP67

Videos

Unboxing Uniview 4MP Turret - IPC3614SR3-DPF28M

Uniview Company Introduction

Downloads

Datasheets

Read more

Uniview Security Camera: 4MP Turret, IP67

Product form

SKU: IPC3614SR3-DPF28M

Out of stock

$199.00 $138.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description
