Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.
Features
- Day/night functionality
- SmartIR , up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ONVIF Conformance
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Datasheet
Videos
Tech Specs

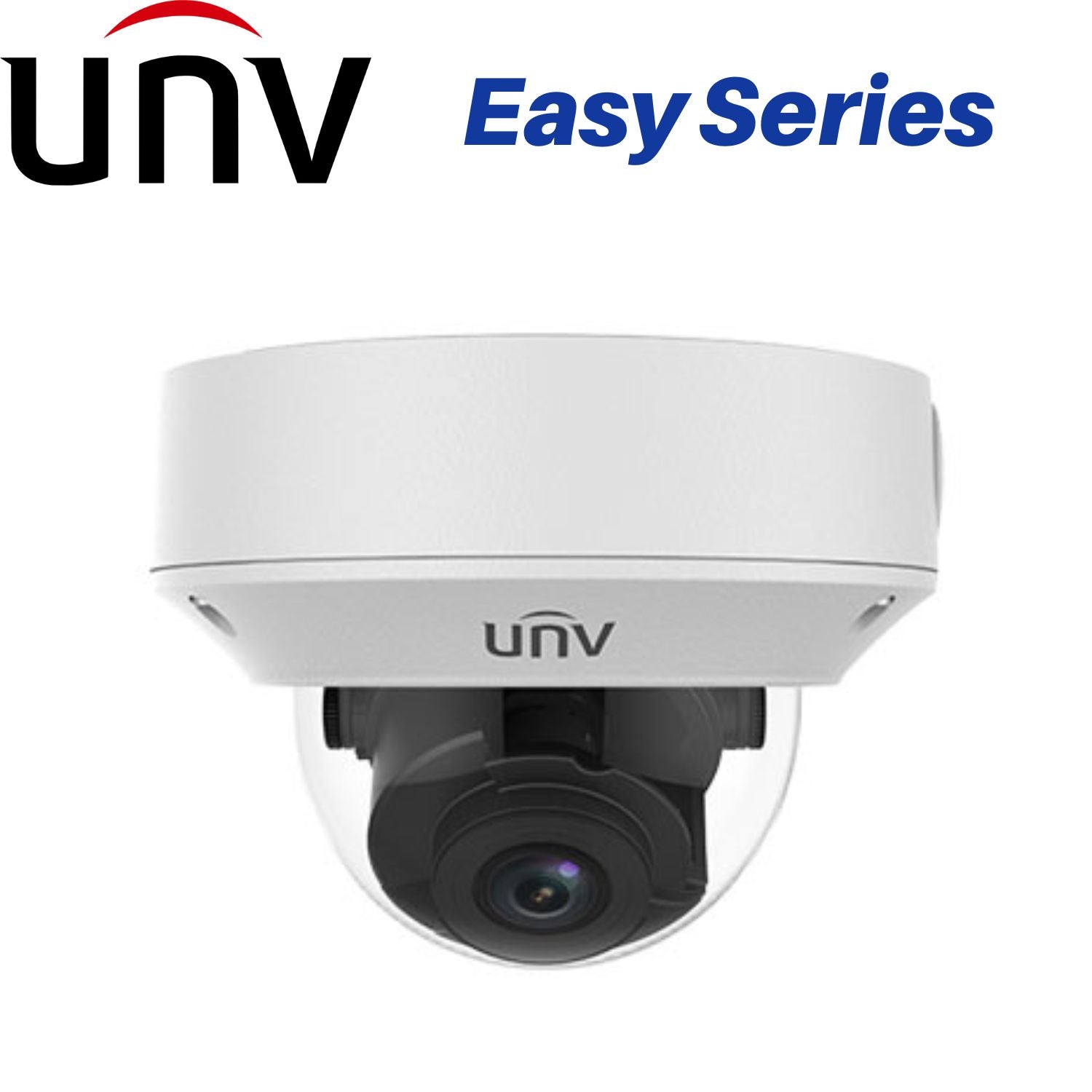

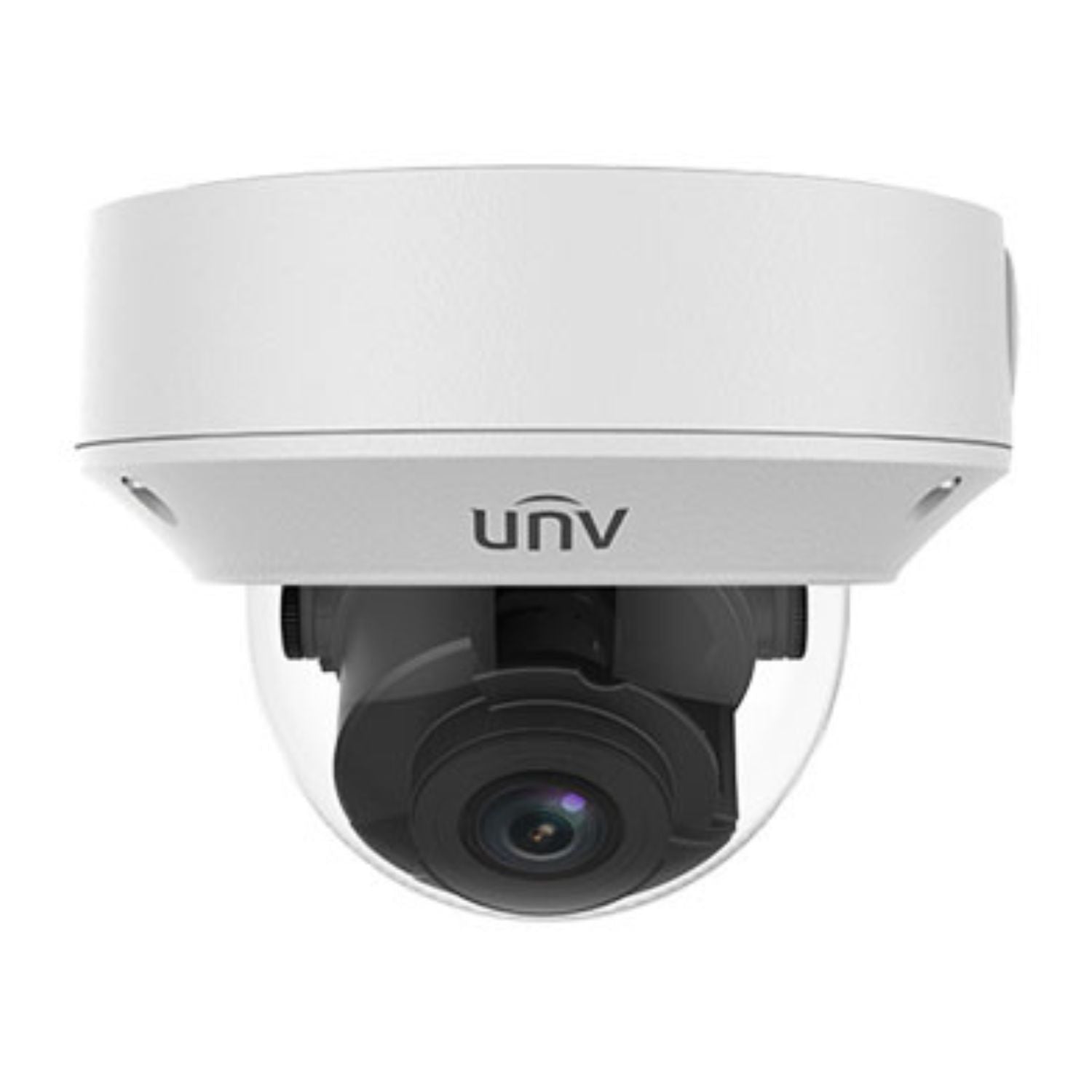

Uniview Security Camera: 4MP VF Vandal-resistant IR Dome Network Camera - IPC3234LR3-VSPZ28-D
| MODEL |
IPC3234L3-VSPZ28-D |
| Camera |
| Sensor |
1/3″, 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8~12 mm, motorized zoom lens |
| DORI Distance |
Lens |
Detec t(m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8mm |
63 |
25.2 |
12.6 |
6.3 |
| 12mm |
270 |
108 |
54 |
27 |
| Angle of View (H) |
91.0°~27° |
| Angle of View (V) |
54.4°~13.7° |
| Angle of View (O) |
118.3°~33.2° |
| Adjustmentangle |
Pan: 0°~360° |
Tilt: 0°~80° |
Rotate : 0°~360° |
| Shutter |
Auto/Manual, 1~1/100000 s |
| Minimum Illumination |
Colour: 0.01Lux ( F1.6 AGC ON )
0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch ( ICR ) |
| Digital noise reduction |
2D/3D DNR |
| IR Range |
Up to 30m (98 ft) IR range |
| Defog |
Digital Defog |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream : 4MP (2048*1520): Max. 20fps;
Sub Stream : 720P (1280*720): Max.20 fps;
Third Stream : D1 (704×576): Max.20fps |
| HLC |
Supported |
| BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 8 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration |
ONVIF ( Profile S, Profile G, Profile T ), API |
| Interface |
| Network |
1 RJ45 10M/ 100M Base-TX Ethernet |
| Edge Storage |
MicroSD, up to 256GB |
| General |
| Power |
DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 6W |
| Dimensions (Ø x H) |
Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Weight |
0.92kg (2.0lb) |
| Working Environment |
-40°C ~ +60°C (-40°F ~ 140°F), Humidity : 10%~ 95% RH (non-condensing) |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
| Reset Button |
Supported |
