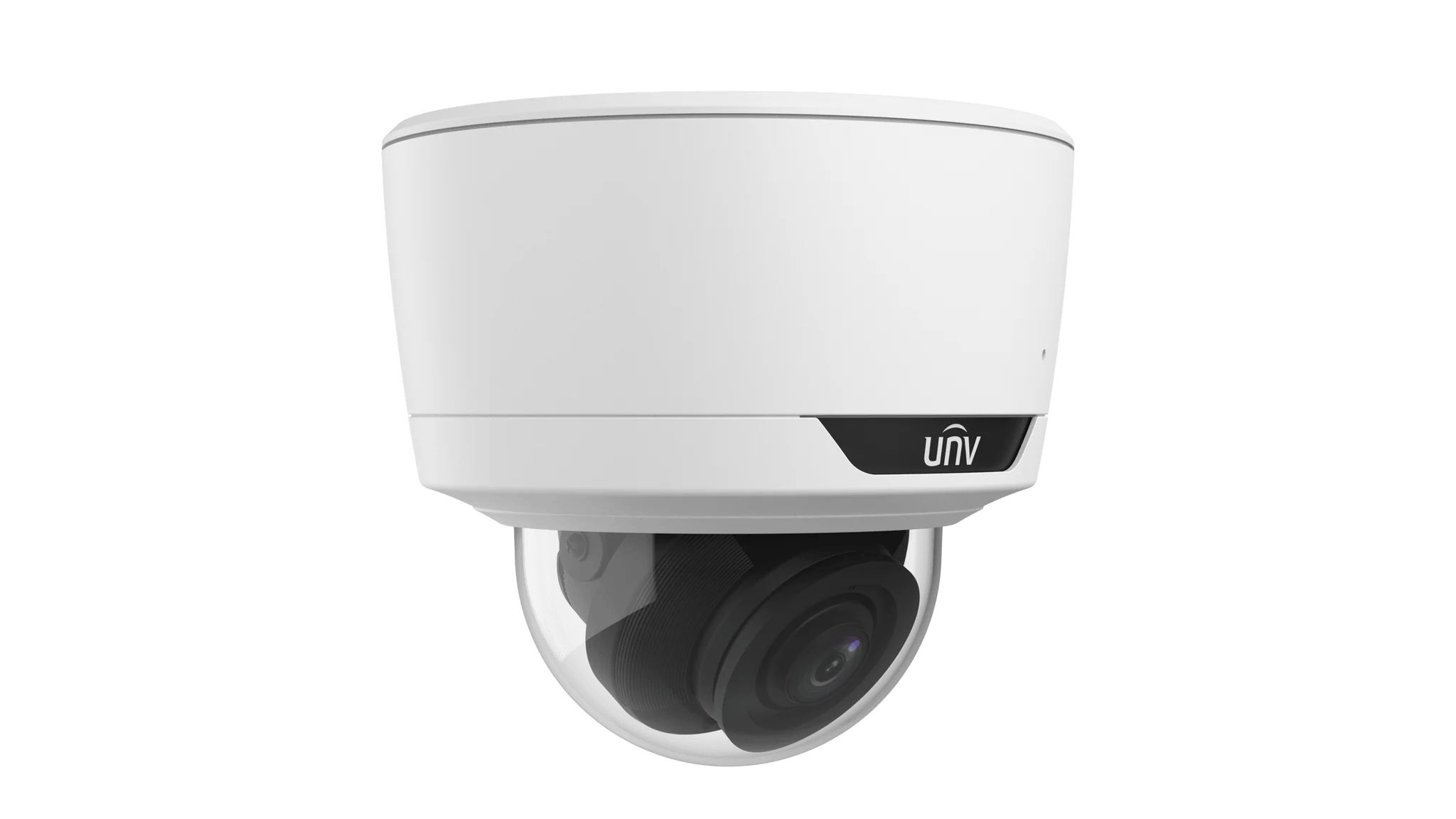

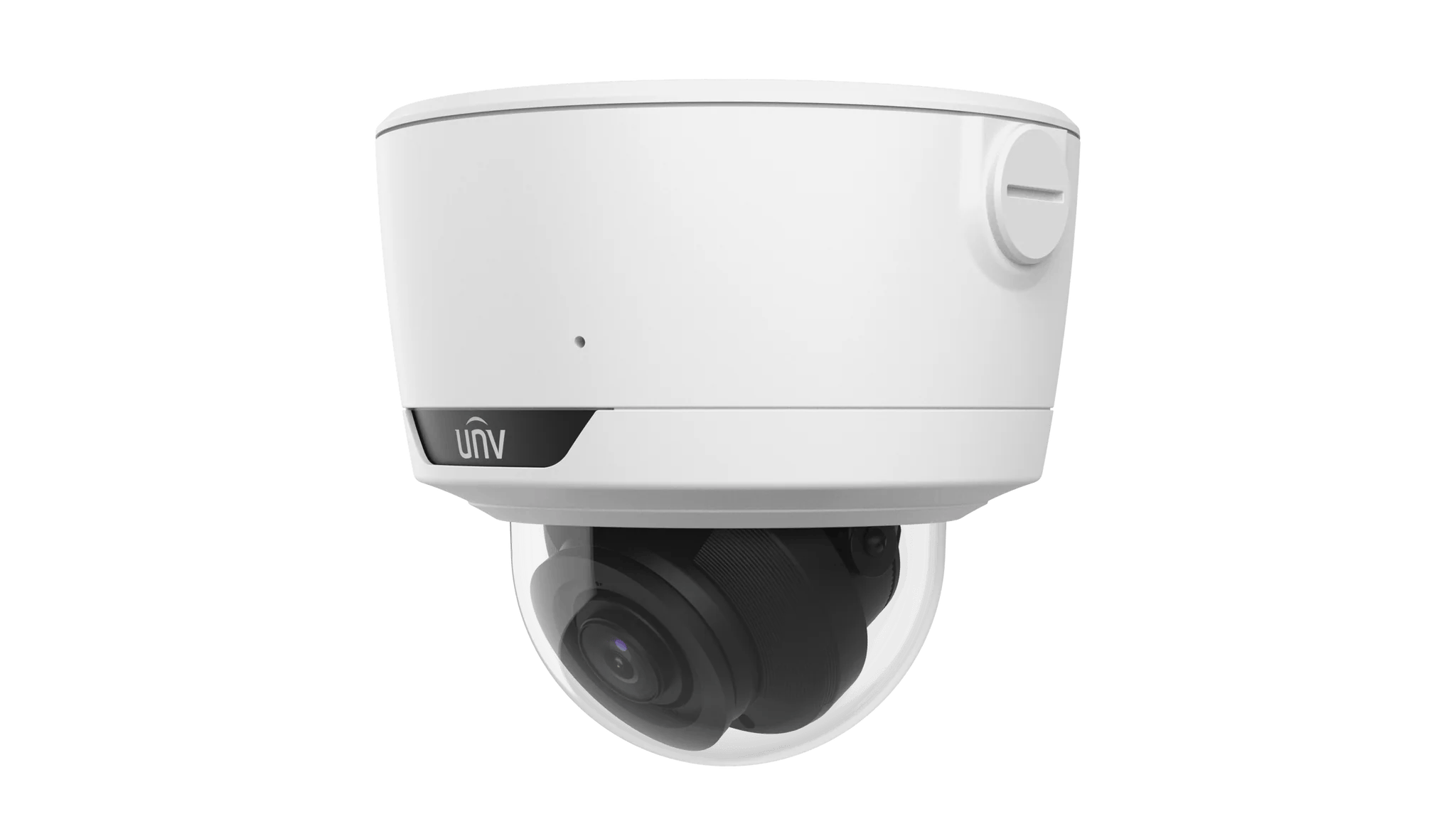

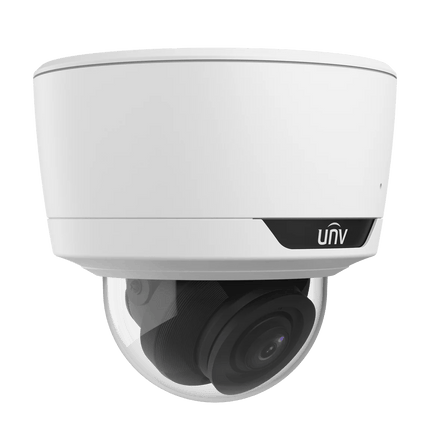

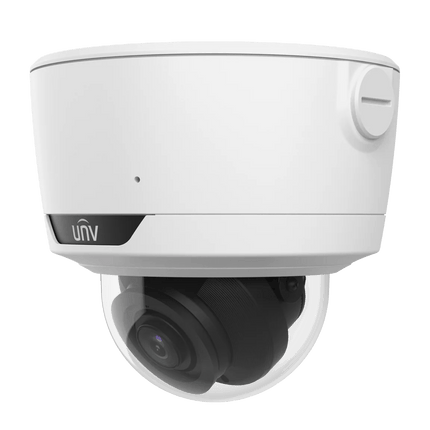

Uniview IPC3735SS-ADZK-I1 is a high-performance 5MP Intelligent LightHunter Motorized Varifocal Dome Network Camera designed for professional indoor and outdoor surveillance. With a 1/2.7" CMOS sensor, advanced Smart Intrusion Prevention, 130 dB True WDR, LightHunter low-light imaging, built-in mic, IK10 vandal resistance, and IP67 weather protection, this camera delivers exceptional clarity and reliable monitoring in demanding environments.
Key Features
-
High-Quality 5MP Video – Captures detailed 2880 × 1620 recording at up to 30fps for clear and sharp footage suitable for evidence collection.
-
1/2.7" CMOS Sensor – Ensures excellent imaging performance across various lighting conditions.
-
LightHunter Technology – Delivers superior low-light color performance for brighter, clearer nighttime images.
-
130 dB True WDR – Maintains balanced exposure even in strong backlight or high-contrast scenes.
-
Motorized Varifocal Lens (2.7–13.5mm) – Allows remote zoom and focus adjustments for flexible installation.
-
Smart IR up to 40m – Automatically adjusts infrared intensity to avoid overexposure and produce clear night vision.
-
Durable IK10 + IP67 Protection – Vandal-resistant metal housing for tough environments.
-
Supports MicroSD up to 512GB – Local edge storage for backup recording.
Perfect For
- Commercial buildings & business security
- Parking lots and outdoor perimeter monitoring
- Warehouses & logistics areas
- Schools, hospitals, and public facilities
- Entrances & corridors requiring analytics and detailed evidence
- High-vandalism areas needing IK10 protection
Installer Tips
- Use PoE for simpler, cleaner installation with a single cable for power + data.
- Mount at 2.8m–4m height for optimal coverage with varifocal zoom flexibility.
- Enable True WDR when installing in bright entrance areas or facing windows.
- For analytics (intrusion, people counting), avoid pointing the camera directly at moving trees, headlights, or reflective surfaces.
- Use the motorized zoom to fine-tune focus after mounting—no need for manual lens adjustment.
- To prevent false IR reflection, keep the dome clean and avoid mounting near walls or ceilings that are too close.
- Always seal cable entry points to maintain IP67 weatherproofing.
Downloads
Quick-Read Specs
| Resolution |
5MP (2880 × 1620) |
| Sensor |
1/2.7" CMOS |
| Lens Type |
Motorized Varifocal 2.7–13.5mm |
| Field of View |
H: 106.3°–32.5°, V: 53.5°–18.0°, D: 126.0°–38.5° |
| Low Light Performance |
0.002 lux (Color), 0 lux with IR on |
| WDR |
130 dB True WDR |
| IR Distance |
Up to 40m |
| Compression |
Ultra265, H.265, H.264, MJPEG |
| Audio |
Built-in Mic, 1-in/1-out Audio |
| Intrusion Features |
Cross line, intrusion, enter/leave area, color retrieval |
| Storage |
Micro SD up to 512GB |
| Protection |
IK10 Vandal Proof, IP67 Weatherproof |
| Power |
DC 12V ±25% / PoE (802.3af) |
| Max Power Use |
8W |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
Ø162 × 149 mm |
| Weight |
1.36 kg |
