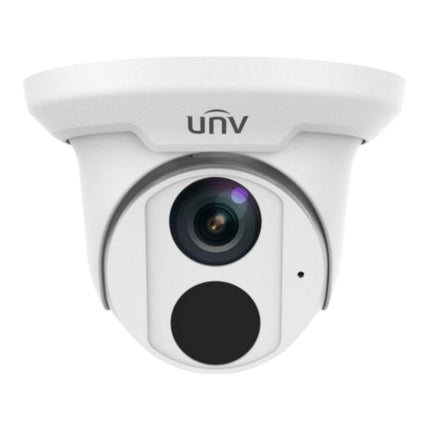

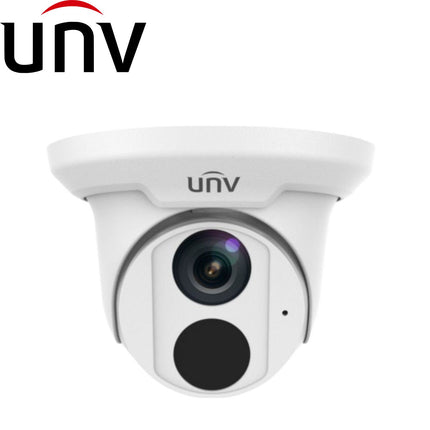

Uniview Security Camera: 5MP Starlight Turret, IP67
Rated 3.5/5 based on 11 customer reviews

Uniview Security Camera: 5MP Starlight Turret, IP67

  • 5 megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • Starlight Illumination and Enhanced Sensor for colour recording in near dark conditions - 0.005Lux
  • ONVIF conformance
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Stream
  • 4 KV surge protection, IP67 weather protection
  • Product SKU: IPC3615ER3-ADUPF28M
  • Order within
Available: In Stock
Login to view price.

Designed by Uniview, a leading innovator in the surveillance industry, this 5 megapixel Starlight IP camera comes with exceptional high-clarity resolution, infrared night vision, starlight illumination technology for colour recording in low light conditions and advanced inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

FEATURES

  • 5 megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • Starlight Illumination and Enhanced Sensor for colour recording in near dark conditions - 0.005Lux
  • ONVIF conformance
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Stream
  • 4 KV surge protection, IP67 weather protection



Designed by Uniview, a leading innovator in the surveillance industry, this 5 megapixel Starlight IP camera comes with exceptional high-clarity resolution, infrared night vision, starlight illumination technology for colour recording in low light conditions and advanced inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

FEATURES

  • 5 megapixel (5MP) IR turret camera, 1/2.7", progressive scan CMOS, 2.8mm @F1.6 fixed lens, Up to 1920×1080 resolution, 30fps
  • Supports Power Over Ethernet POE & DC12V Output
  • Starlight Illumination and Enhanced Sensor for colour recording in near dark conditions - 0.005Lux
  • ONVIF conformance
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection, Face Detection, People Counting, Audio Detection, Loiter Detection
  • Supports audio recording with built in mic
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Stream
  • 4 KV surge protection, IP67 weather protection



UNIVIEW 5MP STARLIGHT TURRET CAMERA 2.8mm -
IPC3615-ADUPF28M

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.

  • DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

  • Starlight Illumination - Uniview starlight cameras provide crisp, colour images in low light conditions, even as low as 0.0005 Lux(F1.2) lumens.

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Audio

  • Supports Audio recording - Camera has built-in mic and the NVR can support recording audio.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
  • Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.

UNIVIEW 5MP IP STARLIGHT TURRET CAMERA - IPC3615ER3-ADUPF28

  IPC3615ER3-ADUPF28M
Camera
Sensor 1/2.7", progressive scan, 5.0 megapixel, CMOS
Lens 2.8mm@F1.6

Angle of view(H) 105.3°
Angle of View (V) 69.5°
Angle of View (O) 136.8°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 5MP(2592 x 1944): Max. 20 fps, 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x
1080): Max. 30 fps;
Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.30 fps;
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
2
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.9W
Dimensions (Ø x H) Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.41 kg(0.90 lb)
Operating Conditions -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67

DORI Distance

Lens Detect
2.8mm 63m
4mm 90m

Observe Recognize Identify
25.2m 12.6m 6.3m
36m 18m 9m
