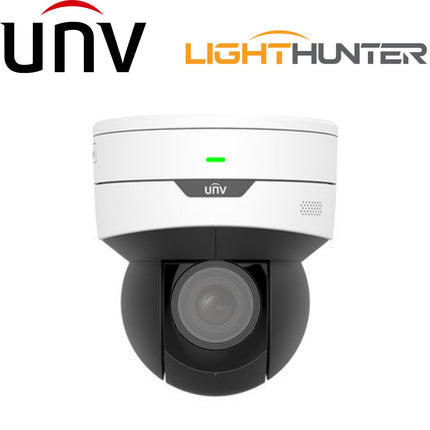

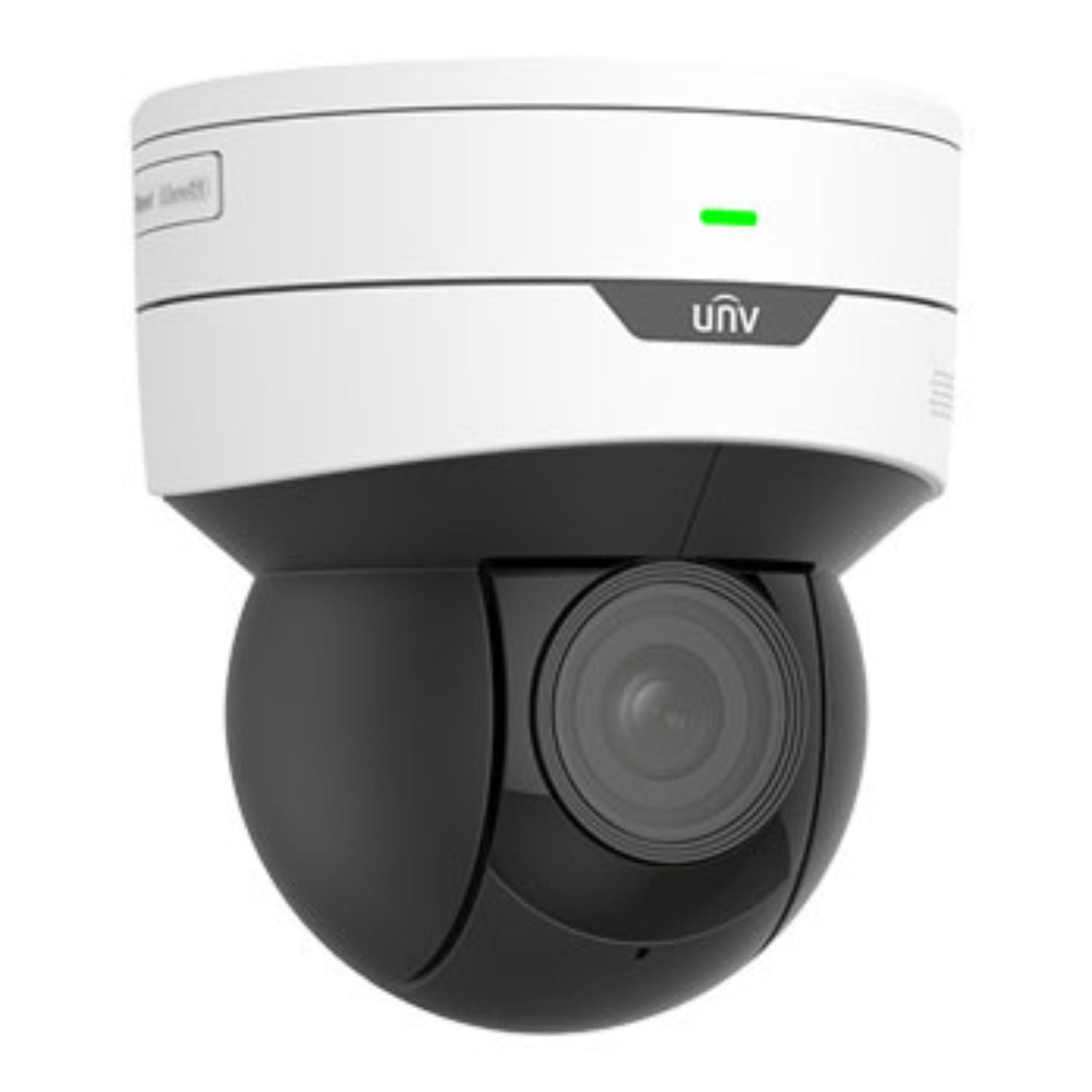

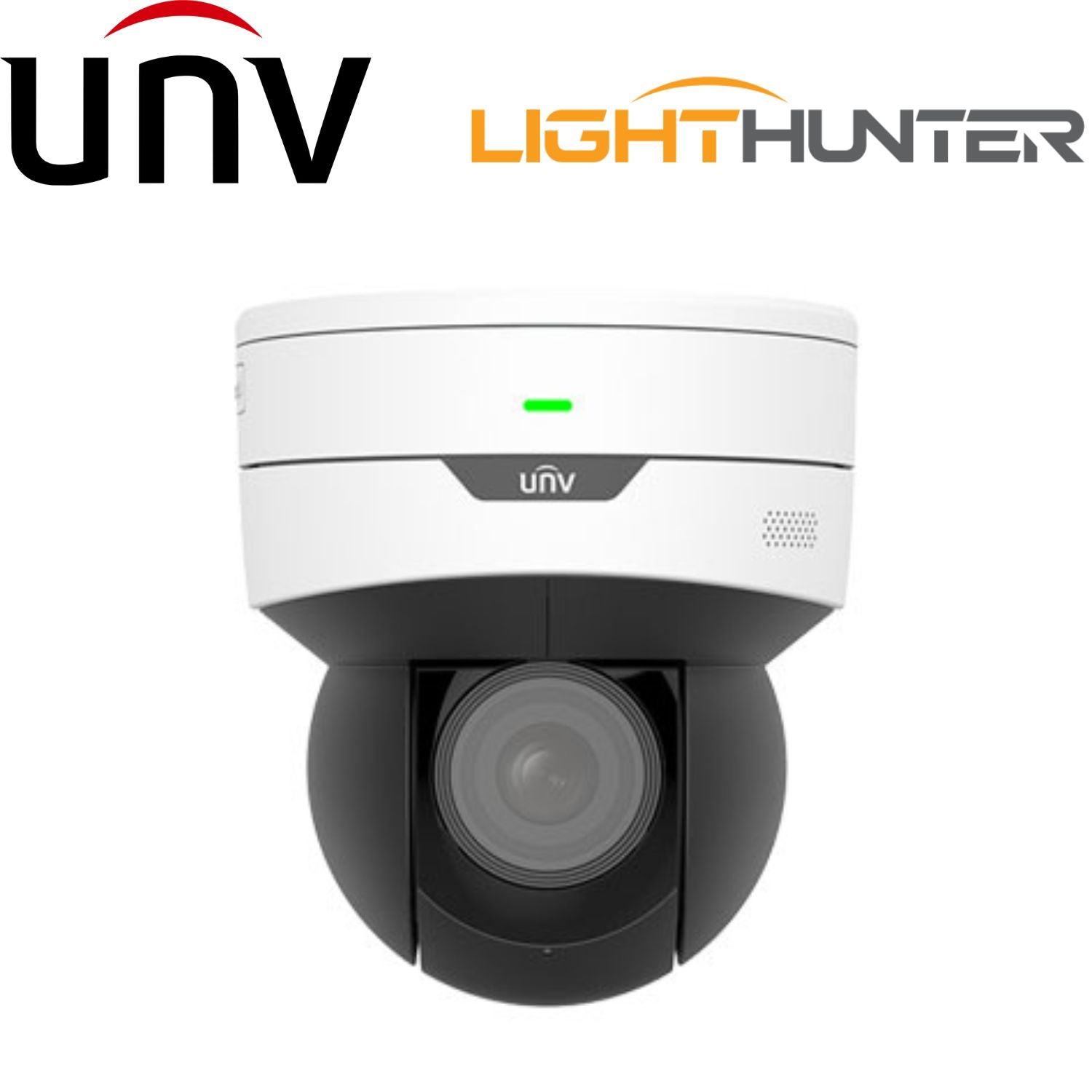

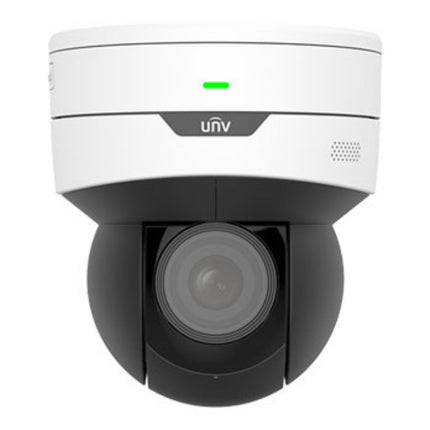

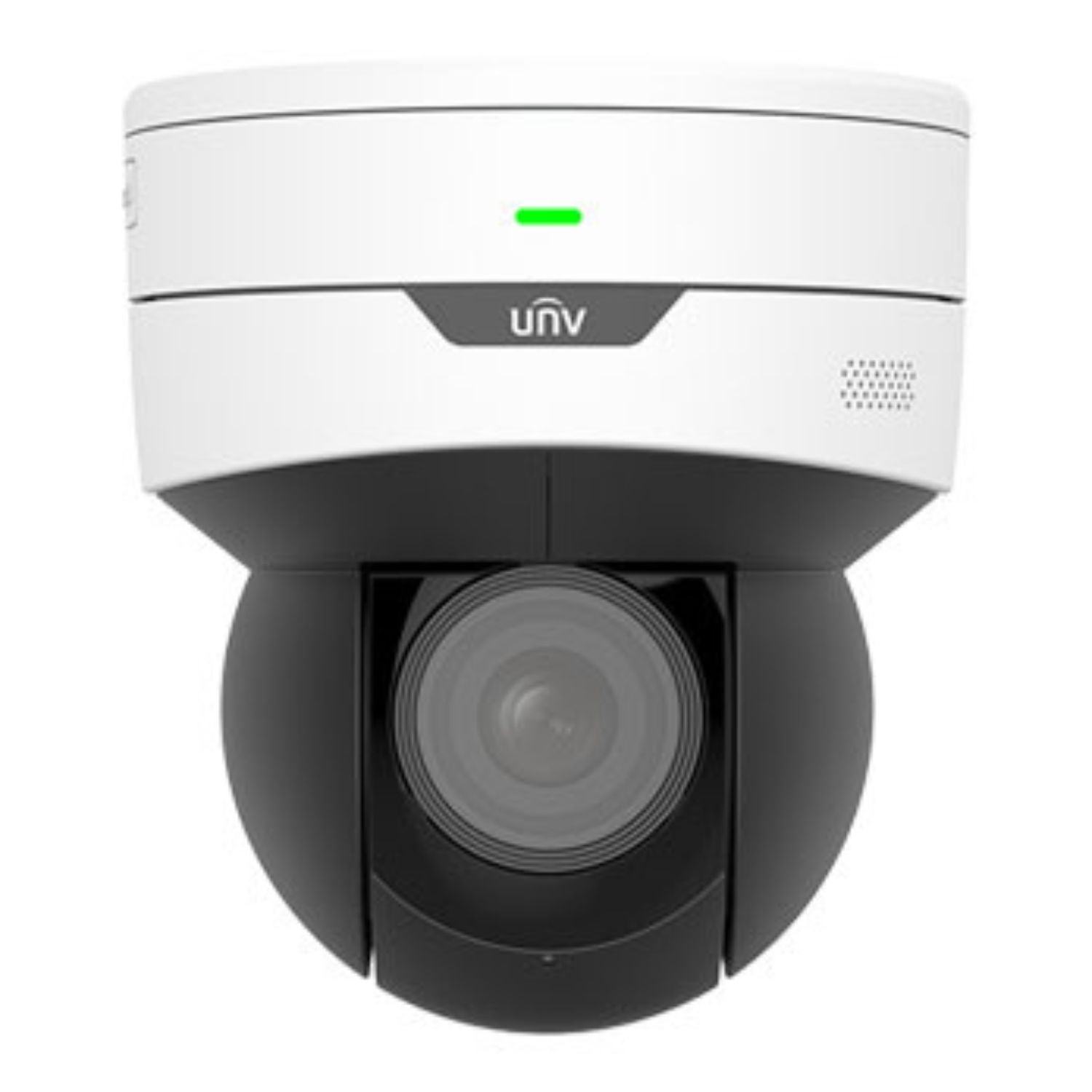

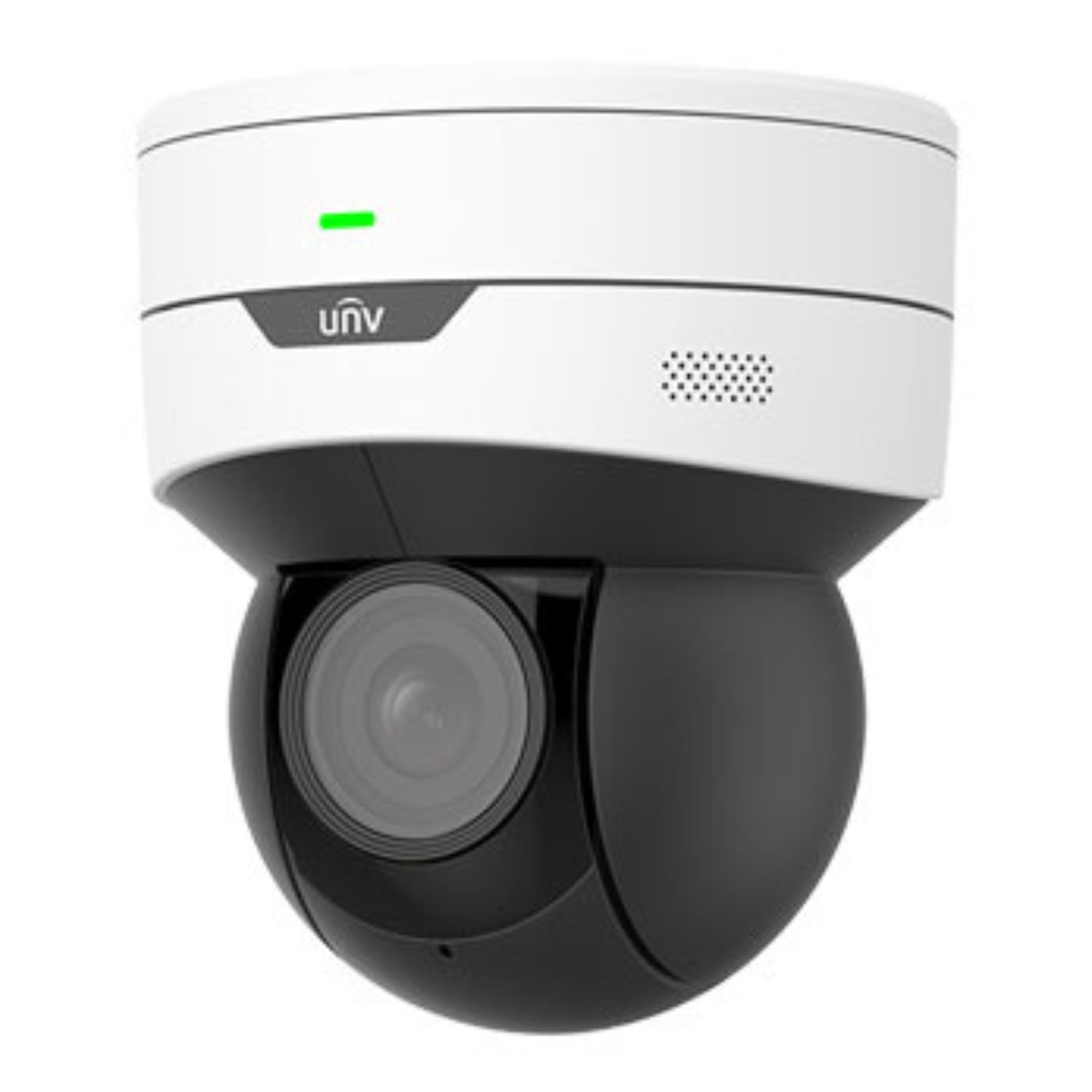

| IPC6415SR-X5UPW-VG |
| Camera |
| Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Min. Illumination |
Colour:0.003 lux (F1.2, AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
＞56dB |
| Lens |
| Lens type |
2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens |
| Iris |
Auto aperture |
| Field of View (H) |
106.9°~30.6° |
| Field of View (V) |
56.0°~17.7° |
| Field of View (D) |
131.5°~39.8° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.7 |
70.9(232.5ft) |
28.4(93.0ft) |
14.2(46.5ft) |
7.1(23.3ft) |
| 13.5 |
247.5(812.0ft) |
99.0(324.8ft) |
49.5(162.4ft) |
24.8(81.2ft) |
| Illuminator |
| IR Range |
Up to 30m (98 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 5MP (2880*1620),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| ROI |
Support |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 areas, up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering alarm |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
| Security |
Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
EZStation
EZLive
EZView |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
350° |
| Pan Speed |
0.1°/s ~ 60°/s |
| Preset speed: 60°/s |
| Tilt Range |
0° ~ 90° |
| Tilt Speed |
0.1° ~ 50°/s |
| Preset speed: 50°/s |
| Number of Presets |
1024 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time |
120s~1800s |
| Preset Image Freeze |
N/A |
| Home Position |
Support |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
1/1 |
| Serial Port |
1 RS485 |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| WIFI |
Support (IEEE802.11b/g/n) |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video output |
N/A |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| RF |
FCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-ROHS (2011/65/EU;(EU)2015/863) |
| General |
| Power |
DC12V(±25%), PoE+(IEEE 802.3at) |
| Power consumption: Max 15W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ129 x 143.6mm (Φ5.1" x 5.7") |
| Weight |
0.76kg(1.67lb) |
| Working Environment |
-10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge protection |
4KV |
| Reset Button |
Support |
