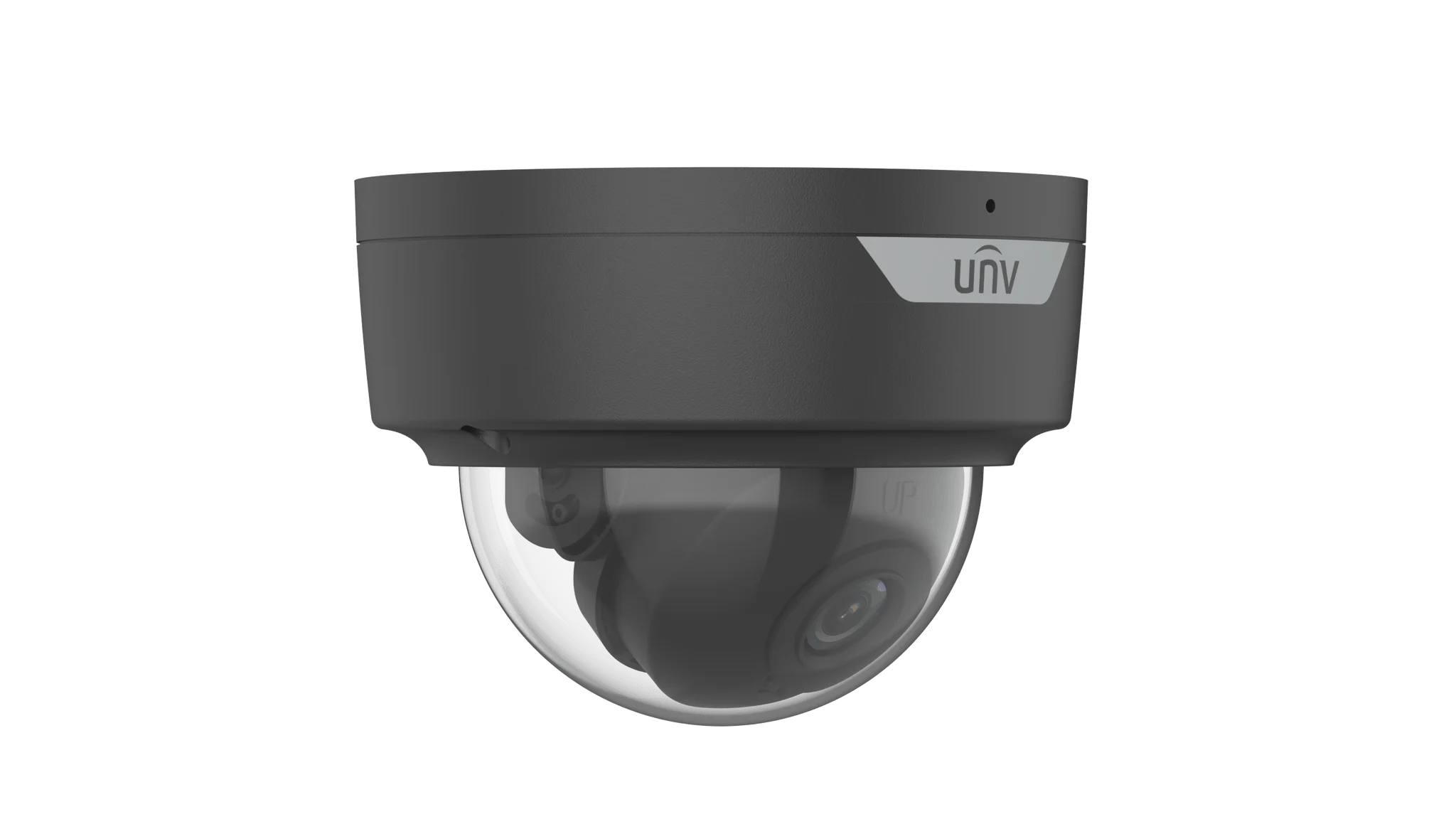

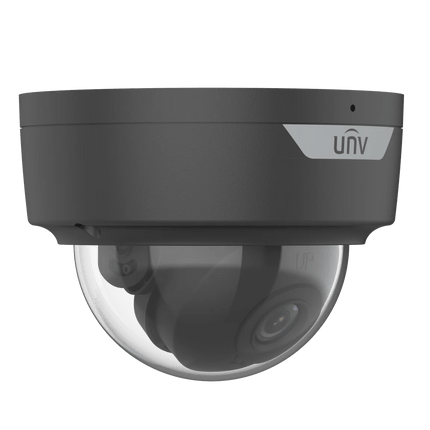

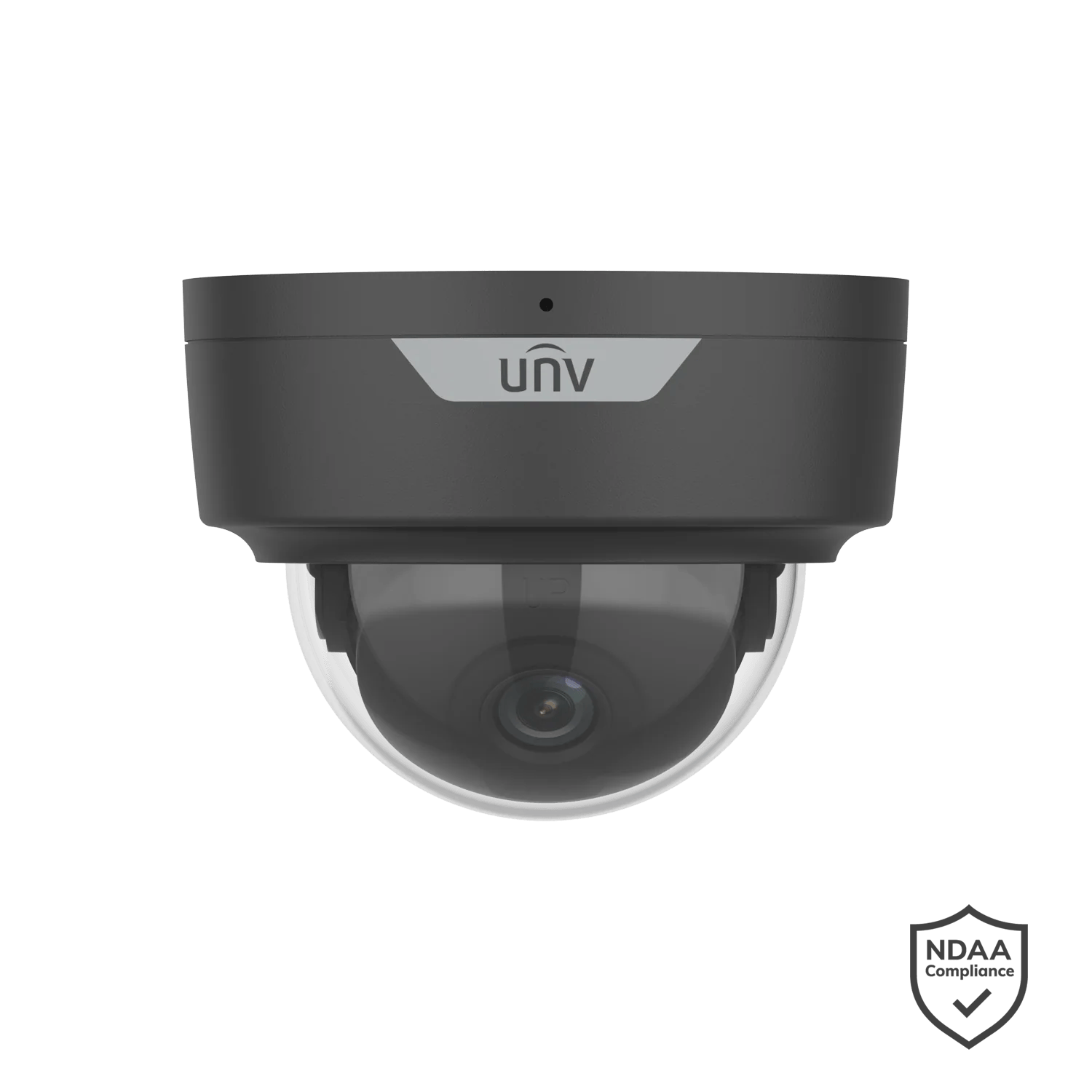

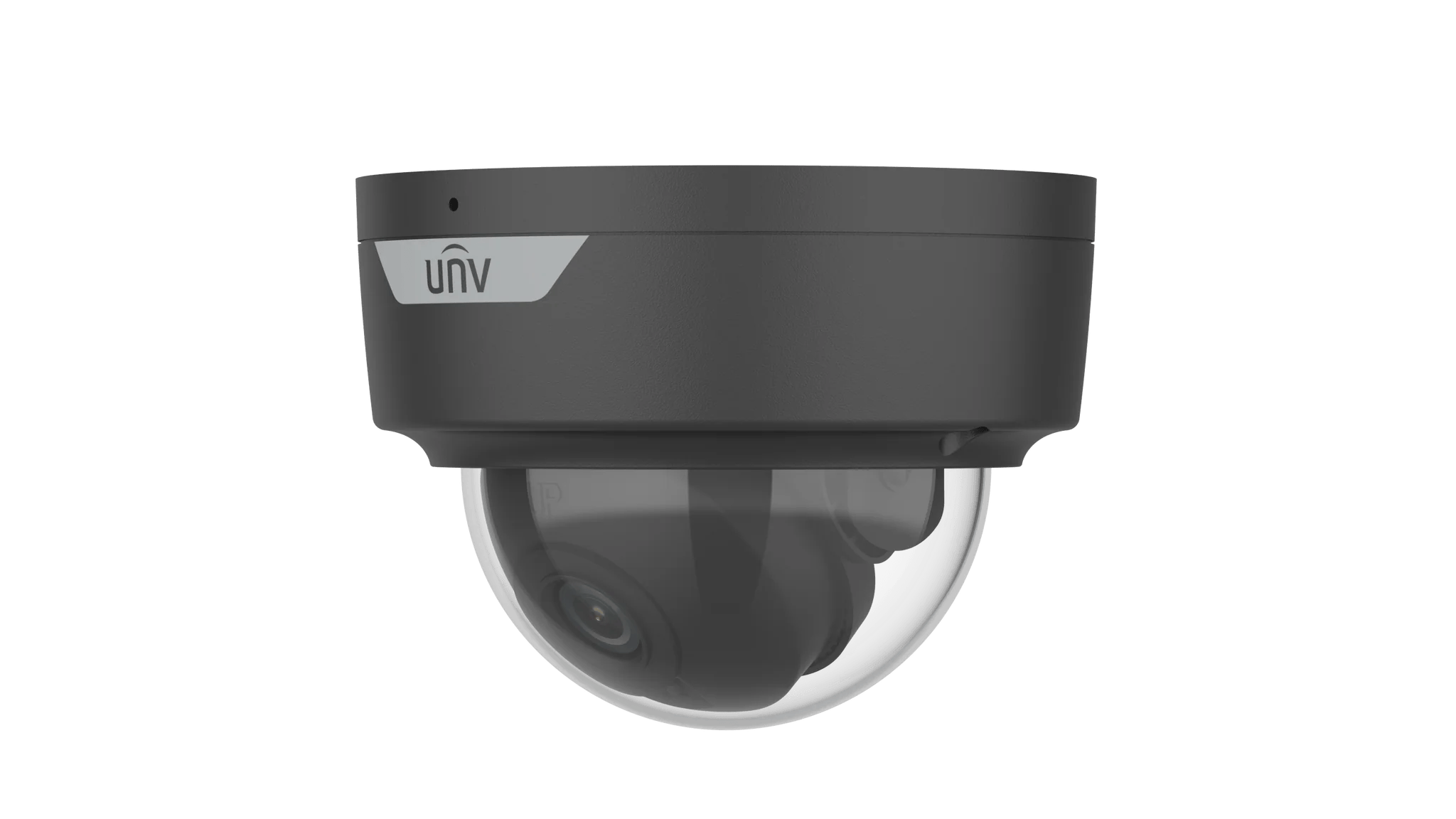

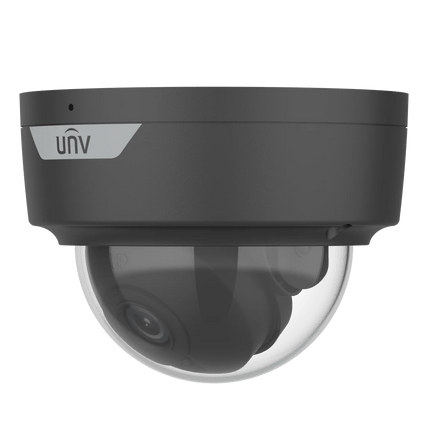

Uniview IPC326SS-ADF28(40)K-I1-BK is a high-performance 6MP HD Intelligent LightHunter IR Fixed Dome Network Camera designed for reliable, detailed, and stable surveillance in both indoor and outdoor environments. With a 1/2.7" CMOS sensor, advanced 130 dB True WDR, LightHunter low-light technology, intelligent perimeter protection, and robust IK10 & IP67 protection, this camera delivers excellent clarity across various lighting conditions.
Key Features
-
High-Quality 6MP Imaging – Captures crystal-clear video up to 3072 × 2048 resolution with multiple resolution options for flexible monitoring.
-
1/2.7" CMOS Sensor – Produces high-fidelity images with strong performance in various lighting environments.
-
LightHunter Technology – Ensures ultra-high image quality even in low illumination conditions.
-
Intelligent Perimeter Protection – Detects intrusion, cross line, enter/leave area with false alarm filtering for humans, vehicles, and non-motor vehicles.
-
Smart IR – Automatic infrared adjustment with up to 40 m (131.2 ft) IR distance for night vision clarity.
-
130 dB True WDR – Balances strong light scenes for clear and detailed imaging.
-
Audio & Alarm I/O – 1/1 audio and 1/1 alarm input/output support.
-
Edge Storage – Supports MicroSD up to 512 GB for local recording.
-
Vandal & Weather Resistant – IK10 & IP67 certified for outdoor durability.
Perfect For:
- Outdoor perimeters and gates
- Residential property monitoring
- Retail store entrances and interiors
- Warehouses and corridors
- Parking lots and open outdoor spaces
- Small to large enterprise security systems
Installer Tips
-
Adjust Smart IR – Fine-tune IR settings to avoid overexposure when objects approach the camera.
-
Optimal Placement – Mount at a height covering wide areas (2.8 mm lens is ideal for general monitoring).
-
Use PoE – Simplifies cabling and ensures stable power supply.
-
Enable WDR – Recommended for bright outdoor areas or scenes with windows.
-
Consider Onboard Storage – Add a MicroSD card as a backup in case of network failure.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC326SS-ADF28(40)K-I1-BK |
| Max Resolution |
6 MP (3072 × 2048) @ 25/20 fps; 5 MP (2880 × 1620) @ 30/25 fps; 4 MP (2560 × 1440) @ 30/25 fps; 3 MP (2304 × 1296) @ 30/25 fps; 1080P (1920 × 1080) @ 30/25 fps |
| Sensor |
1/2.7" CMOS, progressive scan |
| Lens |
2.8 mm / 4.0 mm fixed, F1.6 |
| Field of View (H/V/D) |
110.0° / 58.7° / 130° (2.8 mm); 91.2° / 43.7° / 95.3° (4.0 mm) |
| DORI Distances |
Detect: 63 m / 90 m; Observe: 25.2 m / 36 m; Recognize: 12.6 m / 18 m; Identify: 6.3 m / 9 m |
| Illuminator |
IR, 850 nm, up to 40 m, Auto/Manual control |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG; Triple Streams |
| Audio |
G.711U/G.711A, 2-way support, 64 Kbps |
| Storage |
MicroSD up to 512 GB, ANR, NAS (NFS) |
| Network |
IPv4/IPv6, TCP/IP, RTSP, HTTP, HTTPS, ONVIF, API, SDK, Up to 32 users |
| Power |
DC 12V ±25%, PoE (IEEE 802.3af), Max 6.5 W |
| Protection |
IP67, IK10, Surge 4 KV |
| Dimensions |
Ø 111 mm × 83 mm (Ø4.4" × 3.3") |
| Weight |
0.42 kg (0.93 lb.) |
| Working Environment |
-30 ℃ to 60 ℃, Humidity ≤ 95% RH (non-condensing) |
