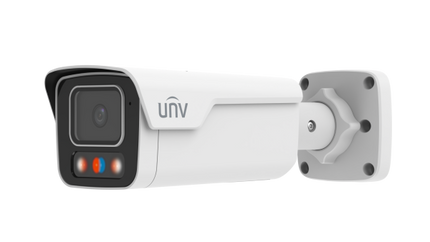

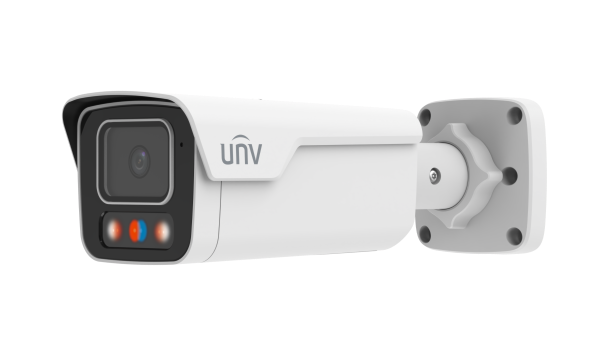

Uniview IPC2B16SS-ADF28(40)KMC-I1 is a high-performance 6MP Intelligent Light and Audible Warning Fixed Bullet Network Camera designed for advanced perimeter protection and 24/7 monitoring. Equipped with a 1/2.7" CMOS sensor, 130dB True WDR, dual-light warning features, intelligent intrusion prevention, and long-range Smart IR up to 40m, this camera delivers reliable security even in complex lighting environments.
Key Features
-
High-Quality 6MP Imaging – Captures ultra-clear video at up to 3072 × 2048 resolution with multiple frame rate options.
-
1/2.7" CMOS Sensor – Ensures sharp and accurate image reproduction day and night.
-
Intelligent Intrusion Prevention – Detects cross line, intrusion, enter/leave area events with human/vehicle/non-motor classification.
-
True 130dB WDR – Maintains clear detail in scenes with strong backlight.
-
Smart IR & Dual-Light Warning – Up to 40m IR and warm light illumination plus red/blue warning lights.
-
Built-in Mic & Speaker – Supports two-way audio for real-time communication.
-
microSD Support up to 512GB – Enables onboard video storage.
-
IP67 Weather Protection – Durable in rain, dust, and harsh outdoor conditions.
Perfect For:
- Gate and fence protection
- Parking areas and driveways
- Perimeter intrusion detection
- Warehouses and open yards
- Commercial and industrial security
Installer Tips
-
Position at proper height – Ensures accurate human/vehicle classification.
-
Enable WDR – Ideal for scenes with strong sunlight or headlights.
-
Use PoE – Cleaner installation and stable power.
-
Check IR vs Warm Light Mode – Optimize visibility depending on environment.
-
Use microSD storage – Recommended for backup recording.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC2B16SS-ADF28KMC-I1 / IPC2B16SS-ADF40KMC-I1 |
| Max Resolution |
6MP |
| Image Sensor |
1/2.7" CMOS |
| Minimum Illumination |
Color: 0.001 Lux (F1.0, AGC ON); 0 Lux with light |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| WDR |
130 dB True WDR |
| Lens Options |
2.8 mm or 4.0 mm fixed lens |
| Field of View |
2.8mm: H 112.8°, V 59.4°, D 116.3%
4.0mm: H 91.2°, V 51.0°, D 96.9° |
| IR / Warm Light Distance |
Up to 40m (IR + Warm Light) |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Up to 30fps at 5MP/4MP/3MP/1080P |
| Audio |
1 in / 1 out, built-in mic & speaker, G.711A/U |
| Alarm I/O |
1 input / 1 output |
| Storage |
microSD up to 512GB |
| Protection |
IP67 weatherproof |
| Power |
DC 12V ±25%, PoE (802.3af) |
| Power Consumption |
Max. 10W |
| Dimensions |
269 × 96 × 82 mm |
| Weight |
0.97 kg |
