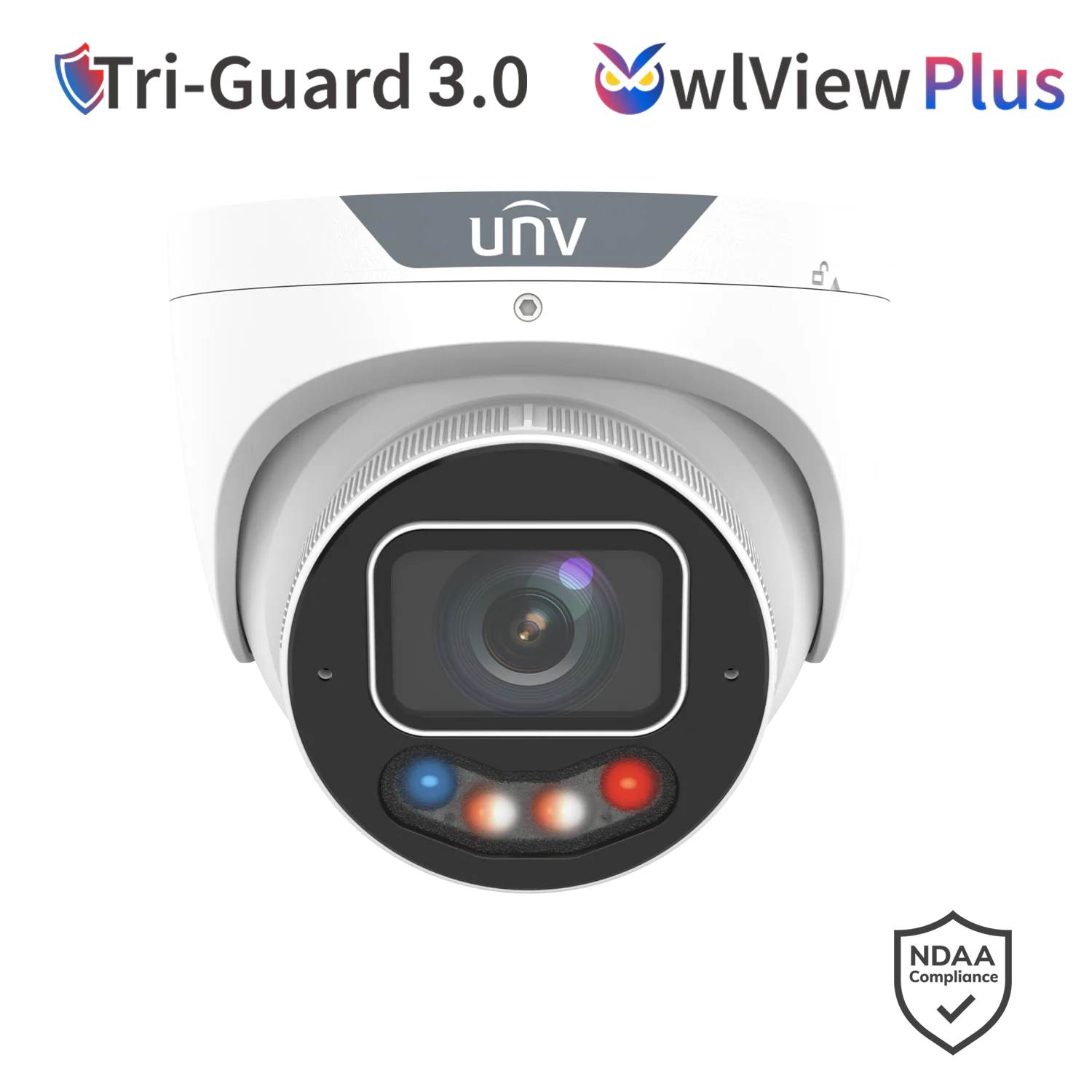

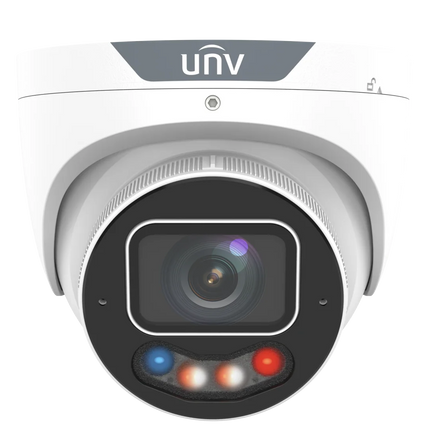

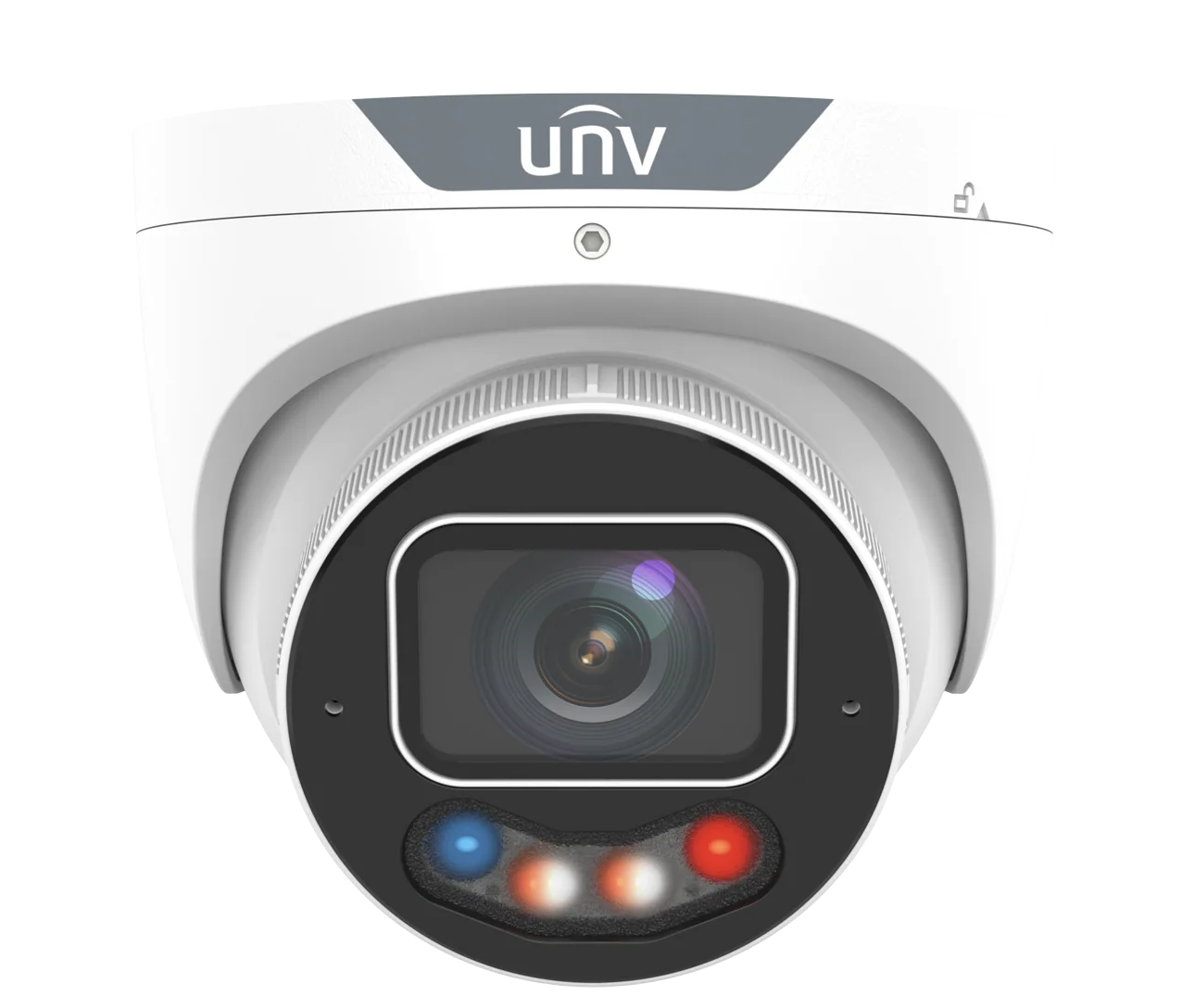

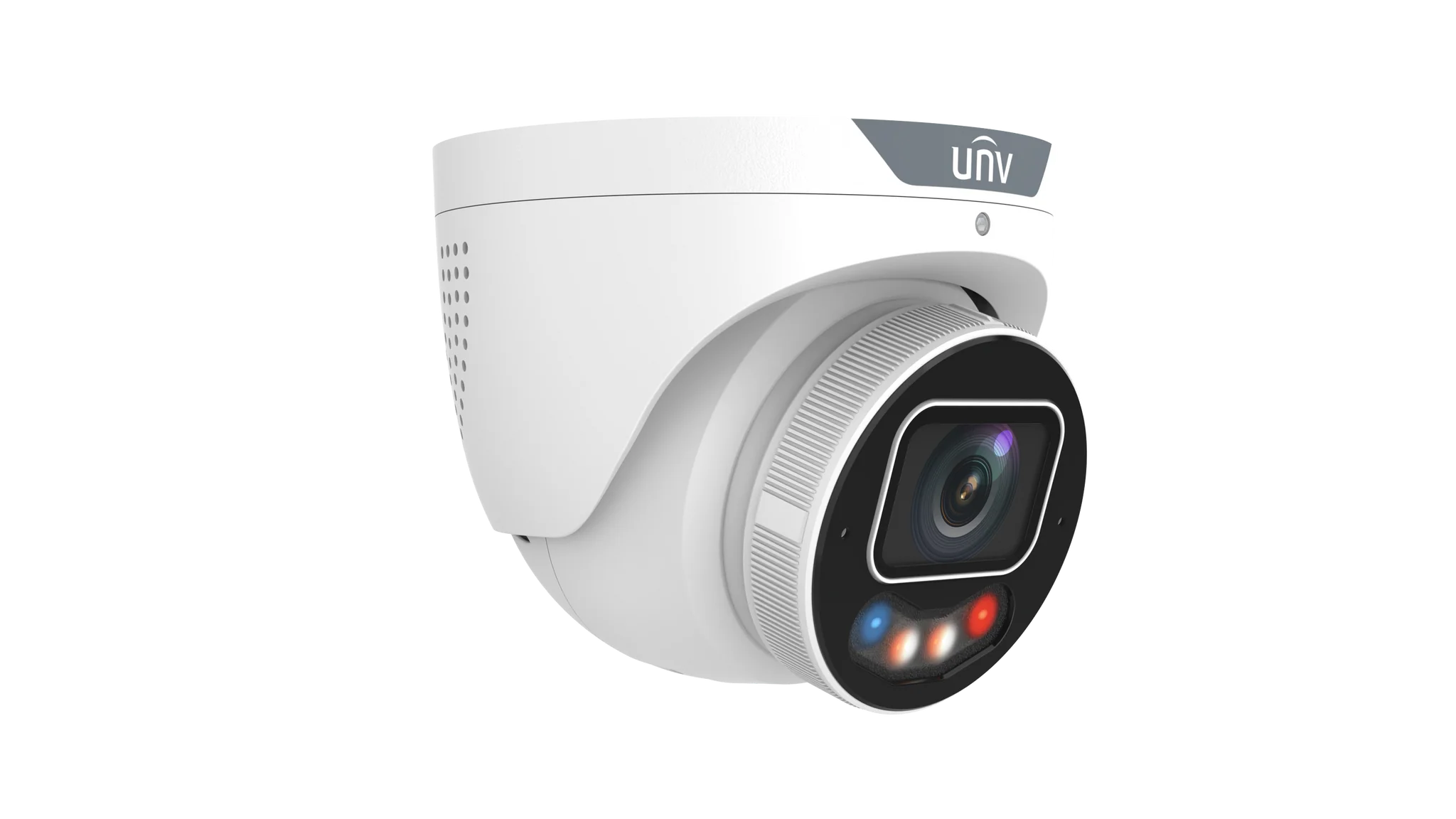

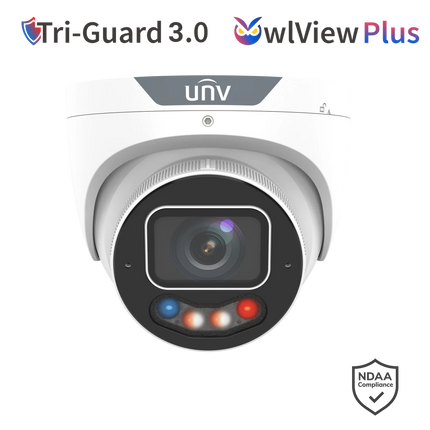

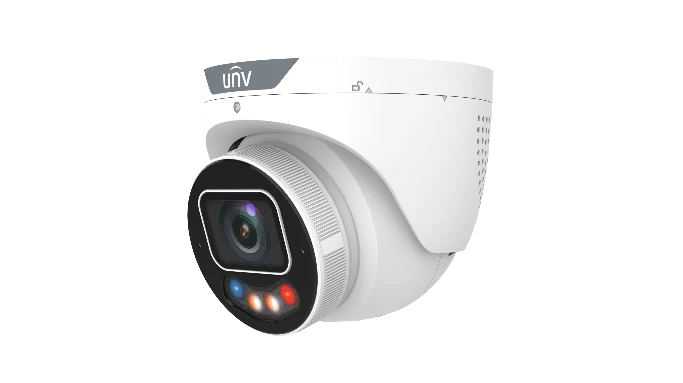

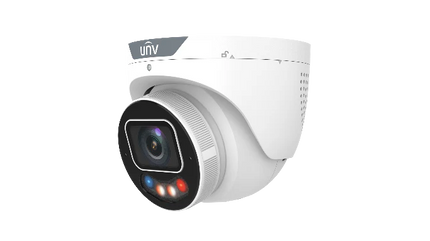

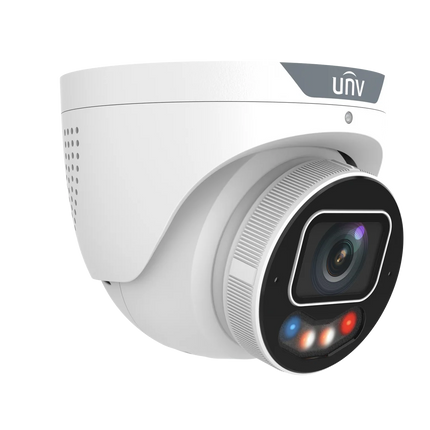

Uniview IPC3636SE-ADF28(40)KMC-WP-I1 is a high-performance 6MP OwlView Plus Tri-Guard Fixed Dual-Light Turret Network Camera designed for professional surveillance in both indoor and outdoor environments. This camera delivers exceptional full-color monitoring even in extremely low-light conditions.
Key Features
-
High-Quality 6MP Imaging – Captures sharp video at up to 3072 × 2048 resolution at 30fps.
-
1/1.8" CMOS Sensor – Ensures excellent image clarity and enhanced low-light performance.
-
ColorHunter Technology – Provides 24/7 full-color imaging with Wise-ISP enhancement.
-
Smart Intrusion Prevention – Reduces false alarms by focusing on humans, vehicles, and non-motor vehicles.
-
Perimeter Protection – Includes cross line, intrusion, enter area, and leave area detection.
-
People Counting – Supports people flow counting and crowd density monitoring.
-
Built-in Dual Mic & Speaker – Enables high-quality two-way audio communication.
-
512GB microSD Support – Allows local storage for backup recording.
-
IP67, IK10 & NEMA 4X Rated – Weatherproof, corrosion-resistant, and vandal-resistant design.
Perfect For:
- Outdoor perimeters, gates, and entrances
- Commercial and residential surveillance
- Warehouses and logistics environments
- Parking areas and open spaces
- Retail stores and high-traffic locations
- Enterprise-level security systems
Installer Tips
-
Optimize Dual Light Mode – Use intelligent switching between IR and warm light for best night results.
-
Enable Smart Intrusion Features – Minimize false alarms with accurate human and vehicle detection.
-
Use PoE for Easy Installation – Simplifies cabling and improves deployment efficiency.
-
Enable WDR – Essential for areas with strong backlight such as entrances.
-
Add microSD Storage – Provides backup recording during network interruptions.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC3636SE-ADF28KMC-WP-I1 / IPC3636SE-ADF40KMC-WP-I1 |
| Resolution |
6MP (3072 × 2048) |
| Sensor |
1/1.8" CMOS |
| Lens |
2.8mm / 4.0mm Fixed, F1.0 |
| Field of View (H/V/D) |
2.8mm: 111.0° / 61.4° / 133.0°; 4.0mm: 96.2° / 52.6° / 115.9° |
| Low-Light Performance |
0.0003 Lux (Color, F1.0, AGC ON) |
| IR / Light Range |
Up to 30m (IR & Warm Light) |
| WDR |
True 130dB |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in Dual Mic & Speaker, G.711 |
| Onboard Storage |
MicroSD up to 512GB |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af), Max 5W |
| Protection |
IP67, IK10, NEMA 4X |
| Operating Temp |
-40°C to 60°C |
| Dimensions |
Ø128.7 × 110.3 mm |
| Weight |
1.02 kg |
3-Years Warranty
Uniview 3-Years Manufacturer Warranty!
Our Uniarch products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!
✔️ Authorised Uniview Dealer!
✔️ Australian Stock, No Grey Imports!
✔️ 3-Years Manufacturer Warranty!
Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.
Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.
We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.
You can contact us by email at support@secsource.com.au or phone on 1300 049 519.
