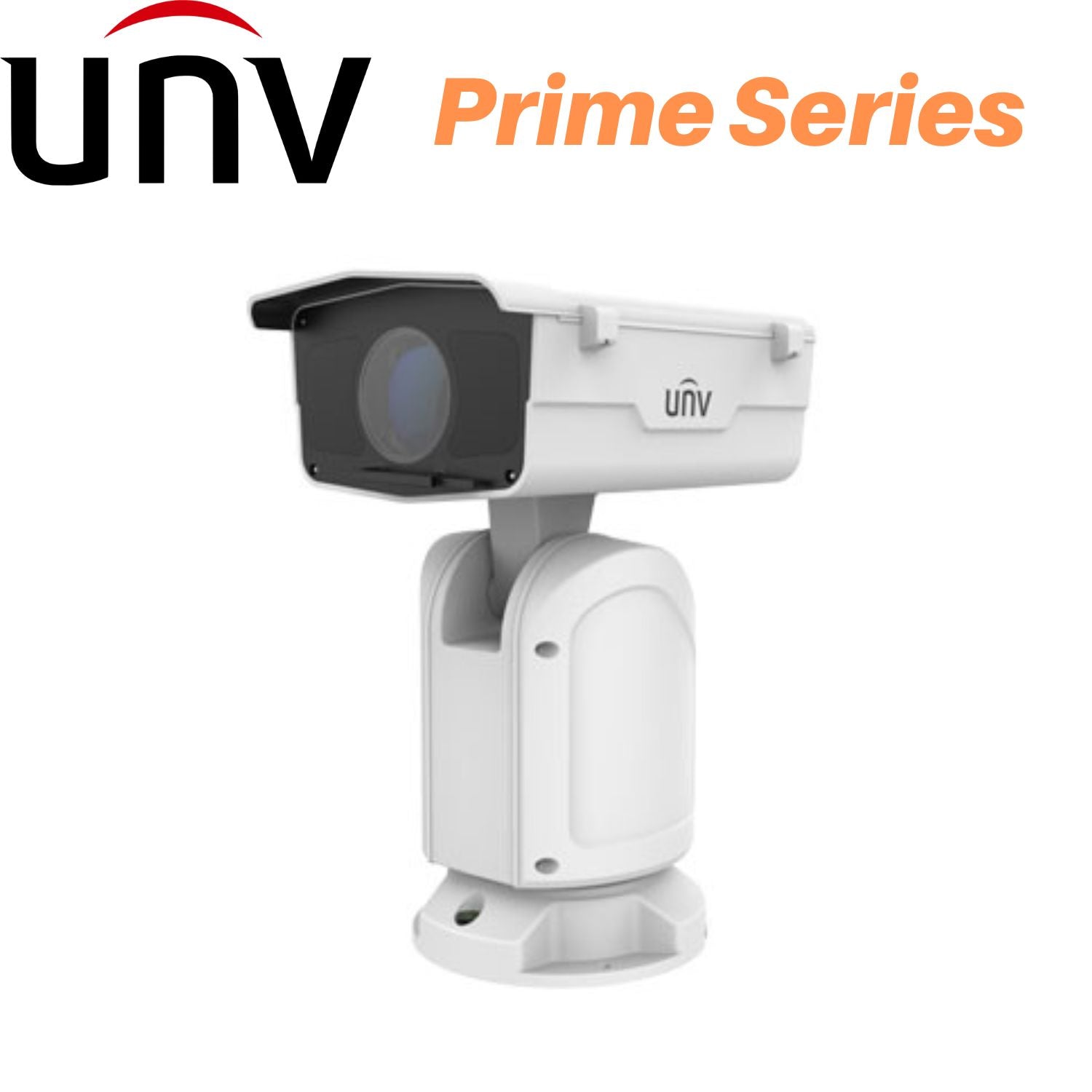

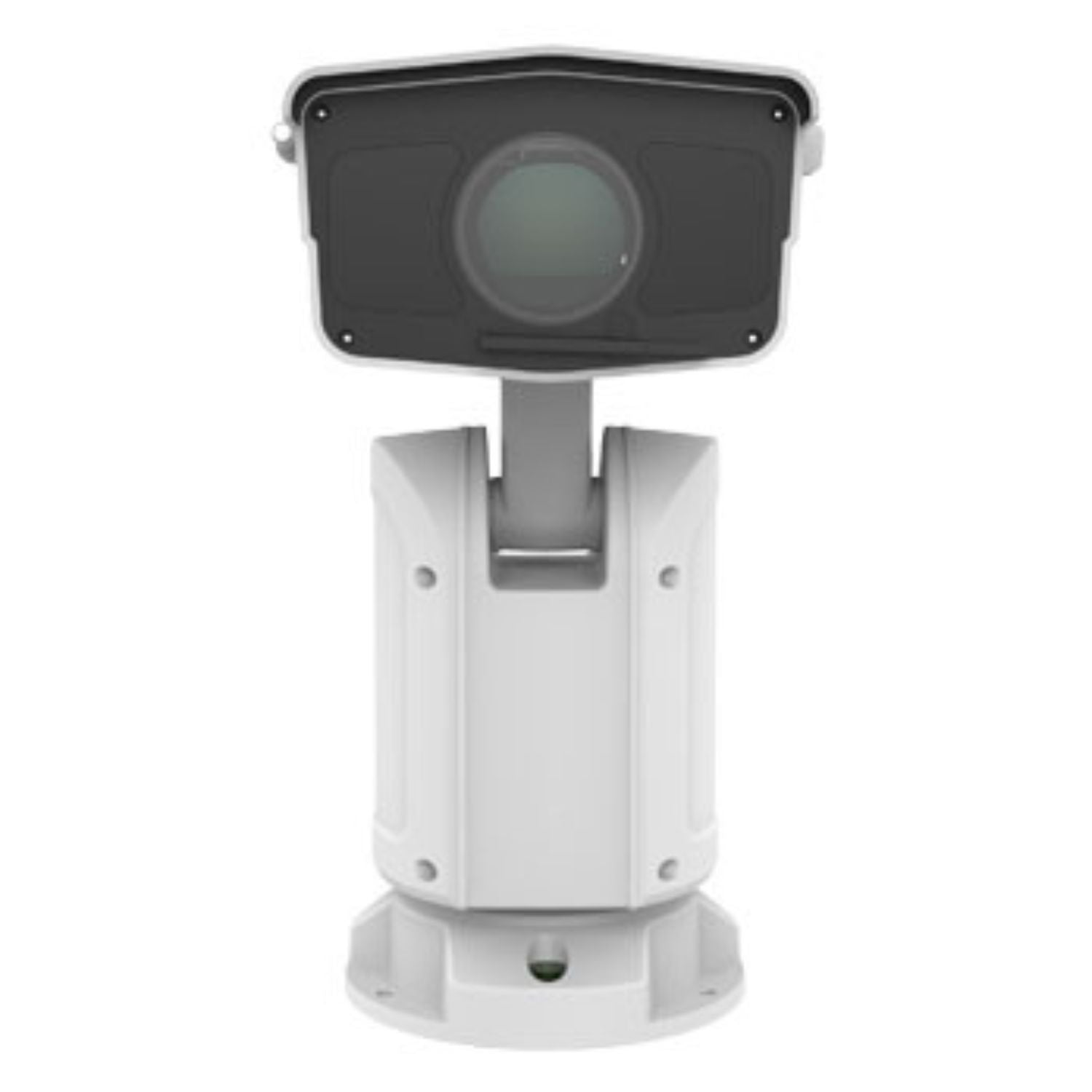

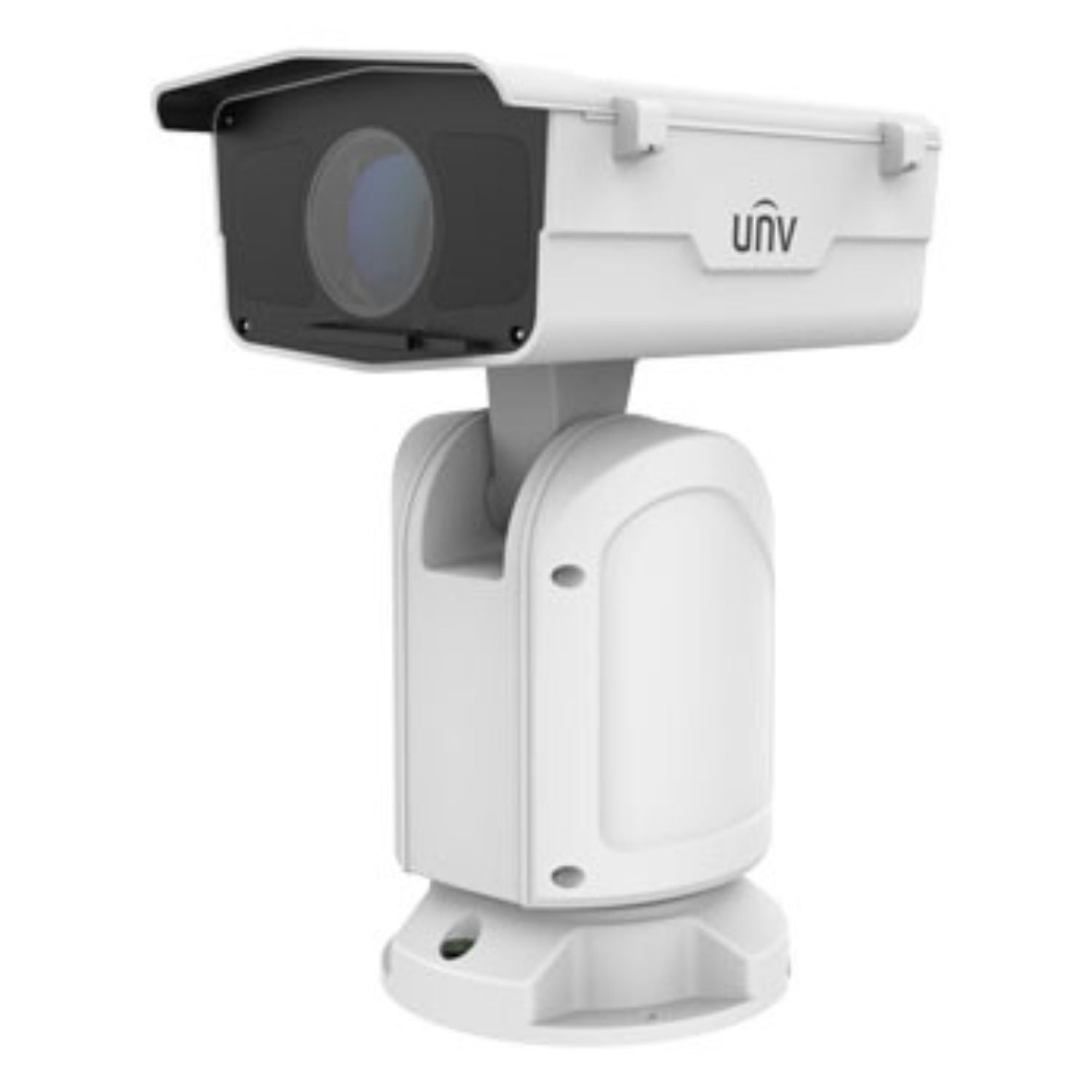

IPC7642ER-X55U-VC |
| Camera |
| Sensor |
1/1.8" progressive scan, 4.0megapixel, CMOS |
| Lens |
6~330mm, AF automatic focusing and motorized zoom lens |
| Iris |
F1.2 ~ F4.8 |
| Digital Zoom |
16 |
| Optical Zoom |
55 |
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| 6mm |
146.3(479.8ft) |
58.5(191.9ft) |
29.3(96.0ft) |
14.6(48.0ft) |
| 330mm |
4545.0(14911.4ft) |
1818.0(5964.6ft) |
909.0(2982.3ft) |
454.5(1491.1ft) |
| Field of View (H) |
61.5 ~ 1.9° |
| Field of View (V) |
37.0°~1.1° |
| Field of View (D) |
72.6°~2.2° |
| Shutter |
Auto/Manual, shutter time: 1s ~ 1/100000 s |
| Minimum Illumination |
0.003lux (F1.2，AGC ON，Colour)，
0 lux with IR |
| WDR |
120dB |
| Day/Night |
IR-cut filter with auto switch(ICR) |
| S/N |
>56 dB |
| IR Range |
400m(1312ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Optical Defog |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream:4MP (2688×1520)@30fps; 4MP (2560×1440)@30fps; 1080P@30fps;
Sub Stream:2MP(1920×1080)@30fps;
Third Stream:D1(720×576)@30fps
Fourth Stream:D1(720×576)@30fps
Fifth Stream:D1(720×576)@30fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| ROI |
Up to 8 areas |
| Video stream |
Five streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 blacks (Up to 8 blacks / 8 mosaics in the same picture) |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC |
Supported |
| BLC |
Supported |
| Gyroscope |
Supported |
| Smart |
| Smart intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Auto tracking ; |
| Exception Detection And Statistics |
Object Moving, Object Left |
| Statistical Analysis |
People counting, support tripwire people counting and area people counting |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711A, G.711U |
| Two way audio |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration |
ONVIF(Profile S, Profile G, Profile T),API |
| Client |
EZStation
Ezview
EZLive |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
360° |
| Pan Speed |
0.1°/s ~140°/s |
| Preset speed: 140°/s |
| Tilt Range |
–90° ~ +45° |
| Tilt Speed |
0.1° ~50°/s |
| Preset speed:50°/s |
| Number of Presets |
1024 |
| Patrol |
Preset patrol, route patrol, recorded patrol |
| Power-off memory |
Supported |
| Interface |
| Audio I/O |
1 Input: impedance 35 kΩ; amplitude2 V [p-p] |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O |
7/ 2 |
| Serial Port |
1 RS485 |
| Network |
10M/100M/1000M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032:2015, EN55024:2010+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
DC 48V±25%/DC 24V±15% (DC20V~DC60V)
DC-48V±25%/DC-24V±15%(DC-20V~DC-60V),
AC 24V±25% |
| Power consumption: Max 110W |
| Dimensions (Ø x H) |
280.1mmx364.9mm x505.2mm (Φ11.0” x 14.4” x19.9”) |
| Net weight |
13.95kg(30.8lb) |
| Material |
Metal |
| Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity :≤95% RH(non-condensing) |
| Surge protection |
6KV |
