Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.
UNV PRIME Ⅱ Series
All of products in PRIME Ⅱ deliver 4MP@30fps high resolution and support 120dB WDR, which can meet the market needs of high quality image in the daytime. Meanwhile, empowered by Uniview LightHunter technology, colorful and sharp images can be provided even at the lowest light conditions. The cameras also support U-code smart code, which greatly helps to enhance bandwidth performance and lower the data storage requirements.
More Choices of LightHunter
High resolution is the trend of video surveillance. However, as we all know, with the increase of pixels, the light-sensing area of each pixel decreases with the same size of sensor. Uniview launched a new generation of LightHunter products which includes 4MP IP cameras, enabling higher resolution with excellent colorful images in ultra-low light. Now, LightHunter products have more options. In addition to the 2MP & 5MP LightHunter products, 4MP LightHunter products are available with relatively more affordable price.
Features
- 1/2.8’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 3840*2160@20fps in the main stream
- ROI (Region of Interest)
- ONVIF Conformance
- Built-in Mic
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- IP67 ingress protection
Datasheet
Videos
Tech Specs

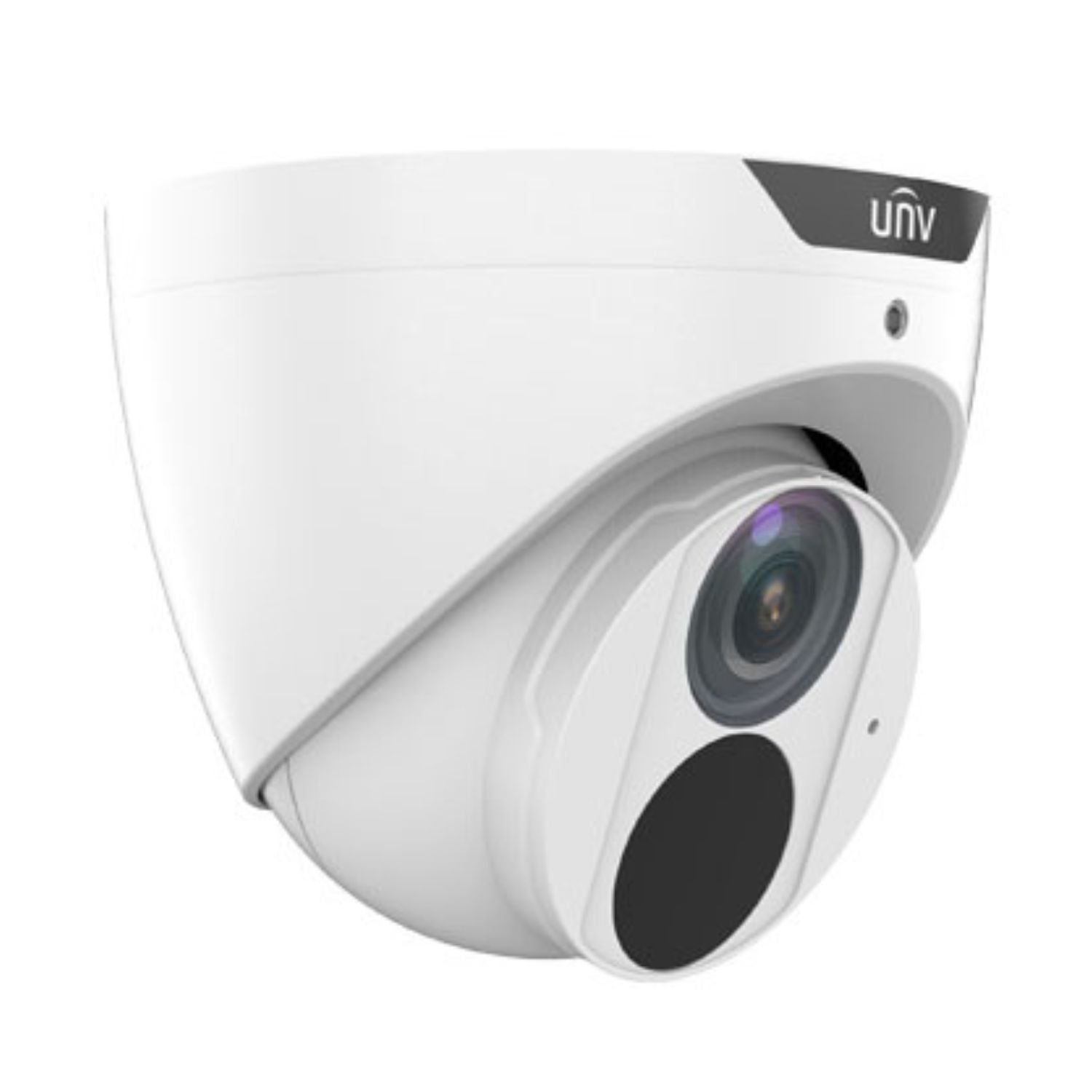

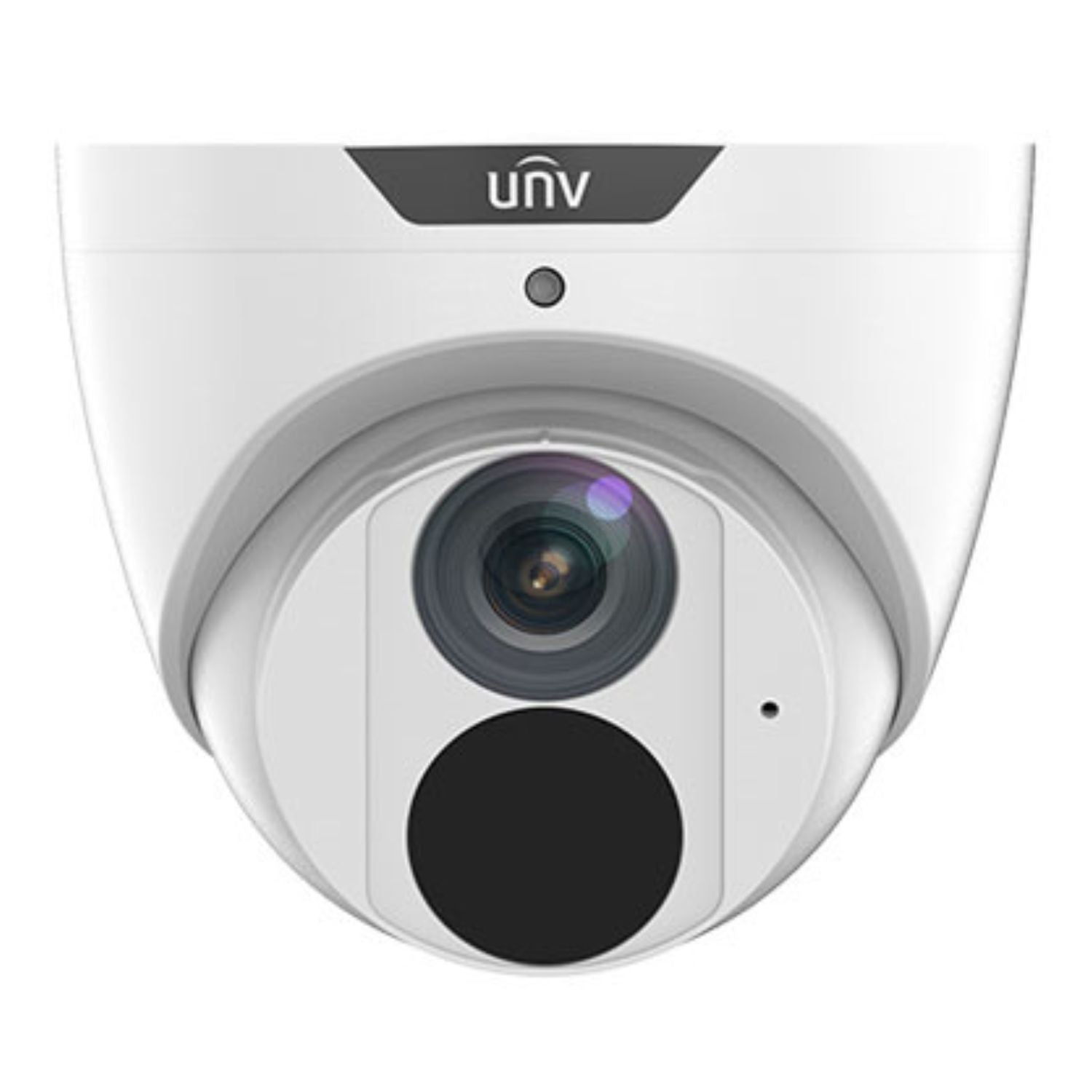

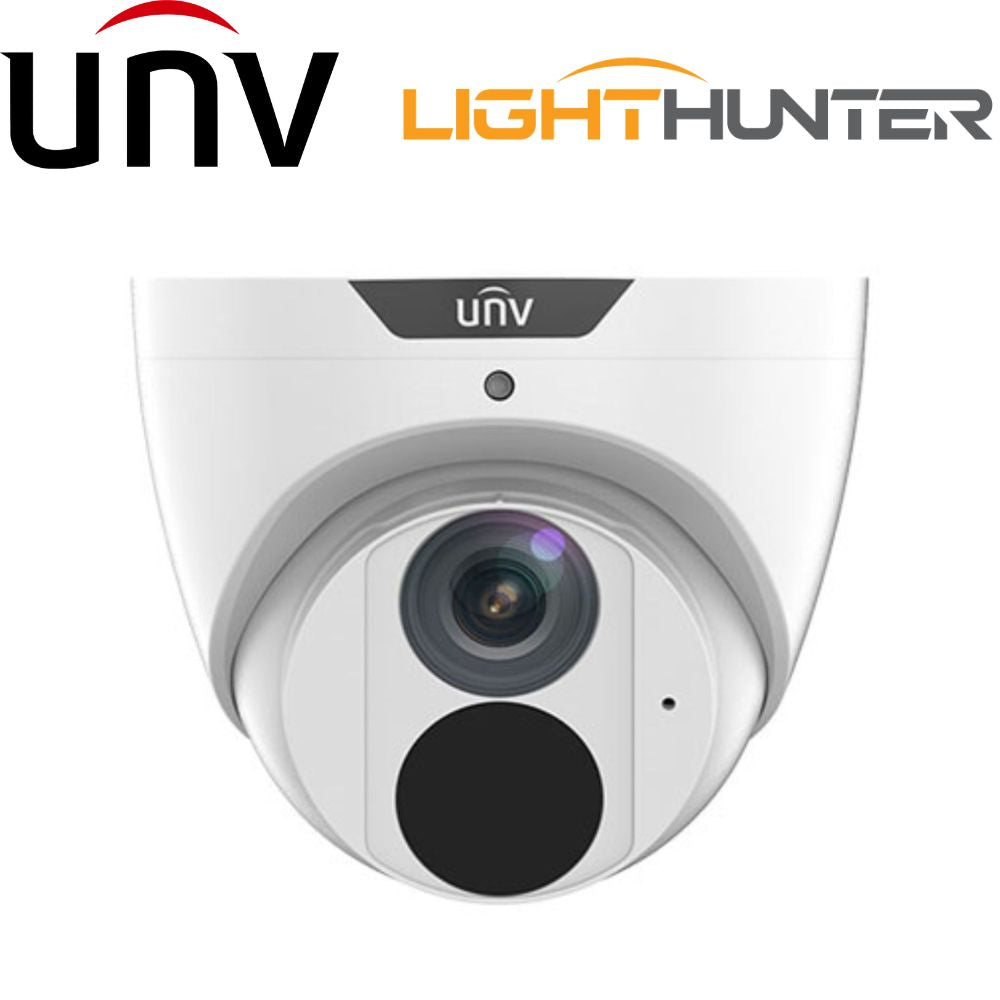

Uniview Security Camera: 8MP Dome, 2.8mm, Prime-II - IPC3618SS-ADF28KM-I0
| IPC3618SS-ADF28KM-I0 |
IPC3618SS-ADF40KM-I0 |
| Camera |
|
| Sensor |
1/2.8", 8.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F1.6 |
4.0mm@F1.6 |
| Iris |
Fixed |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
86.9(285.1ft) |
34.8(114.0ft) |
17.4(57.0ft) |
8.7(28.5ft) |
| 4.0 |
124.1(407.3ft) |
49.7(162.9ft) |
24.8(81.5ft) |
12.4(40.7ft) |
| Field of View (H) |
96.6° |
86.5° |
| Field of View (V) |
50.8° |
48.2° |
| Field of View (D) |
125.6° |
106.4° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle |
Pan: 0°~360° |
Tilt: 0°~75° |
Rotate: 0°~360° |
| Min. Illumination |
Colour:0.0025lux (F1.6, AGC ON)
0 lux with IR |
| WDR |
120dB |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>56dB |
| IR Range |
Up to 40m (131 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 8MP(3840*2160),Max 20fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| ROI |
Supported |
| Video stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 8 areas(8 blacks/8 mosaics) |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Intelligent |
| Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis |
People counting, support people flow counting and crowd density monitoring |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering alarm |
| General Function |
Watermark, IP Address Filtering , Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Exception Detection And Statistics |
Object Removed, Object Left Behind |
| Audio |
| Audio Compression |
G.711U,G.711A |
| Two-way Audio |
N/A |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation
EZLive
Ezview |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface |
| Audio I/O |
N/A |
| Alarm I/O |
N/A |
| Built-in Mic |
Supported |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Certification |
| EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
Power
|
DC12V(±25%), PoE(IEEE 802.3af) |
| Power consumption: Max 4W |
| Dimensions (Ø x H) |
Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’) |
| Weight |
0.43kg(0.95lb) |
| Working Environment |
-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection |
2KV |
