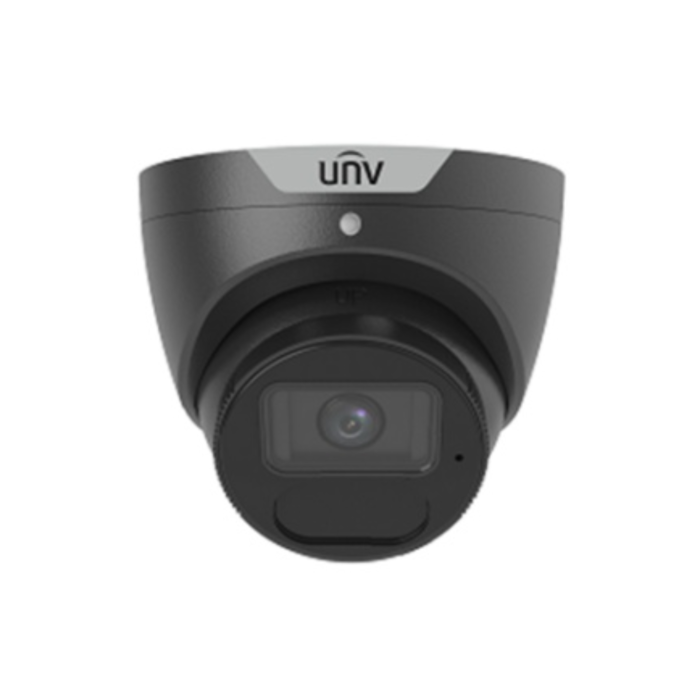

Uniview IPC3616SS-ADF28K-I1 is a premium 6MP Intelligent LightHunter Fixed Eyeball Network Camera designed for superior clarity in both daylight and extremely low-light environments. Equipped with a 1/2.7” CMOS sensor, 130dB True WDR, advanced AI intrusion prevention, Smart IR up to 40m, built-in microphone, and full IP67 weather protection, it delivers reliable professional surveillance performance for residential, commercial, and industrial installations.
Key Features
High-Quality 6MP Ultra HD Imaging – Records at up to 3072×2048 resolution with smooth frame rates for detailed monitoring.
1/2.7" CMOS Sensor – Provides excellent clarity and light sensitivity for accurate image capture.
LightHunter Technology – Enhances low-light performance, maintaining bright and color-rich images at night.
130dB True WDR – Ensures visibility in scenes with bright and dark areas, preventing silhouettes and overexposure.
Smart IR up to 40 m – Automatically adjusts infrared intensity to deliver clear and balanced night vision.
Built-in Microphone – Captures audio for better event context and monitoring accuracy.
Supports microSD Recording up to 256GB – Ideal for edge storage or standalone setups.
IP67 Weatherproof – Durable for outdoor exposure to heavy rain, dust, and harsh conditions.
Perfect For
Residential homes requiring clear day & night perimeter monitoring
Small to medium businesses needing reliable AI intrusion alerts
Parking spaces, driveways, and gated entrances
Warehouses and storage areas with mixed lighting conditions
Hallways, corridors, and narrow spaces (with Corridor Mode)
Shops and retail stores needing people counting analytics
Outdoor installations exposed to rain, dust, and harsh weather
Installer Tips
Mount between 2.5m–4m height to optimize AI human/vehicle detection accuracy.
Avoid pointing directly at bright lights (car headlights, spotlights) to maximize WDR performance.
Enable Smart Intrusion Prevention on the NVR or camera UI for fewer false alarms.
Use PoE instead of 12V DC for cleaner wiring and more stable power delivery.
Seal RJ45 connections using waterproof connectors to maintain IP67 protection outdoors.
Adjust IR strength if subjects appear washed out during night mode.
Use Corridor Mode when installing in hallways or narrow passageways.
Format the SD card inside the camera before enabling edge recording.
Downloads
Category
Specification
Image Sensor 1/2.7” 6MP Progressive Scan CMOS
Resolution 6MP (3072×2048) @ 20/25 fps; 4MP/3MP/1080p @ 30 fps
Minimum Illumination 0.002 Lux (Color, F1.6, AGC ON); 0 Lux with IR
Lens 2.8mm Fixed, F1.6
Field of View 107.2° (H) / 56.39° (V) / 110.11° (D)
IR Distance Smart IR, Up to 40m
WDR 130dB True WDR
Video Compression Ultra 265 / H.265 / H.264 / MJPEG
Audio Built-in Microphone, G.711A/U
AI Functions Human & vehicle classification, Cross-line, Intrusion, Enter/Leave area, People counting, Crowd density
Network RJ45 (10/100M), ONVIF S/G/T
Storage MicroSD up to 256GB; ANR & NAS support
Power DC 12V ±25% / PoE (802.3af), Max 6.5W
Operating Conditions -30°C to 60°C, ≤95% RH
Protection IP67 Weatherproof
Dimensions Φ129 × 110 mm
Material Metal + Plastic
