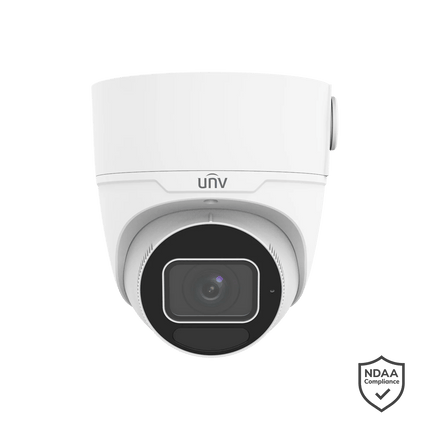

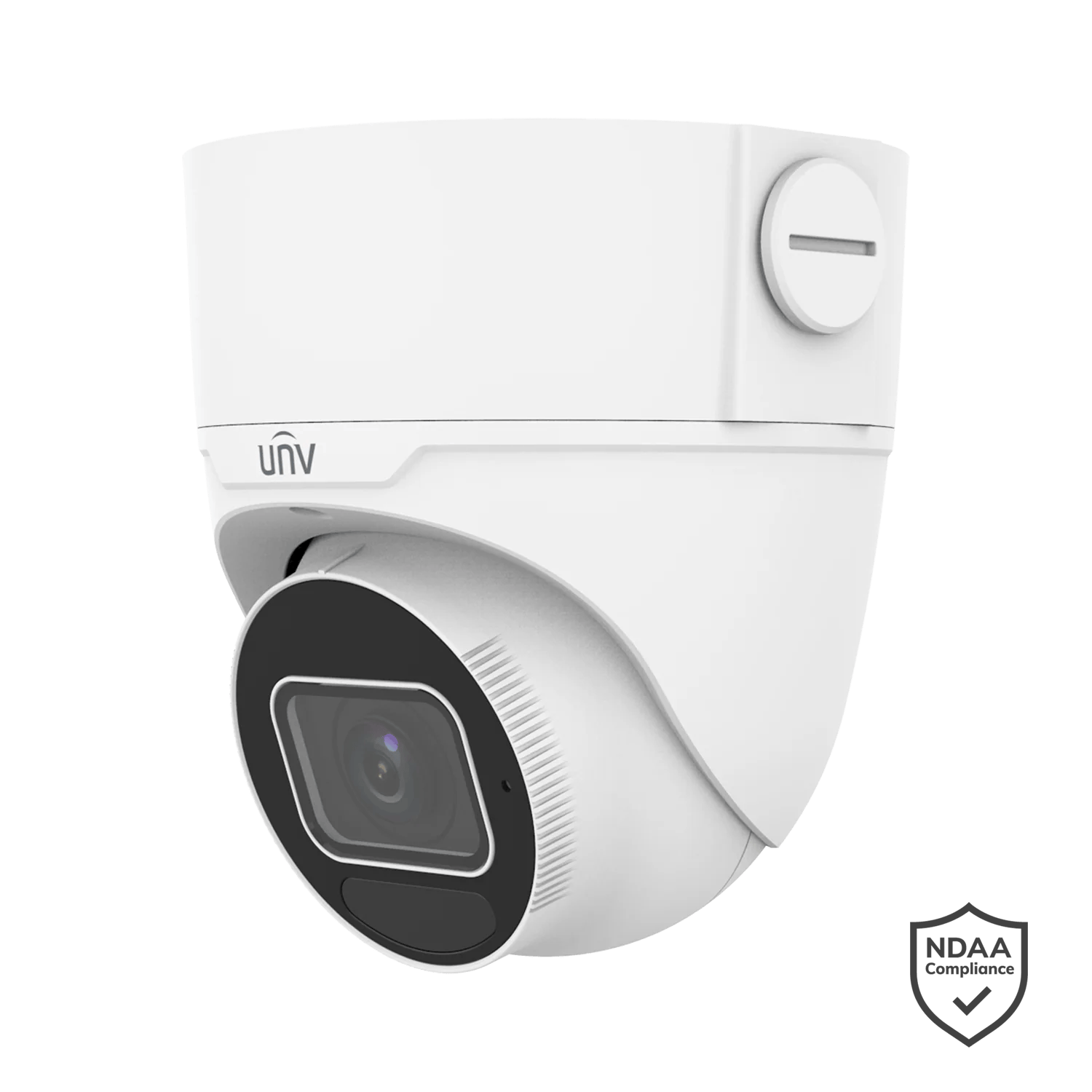

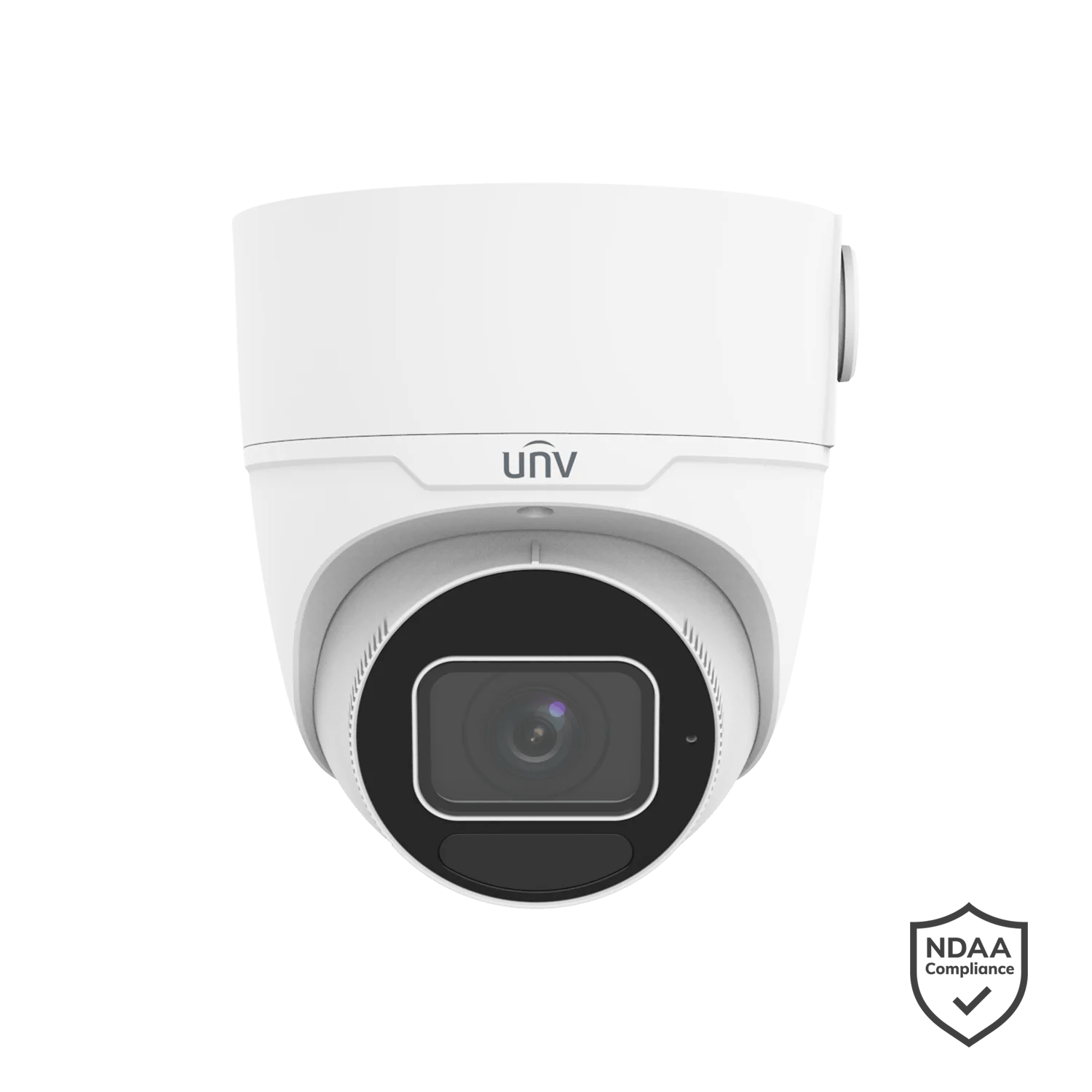

Uniview IPC3636SS-ADZK-I1 is a 6MP Intelligent LightHunter VF Eyeball Network Camera designed to deliver exceptional clarity, accurate target detection, and superior low-light performance. With advanced smart intrusion prevention, motorized varifocal lens, strong WDR capability, and robust IK10 & IP67 protection, this camera is ideal for professional outdoor surveillance requiring high reliability and detailed imaging.
Key Features
-
6MP High-Resolution Imaging – Delivers crisp footage using a 1/2.7” CMOS sensor with multiple resolution/frame rate options up to 3072×2048 @ 25fps.
-
LightHunter Technology – Ensures ultra-high image quality in low-illumination environments with minimum color illumination of 0.002 Lux.
-
Advanced Smart Intrusion Prevention – Detects cross line, intrusion, enter/leave area events with accurate classification of humans, vehicles, and non-motor vehicles.
-
130 dB True WDR – Maintains clear visibility in scenes with strong backlight or high contrast.
-
Motorized Varifocal Lens (2.7–13.5mm) – Provides flexible viewing angles from wide to telephoto with remote zoom and focus.
-
People Counting & Crowd Density – Generates accurate statistics ideal for entrances, lobbies, and public flow monitoring.
-
Smart IR Up to 40m – Automatically adjusts IR output for uniform nighttime illumination.
-
Ultra 265/H.265/H.264/MJPEG – High-efficiency compression reduces storage and bandwidth requirements.
-
Robust Outdoor Design – IK10 vandal resistance and IP67 weather protection ensure durability in harsh environments.
Perfect For:
- Parking lots and outdoor perimeters
- Commercial building entrances
- Industrial facilities and warehouses
- Public spaces needing people-flow analytics
- High-risk areas requiring vandal-resistant hardware
- Gated communities and residential compounds
Installer Tips
-
Use Motorized Zoom Wisely – Adjust remotely to achieve optimal DORI distances depending on whether you need detection or identification.
-
Maximize Low-Light Clarity – Install where ambient lighting is minimal so LightHunter technology can enhance nighttime performance.
-
Enable Smart Intrusion Filters – Reduce false alarms by activating human/vehicle classification.
-
Position for People Counting – Mount above entry/exit points for accurate bi-directional flow analytics.
-
Use PoE for Clean Installation – A single Ethernet cable powers the camera and carries video data.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC3636SS-ADZK-I1 |
| Resolution |
6MP (3072 × 2048) |
| Sensor |
1/2.7" CMOS, progressive scan |
| Lens |
Motorized 2.7–13.5mm, F1.4 |
| Field of View (H/V/D) |
110.8°–27.2° / 58°–15.3° / 145°–31.2° |
| Min. Illumination |
Color: 0.002 Lux (F1.4, AGC ON); 0 Lux with IR |
| Infrared Range |
Up to 40m Smart IR |
| WDR |
True 130 dB |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in mic, 1/1 audio I/O; G.711, G.726 |
| Smart Features |
Human/vehicle/SIV classification, SIP, people counting, crowd density |
| Alarm I/O |
1 input / 1 output |
| Onboard Storage |
MicroSD up to 256GB |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af), Max 12W |
| Protection |
IP67 weatherproof, IK10 vandal resistant |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Dimensions |
Φ134 × 124mm |
| Weight |
Approx. 820g |
