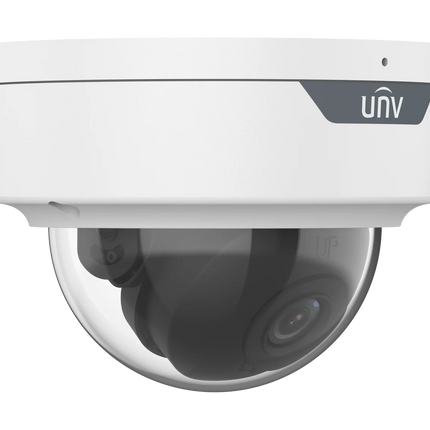

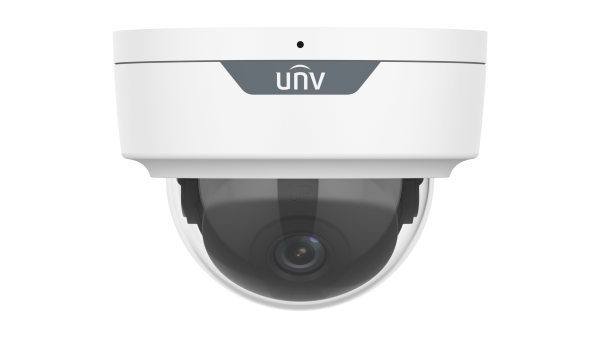

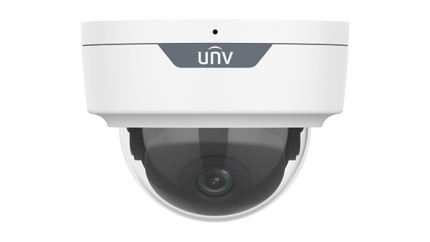

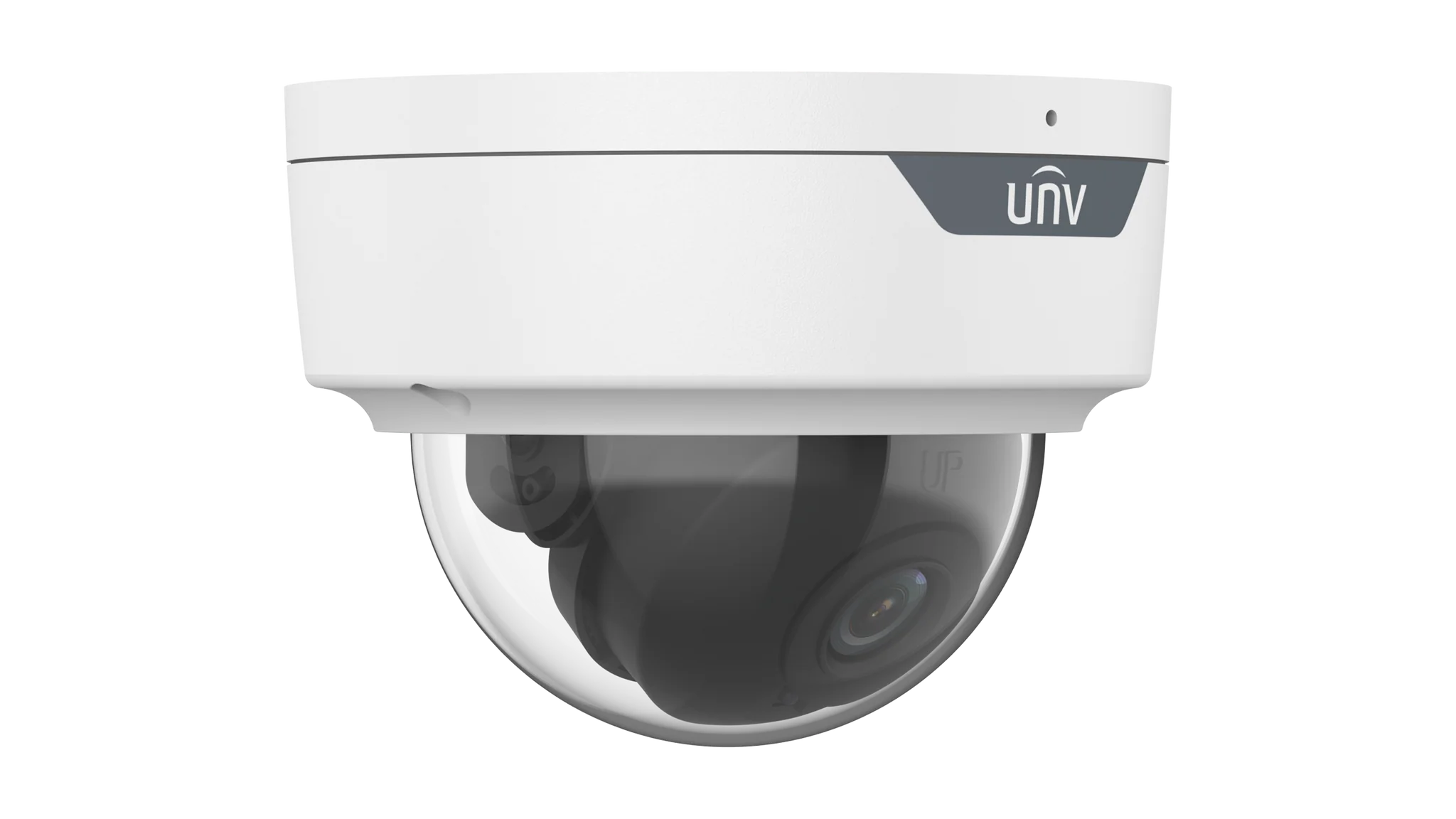

Uniview IPC328SS-ADF28(40)K-I1 is an 8MP LightHunter Intelligent IR Dome Network Camera engineered for superior image quality, advanced AI-powered detection, and reliable performance in both indoor and outdoor surveillance environments. With a 1/2.8" CMOS sensor, 130dB True WDR, Smart Intrusion Prevention, People Counting, and IK10 vandal resistance, this camera is ideal for professional security deployments.
Key Features
-
High-Quality 8MP Imaging – Captures ultra-clear 3840 × 2160 video at up to 30fps for detailed monitoring.
-
1/2.8" CMOS LightHunter Sensor – Provides outstanding low-light performance with bright, noise-controlled images.
-
130dB True WDR – Ensures clarity in environments with strong backlight and high contrast.
-
Intelligent Intrusion Prevention – Detects cross-line, intrusion, enter/leave area events with human/vehicle classification.
-
People Counting & Crowd Density Monitoring – Offers advanced analytics for commercial and public spaces.
-
Smart IR up to 40m – Automatically adjusts IR intensity to prevent overexposure at night.
-
Built-in Microphone – Captures real-time audio for enhanced evidence collection.
-
Supports up to 512GB microSD – Provides reliable onboard storage.
-
IK10 + IP67 – Vandal-resistant metal housing with full weatherproof protection.
Perfect For:
- Office buildings & commercial facilities
- Warehouse monitoring
- Schools and campuses
- Retail entrances and public areas
- Transport hubs & parking areas
- High-security installations requiring vandal resistance
Installer Tips
-
Enable Smart Intrusion Prevention – Reduces false alarms caused by animals or foliage.
-
Use Corridor Mode (9:16) – Ideal for hallways and narrow passages.
-
Set WDR to Auto – Ensures best performance in backlit areas.
-
Use PoE Power – Simplifies installation and improves reliability.
-
Consider a microSD card – Ensures video retention during network outages.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC328SS-ADF28K-I1 / IPC328SS-ADF40K-I1 |
| Max Resolution |
8MP (3840 × 2160) @ 30/25fps |
| Sensor |
1/2.8" CMOS, Color: 0.002 lux (F1.6), 0 lux with IR |
| Lens Options |
2.8mm or 4.0mm fixed lens |
| Field of View |
2.8mm: H 97.49° / V 52.31° / D 102.29°
4.0mm: H 88.35° / V 49.61° / D 94.19° |
| IR Distance |
Up to 40m (131ft), 850nm Smart IR |
| WDR |
130dB True WDR |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| AI Features |
Smart Intrusion Prevention, People Counting, Crowd Density Monitoring, Color Retrieval |
| Audio |
Built-in Mic, 1-in/1-out audio interface |
| Storage |
Up to 512GB microSD, NAS, ANR |
| Protection |
IP67 weatherproof, IK10 vandal resistant |
| Power |
DC 12V ±25%, PoE (802.3af), Max 7.0W |
| Operating Temp |
-30°C to 60°C (≤95% RH) |
| Dimensions |
Ø111 × 83mm |
| Material |
Metal housing |
