Description

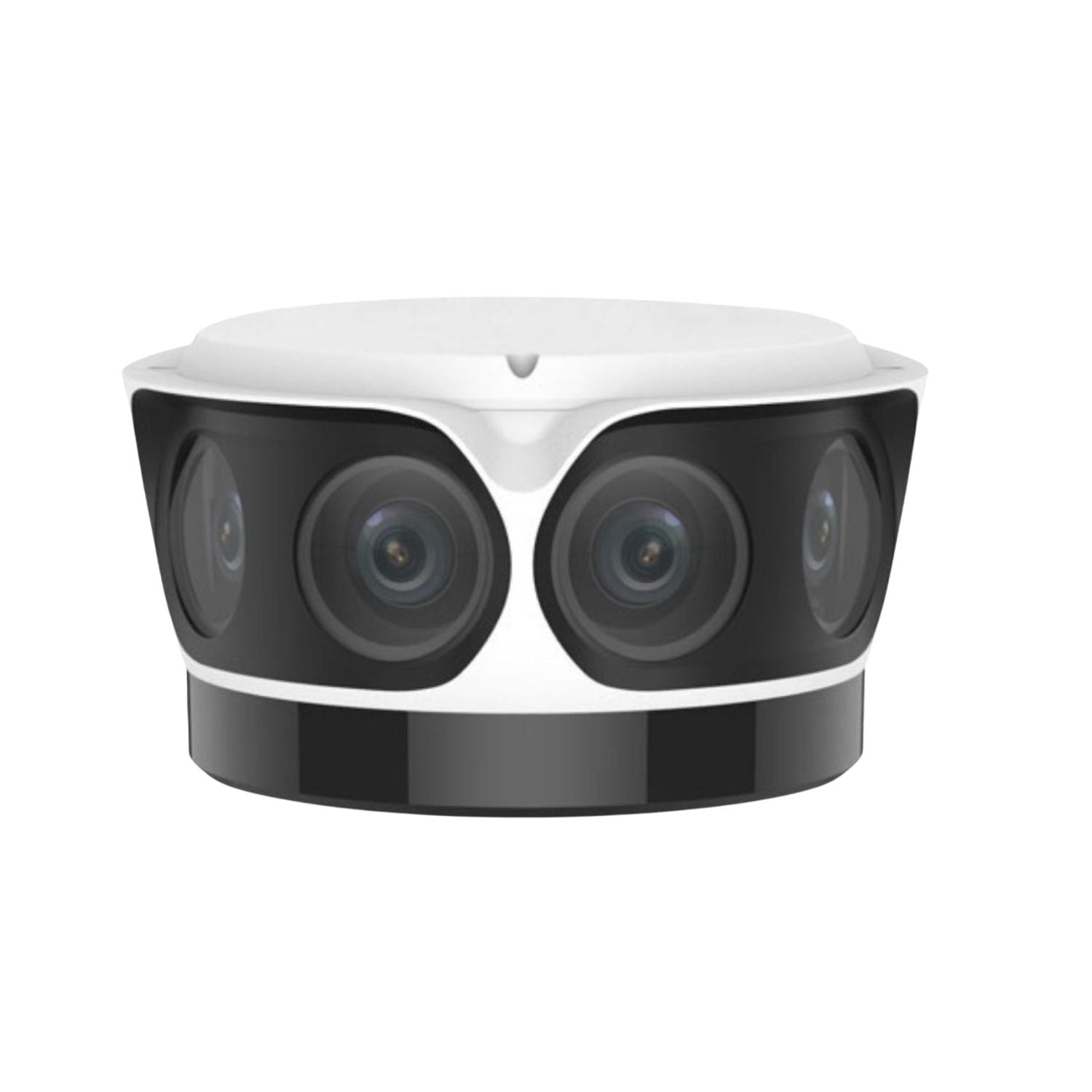

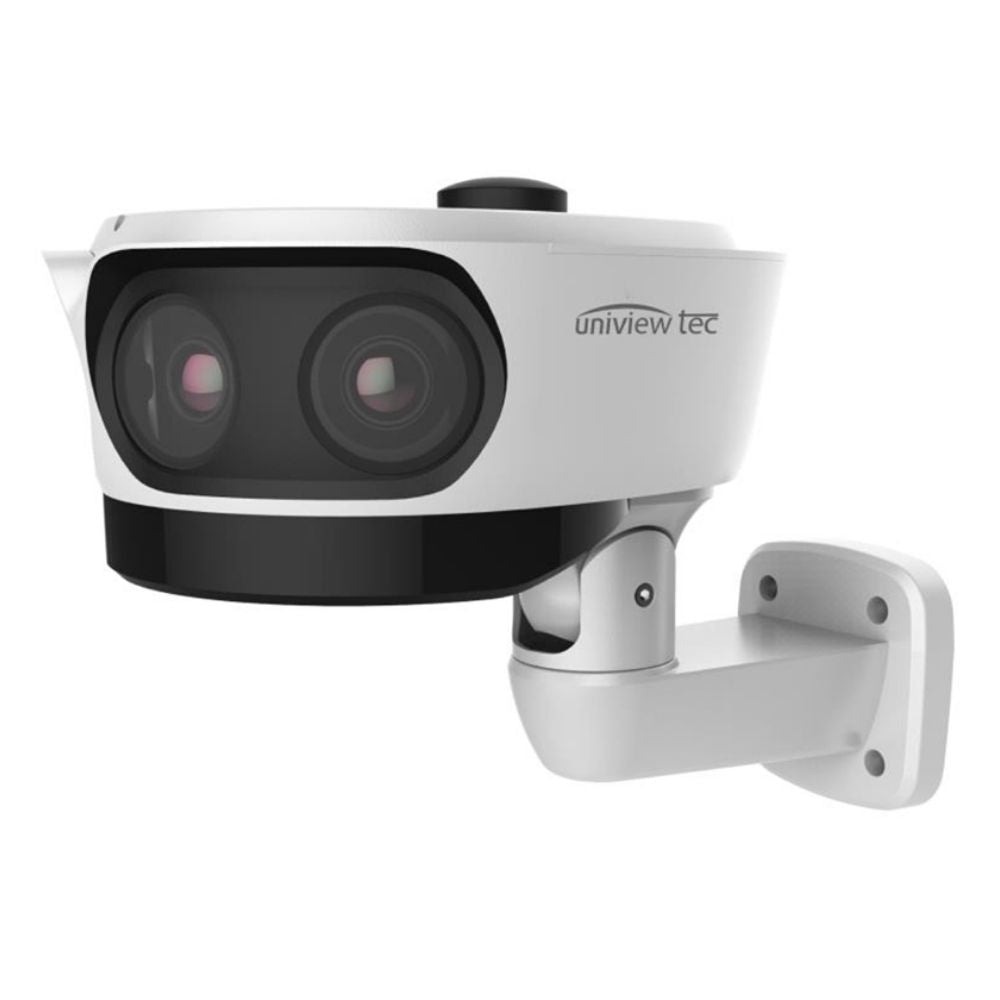

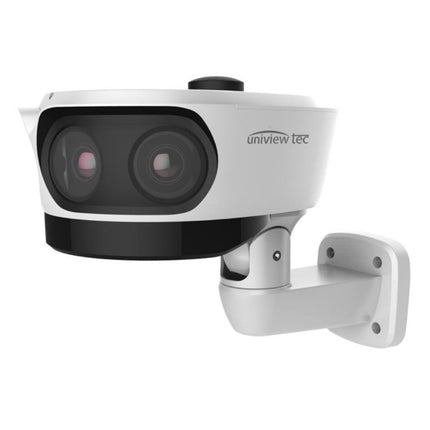

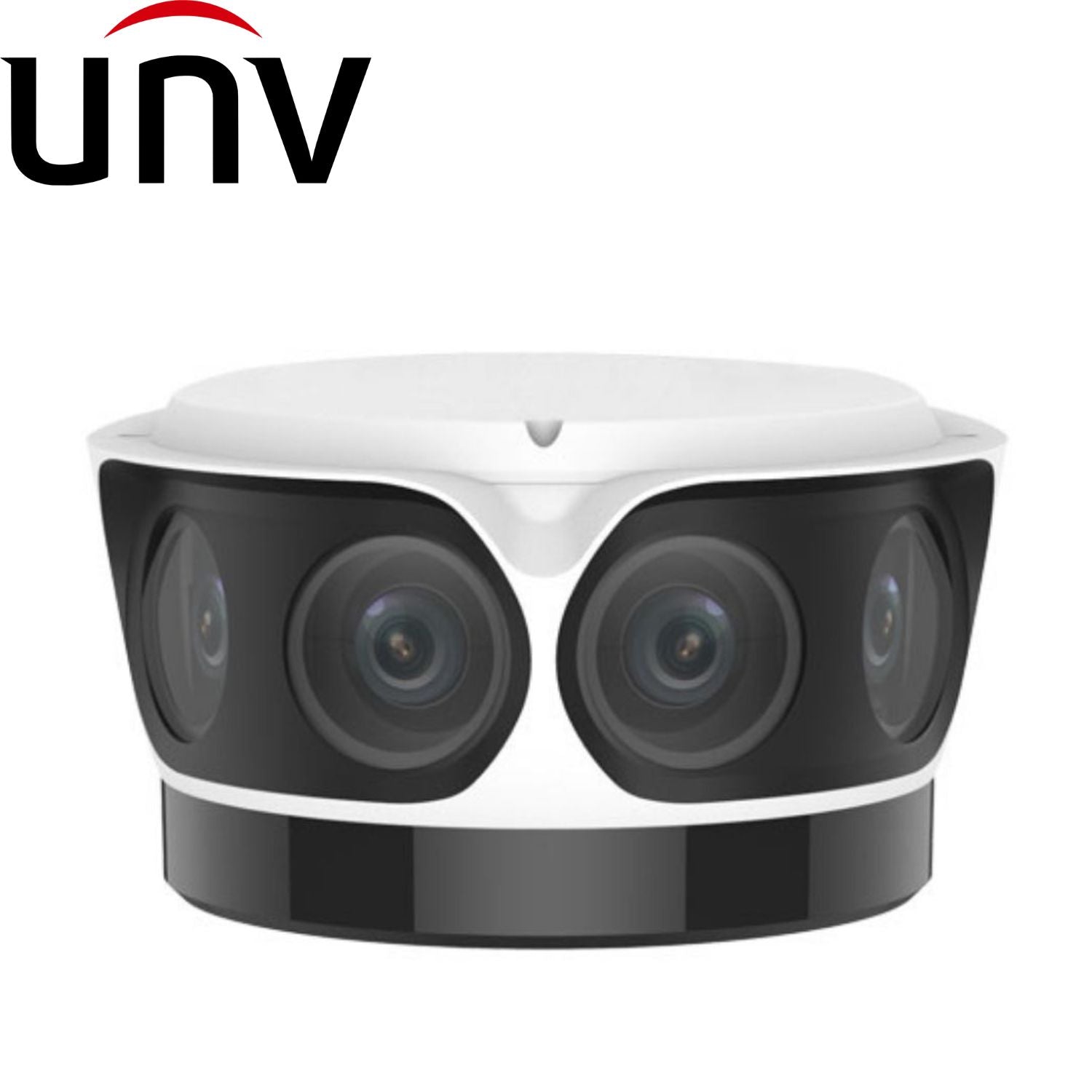

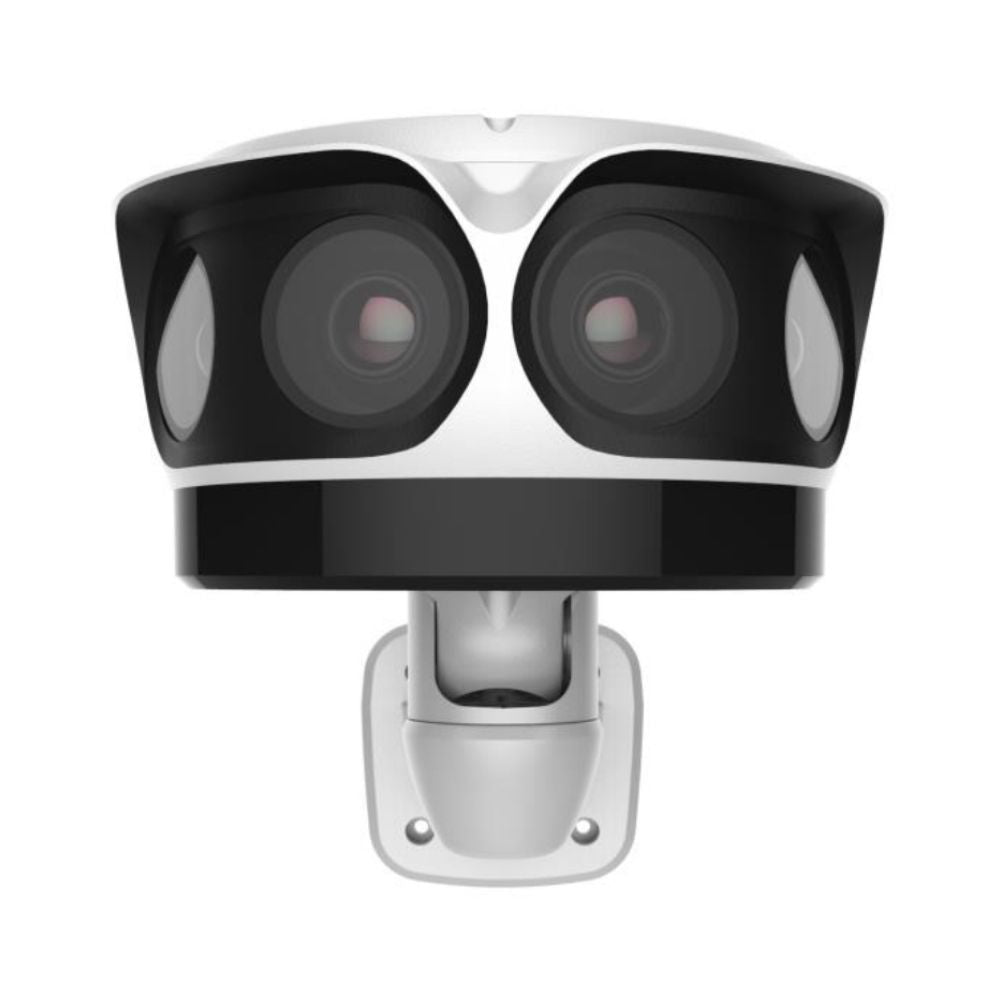

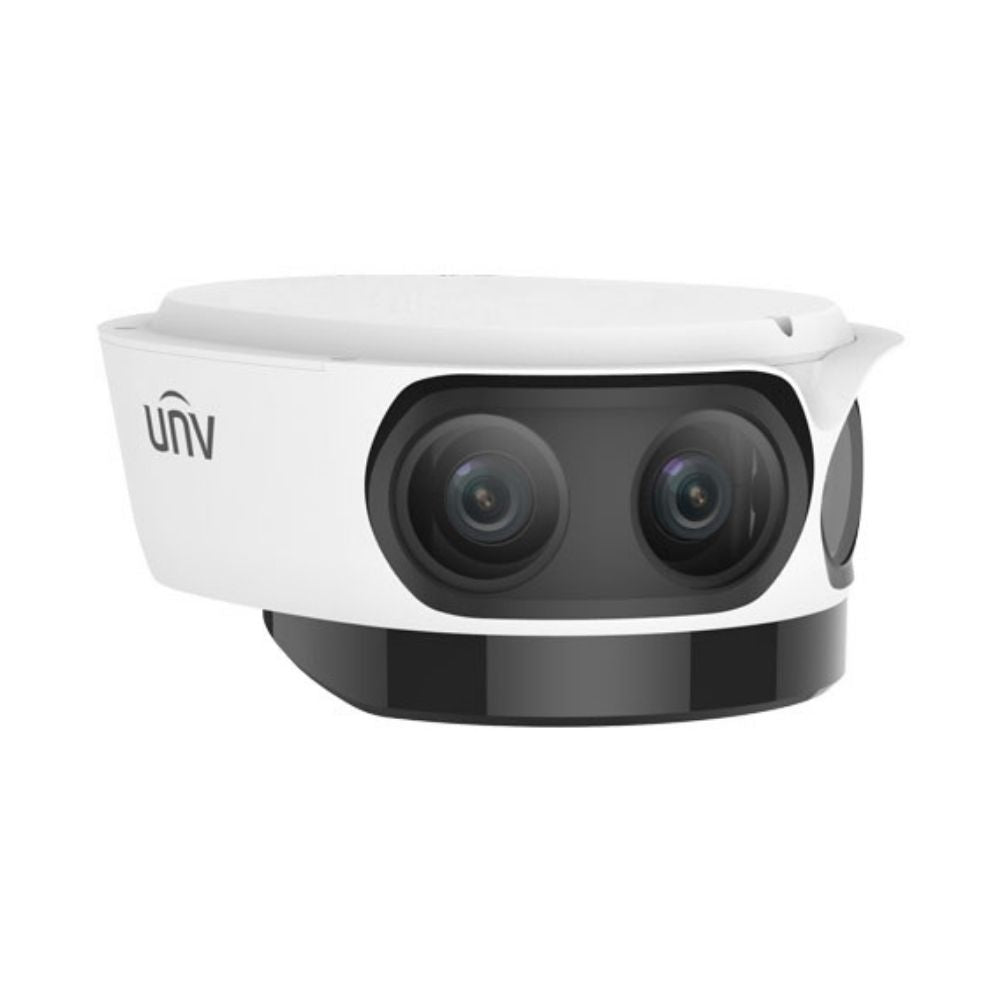

The Uniview IPC8542ER5-DUG OmniView Starlight Camera comes equipped with four 4.2mm fixed lenses. It's OmniView cameras allow 80° Horizontal viewing angle. It features a Starlight Illumination technology that allows clear and crisp recording under very low light conditions, ideal for indoor and outdoor 24/7 monitoring. The Ultra 265 video compression technology significantly reduces storage consumption. It also comes with a No-Hassle, No Worry, 3 Years back-to-base Manufacturer Warranty.

Features

8 Megapixel 4K Ultra HD OmniView, 1/1.8" Progressive Scan CMOS Sensor, 4.2mm Fixed Lens. 180° Horizontal Viewing Angle. Up to 4096×1800 resolution @ 30fps
Starlight Illumination and Enhanced Sensor for color recording in very low light conditions - 0.002Lux.
Wide Dynamic Range 120dB, 2D/3D DNR Noise Reduction, Digital Defog.
Smart Features: Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication. ONVIF Conformance.
Micro SD, up to 128 GB. ANR Network Storage.
Smart Infrared technology, 50m IR distance. Day/night functionality.
Video compression Ultra 265, H.265, H.264, MJPEG. Triple streams.
Support Power Over Ethernet power supply with a wide voltage range of ±25%
Capable of 24/7 Live View from anywhere via smartphones using the EZView app.
Wide temperature range: -35°C ~ +60°C (-31°F ~ 140°F)
Durable and Weather Resistant - IP67 Rating.
WARRANTY: 3 Years back-to-base Manufacturer Warranty.

More Info

Optics

Fifth-generation infrared technology, up to 50m (164ft) IR distance
Starlight illumination
IR anti-reflection window to increase the infrared transmittance
Smart IR
2D/3D DNR (Digital Noise Reduction)
120dB true WDR
Support a horizontal viewing angle of 180°

Compression

Ultra H.265, H.265, H.264, MJPEG
Triple streams
Customized OSD
4096×1800@30fps supported

Network

ONVIF Conformance

Structure

Intelligent temperature control technology
Wide temperature range: -40°C to 70°C (-40°F to 158°F)
Wide voltage range of ±25%
More effective heat dissipation system
IP67

Tech Specs

Camera
Sensor	1/1.8" progressive scan, 2.0 megapixel, CMOS
Lens	4×4.2mm lens
DORI Distance	Lens: 4.2mm Detect(m): 50.4 (165.4ft) Observe(m): 20.2(66.3ft) Recognize(m): 10.1(33.1ft) Identify(m): 5.0(16.4ft)
Angle of View (H)	180°
Angle of View (V)	80°
Angle of View (O)	221.4°
Adjustment angle	Pan: -90°~90° Tilt: -45°~60°
Shutter	Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination	Colour: 0.002lux (F1.8,AGC ON) 0lux with IR
Iris	F1.8
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55 dB
IR Range	Up to 50m (164ft)
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra H.265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4096×1800:Max. 30 fps; Sub Stream: 1920×832:Max. 30 fps; Third Stream: 1280×560: Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Smart
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G7.11
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8KHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O	1 Input: impedance 35 k?; amplitude 2 V [p-p] 1 Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O	2/1
Network	1100M/1000M Base-FX SFP + 210M/100M/1000M Base-TX Ethernet
General
Power	AC24V/DC24V±25% Power consumption: 48W MAX
Dimensions	259mmx211mmx115mm
Weight	2.4kg(5.3lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP67
Reset Button	Supported
