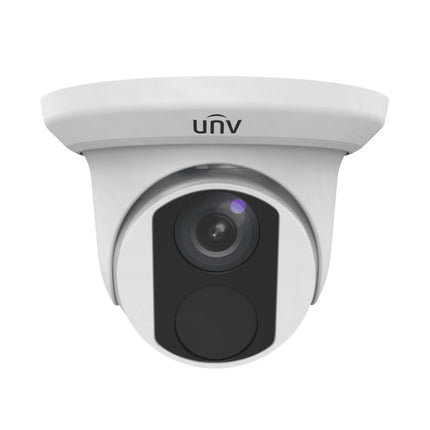

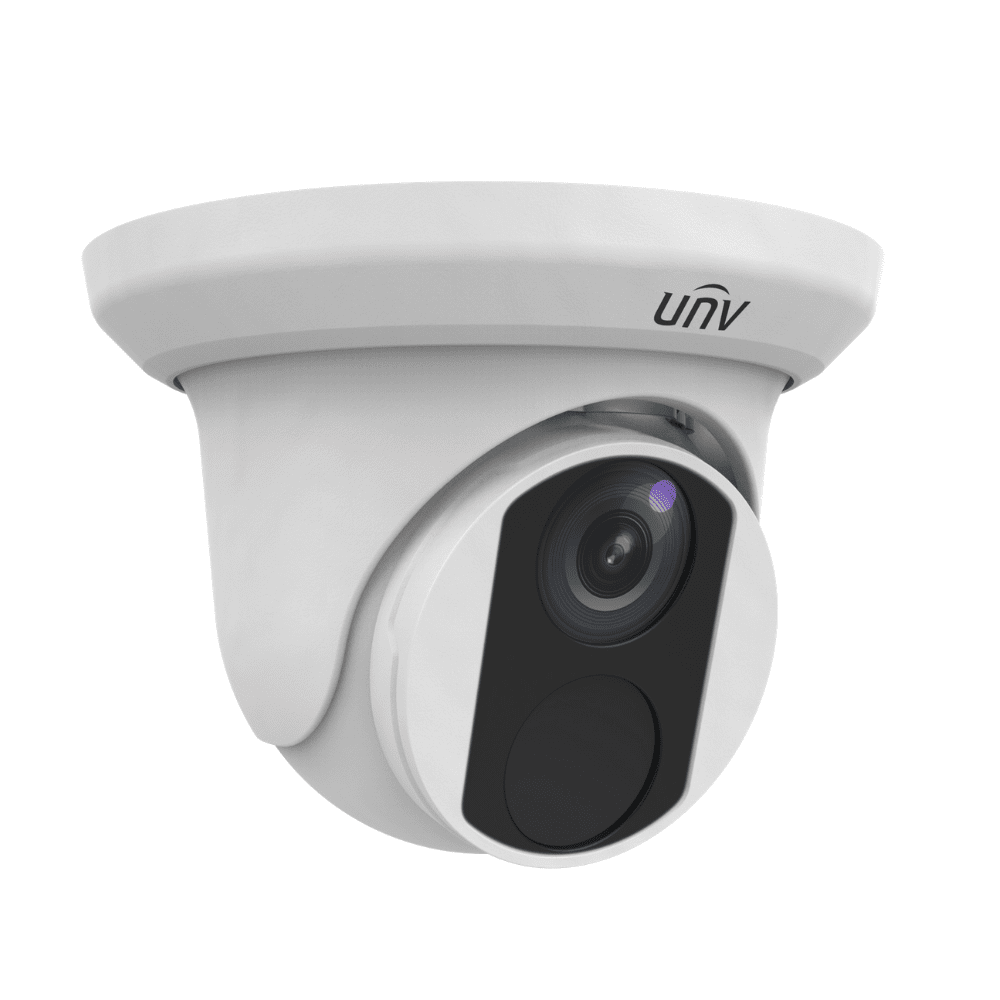

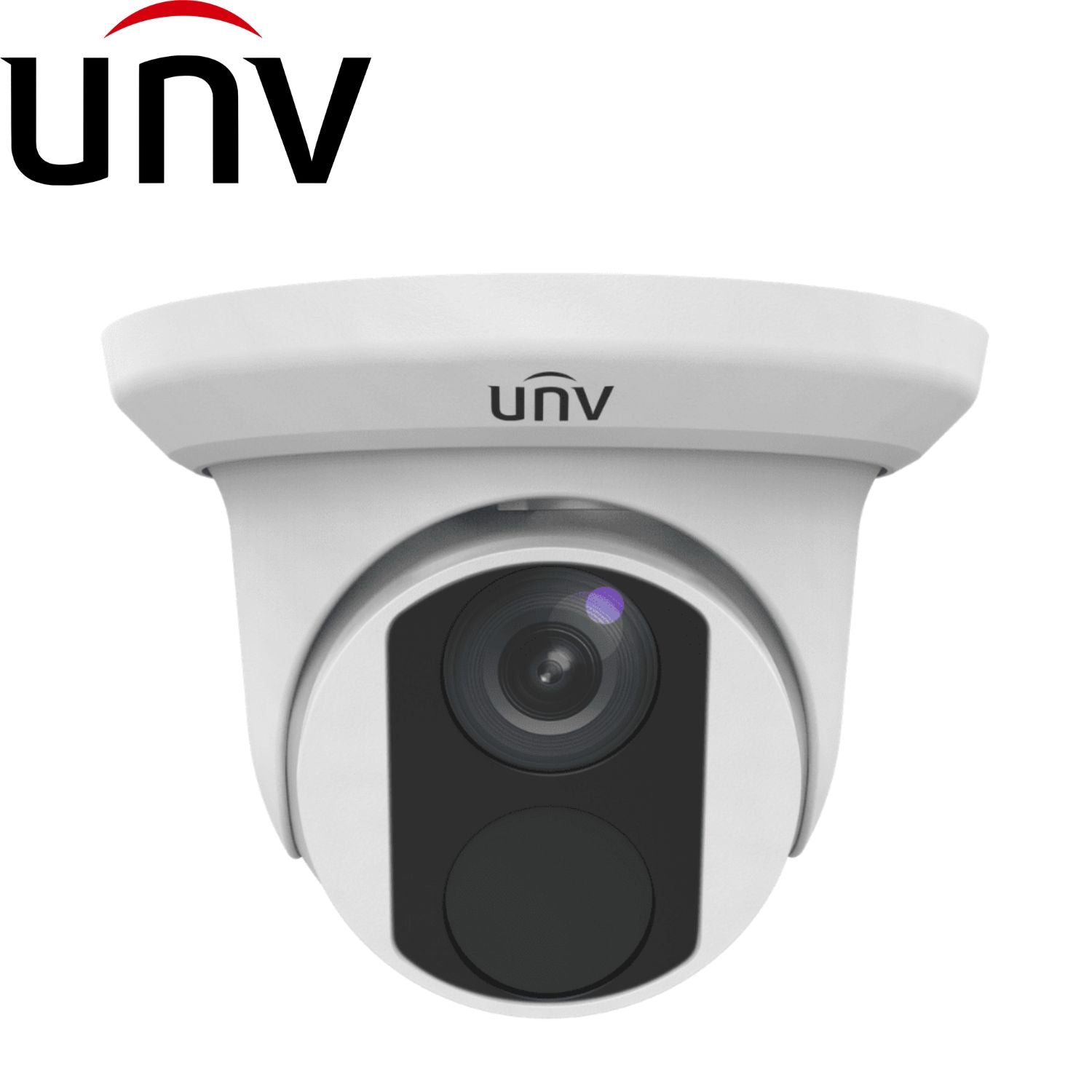

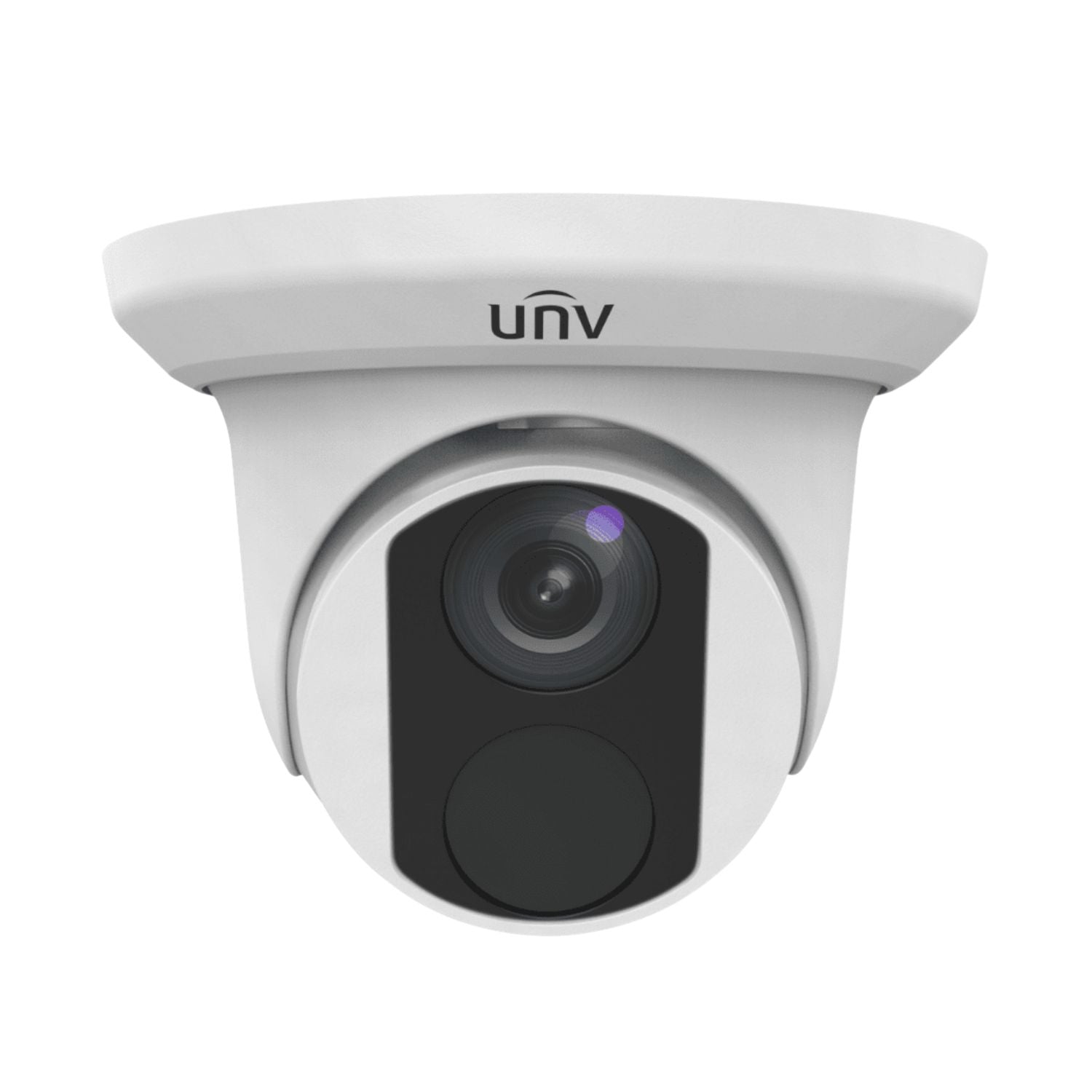

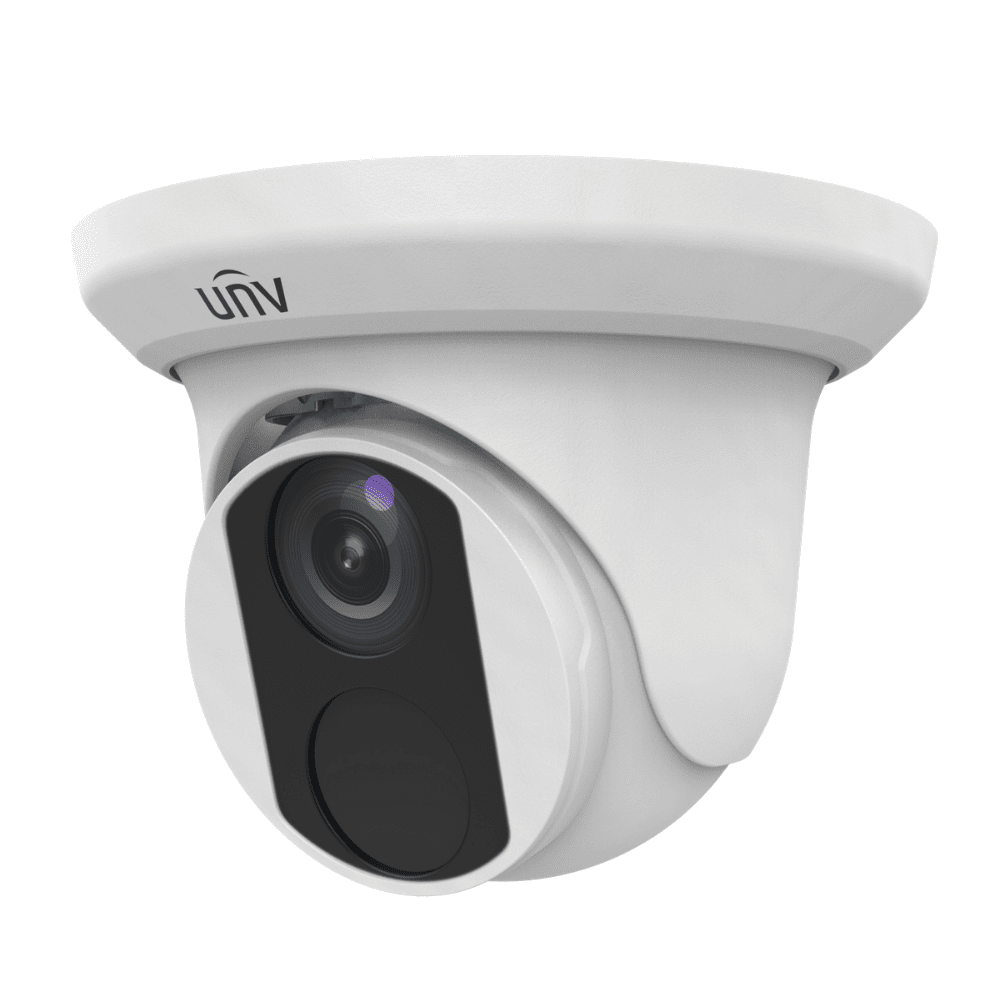

Uniview Security Camera: 8MP (4K Ultra HD) Turret, IP67- IPC3618LR3-DPF28-MS

Description

Description

Designed by Uniview, a leading innovator in the surveillance industry, the IPC3618LR3-DPF28-MS is an 8-megapixel, turret camera with exceptional 4K Ultra HD resolution, infrared night vision and advanced inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions. Image optimization technology such as WDR and 3D DNR actively minimize noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It can be installed outdoors thanks to its IP67 weatherproof construction.

FEATURES

  • 8 megapixel (8MP/4K) IR turret camera, 1/2.5", progressive scan CMOS, 2.8mm @F2.0 fixed lens, 3 Axis Suitable
  • Supports Power Over Ethernet POE & DC12V Output
  • Up to 120 dB WDR (Wide Dynamic Range), 3D DNR noise reduction, digital defog, IR auto cut filter, ROI, corridor mode
  • Smart Detections include Motion Detection, Intrusion Detection, People Counting, Loiter Detection, People Counting
  • Smart IR night vision, up to 30m (98 ft) IR distance
  • Supports Intrusion and Motion Detection
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Stream
  • IP67 weather protection, Wide Temperature -30C to +60C
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy.

  • DC12V Input - For installations where POE is not feasible, 12v input is also an option to power the camera which can then be easily connected to any non-POE router/switch ethernet network.

Optics

  • Day/night functionality - Designed to operate just as well in total darkness as well as in light.
  • Smart IR night vision, up to 30m (98 ft) IR distance

  • Smart IR - Works by auto-balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Compression

  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.

  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -30°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
Tech Specs

Uniview 8MP (4K) Fixed Lens Turret Camera - IPC3618LR3-DPF28-MS

Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
Angle of view (H) 118.5°
Angle of view (V) 64.0°
Angle of view (O) 154.1°
Adjustment Range Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.05Lux (F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 8MP (3840*2160), Max 15fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection motion detection
Intrusion Enter and loiter in a pre-defined virtual region
Intelligent Identification Defocus, Scene Change
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H) ?126 x 94mm (Ø5.0” x 3.7”)
Weight 0.45kg (0.99lb)
Operating Conditions -30? ~ 60? (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Ingress Protection IP67

Videos

Uniview Company Introduction

Downloads

Datasheets

Read more

Product form

Uniview Security Camera: 8MP (4K Ultra HD) Turret, IP67- IPC3618LR3-DPF28-MS

SKU: IPC3618LR3-DPF28-MS Datasheet

🔴 OUT OF STOCK
Discontinued. Contact us for a replacement.

$200.00 Incl. GST

5% Off Discount Code: Uniview-2026
Copied!
    PayPalAmerican Express Apple Pay Google Pay Mastercard Shop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Uniview Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
