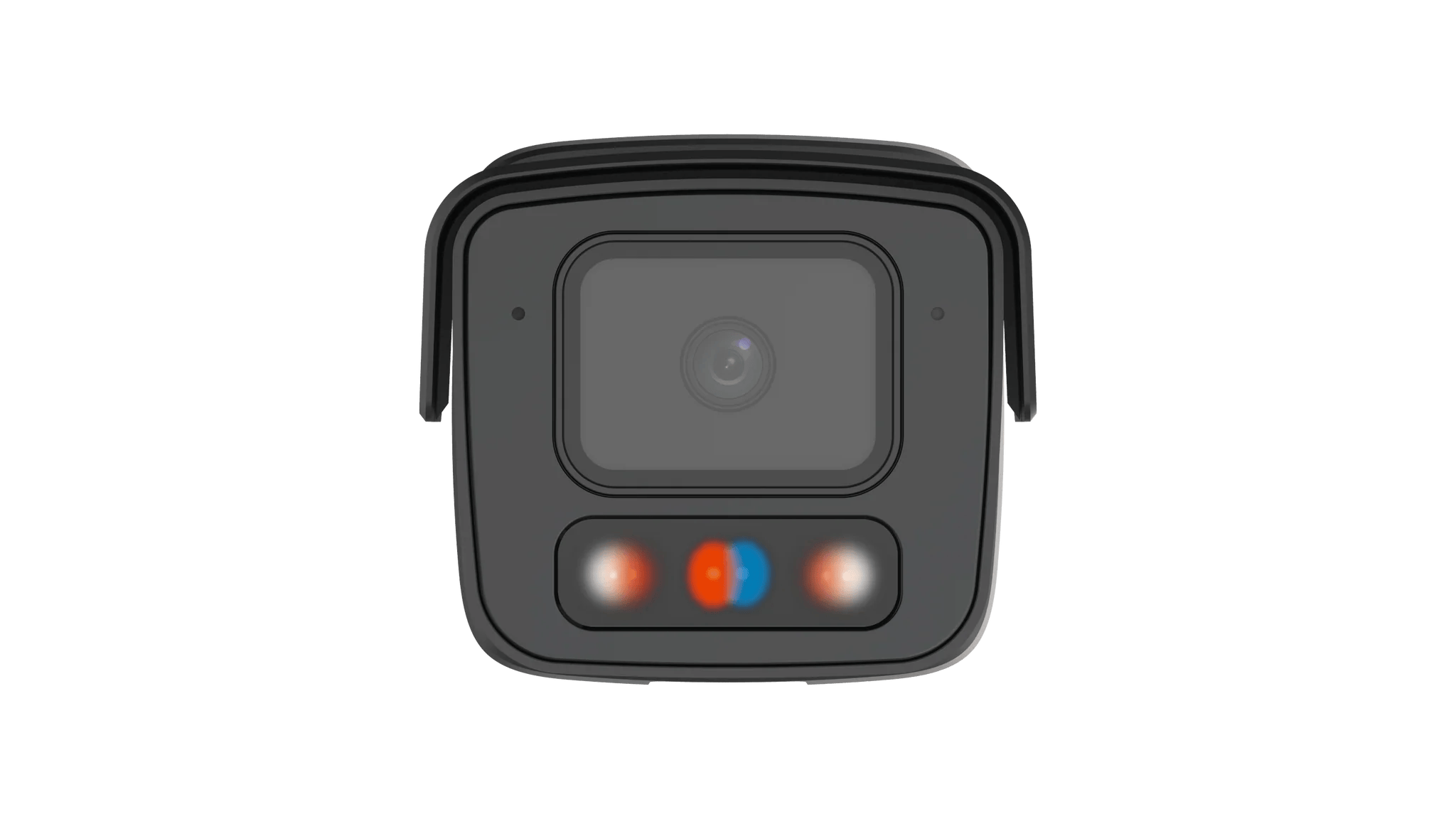

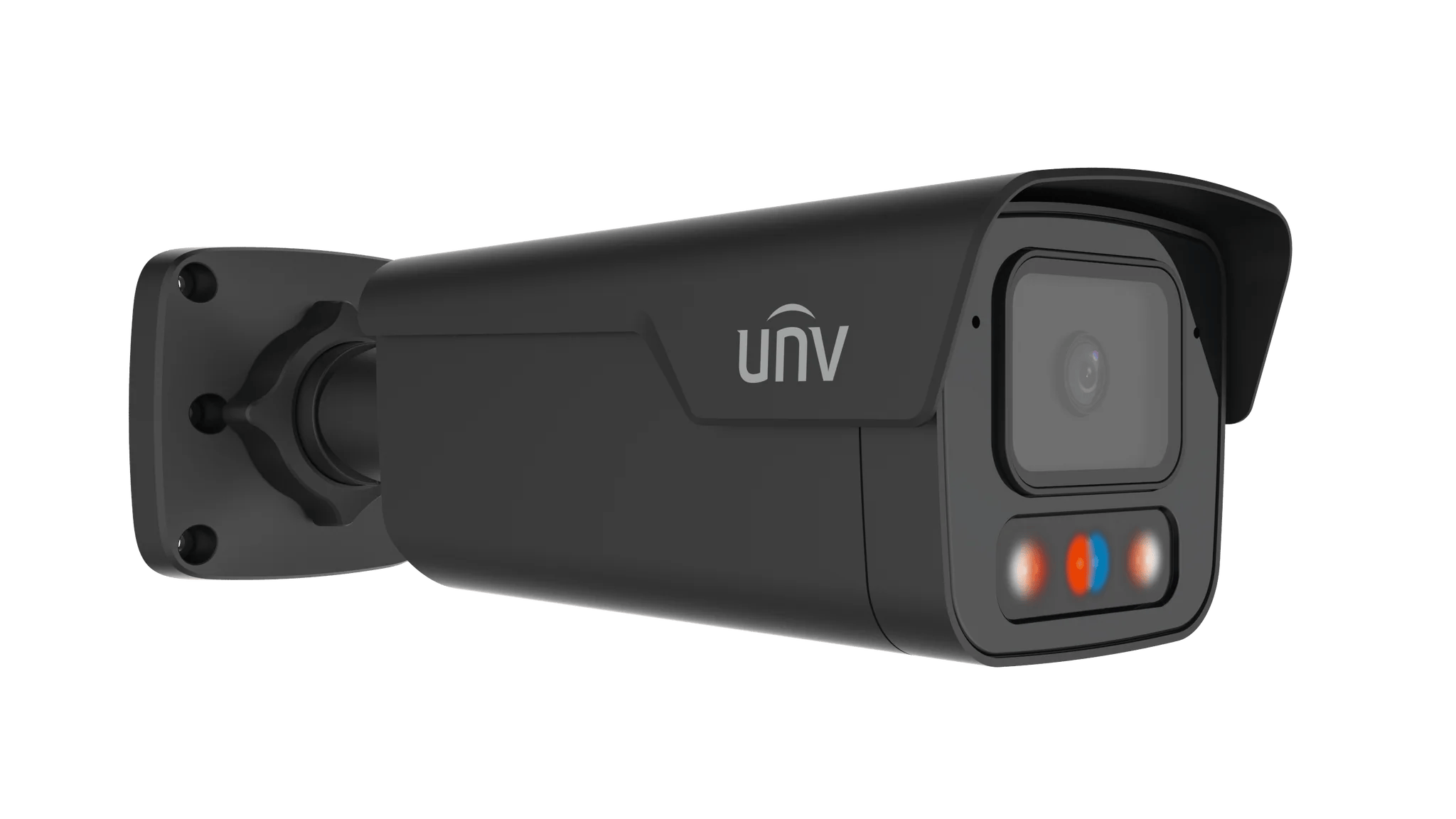

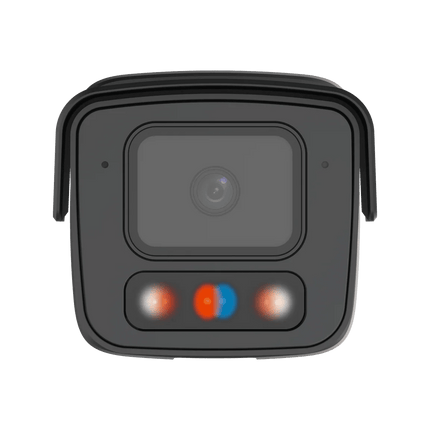

Uniview IPC2B18SS-ADF28(40)KMC-I1-BK is a high-performance 8MP HD Intelligent Light and Audible Warning Fixed Bullet Network Camera designed for reliable, detailed, and stable surveillance in both indoor and outdoor environments. Equipped with a 1/2.8" CMOS sensor, advanced 130dB True WDR, smart IR, intelligent intrusion prevention, built-in microphone and speaker, and robust IP67 weather protection, this camera delivers excellent clarity and security in various lighting and environmental conditions.
Key Features
-
High-Quality 8MP Imaging – Captures ultra-clear video at up to 3840 × 2160 resolution, providing sharp details suitable for evidence and monitoring.
-
1/2.8" CMOS Sensor – Produces high-fidelity images with strong performance in both low and bright lighting conditions.
-
Ultra 265 / H.265 / H.264 / MJPEG – Efficient video compression for high-quality recording and reduced bandwidth usage.
-
Intelligent Perimeter Protection – Supports cross line, intrusion, enter area, and leave area detection with false alarm reduction focusing on humans, vehicles, and non-motor vehicles.
-
Smart People Counting – Monitors crowd density and people flow for analytics and security management.
-
Smart IR up to 40m – Provides clear night vision, automatically adjusting infrared intensity for optimal image quality.
-
Built-in Mic and Speaker – Enables two-way audio for communication and situational awareness.
-
Supports MicroSD up to 512GB – Onboard recording for backup or standalone operation.
-
IP67 Weatherproof – Reliable protection against dust, rain, and harsh environmental conditions.
Perfect For:
- Outdoor perimeters and gates
- Residential and commercial property monitoring
- Warehouses, corridors, and open spaces
- Parking lots and transport hubs
- Industrial and enterprise security systems
Installer Tips
-
Adjust Smart IR – Fine-tune IR and warm light for optimal night vision without overexposure.
-
Use PoE – Simplifies wiring while providing stable power.
-
Enable WDR – Essential for high-contrast scenes with strong light sources.
-
Use MicroSD Storage – Adds local backup in case of network failure.
-
Mount at Proper Height – 2.8mm lens covers wide areas; 4.0mm lens is ideal for long-distance detection.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC2B18SS-ADF28KMC-I1-BK / IPC2B18SS-ADF40KMC-I1-BK |
| Resolution |
8MP (3840 × 2160) / 5MP (3072 × 1728) / 4MP (2560 × 1440) / 1080P (1920 × 1080) |
| Sensor |
1/2.8" CMOS, progressive scan |
| Lens |
2.8mm or 4.0mm fixed, F1.0 |
| Field of View (H/V/D) |
106.5° / 57.9° / 132° (2.8mm), 92° / 51° / 106° (4mm) |
| Low-Light Performance |
0.001 Lux (Color, F1.0, AGC ON); 0 Lux with light |
| IR Range |
Up to 40m (131ft) |
| WDR |
True 130dB |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in Mic & Speaker, G.711 codec |
| Onboard Storage |
MicroSD up to 512GB |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af), Max 10W |
| Protection |
IP67 weatherproof |
| Operating Temp |
−30°C to 60°C |
| Dimensions |
269 × 96 × 82 mm |
| Weight |
0.97 kg |
| Material |
Metal + Plastic |
