| Category |
Specification |
| Model |

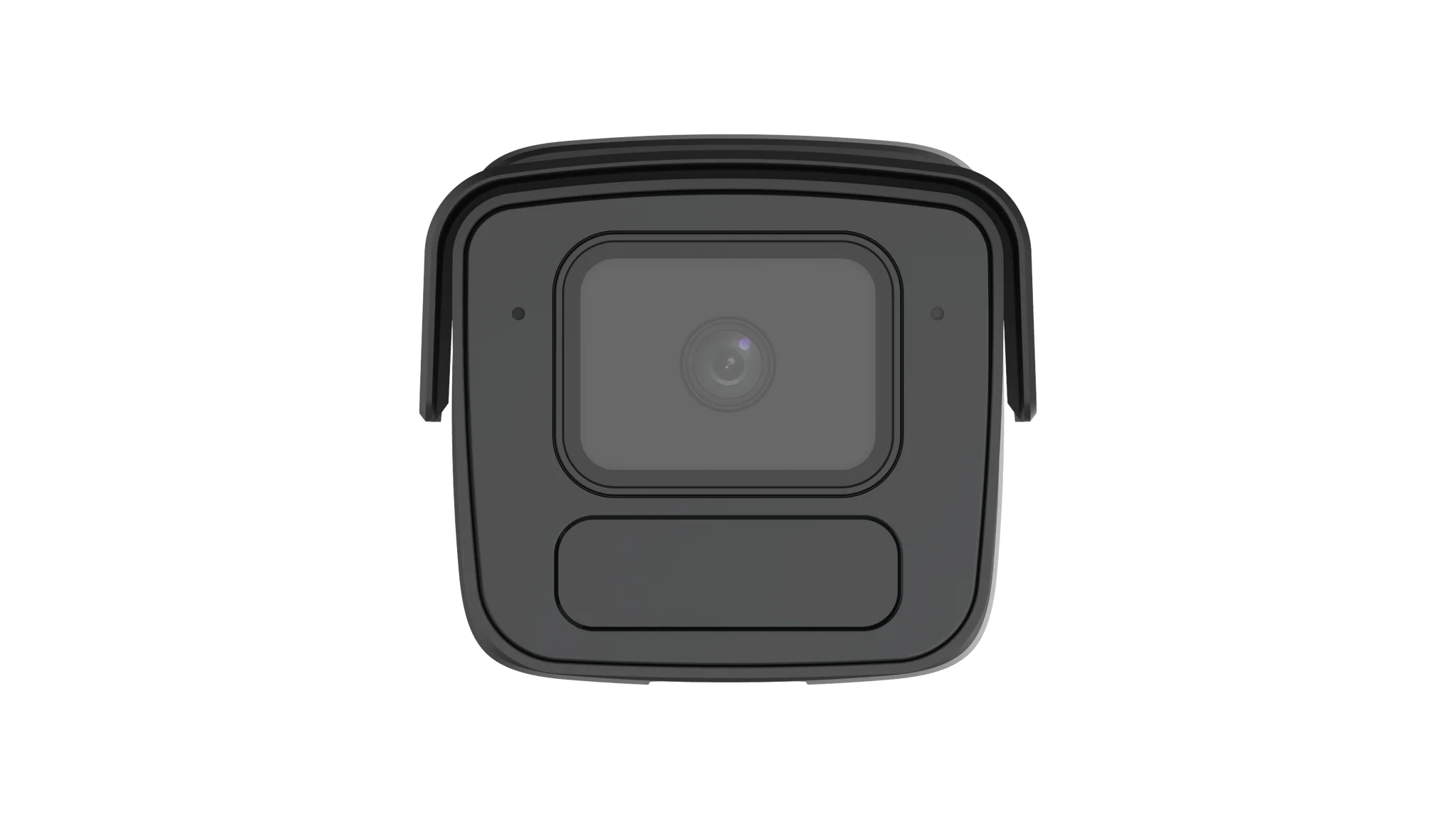

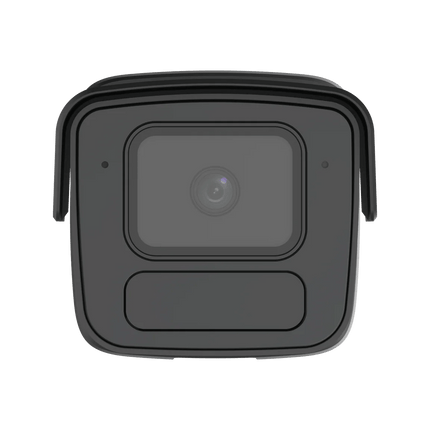

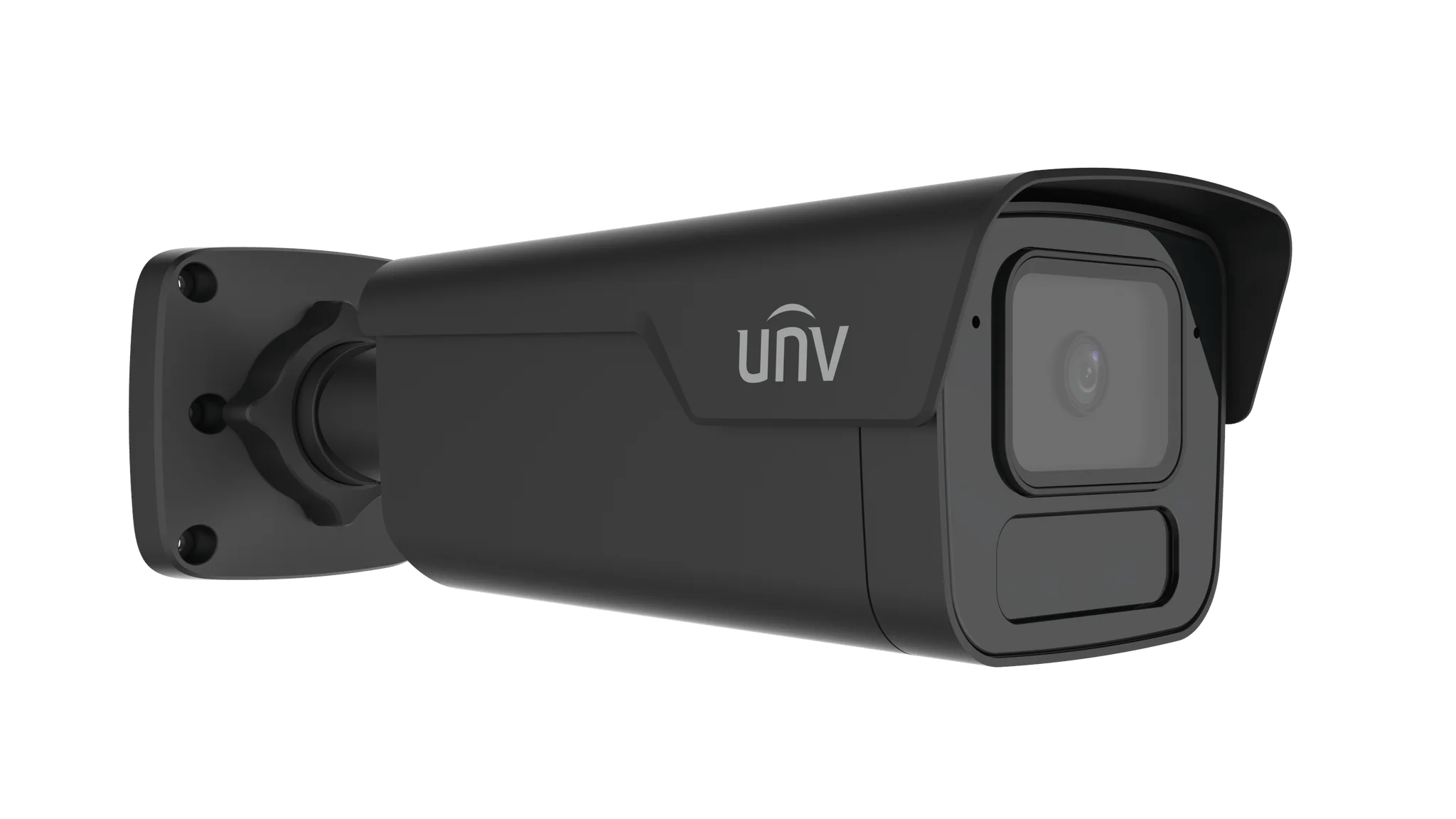

IPC2B18SS-ADF28K-I1-BK |
| Max Resolution |
8 MP (3840 × 2160) |
| Sensor |
1/2.8" CMOS, progressive scan |
| Minimum Illumination |
Color: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000 s |
| Adjustment Angle |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| S/N Ratio |
> 56 dB |
| WDR |
130 dB True WDR |
| Lens (Fixed) |
2.8 mm or 4.0 mm, F1.6 |
| Field of View (H / V / D) |
2.8 mm: 97.49° / 52.31° / 102.29° | 4.0 mm: 88.35° / 49.61° / 94.19° |
| DORI Distance (2.8 mm / 4.0 mm) |
Detect: 86.9 m / 124.1 m
Observe: 34.8 m / 49.7 m
Recognize: 17.4 m / 24.8 m
Identify: 8.7 m / 12.4 m |
| IR Range |
Up to 80 m (262.5 ft), 850 nm, Auto/Manual control |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 Profiles |
Baseline / Main / High |
| Frame Rate (Main Stream) |
8MP@30 fps; 5MP@30 fps; 4MP@30 fps; 1080p@30 fps |
| Frame Rate (Sub / Third Streams) |
720p, D1, 640×360, 2CIF, CIF — up to 30 fps each |
| Video Bitrate |
128 Kbps ~ 16 Mbps |
| Streams |
Triple streams + U-code support |
| OSD / Privacy / ROI |
Up to 8 OSDs; up to 4 privacy mask areas; ROI supported |
| Image Settings |
White balance (Auto/Outdoor/Sodium lamp/Fine tune/Locked/Auto2), 2D/3D DNR, Smart IR, Flip (vertical/horizontal/180°/90°), HLC, BLC, Digital defog |
| Intelligent Functions |
Cross-line, intrusion, enter/leave area detection with false alarm filtering & classification (human / vehicle / non-motor vehicle); people flow counting; crowd density monitoring; color retrieval with ASM |
| Audio |
Built-in mic; Audio I/O (1/1); G.711U / G.711A; two-way audio supported; bitrate 64 Kbps; sampling rate 8 kHz |
| Storage |
Edge: microSD up to 512 GB; Network: ANR, NAS (NFS) |
| Network & Protocols |
IPv4/IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SSH, 802.1x, SNMP, QoS |
| Integration |
ONVIF (Profile S / G / T / M), API/SDK support |
| Users / Access Levels |
Up to 32 users; 3 levels — administrator, operator, common user |
| Security |
Password protection, strong password enforcement, HTTPS encryption, export logs, RTSP & HTTP authentication (Basic/Digest), TLS 1.2, WSSE, ONVIF authentication |
| Client Compatibility |
UNV-Link, UNV-Link Pro, EZStation; Web browser: Plug-in required (IE10+, Chrome45+, Firefox52+, Edge79+) or Plug-in free (Chrome57+, Firefox58+, Edge16+) |
| Interface |
1 × RJ45 10M/100M Ethernet; Audio I/O (1 in / 1 out); Alarm I/O (1 in / 1 out); Built-in mic |
| Power |
DC 12 V ±25% or PoE (IEEE 802.3af); Max consumption ~10.5 W; Ø 5.5 mm coaxial plug |
| Dimensions (L × W × H) |
269 mm × 96 mm × 82 mm (10.6″ × 3.8″ × 3.2″) |
| Weight |
0.86 kg (1.91 lb) |
| Material |
Metal + Plastic |
| Operating Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity ≤ 95% RH (non-condensing) |
| Storage Environment |
-30 °C ~ 60 °C, Humidity ≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV |
| Reset Button |
Supported |
| Languages (Web/Client UI) |
20 languages including English, Chinese, Russian, French, Spanish, Thai, Turkish, Vietnamese, Polish, German, Japanese, Korean, Dutch, etc. |
