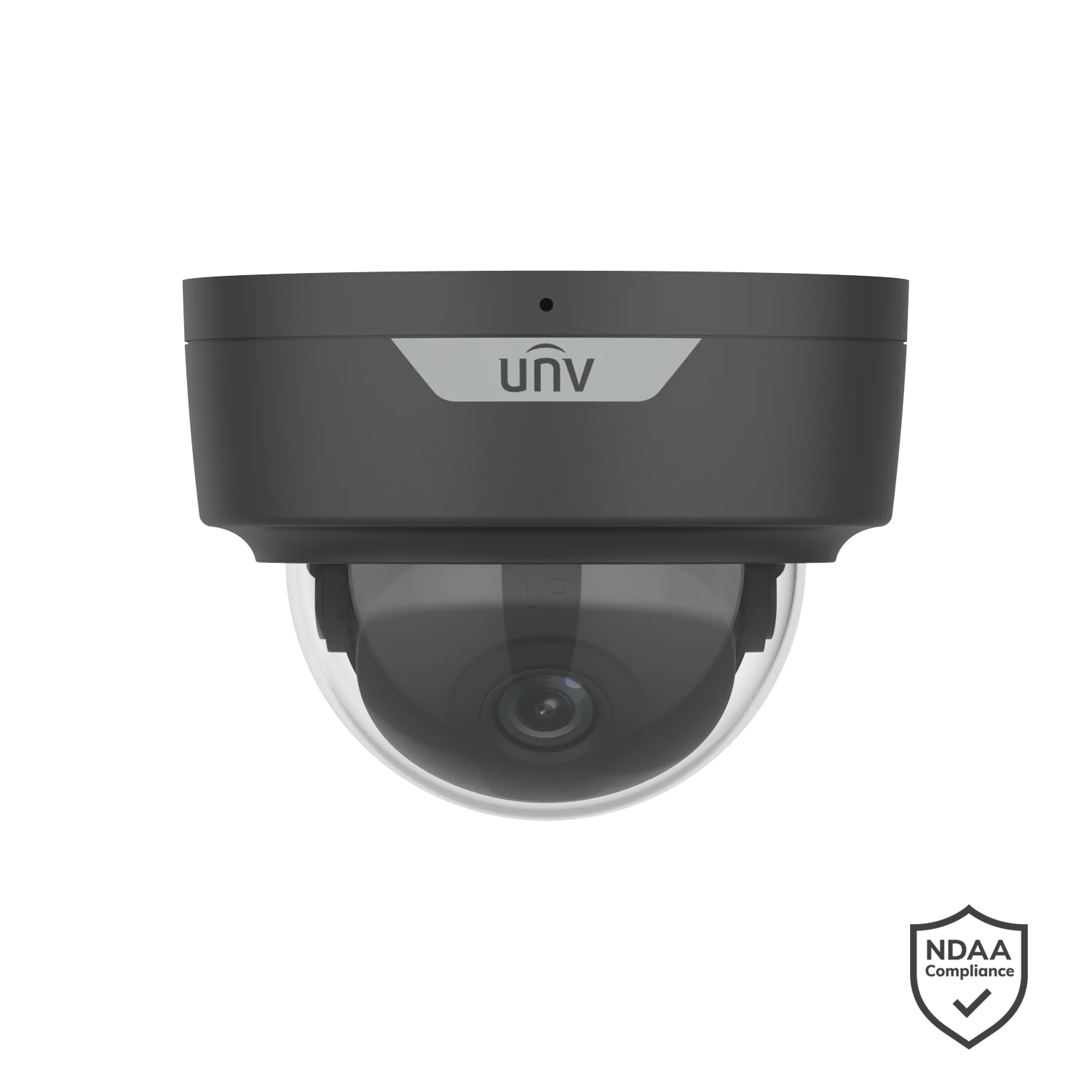

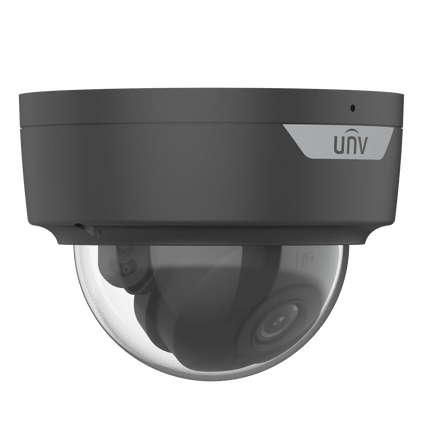

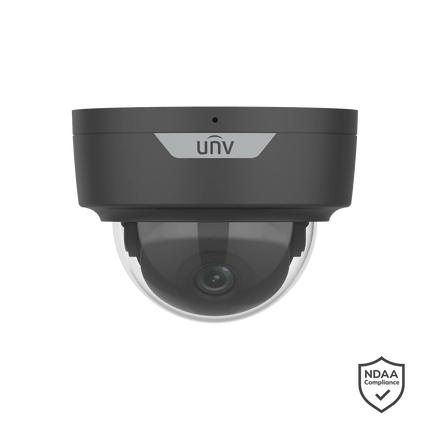

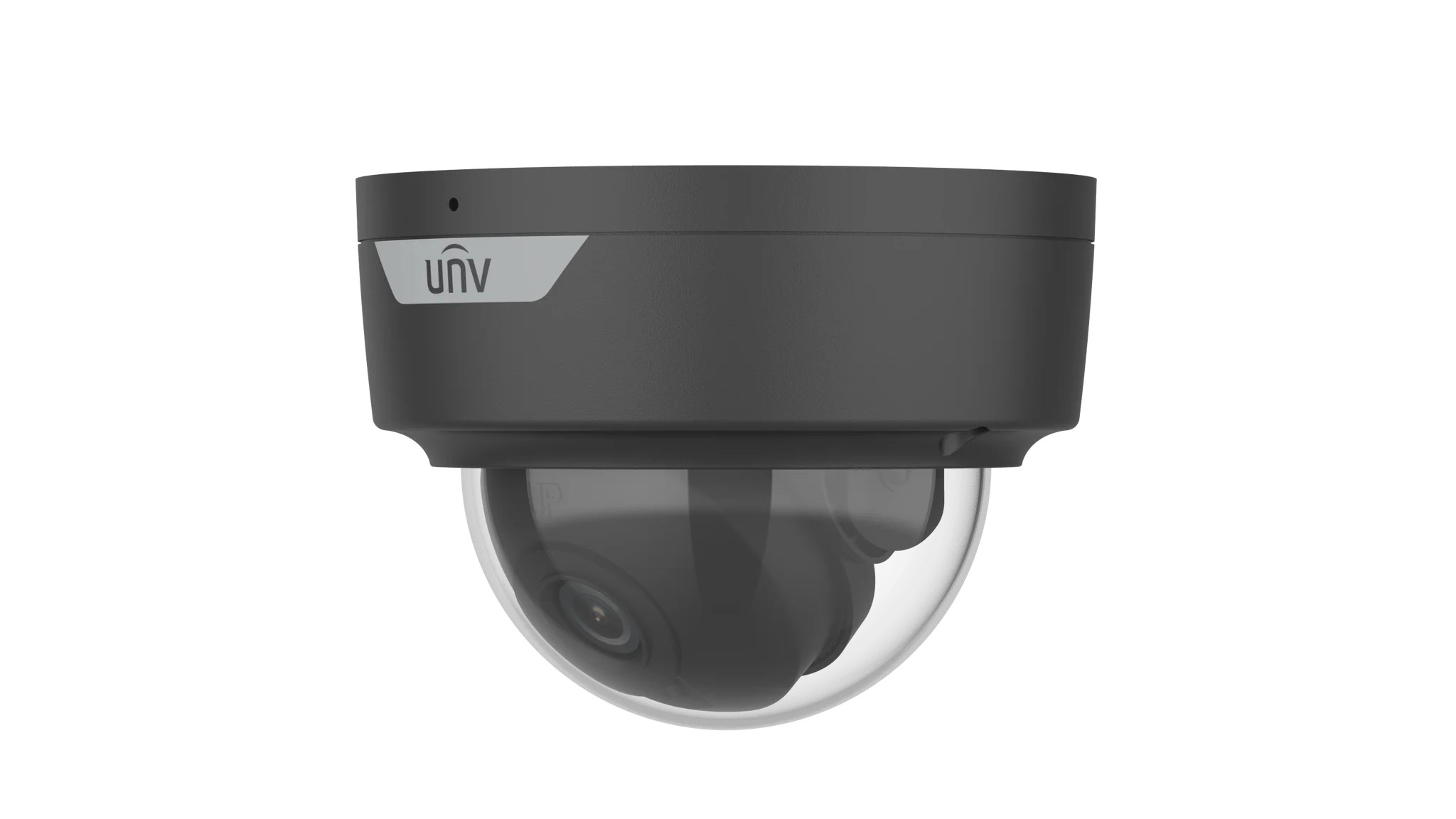

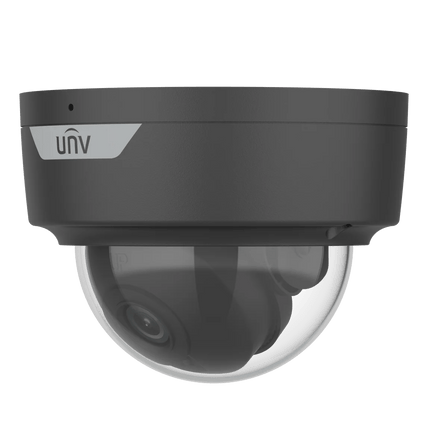

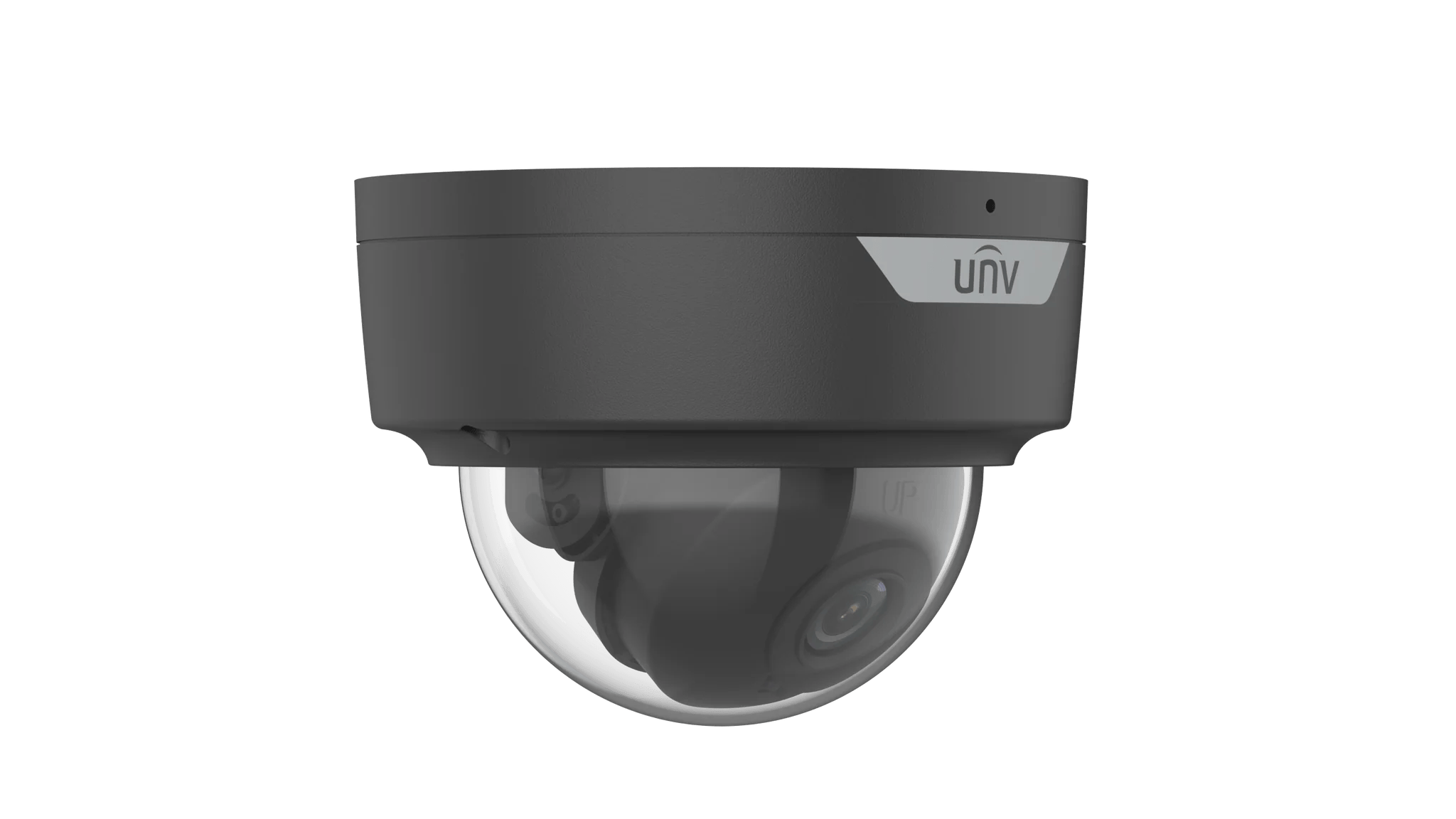

Uniview IPC328SS-ADF28K-I1-BK is a high-performance 8MP LightHunter Fixed IR Dome Network Camera designed for superior low-light imaging, intelligent intrusion prevention, and reliable day & night monitoring. With a 1/2.8" CMOS sensor, 130dB True WDR, Smart IR up to 40m, built-in microphone, and IK10 vandal resistance, it delivers exceptional clarity in both indoor and outdoor environments.
Key Features
-
8MP Ultra HD Resolution – Sharp 3840 × 2160 video at up to 30 fps.
-
1/2.8” CMOS Sensor – Ensures high-quality imaging across lighting conditions.
-
LightHunter Technology – Delivers bright, vivid color even in extremely low light.
-
130dB True WDR – Maintains detail in very bright or dark scenes.
-
Smart IR up to 40m – Prevents overexposure during night recordings.
-
Intelligent Intrusion Prevention – AI detects humans, vehicles & non-motor vehicles.
-
People Counting & Crowd Density – Useful for businesses and entrances.
-
Built-in Microphone – Captures clear audio evidence.
-
MicroSD Storage up to 512GB – Supports edge recording.
-
IK10 & IP67 Rated – Vandal resistant and weatherproof.
Perfect For
- Offices, retail shops, and commercial buildings
- Parking lots and perimeter areas
- Schools, campuses, and warehouses
- Hallways, entrances, and wide indoor spaces
- Low-light areas requiring detailed surveillance
Installer Tips
- Mount at 2.5–4m height for the best angle and accurate AI detection.
- Use the TR-JB03-G-IN junction box for clean wiring and sealed outdoor installation.
- Enable WDR for scenes with strong backlight (glass doors, windows).
- Keep Smart IR on Auto to prevent white-out at night.
- Use PoE for stable power and simplified installation.
- Format your MicroSD card from the camera menu before recording.
Downloads
Quick-Read Specs
| Model |
IPC328SS-ADF28K-I1-BK |
| Camera |
|
| Image Sensor |
1/2.8” CMOS |
| Max Resolution |
8MP (3840 × 2160) |
| Min Illumination |
0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
| WDR |
130 dB True WDR |
| Day/Night |
IR-cut filter |
| IR Range |
Up to 40 m |
| Lens |
|
| Lens Type |
2.8 mm fixed |
| Field of View |
H: 106.8° • V: 56.4° • D: 120.2° |
| Video |
|
| Compression |
Ultra 265, H.265, H.264, MJPEG |
| Max Frame Rate |
8MP (3840 × 2160) @ 25/30 fps |
| Streaming |
Triple stream |
| Audio |
|
| Built-in Mic |
Yes |
| Audio Compression |
G.711, G.726, AAC |
| AI Functions |
|
| Human/Vehicle Detection |
Yes |
| Intrusion Prevention |
Line crossing, region entrance/exit |
| People Counting |
Yes |
| Storage |
|
| MicroSD Support |
Up to 512GB |
| Network |
|
| Networking |
RJ45 (10/100M) |
| Protocols |
ONVIF, RTSP, HTTP, HTTPS, TCP/IP, UDP, DHCP, NTP |
| Protection |
|
| Weather Rating |
IP67 |
| Vandal Rating |
IK10 |
| Power |
|
| Power Supply |
DC 12V ±25%, PoE (802.3af) |
| Power Consumption |
Max 8.5W |
| Physical |
|
| Dimensions |
Ø 153 × 112 mm |
| Weight |
Approx. 0.93 kg |
