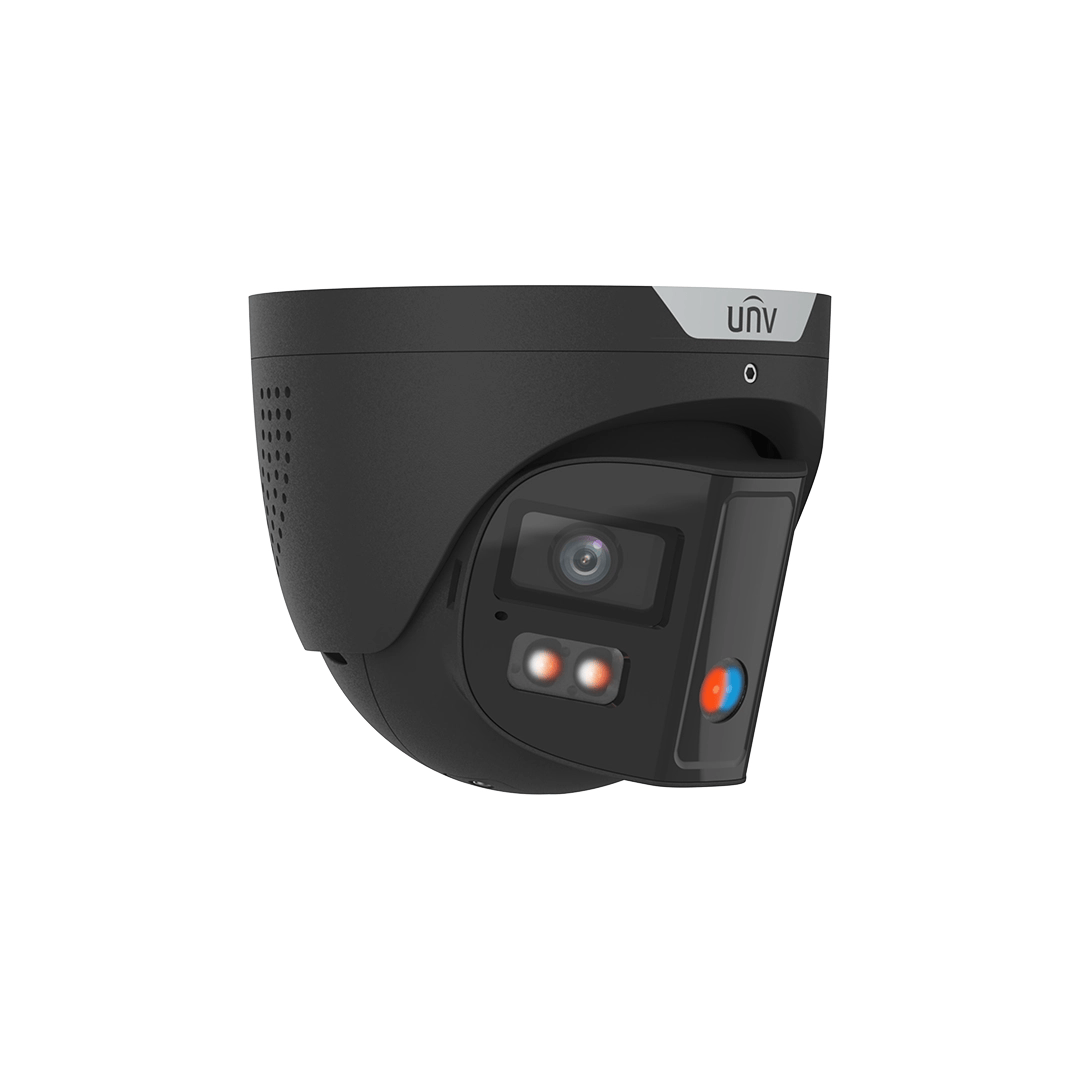

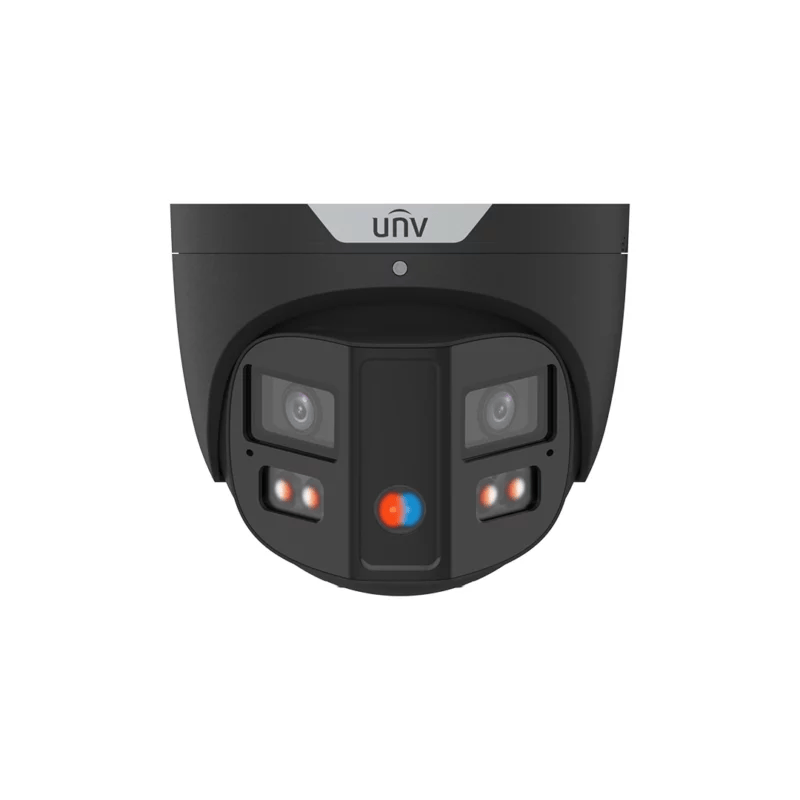

Uniview IPC3K28SE-ADF28KMC-DL-I0 is a premium 4K ColorHunter Omniview Dual-Lens Fixed Turret Camera engineered for full-color imaging, ultra-wide 180° panoramic coverage, and proactive warning capabilities. Featuring dual-lens splicing technology, 24/7 ColorHunter performance, red/blue warning lights, a built-in speaker, dual microphones, and advanced AI intrusion prevention, this camera is ideal for high-security environments requiring complete situational awareness.
Key Features
-
8MP 4K Ultra HD Imaging – Captures crisp 4096 × 1860 resolution at 20 fps for maximum detail and clarity.
-
Dual-Lens 180° Panoramic View – Two sensors seamlessly stitched together for a distortion-free, ultra-wide field of view.
-
ColorHunter Full-Color Technology – Provides bright, vivid, color images 24/7, even in extremely low light.
-
Built-in Red & Blue Warning Light – Enhances active deterrence for entrances, perimeters, and restricted zones.
-
Built-in Speaker & Dual Microphones – Enables two-way audio, alarms, and real-time voice communication.
-
130 dB True WDR – Maintains clarity in high-contrast lighting conditions such as backlit doorways or bright outdoor areas.
-
Onboard Storage up to 512 GB – Supports local microSD recording for redundancy or offline operation.
-
IP67 + IK10 Protection – Weatherproof and vandal-resistant for reliable outdoor or indoor use.
Perfect For:
- Wide-area surveillance requiring 180° coverage
- Gate and access control with active warning capabilities
- Parking areas, entrances, warehouses, and corridors
- Commercial and industrial perimeter security
- Smart city monitoring and crowd analysis
Installer Tips
-
Mount at 3–4 meters: Ideal height to maximize panoramic view and ColorHunter performance.
-
Enable AI filters: Reduces false alarms from rain, insects, animals, and moving leaves.
-
Use PoE for clean installation: Power + data over a single cable.
-
Avoid direct bright lights: Ensures optimal color capture and WDR function.
-
Configure warning lights & audio: Customize per scenario (intrusion, crossing, etc.).
Downloads
Quick-Read Specs
| Category |
Specification |
| Model |
IPC3K28SE-ADF28KMC-DL-I0 |
| Max Resolution |
8 MP (4096 × 1860) |
| Sensor |
1/2.5" CMOS |
| Minimum Illumination |
Color: 0.0005 Lux (F1.0, AGC ON); 0 Lux with light |
| Day/Night |
IR-cut filter (ICR) |
| Shutter |
Auto/Manual, 1–1/100000 s |
| Adjustment Angle |
Pan: 0°–360° / Tilt: 0°–75° / Rotate: 0°–360° |
| S/N Ratio |
>52 dB |
| WDR |
130 dB True WDR |
| Lens |
2.8 mm, F1.0 (Fixed) |
| Field of View |
H: 180° / V: 65° / D: 180° |
| DORI (2.8 mm) |
Detect: 63.1 m
Observe: 25.2 m
Recognize: 12.6 m
Identify: 6.3 m |
| Illuminator |
Dual Light (IR + Warm) |
| Illumination Distance |
IR: 30 m • Warm Light: 30 m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Main Stream |
8MP (4096×1860) @ 20 fps |
| Sub Stream |
2048 × 936 @ 20 fps |
| Video Features |
8 OSDs, 4 Privacy Masks, 8 ROI |
| AI Functions |
Human/Vehicle/Non-Vehicle classification, smart intrusion prevention, color retrieval |
| People Counting |
Support |
| Audio |
2-way audio, G.711A/U, dual mics, built-in speaker |
| Storage |
Micro SD up to 512 GB; ANR; NAS |
| Network |
RJ45 10/100M; ONVIF S/G/T; SDK; API |
| Alarm I/O |
1 in / 1 out |
| Protection |
IP67, IK10 |
| Power |
12V DC ±25% / PoE (IEEE 802.3af) |
| Power Consumption |
Max 12.6 W |
| Dimensions |
Ø128.7 × 109.9 mm |
| Weight |
0.86 kg |
| Working Environment |
-30°C to 60°C, ≤95% RH |
