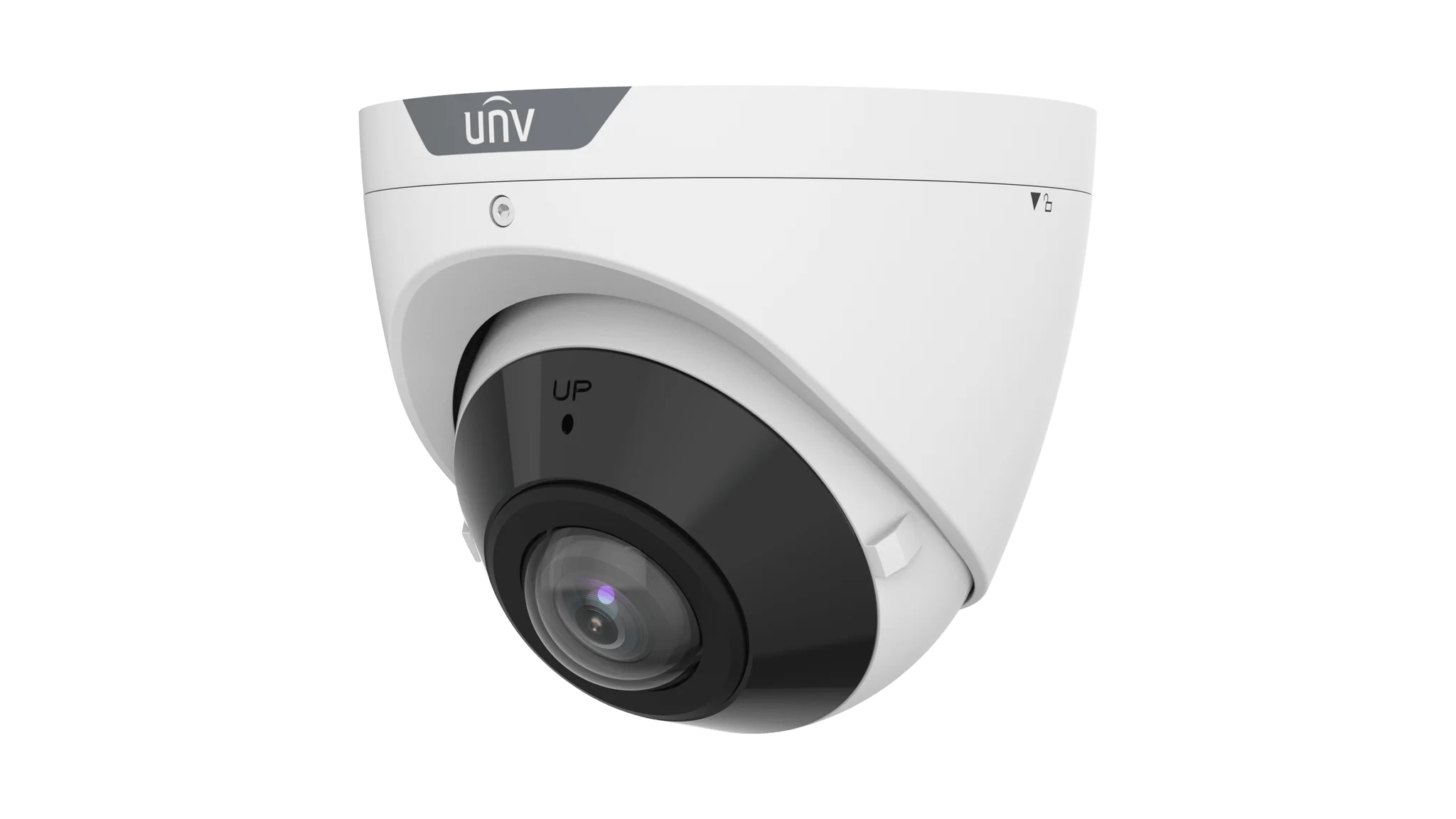

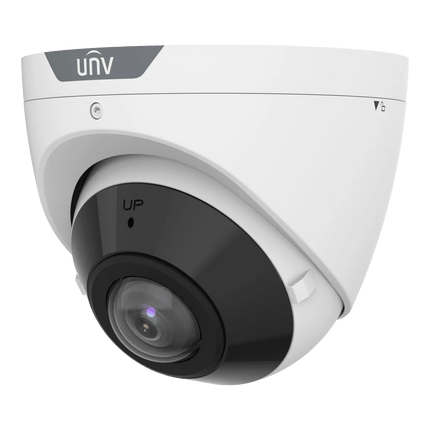

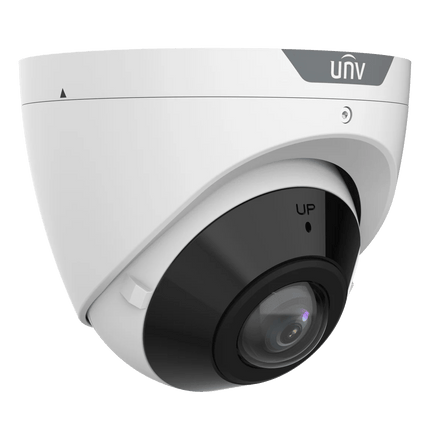

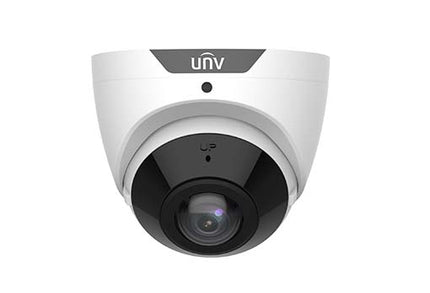

Uniview IPC3608SB-ADF16KM-I0 is an advanced 8MP Wide-Angle Intelligent IR Fixed Eyeball Network Camera designed for high-detail monitoring with a massive 180° horizontal field of view. Equipped with a 1/2.7" CMOS sensor, True 120dB WDR, smart intrusion prevention, built-in microphone, and rugged IP67/IK10 protection, it delivers reliable performance in both indoor and outdoor environments.
Key Features
-
8MP Ultra HD Imaging – Captures extremely sharp video at up to 3840 × 2160 resolution for crystal-clear evidence.
-
Wide-Angle 180° Horizontal View – Ideal for wide open areas, hallways, and spaces requiring maximum coverage.
-
1/2.7" CMOS Sensor – Produces high-quality images with accurate detail in various lighting conditions.
-
True 120dB WDR – Ensures balanced images in scenes with bright and dark areas such as entrances or windows.
-
Smart Intrusion Prevention – Detects crossing lines, intrusions, entering/leaving areas with accurate human and vehicle classification to reduce false alarms.
-
Smart IR up to 20m – Automatically adjusts infrared brightness to ensure clear night vision without overexposure.
-
Built-in Microphone – Provides synchronized audio recording for enhanced situational awareness.
-
Supports 512GB microSD – Offers large onboard storage for standalone operation or backup recording.
-
IP67 & IK10 Rated – Dustproof, waterproof, and vandal-resistant enclosure suitable for harsh outdoor conditions.
Perfect For:
- Wide-area monitoring (courtyards, parking spaces, warehouses)
- Residential and commercial perimeter security
- Storefronts and retail environments
- Hallways, corridors, and indoor wide-angle installations
- Any location requiring maximized viewing coverage
Installer Tips
-
Adjust Dewarp Level – Dewarping can be set from level 1–9 for more natural image correction.
-
Use PoE for Easy Wiring – A single cable provides both power and network connection.
-
Enable Smart Intrusion Prevention – Helps reduce false alarms from leaves, light changes, or animals.
-
Consider IR Range – For areas with low light, make sure the 20m IR range is suitable for your environment.
-
Mounting Height – Install at an angle that maximizes the 180° horizontal field of view.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC3608SB-ADF16KM-I0 |
| Max Resolution |
8MP (3840 × 2160) |
| Sensor |
1/2.7" CMOS |
| Illumination |
0.01 Lux (Color, F2.0, AGC ON); 0 Lux with IR |
| Day/Night |
IR-cut filter (ICR) |
| WDR |
120dB True WDR |
| Lens |
1.68mm Fixed, F2.0 |
| Field of View |
H: 180°, V: 100°, D: 180° |
| IR Range |
Up to 20m (65.6 ft) |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Frame Rate |
Up to 30fps @ 8MP |
| Audio |
Built-in Mic, G.711A/U |
| Storage |
microSD up to 512GB |
| Protection |
IP67 Weatherproof, IK10 Vandal Resistant |
| Power |
DC 12V ±25%, PoE (IEEE 802.3af), Max 5.5W |
| Operating Temp |
-30°C to 60°C (≤95% RH) |
