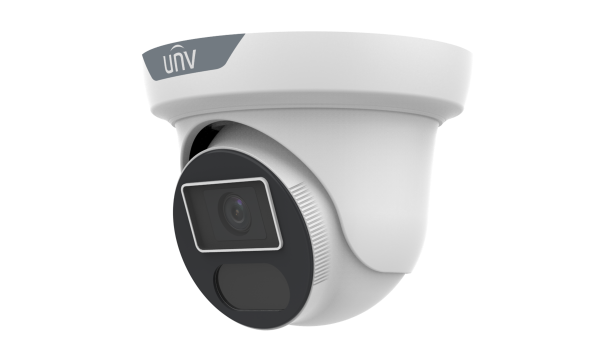

Uniview IPC3618SS-ADF28(40)K-I1 is a high-performance 8MP LightHunter IR Turret Network Camera designed for professional surveillance in both indoor and outdoor environments. Featuring a 1/2.8" CMOS sensor, advanced 130dB True WDR, LightHunter low-light enhancement, built-in microphone, intelligent perimeter protection, and robust IP67 weatherproofing, this camera delivers clear and reliable monitoring under challenging conditions.
Key Features
-
High-Quality 8MP Imaging – Captures ultra-clear video at up to 3840 × 2160 resolution for detailed monitoring.
-
1/2.8" CMOS Sensor – Offers excellent low-light performance and high-fidelity imaging across various environments.
-
LightHunter Technology – Ensures ultra-bright and high-quality images even in very low illumination.
-
True 130dB WDR – Balances bright and dark areas, maintaining detail in high-contrast scenes.
-
Smart IR up to 40m – Optimizes infrared illumination automatically to avoid overexposure.
-
Built-in Microphone – Supports audio capture for enhanced situational awareness.
-
Intelligent Perimeter Protection – Includes cross line, intrusion, enter/leave area detection with false alarm filtering.
-
512GB microSD Support – Enables local storage for backup or standalone recording.
-
IP67 Weatherproof – Ensures reliable operation under harsh outdoor conditions.
Perfect For:
- Outdoor perimeters, gates, and entrances
- Commercial and residential property monitoring
- Warehouses, corridors, and logistics centers
- Parking lots and open outdoor areas
- Retail stores and high-traffic areas
- Enterprise-level security systems
Installer Tips
-
Optimize Smart IR – Adjust to prevent overexposure when subjects are close to the camera.
-
Use PoE for Simplified Installation – Reduces wiring and improves reliability.
-
Enable WDR – Important for areas with mixed lighting such as gates, windows, or strong sunlight.
-
Consider Onboard Storage – Add a microSD card as backup in case of network failure.
-
Proper Mounting Height – Install at a height to maximize coverage while minimizing obstructions.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Model |
IPC3618SS-ADF28(40)K-I1 |
| Resolution |
8MP (3840 × 2160) |
| Sensor |
1/2.8" CMOS, progressive scan |
| Lens |
2.8mm / 4.0mm fixed, F1.6 |
| Field of View (H/V/D) |
2.8mm: 97.49° / 52.31° / 102.29°; 4.0mm: 88.35° / 49.61° / 94.19° |
| Low-Light Performance |
0.002 Lux (Color, F1.6, AGC ON); 0 Lux with IR |
| IR Range |
Up to 40m (131ft) |
| WDR |
True 130dB |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in Mic, G.711 codec |
| Onboard Storage |
MicroSD up to 512GB |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af), Max 7W |
| Protection |
IP67 weatherproof |
| Operating Temp |
−30°C to 60°C |
| Dimensions |
Ø129 × 110mm |
| Weight |
0.42kg |
