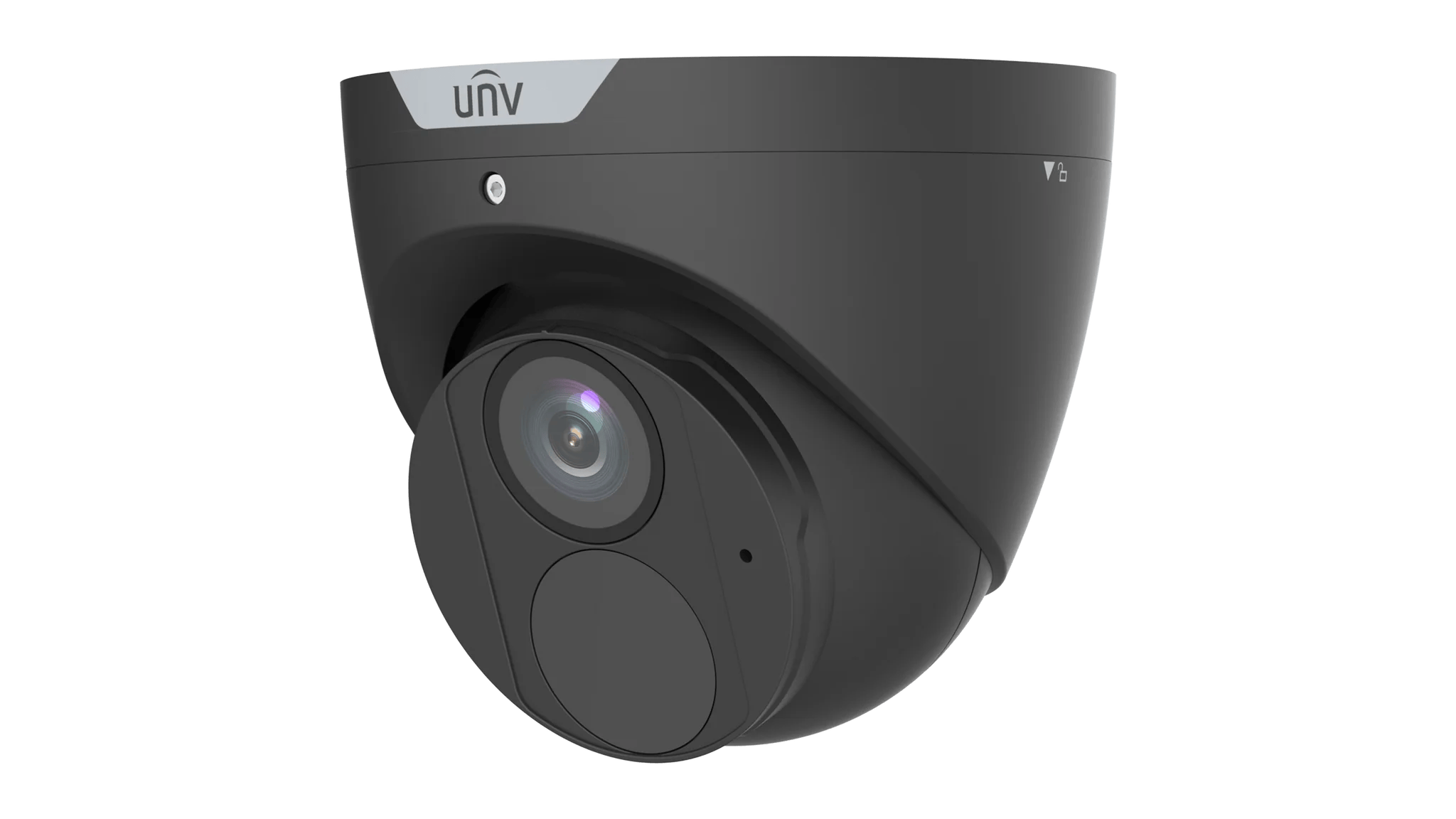

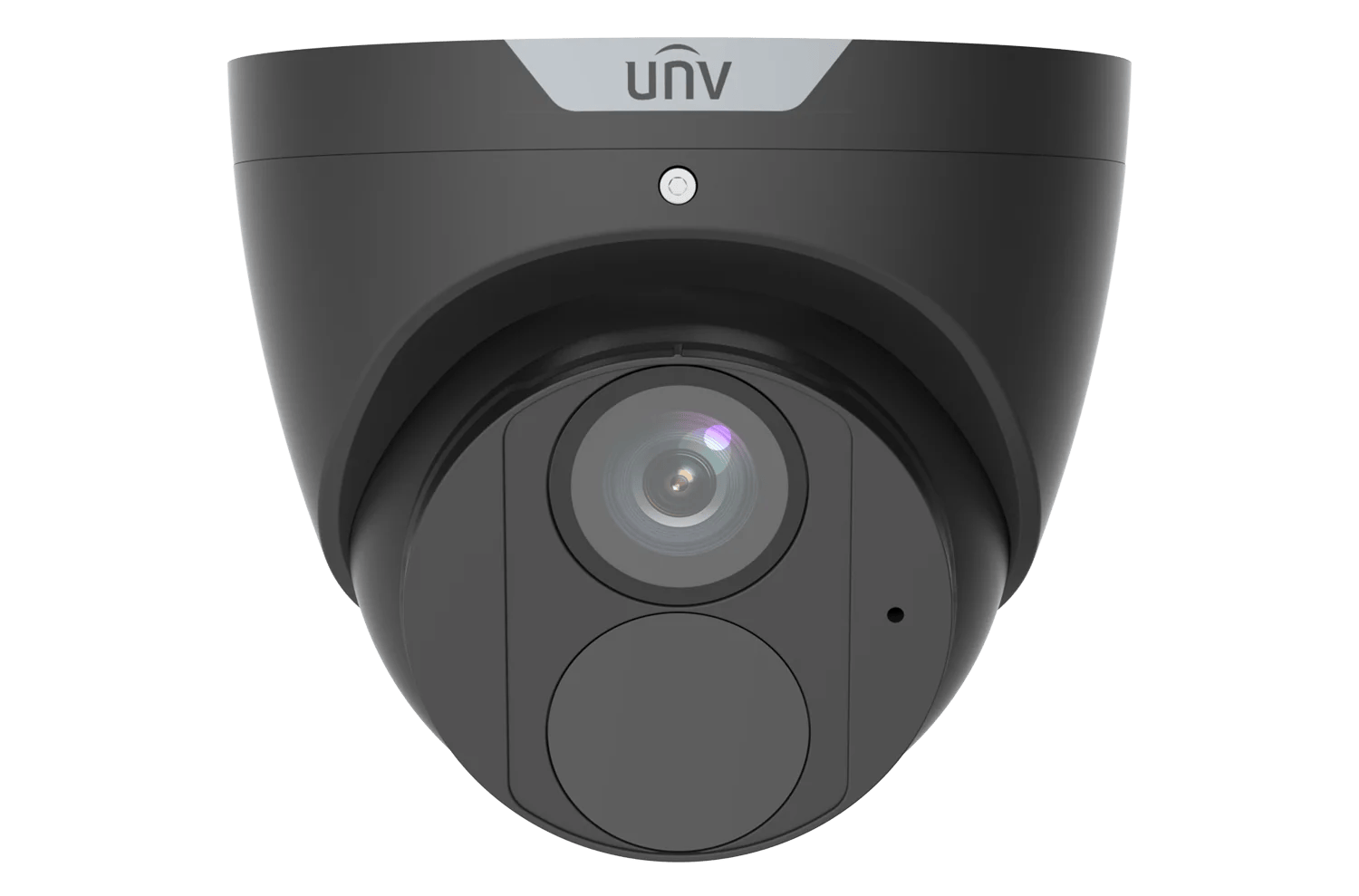

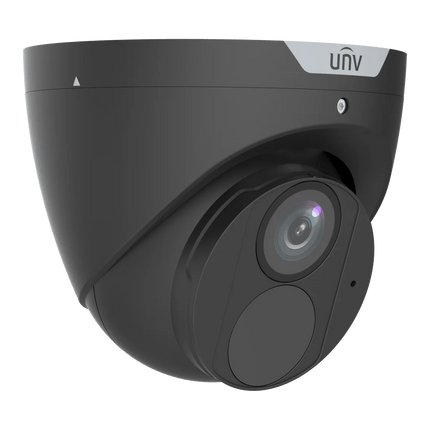

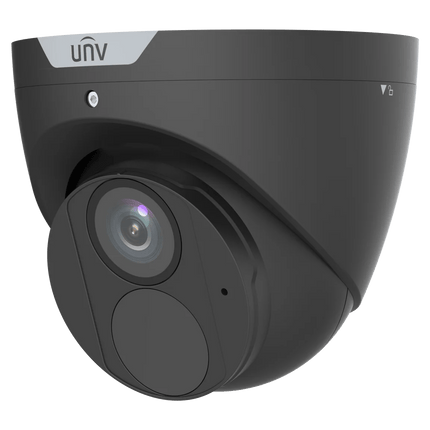

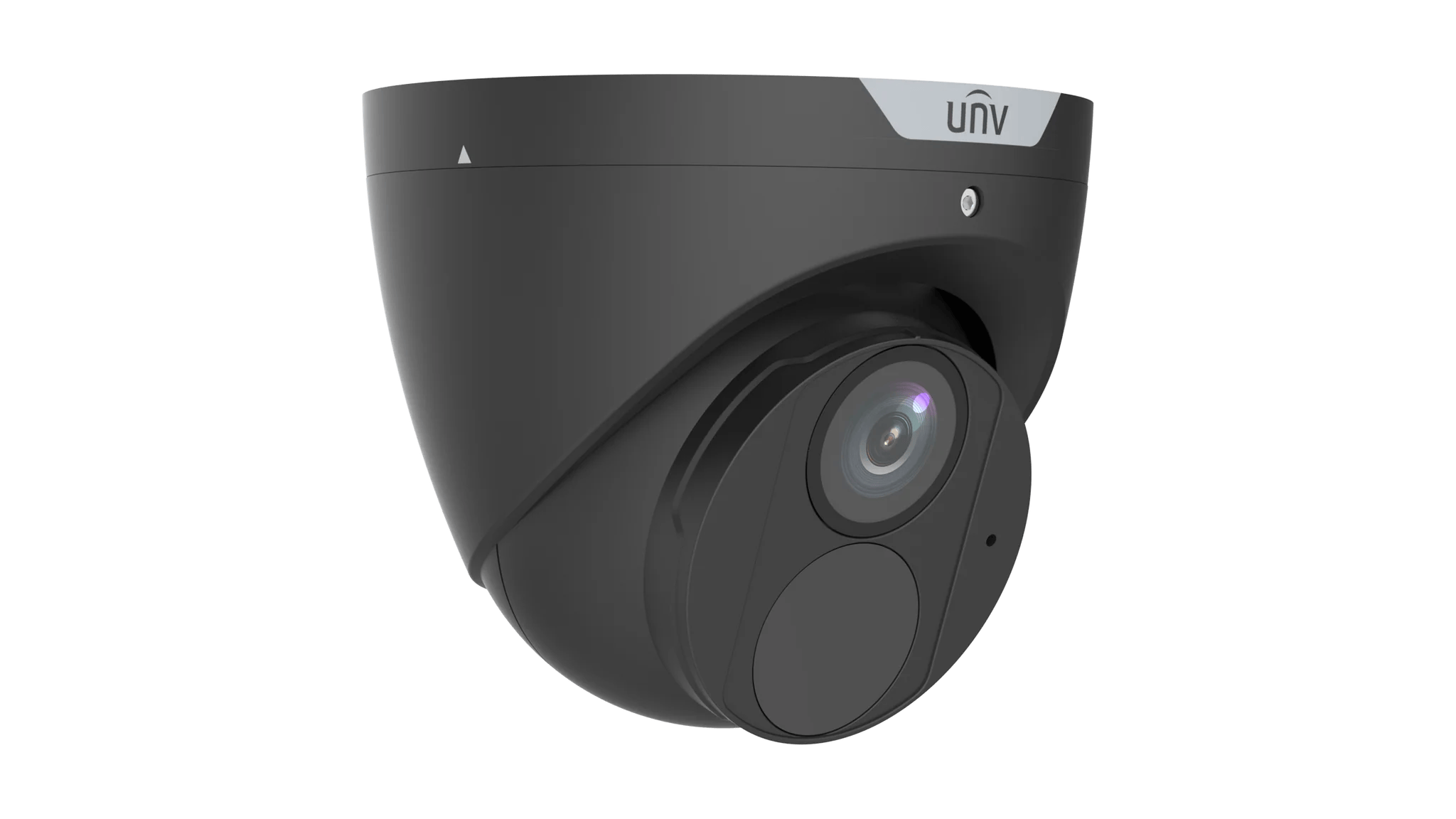

Uniview IPC3618LE-ADF28KM-H-BK is a professional-grade 8MP HD IR Fixed Eyeball Network Camera designed to deliver ultra-high-definition surveillance with excellent low-light performance. Featuring a 1/2.8” CMOS sensor, 120dB True WDR, Smart IR up to 30m, Ultra 265 compression, built-in microphone, and full IP67 weather protection, this camera is ideal for reliable indoor and outdoor security installations across residential, commercial, and industrial environments.
Key Features
-
High Quality 8MP Imaging – Delivers crystal-clear video at up to 3840 × 2160 resolution for detailed identification and monitoring.
-
1/2.8" CMOS Sensor – Provides excellent image clarity, colour accuracy, and enhanced low-light sensitivity.
-
Multiple Resolution & Frame Rates – Supports 8MP @20fps, 5MP/4MP/1080p @30fps for flexible recording configurations.
-
Ultra 265 Compression – Reduces bandwidth and storage usage while maintaining high image quality.
-
120dB True WDR – Ensures clear images in challenging lighting conditions with strong backlight or shadows.
-
Built-in Microphone – Enables audio recording to add valuable context to video footage.
-
Supports microSD Storage up to 512GB – Ideal for edge recording, redundancy, or standalone installations.
-
IP67 Weatherproof – Fully protected against dust, rain, and harsh outdoor environments.
Perfect For
- Residential homes requiring ultra-high-definition day & night monitoring
- Commercial buildings, offices, and retail stores
- Warehouses and industrial facilities with mixed lighting conditions
- Parking areas, entrances, and perimeter security
- Hallways and narrow spaces using 9:16 Corridor Mode
- Outdoor installations exposed to rain, dust, and harsh weather
Installer Tips
-
Mount between 2.5m–4m height for optimal coverage and identification.
-
Avoid direct exposure to strong light sources to maximise WDR performance.
-
Use PoE where possible for simpler wiring and stable power delivery.
-
Enable Smart IR to avoid IR overexposure at night.
-
Use Corridor Mode when installing in hallways or narrow passageways.
-
Format the microSD card in-camera before enabling edge recording.
Downloads
Quick-Read Specs
| Category |
Specification |
| Model |
IPC3618LE-ADF28KM-H-BK |
| Image Sensor |
1/2.8” CMOS |
| Max Resolution |
8MP (3840 × 2160) |
| Frame Rate |
8MP @20fps; 5MP/4MP/1080p @30fps |
| Minimum Illumination |
0.005 Lux (Color, F1.6, AGC ON); 0 Lux with IR |
| Lens |
2.8mm Fixed, F1.6 |
| Field of View |
98.7° (H) / 53.9° (V) / 103.6° (D) |
| WDR |
120dB True WDR |
| IR Distance |
Smart IR, up to 30m (98 ft) |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in Microphone, G.711A / G.711U |
| Edge Storage |
MicroSD card up to 512GB |
| Network |
RJ45 10/100M Ethernet, ONVIF S / G / T |
| Power |
DC 12V ±25% / PoE (IEEE 802.3af), Max 5W |
| Protection |
IP67 Weatherproof |
| Operating Conditions |
-30°C to 60°C, ≤95% RH |
| Dimensions |
Ø118 × 95 mm |
| Weight |
0.32 kg |
| Material |
Metal + Plastic |
