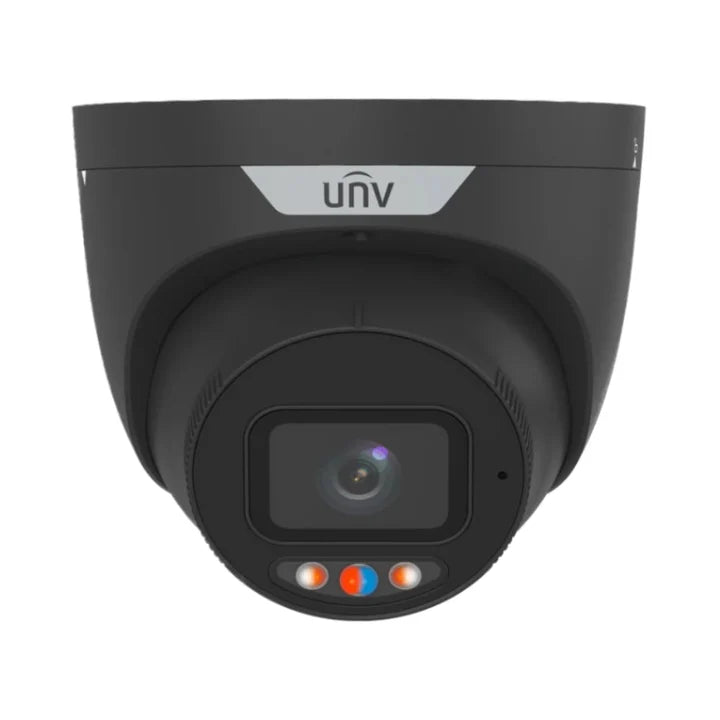

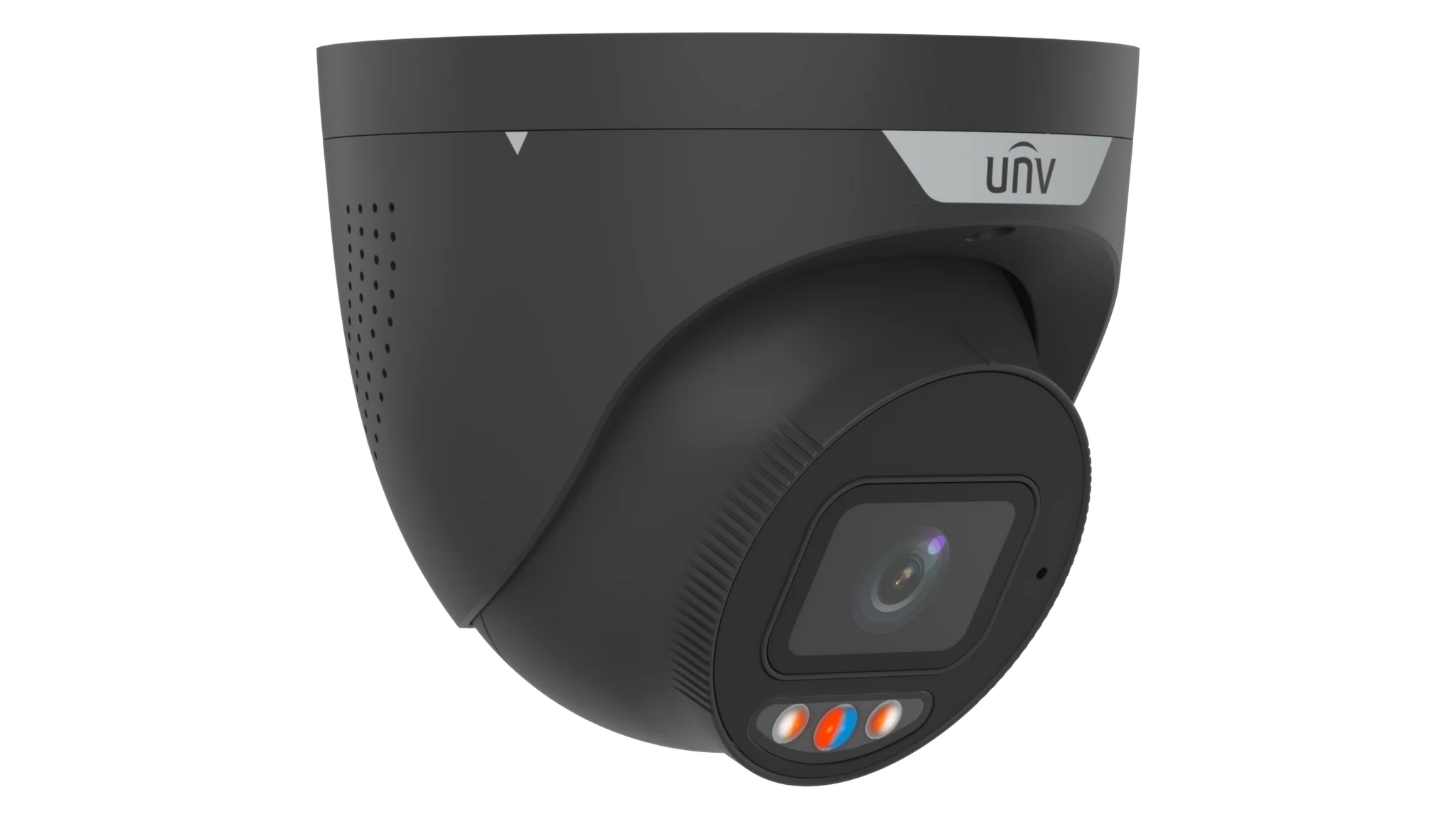

Uniview IPC3638SS-ADF28KMC-I1-BK is an advanced 8MP Intelligent Light & Audible Warning Eyeball Camera. It features powerful AI human/vehicle detection, dual warning lights, two-way audio, and excellent low-light performance for high-accuracy security monitoring.
Key Features
- 8MP Ultra HD resolution (3840 × 2160) up to 30fps
- 1/2.8" CMOS sensor with excellent low-light performance
- Intelligent Intrusion Prevention (Human/Vehicle filtering)
- Built-in microphone & speaker for two-way audio
- Red & blue warning lights for active deterrence
- IR & warm light illumination up to 30m
- 130dB True WDR for balanced bright & dark scenes
- Supports Micro SD card up to 512GB
- Weatherproof IP67 metal housing
- Ultra265 / H.265 / H.264 compression support
Perfect For
- Outdoor perimeter security
- Warehouses, factories & logistics areas
- Commercial storefronts needing strong deterrence
- Parking areas & residential subdivisions
- Locations requiring accurate human/vehicle AI detection
Installer Tips
- Install at 2.8m–4m height for best AI accuracy
- Avoid direct exposure to headlights or strong backlight
- Use PoE for easier, cleaner installation
- Enable Smart Intrusion Prevention zones to reduce false alarms
- Use a junction box for protected, hidden cabling
- Adjust IR/Warm Light based on preferred night mode
- Keep firmware updated for the latest AI improvements
Downloads
Quick-Read Specs
| Specification |
Details |
| Model |
IPC3638SS-ADF28KMC-I1-BK |
| Image Sensor |
1/2.8" CMOS, 8MP |
| Resolution |
3840 × 2160 @ 30/25fps |
| Lens |
2.8mm, F1.0 |
| Field of View |
H: 106.5°, V: 57.9°, D: 132° |
| DORI |
Detect: 86.9m, Observe: 34.8m, Recognize: 17.4m, Identify: 8.7m |
| Illumination |
IR + Warm Light (30m) |
| WDR |
130dB True WDR |
| Audio |
Built-in mic & speaker, 2-way talk |
| Alarm I/O |
1 input / 1 output |
| Storage |
Micro SD card up to 512GB |
| Protection |
IP67 weatherproof |
| Power |
12V DC / PoE (802.3af) |
| Power Consumption |
Max 10W |
| Material |
Metal housing |
