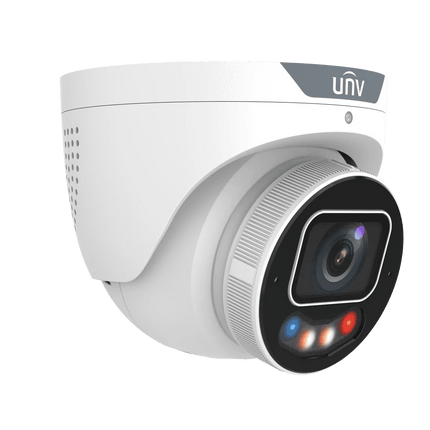

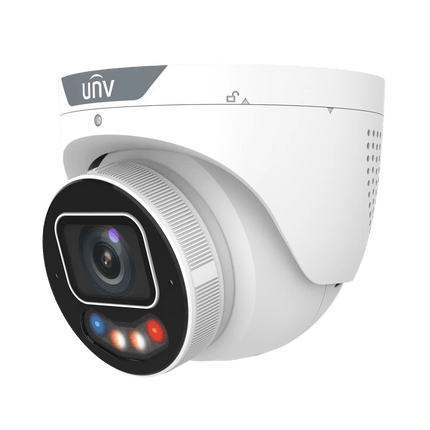

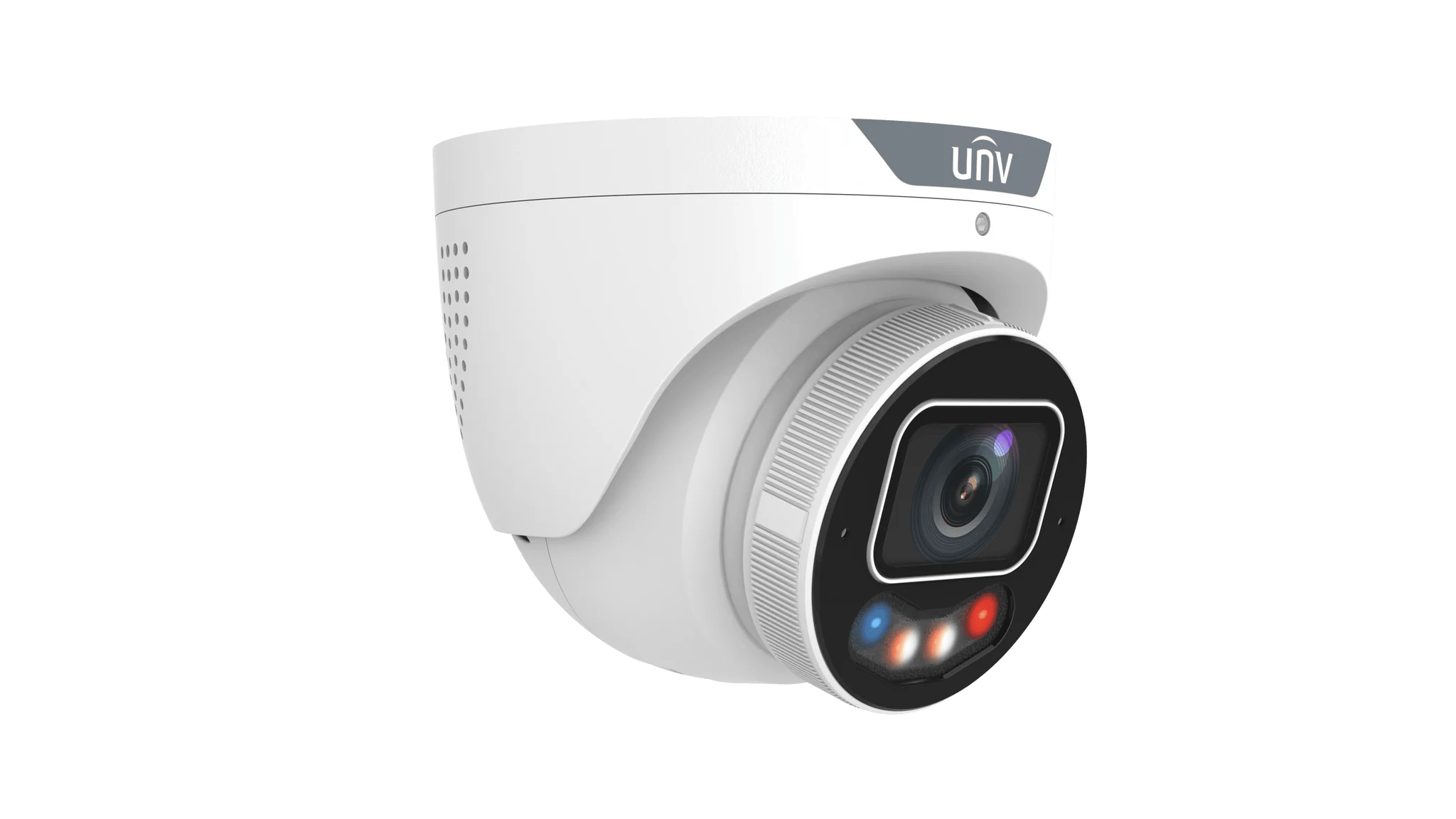

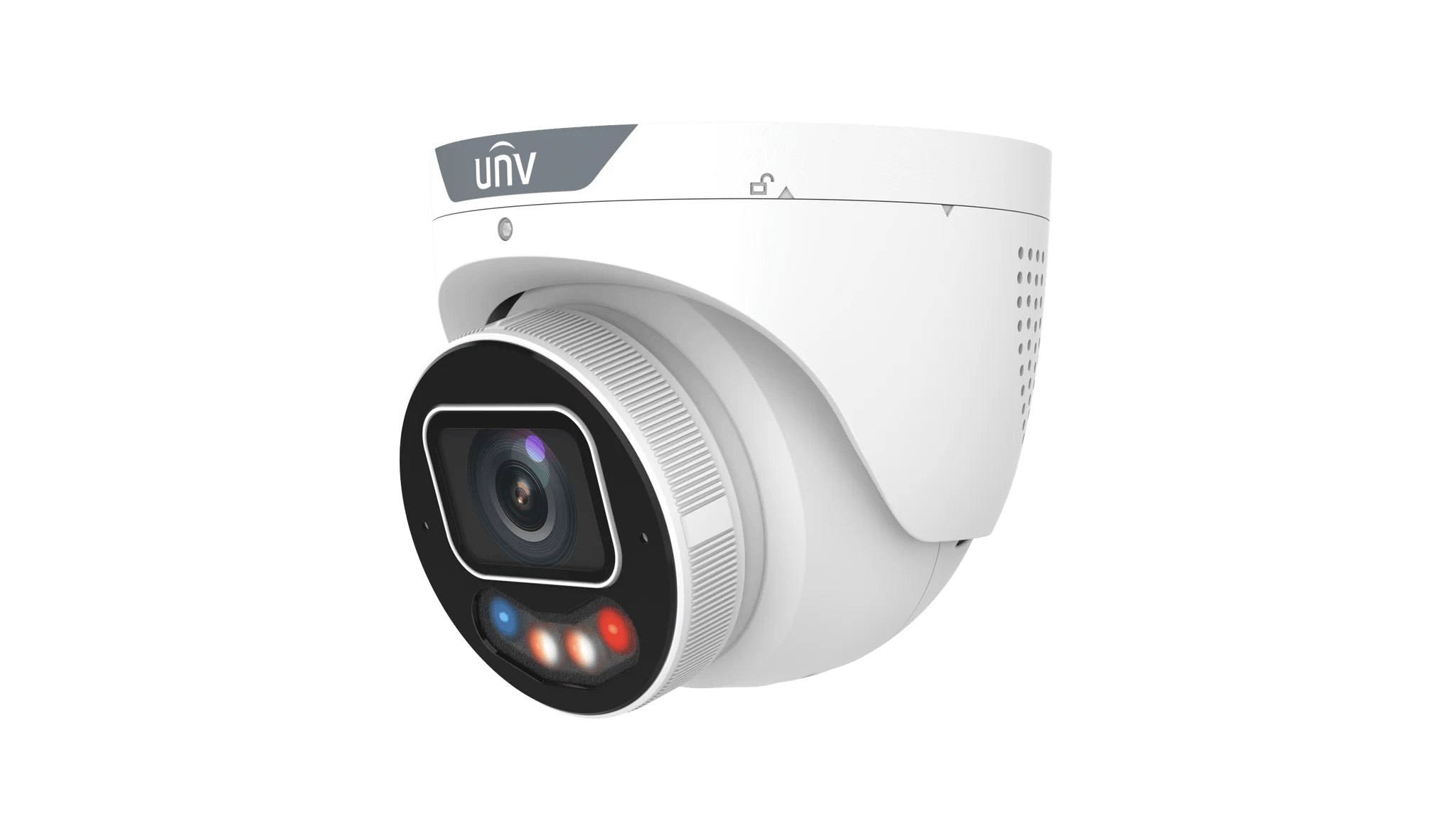

The Uniview IPC3638SE-ADZKMC-WP-I1 is an 8MP Tri-Guard VF Dual-Light Turret Network Camera designed for high-quality surveillance with full-color imaging 24/7. Equipped with an F1.2 large-aperture motorized lens, ColorHunter technology, and Wise-ISP, it provides clear images in any lighting condition. Its intelligent perimeter protection and smart intrusion prevention ensure precise detection for humans, motor vehicles, and non-motor vehicles.
Key Features
-
High-Resolution Imaging – 8MP (3840 × 2160) at 30/25 fps; 5MP, 4MP, and 2MP options available for flexible recording and streaming.
-
ColorHunter with Wise-ISP Technology – Delivers vivid full-color images day and night while reducing noise and smear effects in low-light conditions.
-
Large-Aperture F1.2 Lens – Motorized lens (2.8–12 mm) improves low-light performance and allows flexible field-of-view adjustments.
-
People Flow Counting & Crowd Monitoring – Provides analytics for scene management and traffic monitoring.
-
130 dB True WDR – Ensures balanced exposure in scenes with high contrast lighting.
-
Audio & Alarm Interface – Built-in mic, speaker, and 1-in/1-out alarm support for integrated audio monitoring.
-
Robust Outdoor Design – IK10 vandal-resistant housing with IP67 weather protection ensures reliable operation in harsh conditions.
-
Flexible Storage – Supports Micro SD card up to 512 GB, ANR, and NAS storage for reliable recording backup.
Perfect For:
- Industrial compounds and factory perimeters
- Parking lots, vehicle access points, and gate control areas
- High-traffic commercial spaces and building entrances
- Critical infrastructure protection zones
- Warehouses, logistics facilities, and loading bays
- Public plazas, transport areas, and community spaces
Installer Tips
-
Optimize Low-Light Areas – Install in locations where ColorHunter can maximize full-color imaging at night.
-
Adjust Motorized Lens – Fine-tune zoom and angle for optimal DORI coverage.
-
Leverage PoE – Simplifies installation with single-cable power and data connection.
-
Set Smart Illumination – Use Auto or Manual mode to prevent over-illumination while keeping color detail.
-
Integrate with Uniview NVRs – Unlock full functionality, including AI detection and smart search.
Downloads
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840 × 2160) |
| Sensor |
1/1.8" CMOS |
| Lens |
2.8–12 mm Motorized, F1.2 |
| Field of View (H/V/D) |
111.5° / 60.2° / 128.7° |
| Minimum Illumination |
0.0005 lux (Color, F1.2, AGC ON) |
| WDR |
130 dB True WDR |
| Night Vision |
IR / Warm Light up to 30 m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Audio |
1-in/1-out, Built-in Mic & Speaker |
| Storage |
Micro SD up to 512 GB, ANR, NAS |
| Power |
12V DC ±25%, PoE (IEEE 802.3af) |
| Weather Rating |
IP67, IK10, NEMA 4X |
| Dimensions / Weight |
Ø129 × 110 mm / 0.99 kg |
