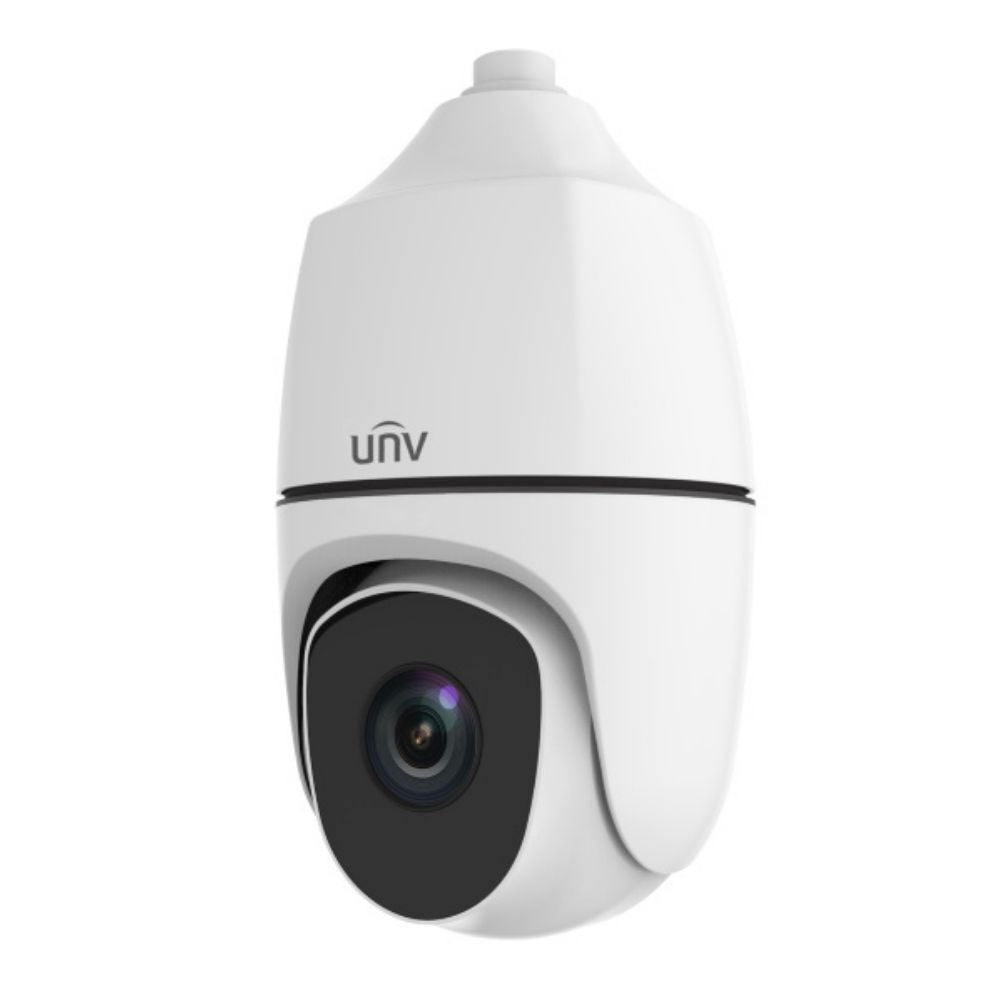

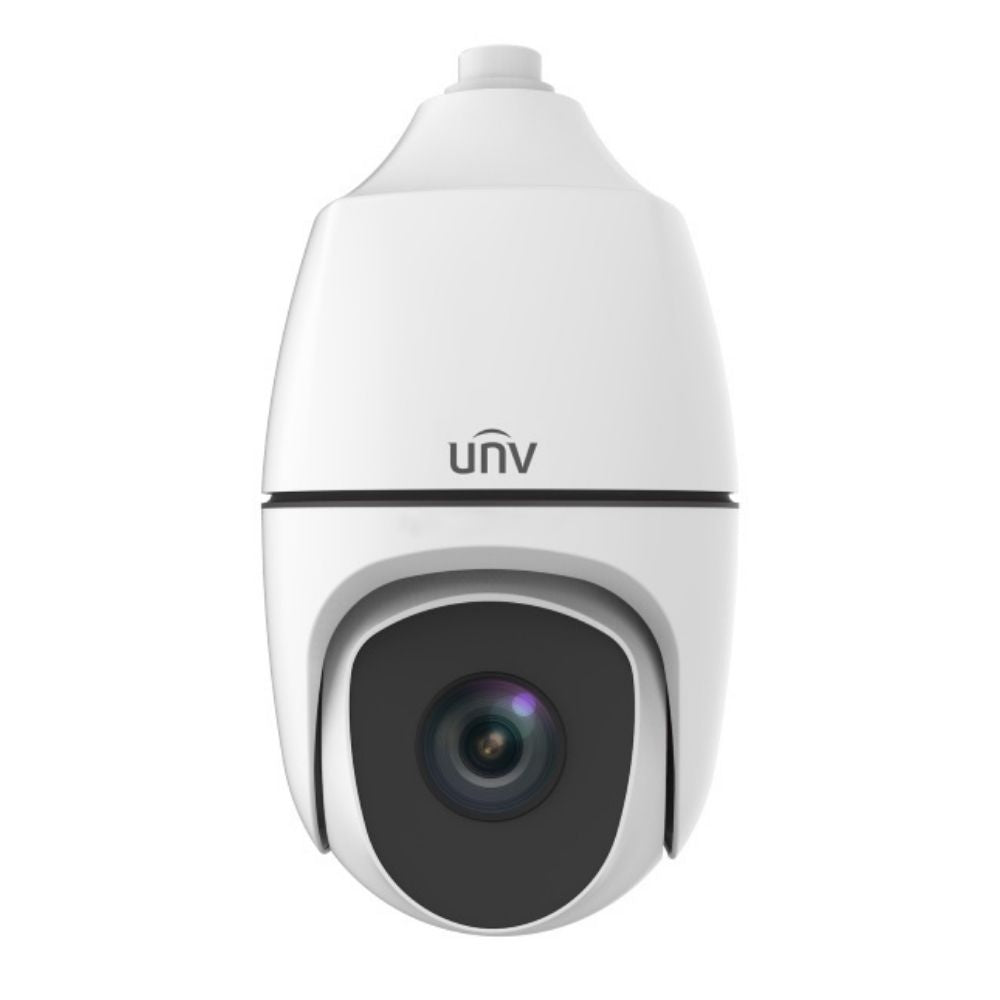

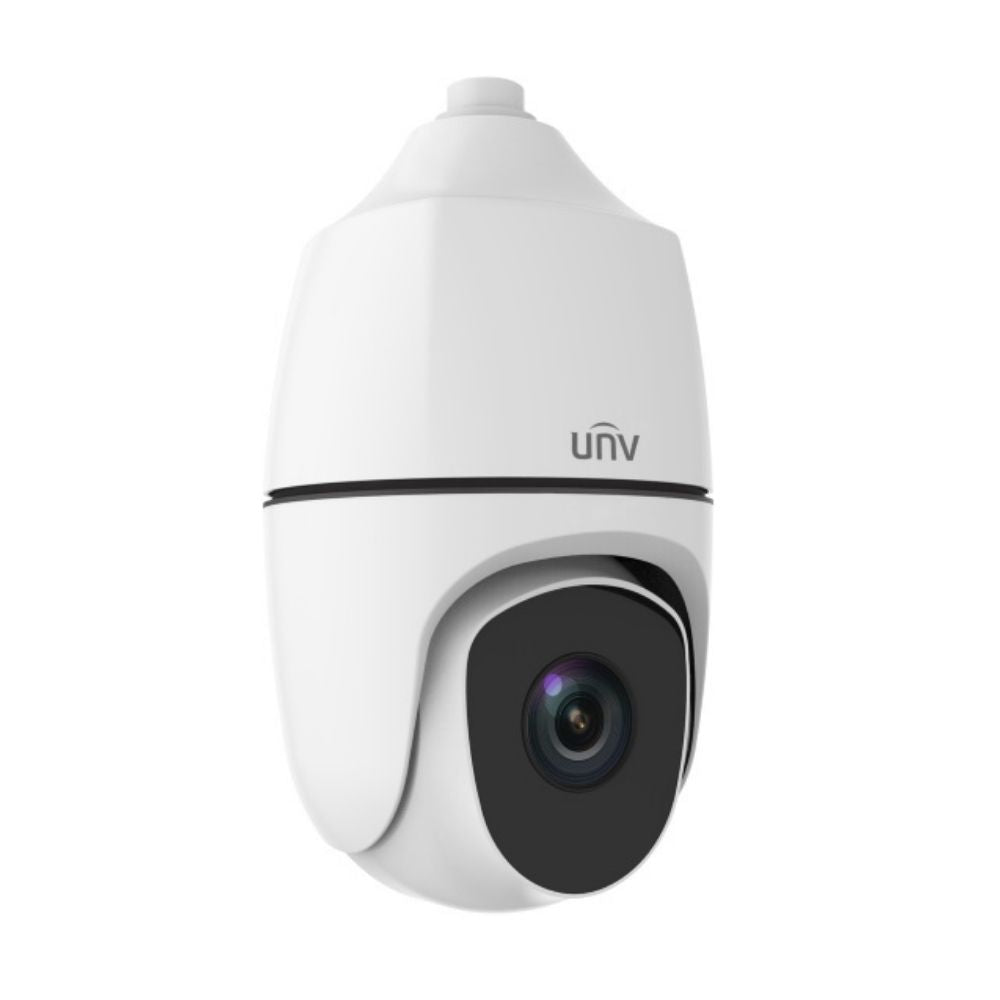

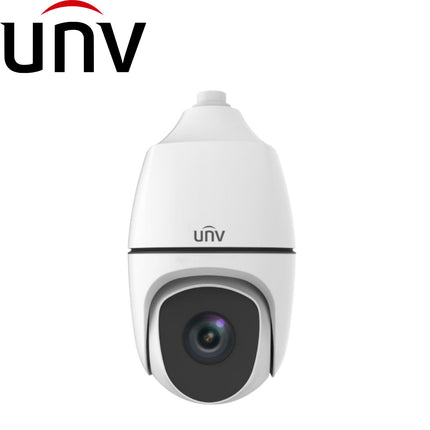

| IPC6852SR-X38UG |
|
| Camera |
|
| Sensor |
1/1.8", 2.0 megapixel, progressive scan, CMOS |
| Lens |
5.7 ~ 216.6mm, AF automatic focusing and a motorized zoom lens |
| Digital Zoom |
16 |
| Optical Zoom |
38 |
| DORI Distance |
Lens (mm) |
|
5.7 |
|
216.6 |
| Angle of View (H) |
58.4° ~ 2.1° |
| Angle of View (V) |
42.6° ~ 1.3° |
| Angle of View (O) |
71.8° ~ 2.4° |
| Shutter |
Auto/Manual; shutter time: 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.0005Lux (F1.5, AGC ON) |
|
0Lux with IR |
| Iris |
Auto/Manual; F1.5 ~ F4.5 |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>52dB |
| IR Range |
UP to 250m (820ft) |
| · Defog |
Optical Defog & Digital Defog |
| WDR |
120dB |
| Video |
|
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream: 2MP (1920*1080), Max 60fps; |
|
Sub Stream: 2MP (1920*1080), Max 60fps; |
|
Third Stream: D1 (720*576), Max 60fps |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Smart |
|
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
|
| Audio Compression |
G.711 |
| Two-way audio |
Supported |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
|
| Edge Storage |
Micro SD, up to 256GB |
| Network Storage |
ANR |
| Network |
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Pan & Tilt |
|
| Pan Range |
360° (endless) |
| Pan Speed |
0.1°/s ~ 240°/s |
|
Preset speed: 300°/s |
| Tilt Range |
-20° ~ 90° (auto reverse) |
| Tilt Speed |
0.1° ~ 160°/s |
|
Preset speed: 240°/s |
| Number of Presets |
1024 |
| Patrol |
Preset patrol, route patrol, recorded patrol |
| Home Position |
Supported |
| Interface |
|
| Audio I/O |
Audio cable |
|
Input: impedance 35k?; amplitude 2V [p-p] |
|
Output: impedance 600?; amplitude 2V [p-p] |
| Alarm I/O |
1-Feb |
| Serial Port |
1 RS485 |
| Network |
1 RJ4510M/100M/1000M Base-TX Ethernet SFP Base-TX Ethernet |
| Video Output |
1 BNC, impedance 75?; amplitude 1V [p-p] |
| General |
|
| Power |
AC 24V (Default)±25%, DC 24V±25% |
|
Power consumption: 16 ~ 51W |
| Dimensions (Ø x H) |
?270 x 496.7mm (?10.6” x 19.6”) |
| Weight |
9.69kg (21.4lb) |
| Working Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ?95% RH (non-condensing) |
| Ingress Protection |
IP66 |
| Reset Button |
Supported |
