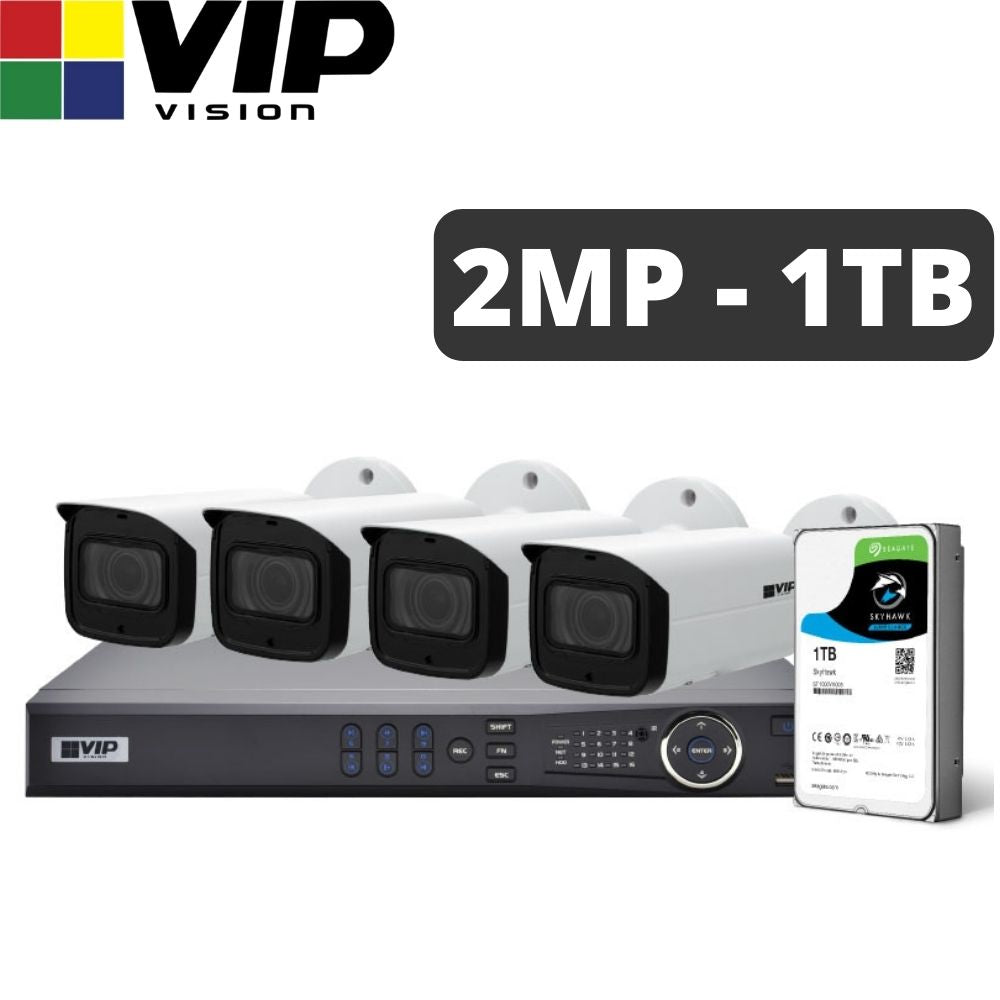

VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 2MP Fixed Bullet, Professional Series

VIP Vision SKU: NVRKIT-P421F

VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 2MP Fixed Bullet, Professional Series

VIP Vision SKU: NVRKIT-P421F
/
Upgrade Hard Drive
Tax included. Shipping calculated at checkout.
Only 0 items in stock!
IN STOCK

VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 2MP Fixed Bullet, Professional Series

VIP Vision SKU: NVRKIT-P421F

Kit Features

  • Records Full HD 1080p (1920 x 1080) up to real-time 50fps
  • Built-in 4 port Power over Ethernet
  • Fixed cameras featuring True WDR & infrared
  • Low light colour footage at 0.009lx min. illumination
  • IVS with tripwire, intrusion, motion detection & more
  • Remote view in seconds with setup via QR code
  • Remote view for iOS, Android & Windows Phone
  • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

Kit Includes

  • 1 x 4 channel PoE NVR + pre-installed 1TB HDD
  • 4 x 1080p 3.6mm WDR 60m IR fixed bullet cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

* Camera cabling sold separately

Description
Description

VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

The best in essential Full HD 1080p IP surveillance, the VSIPE2MPFBMINIIR offers professional surveillance features at an affordable price point. This fixed lens IP bullet streams 50fps Full HD footage and delivers a host of video analytic functions to make your surveillance installations smarter.

The VIP Vision™ Professional Series 4 channel NVR4PRO4 features recording in 4K Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265+ video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.

Kit Features

  • Records Full HD 1080p (1920 x 1080) up to real-time 50fps
  • Built-in 4 port Power over Ethernet
  • Fixed cameras featuring True WDR & infrared
  • Low light colour footage at 0.009lx min. illumination
  • IVS with tripwire, intrusion, motion detection & more
  • Remote view in seconds with setup via QR code
  • Remote view for iOS, Android & Windows Phone
  • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

Kit Includes

  • 1 x 4 channel PoE NVR + pre-installed 1TB HDD
  • 4 x 1080p 3.6mm WDR 60m IR fixed bullet cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

* Camera cabling sold separately

Tech Specs
Tech Specs

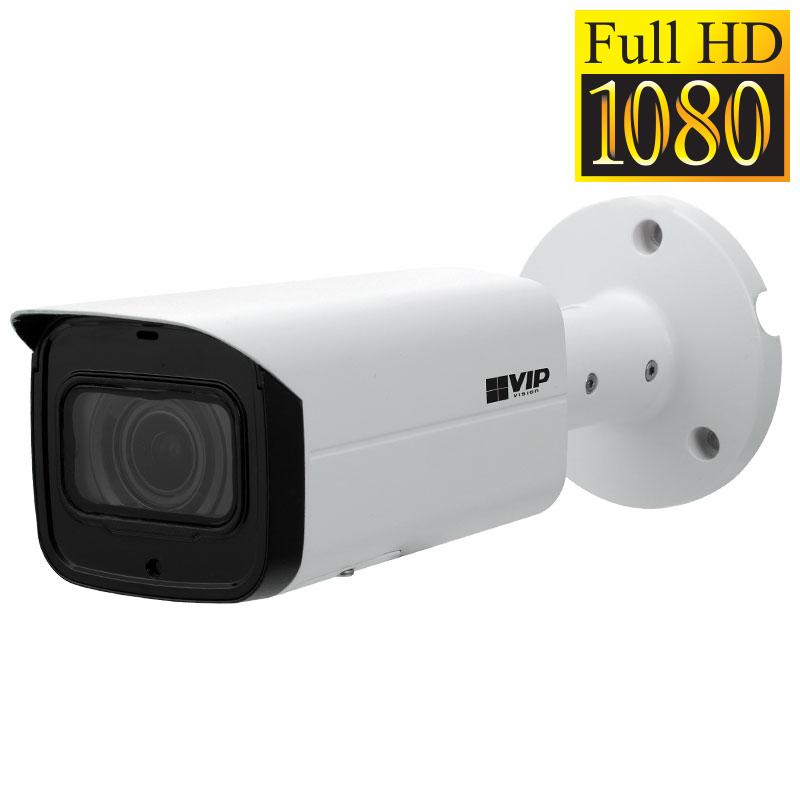

VIP Vision VSIPE2MPFBMINIIR Security Camera

Camera
Image Sensor
1/2.8" 2.0MP Progressive Scan CMOS
Max. Resolution 2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM 256MB / 32MB
Ultra Low Light Colour Yes
Min Illumination
0.009 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris
3.6mm F1.6 Fixed Lens
Field of View
Horizontal: 87°, Vertical: 46°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 55m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution
2.0MP (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
2.0MP (1 ~ 50fps)
Frame Rate (Sub) D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS Yes
Intelligent Functions
Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support Yes
Interface
Video Interface N/A
Audio Interface
1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726
Alarm Interface
1 Input (5mA 5VDC) / 1 Output (300mA 12VDC)
RS485 N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption <11W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection IP67
Weather Resistance Yes
Vandal Resistance IK10
Series
Professional Series
Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation
Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting Yes
ePoE Yes
Dimensions
244mm x 79mm x 76mm
Net Weight 0.82kg
Warranty (Years) 4

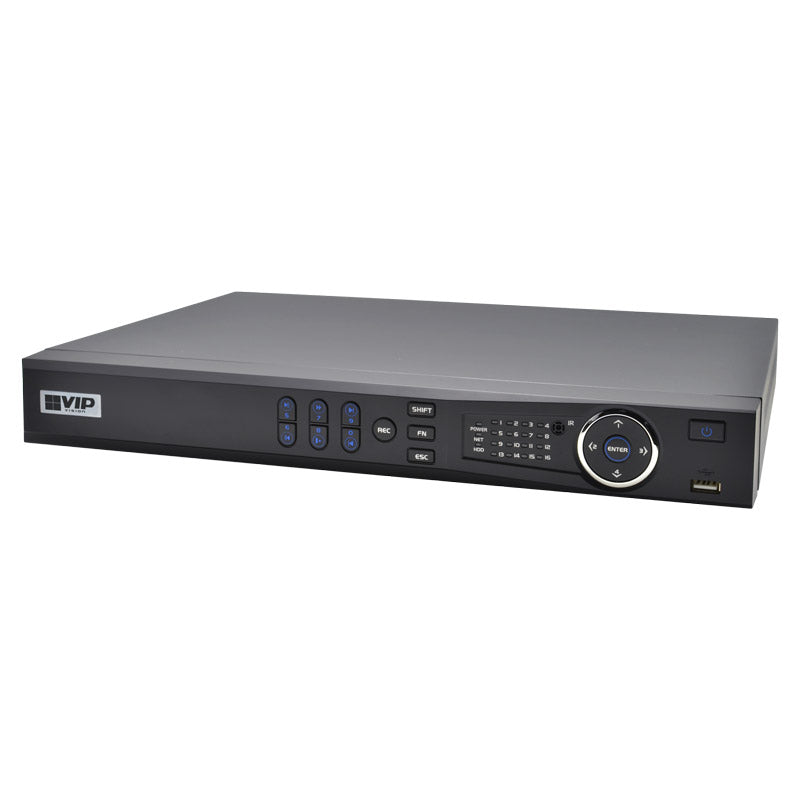

VIP Vision NVR4PRO4 4-Channel Network Video Recorder

General
Main Processor Industrial grade embedded processor
Operating System Embedded Linux
Video Input 4 channels
Two-way Talk 1 channel input, 1 channel output, RCA
Interoperability ONVIF (Profile S), CGI, SDK, RTSP
Display
Video Output 1 x HDMI, 1 x VGA
Display Resolution Configurable from 3840 x 2160 to 1024 x 768
Display Split 44200
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Incoming Bandwidth 128Mbps
Decoding Capacity 2 channels: 8.0MP (30fps) / 8 channels: 1080p (30fps)
Video Compression H.265+ / H.265 / H.264+ / H.264
Bit Rate N/A
Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop
Record Interval N/A
Features
Alarm Input / Output 4 channels input / 2 channels relay output
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection General: Motion Detection, Video Loss, Privacy Masking, IPC Alarm Anomaly: Device Offline, Storage Error, Network Security Anomaly, IP/MAC Conflict
Playback Sync 44200
Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes USB Device / Network
Network
Ethernet 1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet 4 ports (IEEE802.3at/af, 10/100Mbps)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P
Optical Interface N/A
Max. User Access 128 users
Remote View iOS (iPhone, iPad) / Android devices
Storage
Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes Single (no RAID compatibility)
USB Interface 2 ports: Rear USB2.0 / Front USB2.0
Auxiliary Inputs N/A
Environment
Power Supply 48VDC ~53VDC / 1.13A ~1.36A
Power Consumption < 10W (without HDD) / PoE: Max 25.5W per port, 36W total
PoE Yes
Operating Environment -10 ~ 55°C / 10 ~ 90%RH
Rackmountable No
Rackmount Units 1RU
Dimensions 375 x 275 x 52mm
Weight 1.58kg (without HDD)
Other
Decoding Capability 4 channels @ 4.0MP (25fps)
Network Bandwidth 128Mbps for access / 128Mbps for storage / 64Mbps for forwarding
Smart IVS Functions Smart Motion Detection, Perimeter Protection, Face Detection, People Counting & Heat Map (requires supported camera)
Warranty (Years) 4
