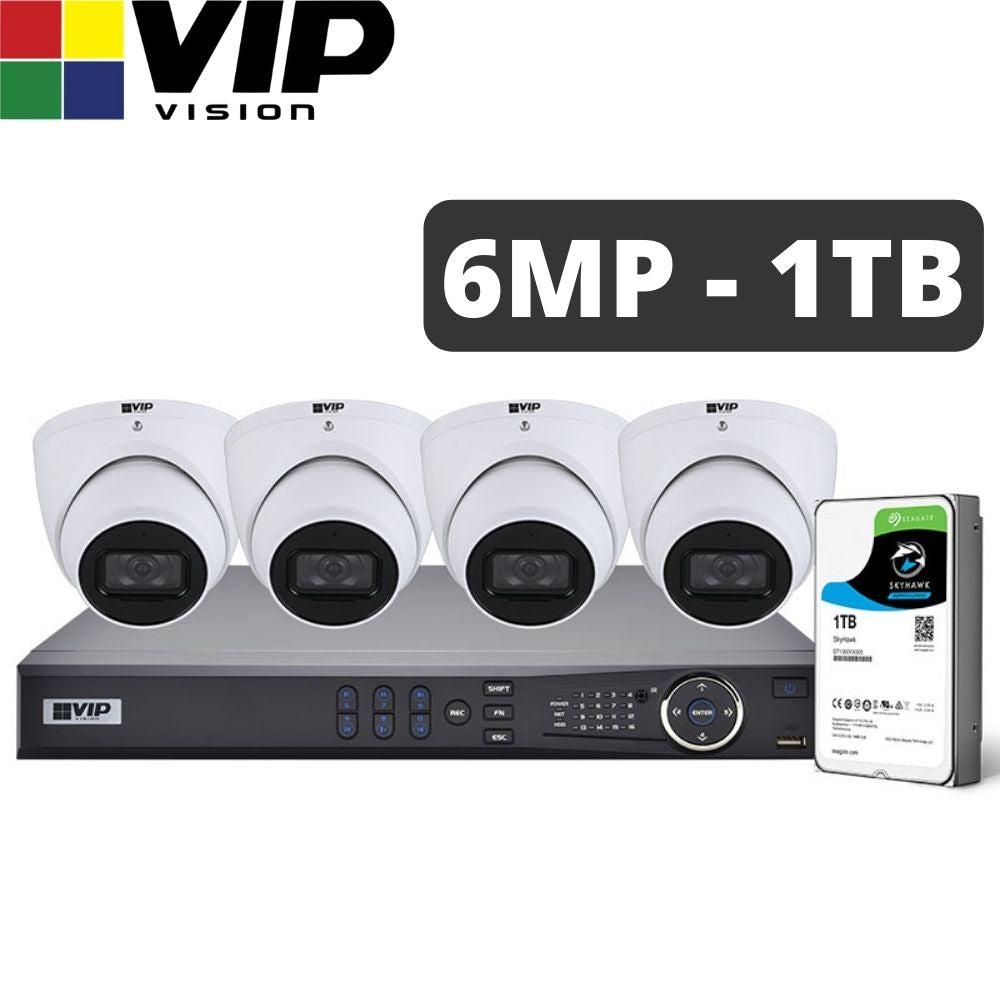

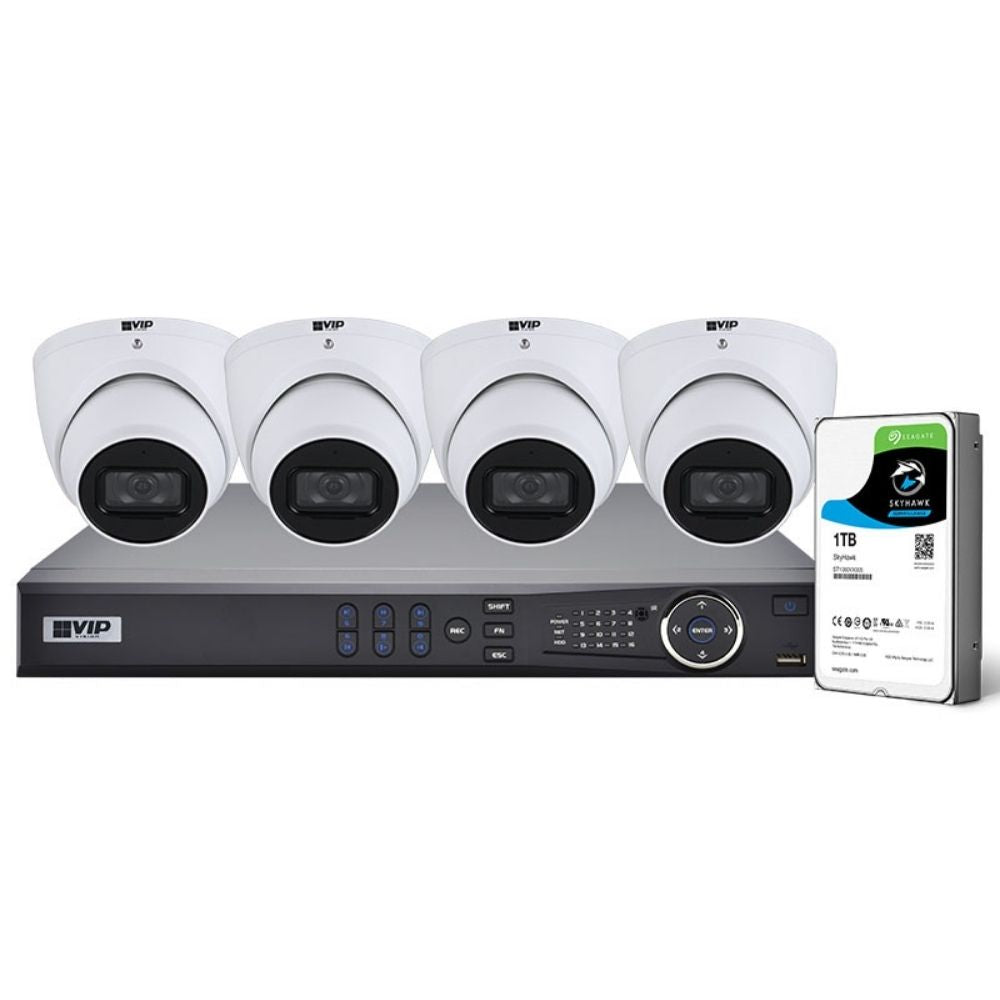

VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 6MP Fixed Turret, Professional Series

VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 6MP Fixed Turret, Professional Series

Kit Features

  • Records 6.0MP (3072 x 1728) up to real-time 20fps
  • Built-in 4 port Power over Ethernet (4 port ePoE)
  • Fixed cameras featuring True WDR & infrared
  • IVS with tripwire, intrusion, motion detection & more
  • Perimeter Protection to identify people & vehicles
  • Remote view in seconds with setup via QR code
  • Remote view for iOS, Android & Windows Phone
  • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

Kit Includes

  • 1 x 4 channel ePoE NVR + pre-installed 1TB HDD
  • 4 x 6.0MP 2.8mm WDR 50m IR fixed turret cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

      * Camera cabling sold separately

      • Product SKU: NVRKIT-P461F
      • Order within
      Available: In Stock
      $1,105.00

      VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

      The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

      The VIP Vision™ Professional Series 4 channel NVR4PRO4 features recording in 4K Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265+ video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.

      Kit Features

      • Records 6.0MP (3072 x 1728) up to real-time 20fps
      • Built-in 4 port Power over Ethernet (4 port ePoE)
      • Fixed cameras featuring True WDR & infrared
      • IVS with tripwire, intrusion, motion detection & more
      • Perimeter Protection to identify people & vehicles
      • Remote view in seconds with setup via QR code
      • Remote view for iOS, Android & Windows Phone
      • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

      Kit Includes

      • 1 x 4 channel ePoE NVR + pre-installed 1TB HDD
      • 4 x 6.0MP 2.8mm WDR 50m IR fixed turret cameras
      • 1 x 1.5m CAT5 patch cable for networking
      • 1 x 1m HDMI output cable
      • 1 x NVR Remote
      • 1 x Mouse

          * Camera cabling sold separately



          VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

          The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

          The VIP Vision™ Professional Series 4 channel NVR4PRO4 features recording in 4K Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265+ video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.

          Kit Features

          • Records 6.0MP (3072 x 1728) up to real-time 20fps
          • Built-in 4 port Power over Ethernet (4 port ePoE)
          • Fixed cameras featuring True WDR & infrared
          • IVS with tripwire, intrusion, motion detection & more
          • Perimeter Protection to identify people & vehicles
          • Remote view in seconds with setup via QR code
          • Remote view for iOS, Android & Windows Phone
          • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

          Kit Includes

          • 1 x 4 channel ePoE NVR + pre-installed 1TB HDD
          • 4 x 6.0MP 2.8mm WDR 50m IR fixed turret cameras
          • 1 x 1.5m CAT5 patch cable for networking
          • 1 x 1m HDMI output cable
          • 1 x NVR Remote
          • 1 x Mouse

              * Camera cabling sold separately

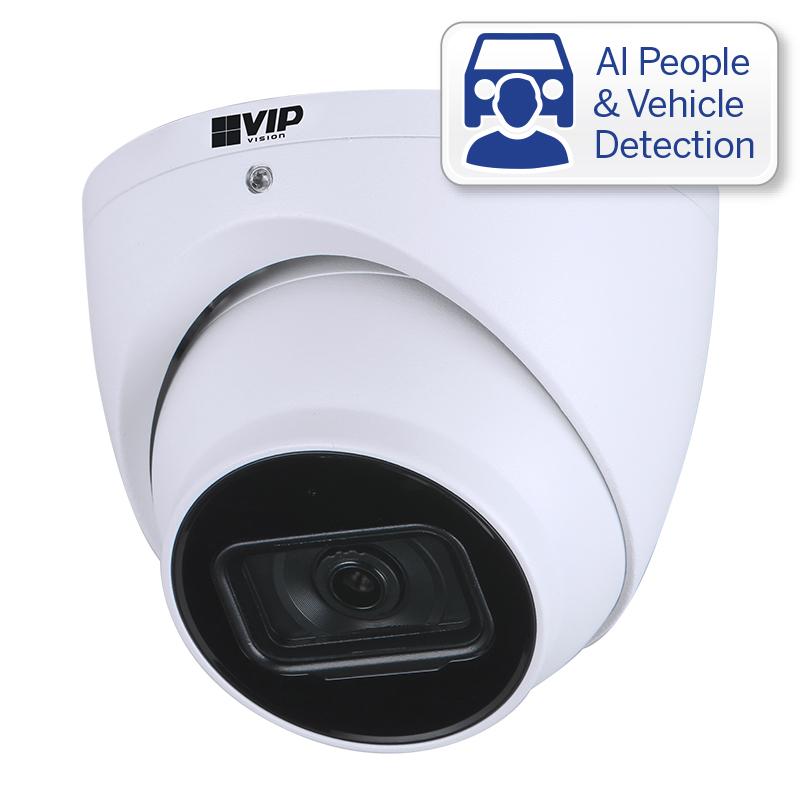

              VIP Vision VSIPP-6DIRG-I Security Camera



              Camera
              Image Sensor 1/2.7’’ 6.0MP Progressive Scan CMOS
              Max. Resolution 6.0 Megapixel
              Effective Pixels 3072 (H) x 1728 (V)
              RAM / ROM 512MB / 128MB
              Min Illumination 0.005 Lux/F1.5 (Color)
              S/N Ratio > 56dB
              Infrared System 2 x Infrared LED, 50m range, Auto/manual on/off control
              Lens
              Lens Type Fixed
              Lens / Iris 2.8mm Fixed Focal Lens with Fixed Iris
              Field of View Horizontal: 99°, Vertical: 53°
              Focus Auto Focus / 0.9m Min. Focus Distance
              DORI
              Detect (25px/m) 56m
              Observe (63px/m) 22m
              Recognise (125px/m) 11m
              Identify (250px/m) 6m
              Video
              Resolution 6.0MP (3072 x 1728) to CIF (352 x 288)
              Frame Rate (Main) 6.0MP (1 ~ 20fps) / 4.0MP (1 ~25fps)
              Frame Rate (Sub) D1 (1 ~ 25fps)
              Frame Rate (Third) 1080p (1 ~ 25fps)
              Video Compression H.265 / H.264 / H.264B / MJPEG
              Bit Rate H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
              Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
              Day/Night Auto (ICR) / Color / B&W
              Lighting Compensation BLC / HLC / WDR (120dB)
              White Balance Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
              Gain Control Auto / Manual
              Noise Reduction 3D DNR
              Picture Control Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
              IVS
              Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
              Perimeter Protection Tripwire & Intrusion (Add recognition of humans & vehicles)
              Face Detection N/A
              Face Attributes N/A
              People Counting N/A
              Heat Map N/A
              Event Trigger Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
              Intelligent Search Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
              Network
              Ethernet RJ-45 (10/100Base-T)
              Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
              Streaming Method Unicast / Multicast
              Max. User Access 20 Users
              Interface
              Video Interface N/A
              Audio Interface Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC: G.723
              Alarm Interface N/A
              RS485 N/A
              Edge Storage MicroSD Card (up to 256GB) / NAS
              Interoperability ONVIF / P2P / CGI / Milestone / Genetec
              Environmental
              Power Supply 12VDC / PoE (802.3af)
              Power Consumption <7.2W
              Operating Conditions -40°C ~ +60°C / ≤95% RH
              Ingress Protection IP67
              Vandal Resistance N/A
              Series Professional AI Series
              Camera Type Turret
              Housing Metal
              Pan/Tilt/Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
              ePoE No
              Dimensions Ø106mm x 93.6mm
              Net Weight 0.55kg
              Warranty (Years) 4

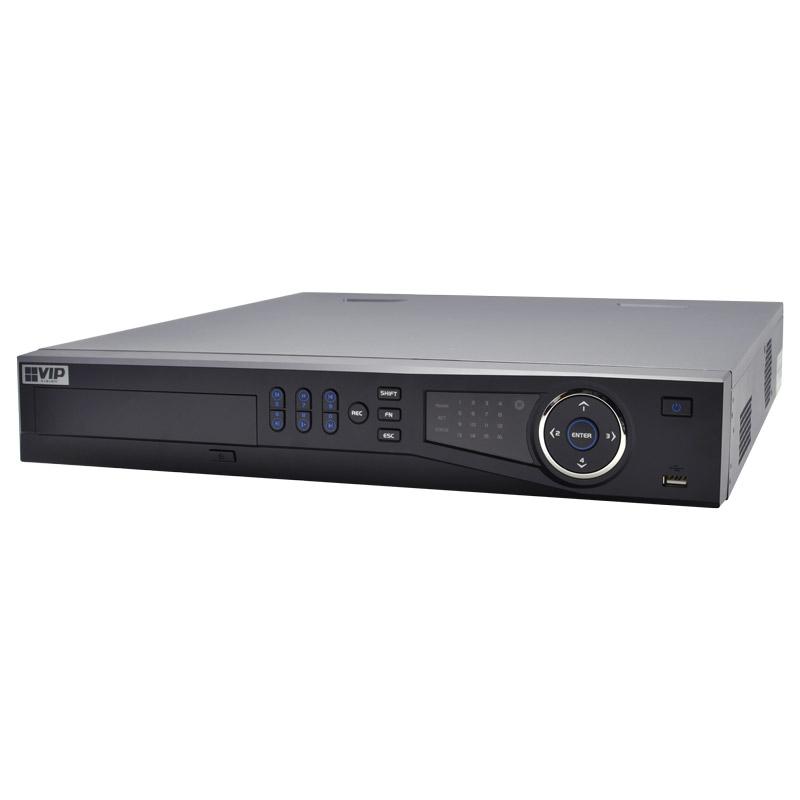

              VIP Vision NVR4PRO4 4-Channel Network Video Recorder



              General
              Main Processor Industrial grade embedded processor
              Operating System Embedded Linux
              Video Input 4 channels
              Two-way Talk 1 channel input, 1 channel output, RCA
              Interoperability ONVIF (Profile S), CGI, SDK, RTSP
              Display
              Video Output 1 x HDMI, 1 x VGA
              Display Resolution Configurable from 3840 x 2160 to 1024 x 768
              Display Split 44200
              OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
              Recording
              Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
              Incoming Bandwidth 128Mbps
              Decoding Capacity 2 channels: 8.0MP (30fps) / 8 channels: 1080p (30fps)
              Video Compression H.265+ / H.265 / H.264+ / H.264
              Bit Rate N/A
              Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop
              Record Interval N/A
              Features
              Alarm Input / Output 4 channels input / 2 channels relay output
              Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
              Video Detection General: Motion Detection, Video Loss, Privacy Masking, IPC Alarm Anomaly: Device Offline, Storage Error, Network Security Anomaly, IP/MAC Conflict
              Playback Sync 44200
              Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
              Backup Modes USB Device / Network
              Network
              Ethernet 1 x RJ-45 port (10/100/1000Mbps)
              Power over Ethernet 4 ports (IEEE802.3at/af, 10/100Mbps)
              Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P
              Optical Interface N/A
              Max. User Access 128 users
              Remote View iOS (iPhone, iPad) / Android devices
              Storage
              Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
              HDD Modes Single (no RAID compatibility)
              USB Interface 2 ports: Rear USB2.0 / Front USB2.0
              Auxiliary Inputs N/A
              Environment
              Power Supply 48VDC ~53VDC / 1.13A ~1.36A
              Power Consumption < 10W (without HDD) / PoE: Max 25.5W per port, 36W total
              PoE Yes
              Operating Environment -10 ~ 55°C / 10 ~ 90%RH
              Rackmountable No
              Rackmount Units 1RU
              Dimensions 375 x 275 x 52mm
              Weight 1.58kg (without HDD)
              Other
              Decoding Capability 4 channels @ 4.0MP (25fps)
              Network Bandwidth 128Mbps for access / 128Mbps for storage / 64Mbps for forwarding
              Smart IVS Functions Smart Motion Detection, Perimeter Protection, Face Detection, People Counting & Heat Map (requires supported camera)
              Warranty (Years) 4
