VIP Vision 8-Channel Security Kit: 12MP NVR, 8 X 4MP Fixed Bullet/Turret, Professional Series

SKU NVRKIT-P842F
Original price $2,190.00 - Original price $2,605.00
Original price
$2,190.00
$2,190.00 - $2,605.00
Current price $2,190.00
Upgrade Hard Drive: 2 Terabyte Hard Drive
Description
Description

VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.

Kit Features

  • Records 4.0MP (2688 x 1520) up to real-time 25fps
  • Built-in 8 port Power over Ethernet
  • Fixed cameras featuring True WDR & infrared
  • AI-powered perimeter protection & smart motion detection (SMD+)
  • IVS with tripwire, intrusion, motion detection & more
  • Remote view in seconds with setup via QR code
  • Remote view for iOS, Android & Windows Phone
  • Choose between bullet and/or turret cameras (standard kit shown)
  • WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

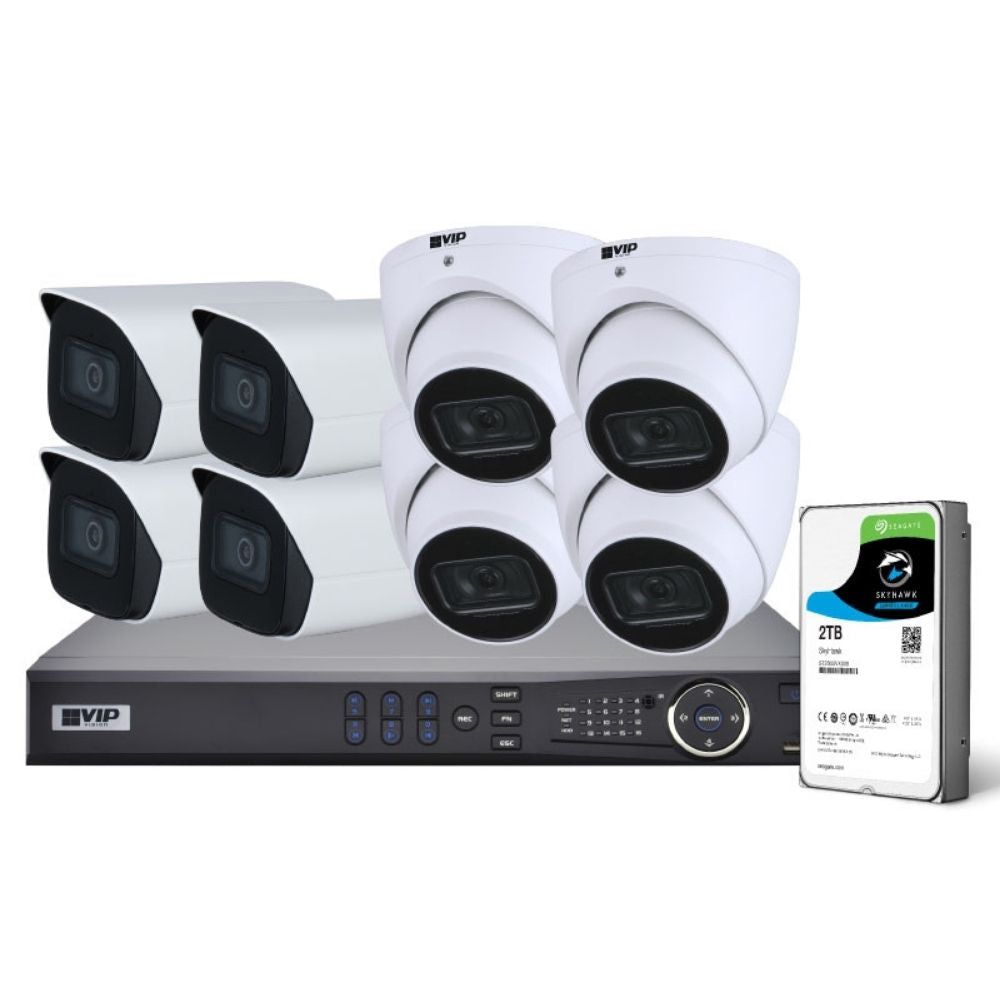

Kit Includes

  • 1 x 8 channel PoE NVR + pre-installed 2TB HDD
  • 8 x 4.0MP 2.8mm WDR fixed AI bullet/turret cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

* Camera cabling sold separately

Tech Specs
Tech Specs

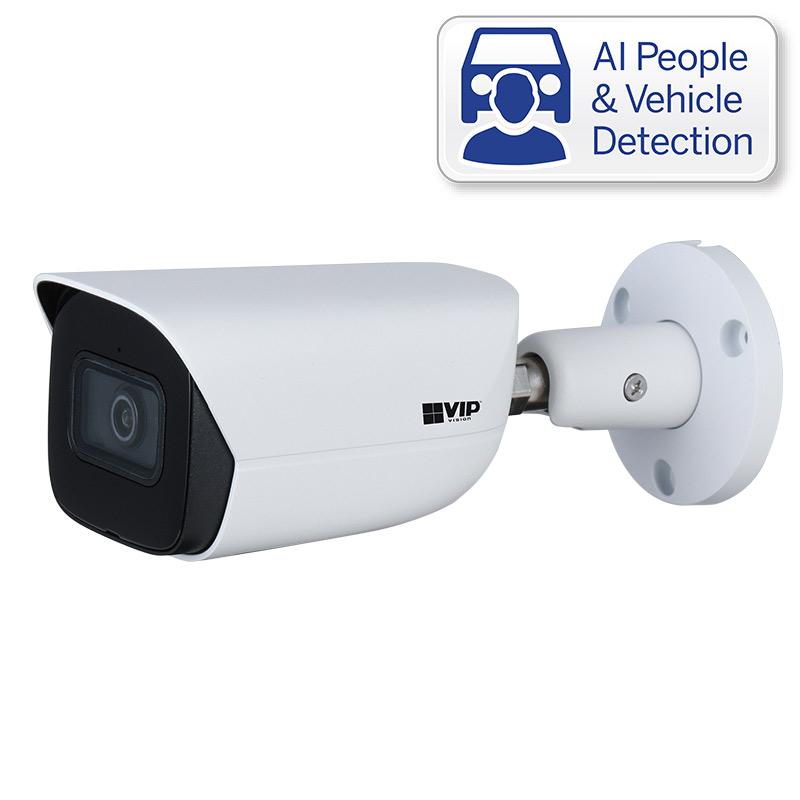

VIP Vision VSIPP-4BIRG-I Security Camera


Camera
Image Sensor

1/3’’ 4.0MP Progressive Scan CMOS

Max. Resolution 4.0 Megapixel
Effective Pixels

2688 (H) x 1520 (V)

RAM / ROM 512MB / 128MB
Min Illumination

0.005 Lux/F1.6 (Color)

S/N Ratio > 56dB
Infrared System

1 x Infrared LED, 50m range, Auto/manual on/off control

Lens
Lens Type Fixed
Lens / Iris

2.8mm F1.6 Fixed Lens

Field of View

Horizontal: 103°, Vertical: 55°

Focus

Fixed / 0.9m Min. Focus

DORI
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution

4.0MP (2688 x 1520) to CIF (352 x 288)

Frame Rate (Main)

4.0MP (1 ~ 25fps)

Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) 720p (1 ~ 25fps)
Video Compression

H.265 / H.264 / H.264B / MJPEG

Bit Rate

H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control

Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night

Auto (ICR) / Color / B&W

Lighting Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control

Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° at 2.0MP resolution)

IVS
Intelligent Functions

Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection

Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection N/A
Face Attributes N/A
People Counting N/A
Heat Map N/A
Event Trigger N/A
Intelligent Search

Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Network
Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method

Unicast / Multicast

Max. User Access 20 Users
Interface
Video Interface N/A
Audio Interface

Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC

Alarm Interface N/A
RS485 N/A
Edge Storage

MicroSD Card (up to 256GB) / NAS / FTP/ SFTP

Interoperability

ONVIF / P2P / CGI / Milestone / Genetec

Environmental
Power Supply

12VDC / PoE (802.3af)

Power Consumption <5.4W
Operating Conditions

-40°C ~ +60°C, ?95% RH

Ingress Protection IP67
Vandal Resistance N/A
Series

Professional AI Series

Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°

ePoE No
Dimensions

193mm x 71mm x 66mm

Net Weight 0.59kg
Warranty (Years) 4

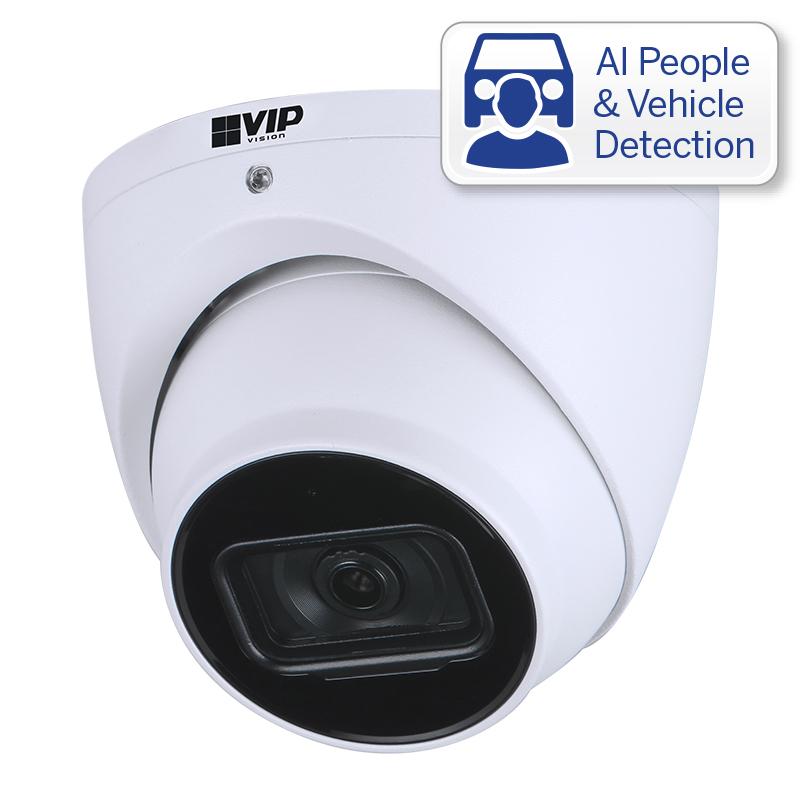

VIP Vision VSIPP-4DIRG2-I Security Camera

Camera
Image Sensor
1/3” 4.0MP Progressive Scan CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM 512MB / 128MB
Min Illumination
0.005 Lux/F1.6 (Colour)
S/N Ratio > 56dB
Infrared System
2 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 103°, Vertical: 55°
Focus
Auto Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m) 56m
Observe (63px/m) 22m
Recognise (125px/m) 11m
Identify (250px/m) 6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) 720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection N/A
Face Attributes N/A
People Counting N/A
Heat Map N/A
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access 20 Users
Interface
Video Interface N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC: G.723
Alarm Interface N/A
RS485 N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption <7.7W
Operating Conditions
-40°C ~ +60°C / ?95% RH
Ingress Protection IP67
Vandal Resistance N/A
Series
Professional AI Series
Camera Type Turret
Housing Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
ePoE No
Dimensions
Ø106mm x 93.6mm
Net Weight 0.55kg
Warranty (Years) 4


VIP Vision NVR8PRO7 8-Channel Network Video Recorder

General
Main Processor Quad-core embedded processor
Operating System Embedded Linux
Video Input 8 channels
Two-way Talk 1 channel input, 1 channel output, RCA
Interoperability ONVIF 2.4, CGI conformant
Display
Video Output 1 x HDMI, 1 x VGA
Display Resolution Configurable from 3840 x 2160 to 1024 x 768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth 320Mbps
Decoding Capacity 4 channels: 8.0MP (30fps) / 16 channels: 1080p (30fps)
Video Compression H.265+ / H.265 / H.264+ / H.264
Bit Rate 16kbps ~ 20Mbps per channel
Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output 4 channels input / 2 channels relay output (N.O/N.C)
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync 39817
Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes USB Device / Network
Network
Ethernet 1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet 8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Optical Interface N/A
Max. User Access 128 users
Remote View iOS (iPhone, iPad) / Android devices
Storage
Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes Single (no RAID compatibility)
USB Interface 2 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs 1 x RS232 / 1 x RS485
Environment
Power Supply 100 ~ 240VAC, 50 ~ 60Hz
Power Consumption < 15.2W (without HDD) / PoE: 25.5W per port, 130W total
PoE Yes, w/ ePoE
Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable No
Rackmount Units 1RU
Dimensions 375 x 327 x 53mm
Weight 4.00kg (without HDD)
Warranty (Years) 4
