| AI Face Detection (by Cameras) |
8 channels |
| AI Face Detection (by Recorder) |
1 channel |
| AI Face Detection Features |
Whitelist, Blacklist, Stranger Mode |
| AI Face Detection Performance |
Up to 10 face databases with 200,000 face images |
| AI Face Recognition (by Cameras) |
8 channels |
| AI Face Recognition (by Recorder) |
1 channel (with Ultimate AI cameras) |
| AI Face Recognition Performance |
12 face images/s |
| AI Functions by Cameras |
Face detection, ANPR, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
| AI Functions by Recorder |
Face detection, face recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
| AI Motion Detection (by Cameras) |
8 channels |
| AI Motion Detection (by Recorder) |
4 channels |
| AI Search (Metadata) |
Support search target video by metadata |
| AI Tripwire/Intrusion (by Cameras) |
8 channels |
| AI Tripwire/Intrusion (by Recorder) |
2 channels, 10 IVS rules for each channel |
| Alarm Input / Output |
- |
| Auxiliary Inputs |
- |
| Backup Modes |
USB Device / Network |
| Decoding Capacity (AI Disabled) |
8CH@4MP/25fps |
| Decoding Capacity (AI Enabled) |
8CH@1080P/25fps |

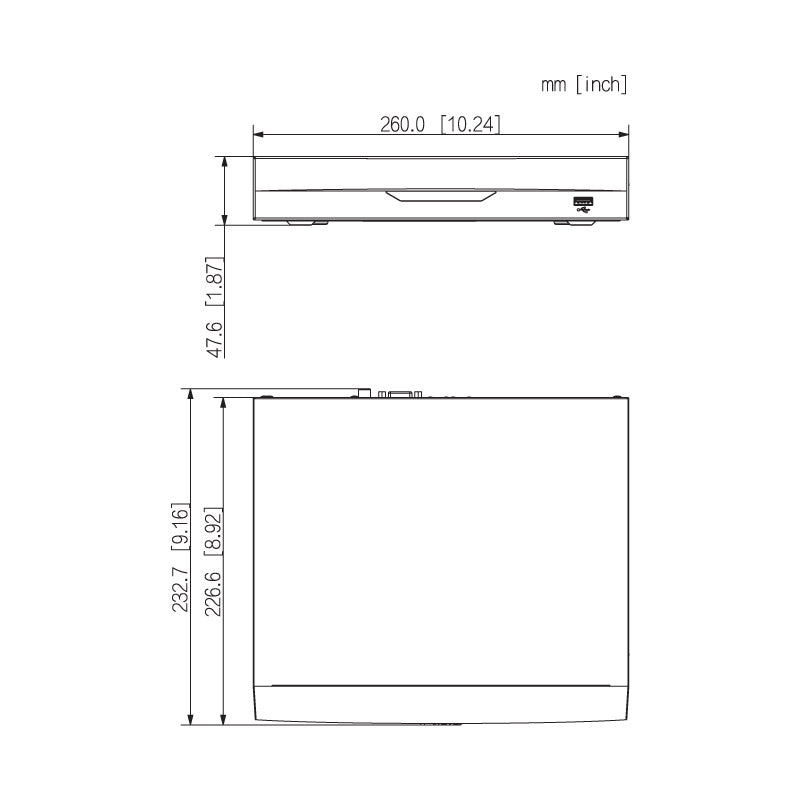

| Dimensions |
260mm x 233mm x 48mm |
| Display Resolution |
Configurable from 3840 x 2160 to 1280 x 720 |
| Display Split |
1st screen - 1/4/8/9, 2nd screen - 1/4/8/9 |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| Face |
Gender, age, glasses, beard, mask, expression |
| HDD Modes |
- |
| Human Body |
Tops style, tops colour, bottom style, bottom colour, hat , bag |
| Incoming Bandwidth (AI Disabled) |
256Mbps Mbps incoming (recording/outgoing) |
| Incoming Bandwidth (AI Enabled) |
180Mbps incoming (recording/outgoing) |
| Internal HDD |
1 SATA ports, up to 16TB, max. |
| Interoperability |
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Main Processor |
Industrial-grade processor |
| Max. User Access |
- |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support VIP Vision IP camera, DVR, NVS and etc.) |
| Non-motor Vehicle |
Type, colour, people, number |
| Operating Environment |
-10°C ~ +55°C / 10 ~ 93%RH |
| Operating System |
Embedded LINUX |
| Optical Interface |
N/A |
| OSD |
- |
| Playback Sync |
1/4/8/9 |
| PoE |
Yes |
| Power Consumption |
<10W (without HDD) / PoE: Max 25.5W for single port, 72W total |
| Power over Ethernet |
8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Power Supply |
DC53V/1.812A |
| Rackmount Units |
1U |
| Rackmountable |
- |
| Record Interval |
- |
| Record Modes |
General / motion detection / intelligent / alarm |
| Recording Resolution |
Configurable from: 16.0MP (4920 x 3264) to D1 (704 x 480) |
| Remote View |
iOS (iPhone, iPad); Android devices |
| Search Modes |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Trigger Events |
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email |
| Two-way Talk |
- |
| USB Interface |
2 x USB ports (1 x Rear USB 2.0, 1 x Front USB 2.0) |
| Vehicle |
Vehicle colour, vehicle model, vehicle logo, plate colour, vehicle decorations, call, seatbelt |
| Video Compression |
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG |
| Video Detection |
- |
| Video Input |
8 channel |
| Video Output |
1 HDMI / 1 VGA |
| Weight |
0.92kg (without HDD) |
