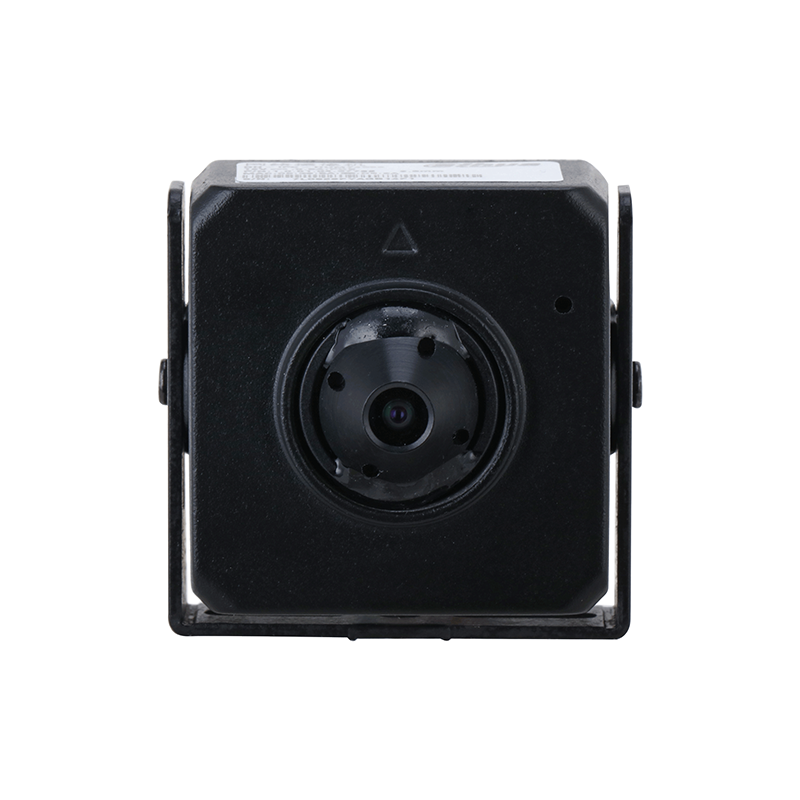

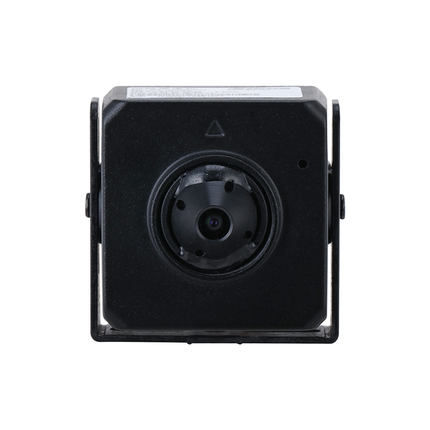

The VSIPPH-2S3 pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs and more.
Camera features:
- Stream up to HD 1080p at 25fps
- Fixed 2.8mm lens with 108° field of view
- True WDR (120dB)
- Auto electronic day/night & 2D digital noise reduction
- Discreet pinhole profile: 17mm/ 5mm depth
- IVS functions including motion detection, tripwire & intrusion
*Requires the VSIPPH-4M main control unit.
Datasheets
Tech Specs
| Alarm Interface |
N/A |
| Audio Interface |
1 Input, 1 Output (RCA) |
| Bit Rate |
H.265: 3 Kbps ~ 6144 Kpbs/ H.264: 3 Kbps ~ 6144 Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Pinhole |
| Day/Night |
Auto (Electronic) / Colour / B&W |
| Detect (25px/m) |
61m |

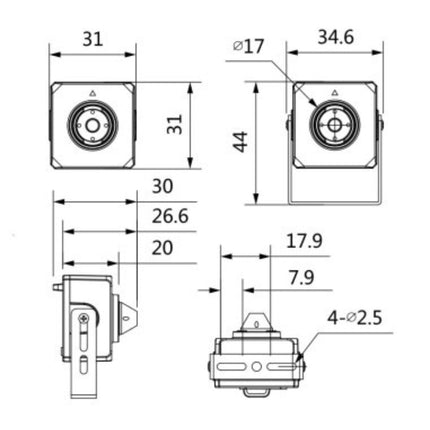

| Dimensions |
31mm x 31mm x 30mm |
| Edge Storage |
NAS / Local PC |
| Effective Pixels |
1920 (H) x 1080 (V) |
| ePoE |
No |
| Ethernet |
RJ45 (10/100 Base-T) |
| Field of View |
Horizontal: 96°, Vertical: 55° |
| Focus |
Fixed |
| Frame Rate (Main) |
1080p (1 ~ 25/30fps) |
| Frame Rate (Sub) |
704 x 576@ (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Gain Control |
Auto / Manual |
| Housing |
Metal |
| Image Sensor |
1/3” 2.0 Megapixel Progressive Scan CMOS |
| Infrared |
No |
| Infrared System |
N/A |
| Ingress Protection |
N/A |
| Intelligent Functions |
Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone) |
| Interoperability |
ONVIF Profile S / API |
| IVS |
Yes |
| Lens / Iris |
2.8mm F2.0 Fixed lens |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
2.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
Colour: F2.0 0.005lx (1/3s) |
| Net Weight |
0.10kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
17m |
| Operating Conditions |
-40° ~ +60° C / ≤95% RH |
| Pan/Tilt/Rotation |
N/A |
| Picture Control |
N/A |
| Power Consumption |
<1.2W (<1.56 max.) |
| Power Supply |
12VDC / Non POE |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour |
| RAM / ROM |
128MB / 128MB |
| Recognise (125px/m) |
12.2m |
| Identification |
6.4m |
| Resolution |
1080p (1920 x 1080) to CIF (352 x 288) |
| RS232 |
N/A |
| RS485 |
N/A |
| RTMP Support |
No |
| S/N Ratio |
> 56dB |
| Series |
Pinhole Series |
| Smart Scene Adaptive (SSA) |
N/A |
| Streaming Method |
Unicast / Multicast |
| Tri-Axis Mounting |
No |
| Ultra Low Light Colour |
Yes |
| Vandal Resistance |
N/A |
| Video Compression |
H.265 / H.264 / MJPEG (sub stream) |
| Video Interface |
N/A |
| Weather Resistance |
No |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
| Dimensions |
31mm X31mm X 30 mm |
| Net weight |
0.138kg |
