| General |
|
| Main Processor |
Industrial grade embedded processor |
| Operating System |
Embedded Linux |
| Video Input |
4 channels |
| Two-way Talk |
1 channel input, 1 channel output, RCA |
| Interoperability |
ONVIF (Profile S), CGI, SDK, RTSP |
| Display |
|
| Video Output |
1 x HDMI, 1 x VGA |
| Display Resolution |
Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split |
44200 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
|
| Recording Resolution |
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Incoming Bandwidth |
128Mbps |
| Decoding Capacity |
2 channels: 8.0MP (30fps) / 8 channels: 1080p (30fps) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate |
N/A |
| Record Modes |
Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop |
| Record Interval |
N/A |
| Features |
|
| Alarm Input / Output |
4 channels input / 2 channels relay output |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
| Video Detection |
General: Motion Detection, Video Loss, Privacy Masking, IPC Alarm Anomaly: Device Offline, Storage Error, Network Security Anomaly, IP/MAC Conflict |
| Playback Sync |
44200 |
| Search Modes |
Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Backup Modes |
USB Device / Network |
| Network |
|
| Ethernet |
1 x RJ-45 port (10/100/1000Mbps) |
| Power over Ethernet |
4 ports (IEEE802.3at/af, 10/100Mbps) |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P |
| Optical Interface |
N/A |
| Max. User Access |
128 users |
| Remote View |
iOS (iPhone, iPad) / Android devices |
| Storage |
|
| Internal HDD |
2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| HDD Modes |
Single (no RAID compatibility) |
| USB Interface |
2 ports: Rear USB2.0 / Front USB2.0 |
| Auxiliary Inputs |
N/A |
| Environment |
|
| Power Supply |
48VDC ~53VDC / 1.13A ~1.36A |
| Power Consumption |
< 10W (without HDD) / PoE: Max 25.5W per port, 36W total |
| PoE |
Yes |
| Operating Environment |
-10 ~ 55°C / 10 ~ 90%RH |
| Rackmountable |
No |
| Rackmount Units |
1RU |

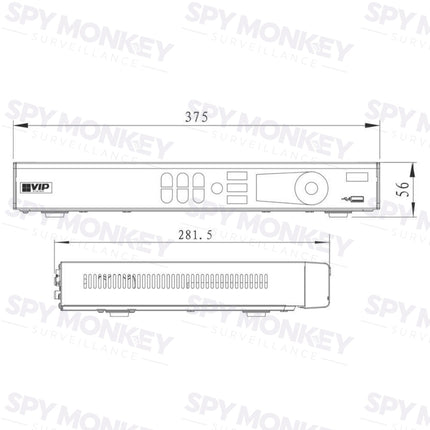

| Dimensions |
375 x 275 x 52mm |
| Weight |
1.58kg (without HDD) |
| Other |
|
| Decoding Capability |
4 channels @ 4.0MP (25fps) |
| Network Bandwidth |
128Mbps for access / 128Mbps for storage / 64Mbps for forwarding |
| Smart IVS Functions |
Smart Motion Detection, Perimeter Protection, Face Detection, People Counting & Heat Map (requires supported camera) |
| Warranty (Years) |
4 |
