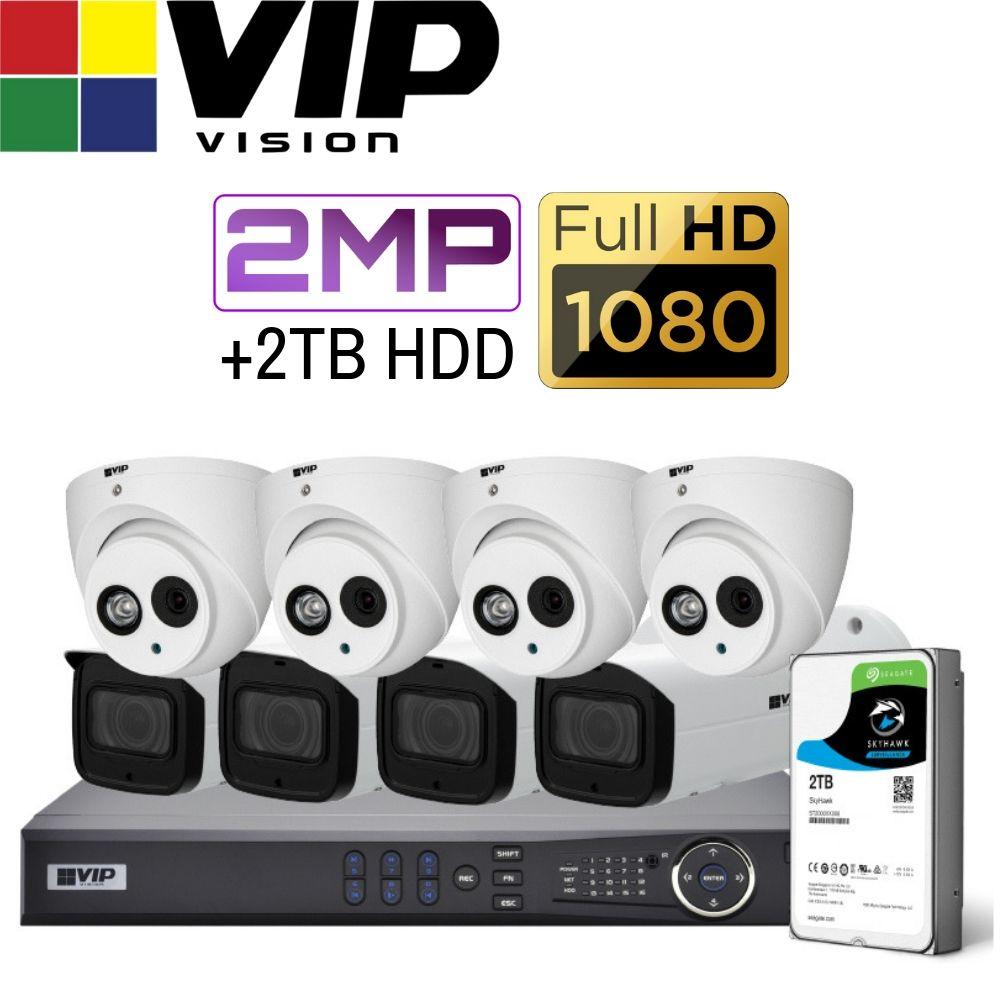

VIP Vision Pro 8 Channel Security Kit: 12MP NVR, 4 X 2MP Bullet, 4 X 2MP Turret, 2TB HDD
- 4 x 2.0MP Turret & 4 x 2.0MP Bullet Cameras 1080P Full HD at up to 50fps
- Lens Options 2.8mm or 3.6mm fixed lens
- 8 CHANNEL NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- NVR Supports recording beyond Ultra HD up to 12.0MP (4000 x 3000)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- 50m (Turrets) 60m (Bullets) infrared range; True day/night (auto ICR), Smart Infrared
- Low light colour footage 0.007Lux (Turrets) and 0.009Lux (Bullets)
- Built-in microphone and microSD slot for edge recording up to 128GB
- Back/highlight compensation & true WDR (120dB)
- H.265+ encoding for efficient storage & Triple Streaming
- On-camera audio input/output and alarm interface
- Supports Smart Functions like Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking
- 3D digital noise reduction 3DDNR and auto white balance AWB
- ONVIF, PSIA and CGI compliance
-
Weatherproof IP67 & Vandalproof IK10 (Bullets) metal housing
- Product SKU: NVRKIT-P822F
- Order within
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.
The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
The best in essential Full HD 1080p IP surveillance, the VSIPE2MPFBMINIIR offers professional surveillance features at an affordable price point. This fixed lens IP bullet streams 50fps Full HD footage and delivers a host of video analytic functions to make your surveillance installations smarter.
Experience new standard in fixed lens IP surveillance from VIP Vision. Stream full HD 1080p resolution up to 50fps using the latest H.265 video compression technology for the best in bandwidth/storage efficiency. This full-featured professional dome VSIPE2MPVDMINIIRCB2.8 performs even in challenging lighting conditions, offers audio and microSD recording, all in an full metal IP67 weather-rated housing.
KIT FEATURES
- 4 x 2.0MP Turret & 4 x 2.0MP Bullet Cameras 1080P Full HD at up to 50fps
- Lens Options 2.8mm or 3.6mm fixed lens
- 8 CHANNEL NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- NVR Supports recording beyond Ultra HD up to 12.0MP (4000 x 3000)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- 50m (Turrets) 60m (Bullets) infrared range; True day/night (auto ICR), Smart Infrared
- Low light colour footage 0.007Lux (Turrets) and 0.009Lux (Bullets)
- Built-in microphone and microSD slot for edge recording up to 128GB
- Back/highlight compensation & true WDR (120dB)
- H.265+ encoding for efficient storage & Triple Streaming
- On-camera audio input/output and alarm interface
- Supports Smart Functions like Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking
- 3D digital noise reduction 3DDNR and auto white balance AWB
- ONVIF, PSIA and CGI compliance
-
Weatherproof IP67 & Vandalproof IK10 (Bullets) metal housing
- WARRANTY: 4 years back-to-base manufacturer warranty

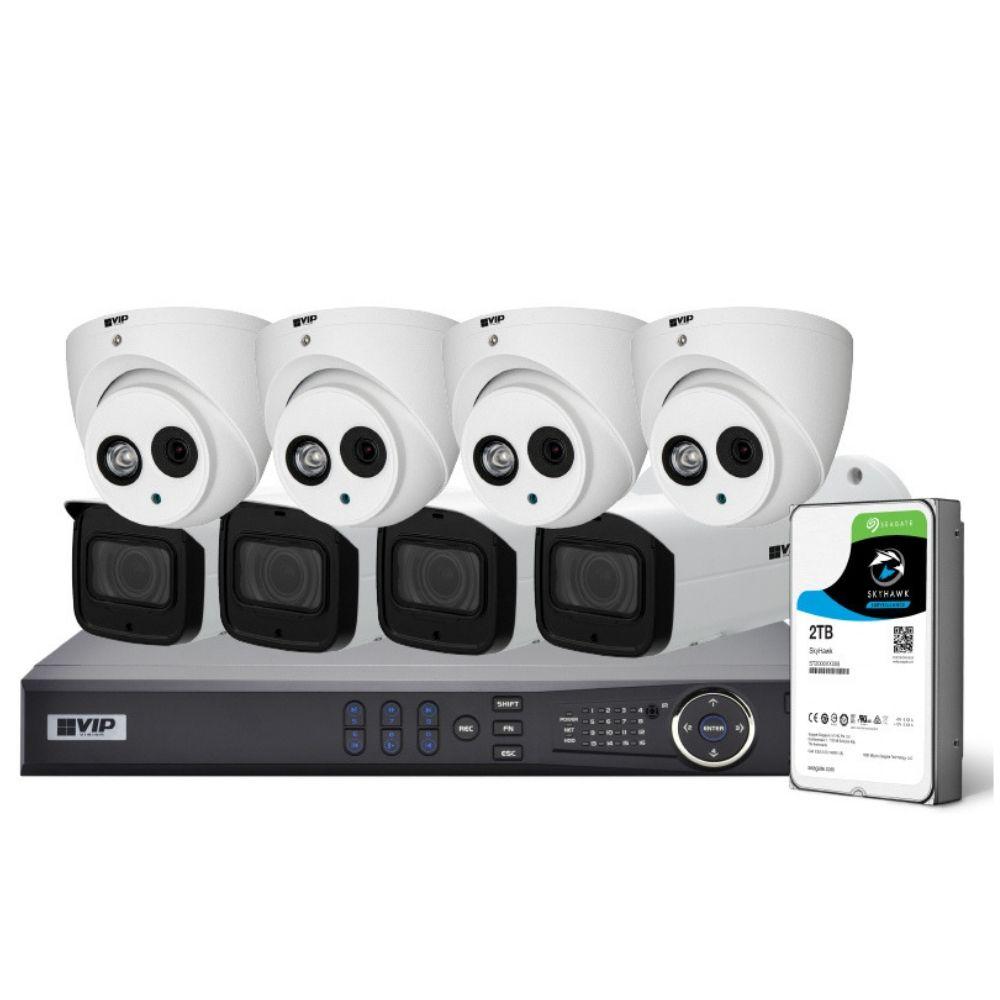

KIT INCLUDES
- 1 x 8 channel ePoE NVR + pre-installed 2TB HDD
- 4 x 1080p 2.8mm WDR 50m IR fixed dome cameras
- 4 x 1080p 2.8mm WDR 60m IR fixed bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.
The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
The best in essential Full HD 1080p IP surveillance, the VSIPE2MPFBMINIIR offers professional surveillance features at an affordable price point. This fixed lens IP bullet streams 50fps Full HD footage and delivers a host of video analytic functions to make your surveillance installations smarter.
Experience new standard in fixed lens IP surveillance from VIP Vision. Stream full HD 1080p resolution up to 50fps using the latest H.265 video compression technology for the best in bandwidth/storage efficiency. This full-featured professional dome VSIPE2MPVDMINIIRCB2.8 performs even in challenging lighting conditions, offers audio and microSD recording, all in an full metal IP67 weather-rated housing.
KIT FEATURES
- 4 x 2.0MP Turret & 4 x 2.0MP Bullet Cameras 1080P Full HD at up to 50fps
- Lens Options 2.8mm or 3.6mm fixed lens
- 8 CHANNEL NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- NVR Supports recording beyond Ultra HD up to 12.0MP (4000 x 3000)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- 50m (Turrets) 60m (Bullets) infrared range; True day/night (auto ICR), Smart Infrared
- Low light colour footage 0.007Lux (Turrets) and 0.009Lux (Bullets)
- Built-in microphone and microSD slot for edge recording up to 128GB
- Back/highlight compensation & true WDR (120dB)
- H.265+ encoding for efficient storage & Triple Streaming
- On-camera audio input/output and alarm interface
- Supports Smart Functions like Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking
- 3D digital noise reduction 3DDNR and auto white balance AWB
- ONVIF, PSIA and CGI compliance
-
Weatherproof IP67 & Vandalproof IK10 (Bullets) metal housing
- WARRANTY: 4 years back-to-base manufacturer warranty
KIT INCLUDES
- 1 x 8 channel ePoE NVR + pre-installed 2TB HDD
- 4 x 1080p 2.8mm WDR 50m IR fixed dome cameras
- 4 x 1080p 2.8mm WDR 60m IR fixed bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7
General | |
Main Processor | Quad-core embedded processor |
Operating System | Embedded Linux |
Video Input | 8 channels |
Two-way Talk | 1 channel input, 1 channel output, RCA |
Interoperability | ONVIF 2.4, CGI conformant |
Display | |
Video Output | 1 x HDMI, 1 x VGA |
Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
Display Split | 1/4/8/9 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Recording Resolution | Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288) |
Incoming Bandwidth | 320Mbps |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | 16kbps ~ 20Mbps per channe |
Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
Features | |
Alarm Input / Output | 4 channels input / 2 channels relay output (N.O/N.C) |
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
Playback Sync | 1/4 |
Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
Backup Modes | USB Device / Network |
Network | |
Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
Power over Ethernet | 8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports) |
Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P |
Optical Interface | N/A |
Max. User Access | 128 users |
Remote View | iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
Storage | |
Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
HDD Modes | Single (no RAID compatibility) |
USB Interface | 2 ports: Rear USB3.0 / Front USB2.0 |
Auxiliary Inputs | 1 x RS232 / 1 x RS485 |
Environment | |
Power Supply | 100 ~ 240VAC, 50 ~ 60Hz |
Power Consumption | < 15.2W (without HDD) / PoE: 25.5W per port, 130W total |
PoE | Yes, w/ ePoE |
Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
Rackmountable | No |
Rackmount Units | 1RU |
Dimensions | 375 x 327 x 53mm |
Weight | 4.00kg (without HDD) |
Warranty (Years) | 4 |

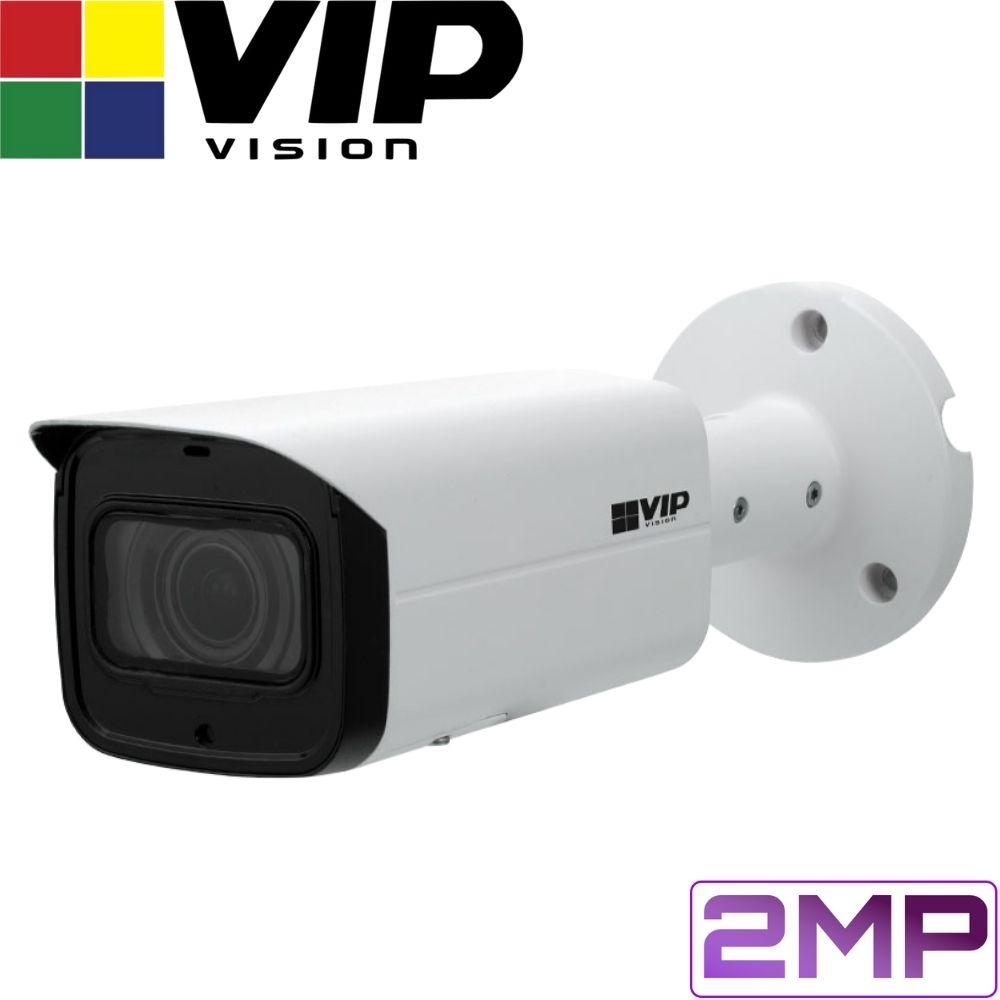

VIP Vision Professional Security Camera: 2MP Bullet, 3.6mm Fixed Lens - VSIPE2MPFBMINIIR
Camera | |
Image Sensor | 1/2.8" 2.0MP Progressive Scan CMOS |
Max. Resolution | 2.0 Megapixel |
Effective Pixels | 1920 (H) x 1080 (V) |
RAM / ROM | 256MB / 32MB |
Ultra Low Light Colour | Yes |
Min Illumination | 0.009 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on) |
S/N Ratio | > 50dB |
Infrared | Yes |
Infrared System | 4 x Infrared LED, 60m range, Auto/manual on/off control |
Lens | |
Lens Type | Fixed |
Lens / Iris | 3.6mm F1.6 Fixed Lens |
Field of View | Horizontal: 87°, Vertical: 46° |
Focus | Fixed |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 55m |
Observe (63px/m) | 22m |
Recognise (125px/m) | 11m |
Identify (250px/m) | 6m |
Video | |
Resolution | 2.0MP (1920 x 1080) to CIF (352 x 288) |
Frame Rate (Main) | 2.0MP (1 ~ 50fps) |
Frame Rate (Sub) | D1 (1 ~ 50fps) |
Frame Rate (Third) | 1080p (1 ~ 25fps) |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users / 20 Users |
RTMP Support | Yes |
Interface | |
Video Interface | N/A |
Audio Interface | 1 Input, 1 Output / Compression: G.711a, G.711Mu, AAC, G.726 |
Alarm Interface | 1 Input (5mA 5VDC) / 1 Output (300mA 12VDC) |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF Profile S&G / API |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | <11W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | IK10 |
Series | Professional Series |
Camera Type | Bullet |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360° |
Tri-Axis Mounting | Yes |
ePoE | Yes |
Dimensions | 244mm x 79mm x 76mm |
Net Weight | 0.82kg |
Warranty (Years) | 4 |
VIP Vision Professional Security Camera: 2MP Mini Dome, 2.8mm Fixed Lens - VSIPE2MPVDMINIIRCB2.8
Camera | |
Image Sensor | 1/2.8’’ 2.0MP Progressive Scan Exmor CMOS |
Max. Resolution | 2.0 Megapixe |
Effective Pixels | 1920 (H) x 1080 (V) |
RAM / ROM | 256MB / 32MB |
Ultra Low Light Colour | Yes |
Min Illumination | 0.009 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on) |
S/N Ratio | > 50dB |
Infrared | Yes |
Infrared System | 1 x Infrared LED, 50m range, Auto/manual on/off control |
Lens | |
Lens Type | Fixed |
Lens / Iris | 2.8mm F2.0 Fixed Lens |
Field of View | Horizontal: 104°, Vertical: 57° |
Focus | Fixed |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 43m |
Observe (63px/m) | 17m |
Recognise (125px/m) | 119mm |
Identify (250px/m) | 4m |
Video | |
Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
Frame Rate (Main) | 1080p (1 ~ 50fps) |
Frame Rate (Sub) | D1 (1 ~ 50fps) |
Frame Rate (Third) | 1080p (1 ~ 25fps) |
Video Compression | H.265 / H.264 |
Bit Rate | H.265: 14 ~ 5632Kbps / H.264: 24 ~ 9472Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users / 20 Users |
RTMP Support | Yes |
Interface | |
Video Interface | N/A |
Audio Interface | Built-in Microphone / Compression: G.711a, G.711Mu, AAC, G.726 |
Alarm Interface | N/A |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF Profile S&G / API |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | < 5W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | IK10 |
Series | Professional Series |
Camera Type | Dome |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~ 360 ° ; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360° |
Tri-Axis Mounting | Yes |
ePoE | Yes |
Dimensions | Ø106mm x 94mm |
Net Weight | 0.47kg |
Warranty (Years) | 4 |
VIP Vision NVR Tutorials
VIP Vision NVR Tutorials
VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7
VIP Vision Professional Security Camera: 2MP Bullet, Fixed Lens - VSIPE2MPFBMINIIR
VIP Vision Professional Security Camera: 2MP Mini Dome, Fixed Lens - VSIPE2MPVDMINIIRCB2.8
Standard Shipping is a $25 flat rate for orders under $200.
Orders are processed: Monday – Friday from 8am – 5pm.
Orders are shipped within 24 - 48 hours (business days) of being placed.
Shipping Times: For customers within the express post network (capital cities) delivery times are typically next business day. For areas outside the express post network delivery times are 2 - 3 business days.
Please Note: As we use courier shipping, we cannot ship to PO Boxes.
(Public Holidays Excluded)
Order Confirmation: After placing an order, you will receive an order confirmation by e-mail. This means we’ve received your order in our system and have pre-authorised your credit card for the purchase. If your item is unavailable, we will void the pre-authorisation charge and contact you to inform you by e-mail. If your item(s) are available for immediate shipment (within 2 business days), we will process the charges and submit the order for shipment.
Tracking Numbers will be sent to your email within 24 hours of being shipped.
In some cases, we may need to contact you before your order can be shipped. To ensure there is no delay, please respond to any email/phone call from our Customer Service team.
We use Star Track couriers, Couriers Please and VT Freight depending on the location of each order. Shipping times are the same.
RETURNS
You have 14 calendar days to return an item from the date you received it. Your item must be in the same condition that you received it with original packaging. You must contact us before returning your item so that we can give you an RMA number and the most suitable shipping address based on your location. We will need your order number to confirm your order. You can contact us by email at: info@spymonkey.com.au or by phone on 1300049519.
For more information on what items our return policy covers, refer to our full policy here: 14-Day Return Policy
