VIP Vision Pro 8 Channel Security Kit: 12MP NVR, 4 X 6MP Bullet, 4 X 6MP Turret, 4TB HDD
- Record beyond Ultra HD up to 12.0MP (4000 x 3000)
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Native Ultra HD live view on 4K monitors via HDMI
- Backup footage via network, USB or SATA devices
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Motion Detection, Motion Zones, Video Loss & Tampering
- Stream up to 6.0MP (3072 x 2048) at 20fps
- 2.8mm fixed lens with 98° viewing angle
- H.265 encoding for efficient storage & streaming
- 50m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 rated metal housing for outdoor use
- ONVIF, PSIA and CGI compliance
- ePoE allows for up to 800m transmission at 10Mbps (ePoE NVRs only)
- Product SKU: NVRKIT-P864F
- Order within
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.
The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
High performance fixed-lens surveillance in a compact body. The VSIPE6MPFBMINIIR2.8 offers professional features to take your surveillance to the next level, including true WDR, efficient H.265 compression and face detection.
The VSIPE6MPVDMINIIRC2.8 brings high performance fixed-lens surveillance in a compact body. Each dome in this series delivers in almost any application, with true WDR, efficient H.265 compression, built-in audio, edge recording and face detection.
KIT FEATURES
- Record beyond Ultra HD up to 12.0MP (4000 x 3000)
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Native Ultra HD live view on 4K monitors via HDMI
- Backup footage via network, USB or SATA devices
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Motion Detection, Motion Zones, Video Loss & Tampering
- Stream up to 6.0MP (3072 x 2048) at 20fps
- 2.8mm fixed lens with 98° viewing angle
-
H.265 encoding for efficient storage & streaming
- 50m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 rated metal housing for outdoor use
- ONVIF, PSIA and CGI compliance
- ePoE allows for up to 800m transmission at 10Mbps (ePoE NVRs only)
- WARRANTY: 4 years back-to-base manufacturer warranty

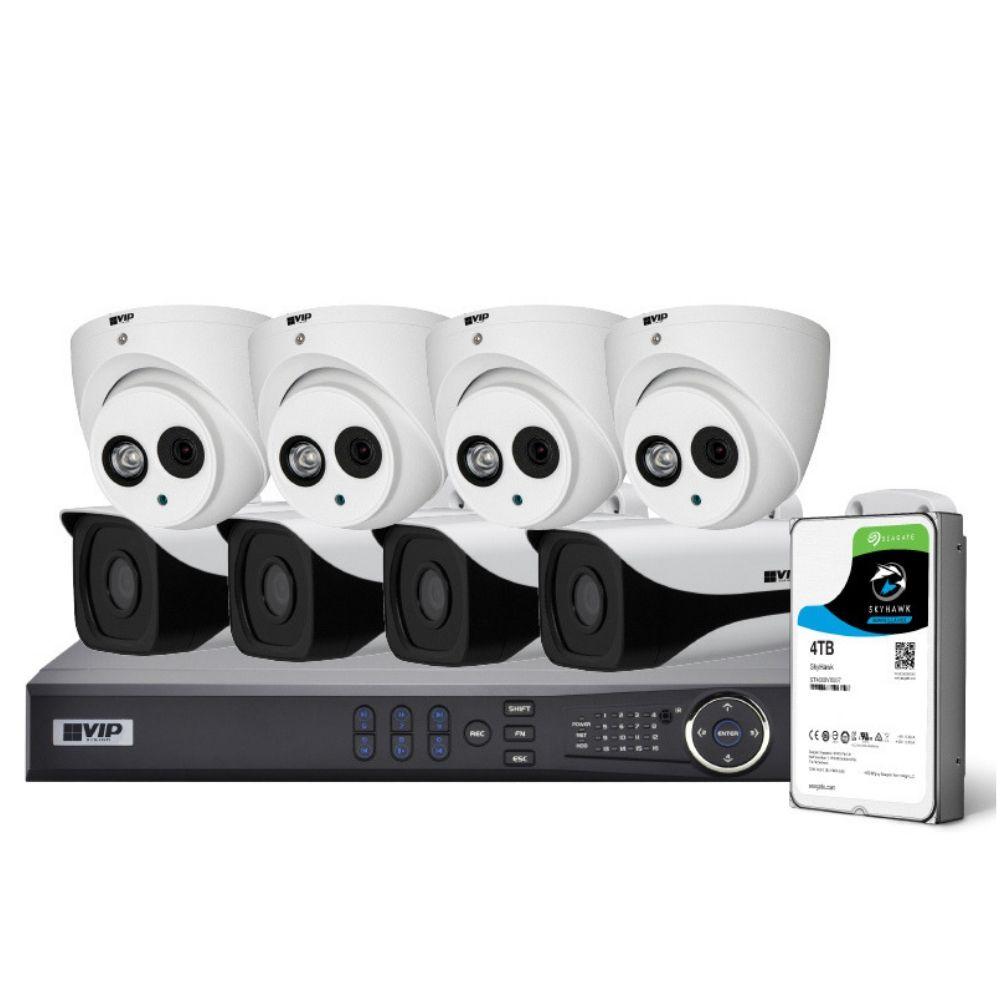

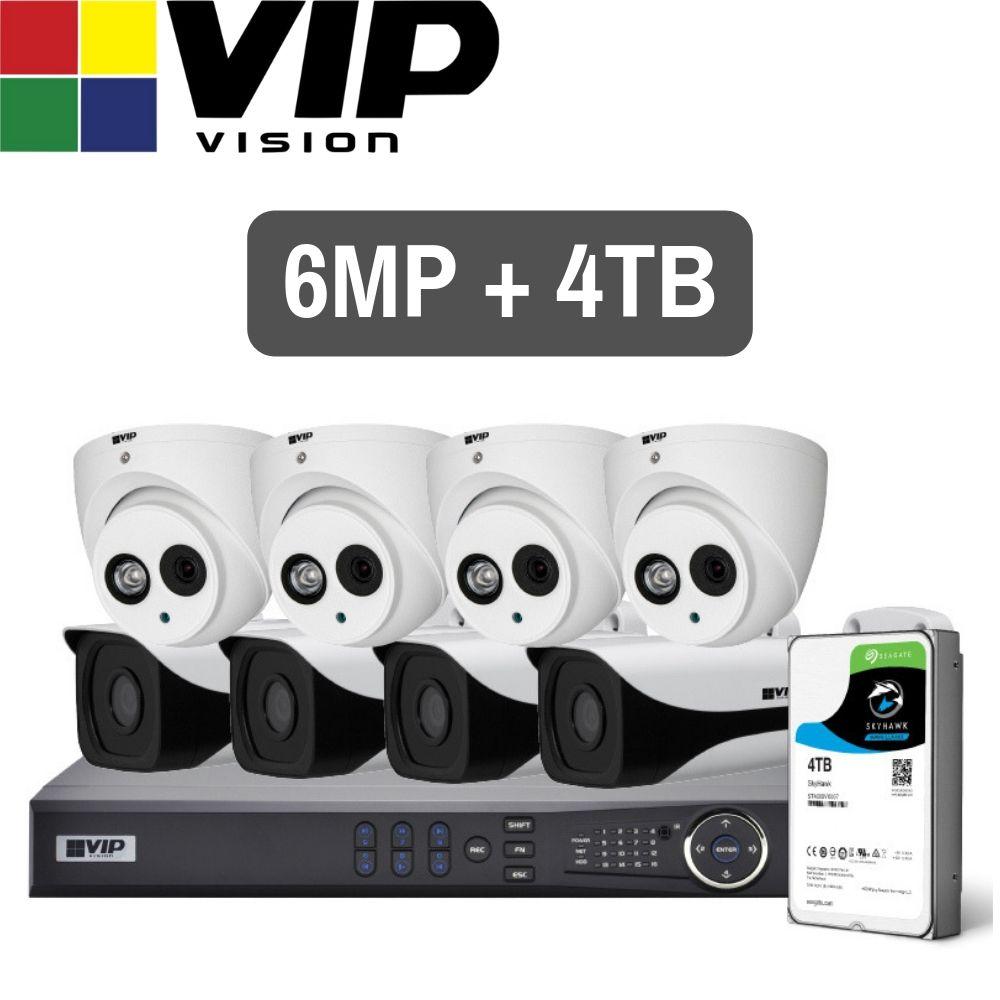

KIT INCLUDES:
- 1 x 8 channel ePoE NVR + pre-installed 4TB HDD
- 4 x 6.0MP 2.8mm WDR 50m IR fixed dome cameras
- 4 x 6.0MP 2.8mm WDR 40m IR fixed bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.
The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
High performance fixed-lens surveillance in a compact body. The VSIPE6MPFBMINIIR2.8 offers professional features to take your surveillance to the next level, including true WDR, efficient H.265 compression and face detection.
The VSIPE6MPVDMINIIRC2.8 brings high performance fixed-lens surveillance in a compact body. Each dome in this series delivers in almost any application, with true WDR, efficient H.265 compression, built-in audio, edge recording and face detection.
KIT FEATURES
- Record beyond Ultra HD up to 12.0MP (4000 x 3000)
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Native Ultra HD live view on 4K monitors via HDMI
- Backup footage via network, USB or SATA devices
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Motion Detection, Motion Zones, Video Loss & Tampering
- Stream up to 6.0MP (3072 x 2048) at 20fps
- 2.8mm fixed lens with 98° viewing angle
-
H.265 encoding for efficient storage & streaming
- 50m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 rated metal housing for outdoor use
- ONVIF, PSIA and CGI compliance
- ePoE allows for up to 800m transmission at 10Mbps (ePoE NVRs only)
- WARRANTY: 4 years back-to-base manufacturer warranty
KIT INCLUDES:
- 1 x 8 channel ePoE NVR + pre-installed 4TB HDD
- 4 x 6.0MP 2.8mm WDR 50m IR fixed dome cameras
- 4 x 6.0MP 2.8mm WDR 40m IR fixed bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7
General | |
Main Processor | Quad-core embedded processor |
Operating System | Embedded Linux |
Video Input | 8 channels |
Two-way Talk | 1 channel input, 1 channel output, RCA |
Interoperability | ONVIF 2.4, CGI conformant |
Display | |
Video Output | 1 x HDMI, 1 x VGA |
Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
Display Split | 1/4/8/9 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Recording Resolution | Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288) |
Incoming Bandwidth | 320Mbps |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | 16kbps ~ 20Mbps per channe |
Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
Features | |
Alarm Input / Output | 4 channels input / 2 channels relay output (N.O/N.C) |
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
Playback Sync | 1/4 |
Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
Backup Modes | USB Device / Network |
Network | |
Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
Power over Ethernet | 8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports) |
Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P |
Optical Interface | N/A |
Max. User Access | 128 users |
Remote View | iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
Storage | |
Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
HDD Modes | Single (no RAID compatibility) |
USB Interface | 2 ports: Rear USB3.0 / Front USB2.0 |
Auxiliary Inputs | 1 x RS232 / 1 x RS485 |
Environment | |
Power Supply | 100 ~ 240VAC, 50 ~ 60Hz |
Power Consumption | < 15.2W (without HDD) / PoE: 25.5W per port, 130W total |
PoE | Yes, w/ ePoE |
Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
Rackmountable | No |
Rackmount Units | 1RU |
Dimensions | 375 x 327 x 53mm |
Weight | 4.00kg (without HDD) |
Warranty (Years) | 4 |
VIP Vision Professional Security Camera: 6MP Mini Bullet, 2.8mm Fixed Lens - VSIPE6MPFBMINIIR2.8
Camera | |
Image Sensor | 1/2.9’’ 6.0MP Progressive Scan CMOS |
Max. Resolution | 6.0 Megapixel |
Effective Pixels | 3072 (H) x 2048 (V) |
RAM / ROM | 512MB / 32MB |
Ultra Low Light Colour | No |
Min Illumination | 0.04 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on) |
S/N Ratio | > 50dB |
Infrared | Yes |
Infrared System | 2 x Infrared LED, 40m range, Auto/manual on/off control |
Lens | |
Lens Type | Fixed |
Lens / Iris | 2.8mm F1.6 Fixed Lens |
Field of View | Horizontal: 98°, Vertical: 67° |
Focus | Fixed |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 69m |
Observe (63px/m) | 28m |
Recognise (125px/m) | 14m |
Identify (250px/m) | 7m |
Video | |
Resolution | 6.0MP (3072 x 2048) to CIF (352 x 288) |
Frame Rate (Main) | 6.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps) |
Frame Rate (Sub) | D1 (1 ~ 50fps) |
Frame Rate (Third) | 1080p (1~25fps) |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | H.265: 14 ~ 9984Kbps / H.264: 24 ~10240 Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users / 20 Users |
RTMP Support | Yes |
Interface | |
Video Interface | N/A |
Audio Interface | N/A |
Alarm Interface | N/A |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF Profile S&G / API |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | <6.5W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | N/A |
Series | Professional Series |
Camera Type | DomBullete |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360° |
Tri-Axis Mounting | Yes |
ePoE | Yes |
Dimensions | 180mm x 70mm x 70mm |
Net Weight | 0.41kg |
Warranty (Years) | 4 |
VIP Vision Professional Security Camera: 6MP Mini Dome, 2.8mm Fixed Lens - VSIPE6MPVDMINIIRC2.8
Camera | |
Image Sensor | 1/2.9’’ 6.0MP Progressive Scan CMOS |
Max. Resolution | 6.0 Megapixel |
Effective Pixels | 3072 (H) x 2048 (V) |
RAM / ROM | 512MB / 32MB |
Ultra Low Light Colour | No |
Min Illumination | 0.04 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on) |
S/N Ratio | > 50dB |
Infrared | Yes |
Infrared System | 1 x Infrared LED, 50m range, Auto/manual on/off control |
Lens | |
Lens Type | Fixed |
Lens / Iris | 2.8mm F1.6 Fixed Lens |
Field of View | Horizontal: 98°, Vertical: 67° |
Focus | Fixed |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 69m |
Observe (63px/m) | 28m |
Recognise (125px/m) | 14m |
Identify (250px/m) | 7m |
Video | |
Resolution | 6.0MP (3072 x 2048) to CIF (352 x 288) |
Frame Rate (Main) | 6.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps) |
Frame Rate (Sub) | D1 (1 ~ 25fps) |
Frame Rate (Third) | 1080p (1 ~ 25fps) |
Video Compression | H.265 / H.264 |
Bit Rate | H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users / 20 Users |
RTMP Support | Yes |
Interface | |
Video Interface | N/A |
Audio Interface | Built-in Microphone / Compression: G.711a, G.711Mu, AAC, G.726 |
Alarm Interface | N/A |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF Profile S&G / API |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | < 6W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | N/A |
Series | Professional Series |
Camera Type | Dome |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~ 360 ° ; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360° |
Tri-Axis Mounting | Yes |
ePoE | Yes |
Dimensions | Ø106mm x 94mm |
Net Weight | 0.47kg |
Warranty (Years) | 4 |
VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7
VIP Vision Professional Security Camera: 6MP Mini Bullet, 2.8mm Fixed Lens - VSIPE6MPFBMINIIR2.8
VIP Vision Professional Security Camera: 6MP Mini Dome, 2.8mm Fixed Lens - VSIPE6MPVDMINIIRC2.8
Standard Shipping is a $25 flat rate for orders under $200.
Orders are processed: Monday – Friday from 8am – 5pm.
Orders are shipped within 24 - 48 hours (business days) of being placed.
Shipping Times: For customers within the express post network (capital cities) delivery times are typically next business day. For areas outside the express post network delivery times are 2 - 3 business days.
Please Note: As we use courier shipping, we cannot ship to PO Boxes.
(Public Holidays Excluded)
Order Confirmation: After placing an order, you will receive an order confirmation by e-mail. This means we’ve received your order in our system and have pre-authorised your credit card for the purchase. If your item is unavailable, we will void the pre-authorisation charge and contact you to inform you by e-mail. If your item(s) are available for immediate shipment (within 2 business days), we will process the charges and submit the order for shipment.
Tracking Numbers will be sent to your email within 24 hours of being shipped.
In some cases, we may need to contact you before your order can be shipped. To ensure there is no delay, please respond to any email/phone call from our Customer Service team.
We use Star Track couriers, Couriers Please and VT Freight depending on the location of each order. Shipping times are the same.
RETURNS
You have 14 calendar days to return an item from the date you received it. Your item must be in the same condition that you received it with original packaging. You must contact us before returning your item so that we can give you an RMA number and the most suitable shipping address based on your location. We will need your order number to confirm your order. You can contact us by email at: info@spymonkey.com.au or by phone on 1300049519.
For more information on what items our return policy covers, refer to our full policy here: 14-Day Return Policy
