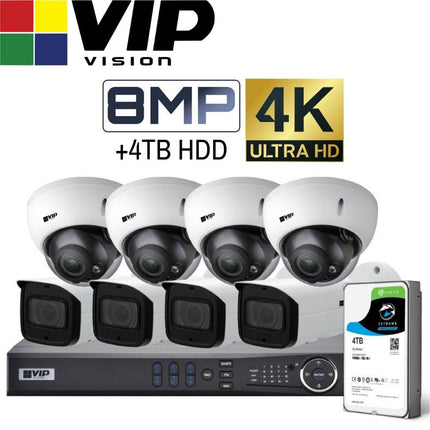

VIP Vision Pro 8 Channel Security Kit: 12MP NVR, 4 X 8MP VF Bullet, 4 X 8MP VF Dome, 4TB HDD
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Stream up to 8.0MP (3840 x 2160)
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- Motion Detection, Region of Interest, Privacy Masking. Smart Infrared, Tripwire, Intrusion
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 400GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 & Vandalproof IK10
- ONVIF, PSIA and CGI compliance
- Product SKU: NVRKIT-P884M
- Order within
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

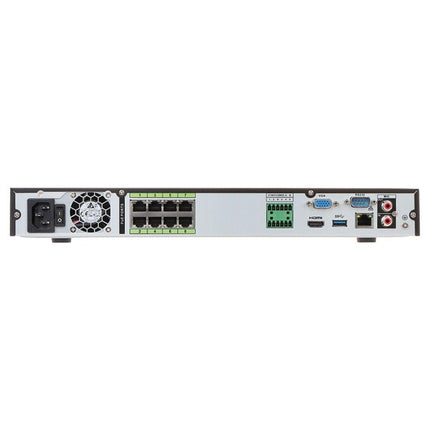

The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
The VSIP8MPFBIRMD can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.
The VSIP8MPVDIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.
KIT FEATURES
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Stream up to 8.0MP (3840 x 2160)
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- Motion Detection, Region of Interest, Privacy Masking. Smart Infrared, Tripwire, Intrusion
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 400GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 & Vandalproof IK10
- ONVIF, PSIA and CGI compliance
- WARRANTY: 4 years back-to-base manufacturer warranty

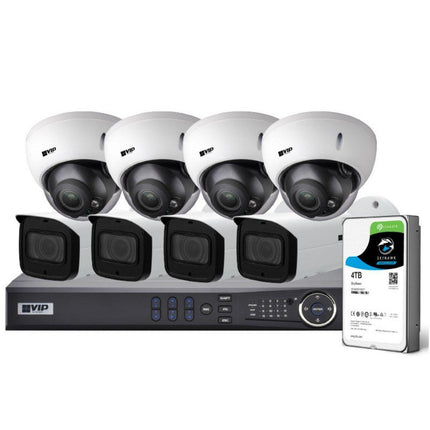

KIT INCLUDES:
- 1 x 8 channel ePoE NVR + pre-installed 4TB HDD
- 4 x 8.0MP 3.7~11mm WDR 30m IR motorised dome cameras
- 4 x 8.0MP 3.7~11mm WDR 60m IR motorised bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.
The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
The VSIP8MPFBIRMD can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.
The VSIP8MPVDIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.
KIT FEATURES
- 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
- Up to 320Mbps incoming bandwidth; H.265+ support
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Live view, playback & record via your phone/tablet
- Stream up to 8.0MP (3840 x 2160)
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- Motion Detection, Region of Interest, Privacy Masking. Smart Infrared, Tripwire, Intrusion
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 400GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- Weatherproof IP67 & Vandalproof IK10
- ONVIF, PSIA and CGI compliance
- WARRANTY: 4 years back-to-base manufacturer warranty
KIT INCLUDES:
- 1 x 8 channel ePoE NVR + pre-installed 4TB HDD
- 4 x 8.0MP 3.7~11mm WDR 30m IR motorised dome cameras
- 4 x 8.0MP 3.7~11mm WDR 60m IR motorised bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse

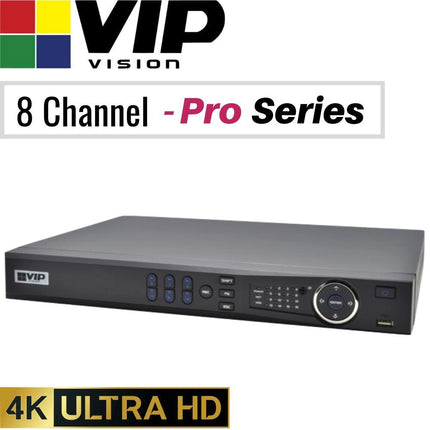

VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO
General | |
Main Processor | Quad-core embedded processor |
Operating System | Embedded Linux |
Video Input | 8 channels |
Two-way Talk | 1 channel input, 1 channel output, RCA |
Interoperability | ONVIF 2.4, CGI conformant |
Display | |
Video Output | 1 x HDMI, 1 x VGA |
Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
Display Split | 1/4/8/9 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Recording Resolution | Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288) |
Incoming Bandwidth | 320Mbps |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | 16kbps ~ 20Mbps per channe |
Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
Features | |
Alarm Input / Output | 4 channels input / 2 channels relay output (N.O/N.C) |
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
Playback Sync | 1/4 |
Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
Backup Modes | USB Device / Network |
Network | |
Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
Power over Ethernet | 8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports) |
Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P |
Optical Interface | N/A |
Max. User Access | 128 users |
Remote View | iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
Storage | |
Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
HDD Modes | Single (no RAID compatibility) |
USB Interface | 2 ports: Rear USB3.0 / Front USB2.0 |
Auxiliary Inputs | 1 x RS232 / 1 x RS485 |
Environment | |
Power Supply | 100 ~ 240VAC, 50 ~ 60Hz |
Power Consumption | < 15.2W (without HDD) / PoE: 25.5W per port, 130W total |
PoE | Yes, w/ ePoE |
Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
Rackmountable | No |
Rackmount Units | 1RU |
Dimensions | 375 x 327 x 53mm |
Weight | 4.00kg (without HDD) |
Warranty (Years) | 4 |

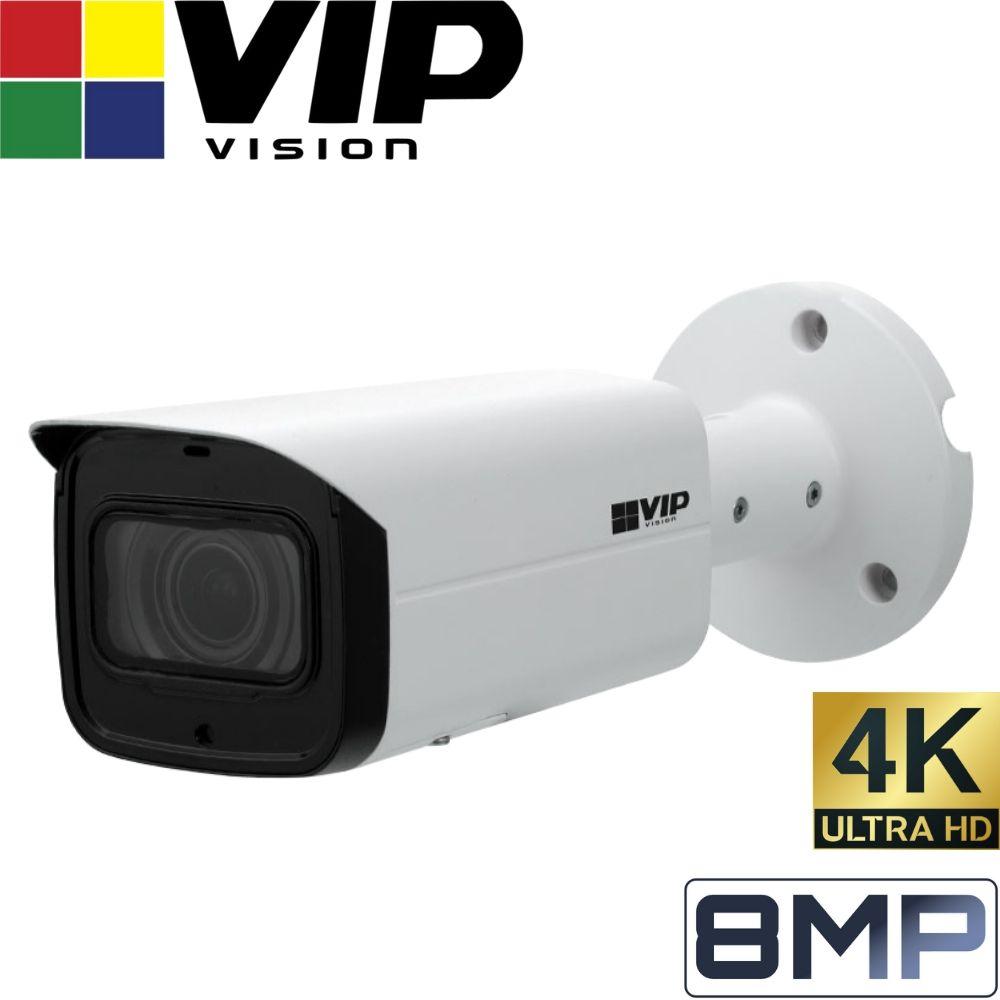

VIP Vision Pro Security Camera: 8MP (4K) Bullet, 3.7 ~ 11mm VF Lens - VSIP8MPFBIRMD
Camera | |
Image Sensor | 1/2’’ 8.0MP Progressive Scan CMOS |
Max. Resolution | 8.0 Megapixel |
Effective Pixels | 3840 (H) x 2160 (V) |
RAM / ROM | 512MB / 32MB |
Ultra Low Light Colour | Yes |
Min Illumination | 0.004 Lux/F1.9 (Color), 0 Lux/F1.9 (IR on) |
S/N Ratio | >50dB |
Infrared | Yes |
Infrared System | 4 x Infrared LED, 60m range, Auto/manual on/off control |
Lens | |
Lens Type | Motorised Varifocal |
Lens / Iris | 3.7 ~ 11mm F1.9 Motorised Varifocal Lens with Fixed Iris |
Field of View | 3.7 ~ 11mm F1.9 Motorised Varifocal Lens with Fixed Iris |
Focus | Auto Focus / 0.2m Min. Focus Distance |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 83m (wide) / 190m (tele) |
Observe (63px/m) | 33m (wide) / 76m (tele) |
Recognise (125px/m) | 17m (wide) / 38m (tele) |
Identify (250px/m) | 8m (wide) / 19m (tele) |
Video | |
Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
Frame Rate (Main) | 8.0MP (1~25fps) |
Frame Rate (Sub) | D1 (1 ~ 25fps) |
Frame Rate (Third) | N/A |
Video Compression | H.265+ / H.265 / H.264+ / H.264 |
Bit Rate | H.265: 16 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 Users |
RTMP Support | No |
Interface | |
Video Interface | N/A |
Audio Interface | N/A |
Alarm Interface | N/A |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF / PSIA / CGI |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | <14.3W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | N/A |
Series | Professional Series |
Camera Type | Bullet |
Housing | Metal |
Pan/Tilt/Rotation | Pan: 0° ~ 360 °; Tilt: 0° ~ 90°; Rotation: 0° ~ 360° |
Tri-Axis Mounting | No |
ePoE | No |
Dimensions | 244 x 79 x 76mm |
Net Weight | 0.82kg |
Warranty (Years) | 4 |

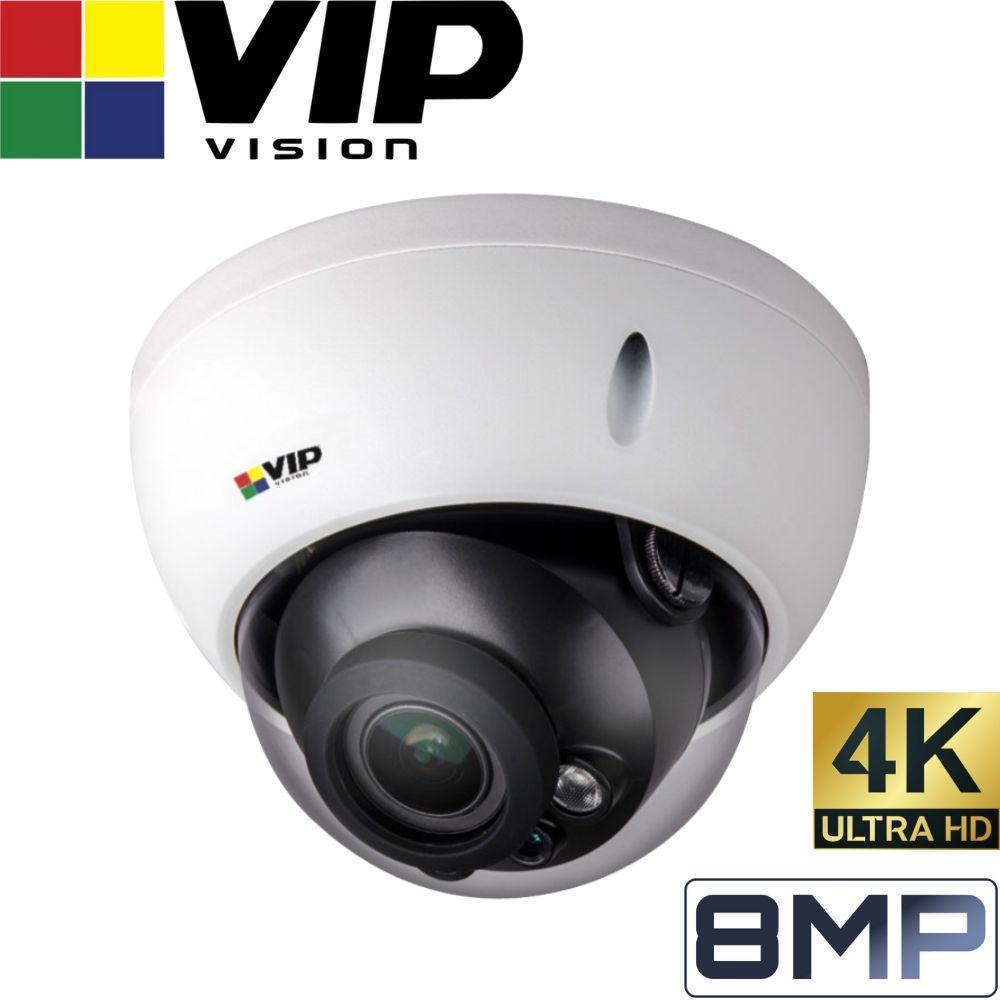

VIP Vision Professional Security Camera: 8MP (4K) Dome, 3.7mm~11mm VF Lens -VSIP8MPVDIRMD
Camera | |
Image Sensor | 1/1.8” 8Megapixel progressive CMOS |
Max. Resolution | 8.0 Megapixel |
Effective Pixels | 3840 (H) x 2160 (V) |
RAM / ROM | 512MB / 32MB |
Ultra Low Light Colour | No |
Min Illumination | 0.004Lux/F1.9( Color,1/3s,30IRE) 0.09Lux/F1.9 Color,1/30s,30IRE) 0Lux/F1.9(IR on) |
S/N Ratio | ≥50dB |
Infrared | Yes |
Infrared System | 2 x Infrared LED, 30m range, Auto/manual on/off control |
Lens | |
Lens Type | Motorised Varifocal |
Lens / Iris | 3.7mm~11mm |
Field of View | H:112°~46°, V:60°~26° |
Focus | Fixed |
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
Detect (25px/m) | 83m (wide) / 190m (tele) |
Observe (63px/m) | 33m (wide) / 76m (tele) |
Recognise (125px/m) | 17m (wide) / 38m (tele) |
Identify (250px/m) | 8m (wide) / 19m (tele) |
Video | |
Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
Frame Rate (Main) | 8.0MP (1~25fps) |
Frame Rate (Sub) | D1 (1 ~ 25fps) |
Frame Rate (Third) | N/A |
Video Compression | H.265+/H.265/H.264+/H.264 |
Bit Rate | H.265: 16Kbps~8192Kbps |
Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
Day/Night | Auto (ICR) / Color / B&W |
Lighting Compensation | BLC / HLC / WDR (120dB) |
White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D DNR |
Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
IVS | |
IVS | Yes |
Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users / 20 Users |
RTMP Support | No |
Interface | |
Video Interface | N/A |
Audio Interface | N/A |
Alarm Interface | N/A |
RS485 | N/A |
Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
Interoperability | ONVIF / PSIA / CGI |
Environmental | |
Power Supply | 12VDC / PoE (802.3af) (Class 0) |
Power Consumption | <10.9W |
Operating Conditions | -30° ~ +60° C / Less than 95% RH |
Ingress Protection | IP67 |
Weather Resistance | Yes |
Vandal Resistance | IK10 |
Series | Professional Series |
Camera Type | Dome |
Housing | Metal & Polycarbonate Dome |
Pan/Tilt/Rotation | Pan: 0° ~355 ° ; Tilt: 0° ~ 70° ; Rotation: 0° ~ 355° |
Tri-Axis Mounting | Yes |
ePoE | No |
Dimensions | Ø122mm x 89mm |
Net Weight | 0.49kg |
Warranty (Years) | 4 |
VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7
VIP Vision Pro Security Camera: 8MP (4K) Bullet, 3.7 ~ 11mm VF Lens - VSIP8MPFBIRMD
VIP Vision Professional Security Camera: 8MP (4K) Dome, 3.7mm~11mm VF Lens -VSIP8MPVDIRMD
Standard Shipping is a $25 flat rate for orders under $200.
Orders are processed: Monday – Friday from 8am – 5pm.
Orders are shipped within 24 - 48 hours (business days) of being placed.
Shipping Times: For customers within the express post network (capital cities) delivery times are typically next business day. For areas outside the express post network delivery times are 2 - 3 business days.
Please Note: As we use courier shipping, we cannot ship to PO Boxes.
(Public Holidays Excluded)
Order Confirmation: After placing an order, you will receive an order confirmation by e-mail. This means we’ve received your order in our system and have pre-authorised your credit card for the purchase. If your item is unavailable, we will void the pre-authorisation charge and contact you to inform you by e-mail. If your item(s) are available for immediate shipment (within 2 business days), we will process the charges and submit the order for shipment.
Tracking Numbers will be sent to your email within 24 hours of being shipped.
In some cases, we may need to contact you before your order can be shipped. To ensure there is no delay, please respond to any email/phone call from our Customer Service team.
We use Star Track couriers, Couriers Please and VT Freight depending on the location of each order. Shipping times are the same.
RETURNS
You have 14 calendar days to return an item from the date you received it. Your item must be in the same condition that you received it with original packaging. You must contact us before returning your item so that we can give you an RMA number and the most suitable shipping address based on your location. We will need your order number to confirm your order. You can contact us by email at: info@spymonkey.com.au or by phone on 1300049519.
For more information on what items our return policy covers, refer to our full policy here: 14-Day Return Policy
