VIP Vision Pro 8 Channel Security Kit: 12MP NVR, 4 X 8MP Bullets, 4 X 8MP Turrets, 4TB HDD - NVRKIT-P884F

Description

This product has been superseded by the VIP Vision 8-Channel Security Kit: 12MP NVR, 8 X 8MP Motorised Dome/Bullet, Professional Series.

VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.

High performance fixed-lens surveillance in a compact body. The VSIPE8MPFBMINIIR2.8 offers professional features to take your surveillance to the next level, including true WDR, efficient H.265 compression and face detection.

The VSIPE8MPVDMINIIRC2.8 brings high performance fixed-lens surveillance in a compact body. Each dome in this series delivers in almost any application, with true WDR, efficient H.265 compression, built-in audio, edge recording and face detection.

KIT FEATURES:

  • 8CH NVR with 8 Power over Ethernet ports (ePoE & EoC support for all ports)
  • 2 x SATA ports up to 10TB, max. 20TB HDD capacity
  • Remote view in seconds with setup via QR code
  • Live view, playback & record via your phone/tablet
  • Stream up to 8.0MP (3840 x 2160) at 15fps
  • 2.8mm fixed lens with 112° viewing angle
  • H.265 encoding for efficient storage & streaming
  • 50m infrared range; true day/night (auto ICR)
  • MicroSD slot for recording at the edge up to 128GB
  • Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
  • Back/highlight compensation & true WDR (120dB)
  • 3D digital noise reduction 3DDNR & auto white balance AWB
  • Weatherproof IP67 rated metal housing for outdoor use
  • ONVIF, PSIA, and CGI compliance
  • ePoE allows for up to 800m transmission at 10Mbps (ePoE NVRs only)
  • WARRANTY: 4 years back-to-base manufacturer warranty

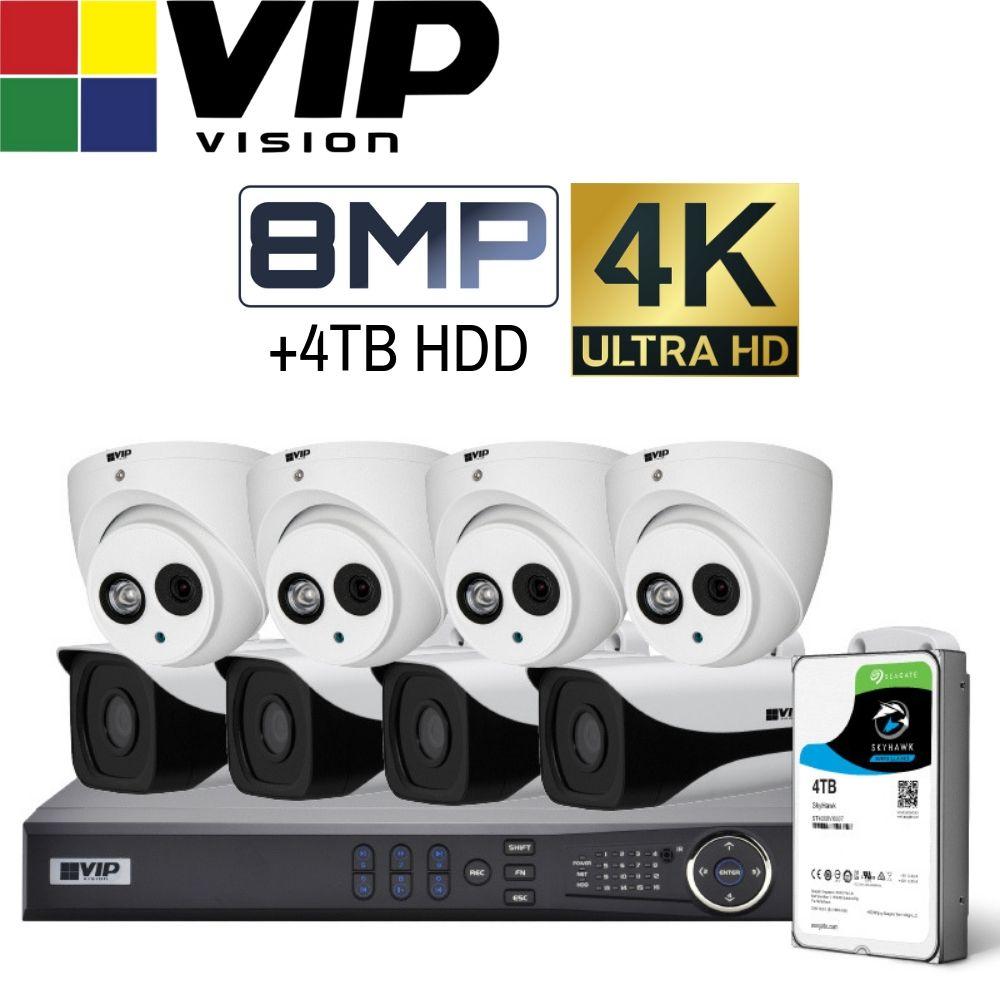

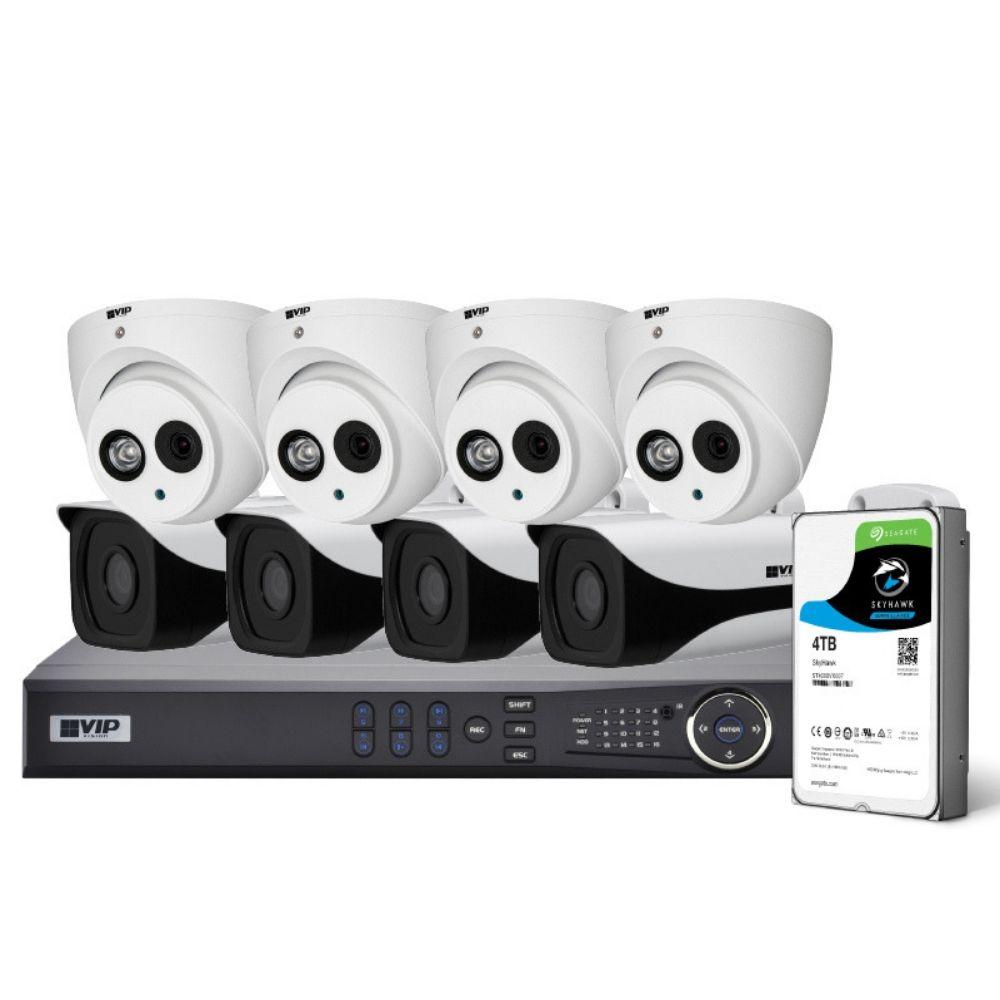

KIT INCLUDES:

  • 1 x 8 port ePoE NVR + pre-installed 4TB HDD
  • 4 x 8.0MP 2.8mm WDR 50m IR fixed dome cameras
  • 4 x 8.0MP 2.8mm WDR 40m IR fixed bullet cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

Tech Specs

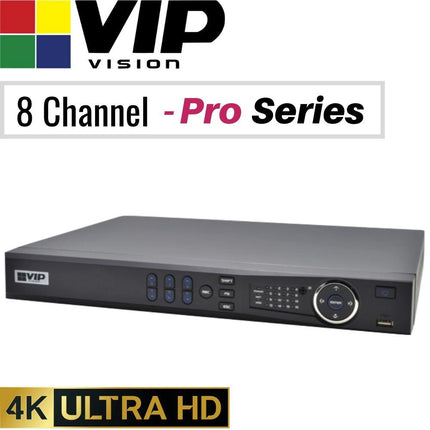

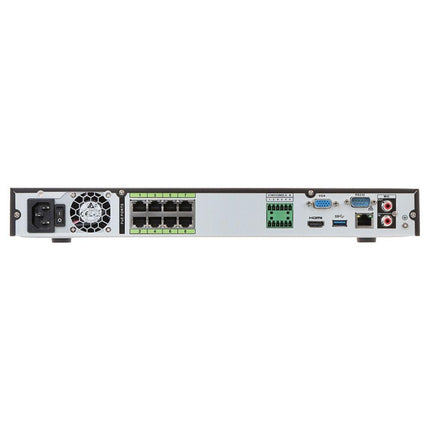

VIP Vision Professional 8 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR8PRO7

General
Main Processor Quad-core embedded processor
Operating System Embedded Linux
Video Input 8 channels
Two-way Talk 1 channel input, 1 channel output, RCA
Interoperability ONVIF 2.4, CGI conformant
Display
Video Output 1 x HDMI, 1 x VGA
Display Resolution Configurable from 3840 x 2160 to 1024 x 768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth 320Mbps
Video Compression H.265+ / H.265 / H.264+ / H.264
Bit Rate 16kbps ~ 20Mbps per channe
Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output 4 channels input / 2 channels relay output (N.O/N.C)
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync 1/4
Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes USB Device / Network
Network
Ethernet 1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet 8 ports (IEEE802.3at/af) / ePoE & EoC support (All ports)
Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
Optical Interface N/A
Max. User Access 128 users
Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes Single (no RAID compatibility)
USB Interface 2 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs 1 x RS232 / 1 x RS485
Environment
Power Supply 100 ~ 240VAC, 50 ~ 60Hz
Power Consumption < 15.2W (without HDD) / PoE: 25.5W per port, 130W total
PoE Yes, w/ ePoE
Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable No
Rackmount Units 1RU
Dimensions 375 x 327 x 53mm
Weight 4.00kg (without HDD)
Warranty (Years) 4

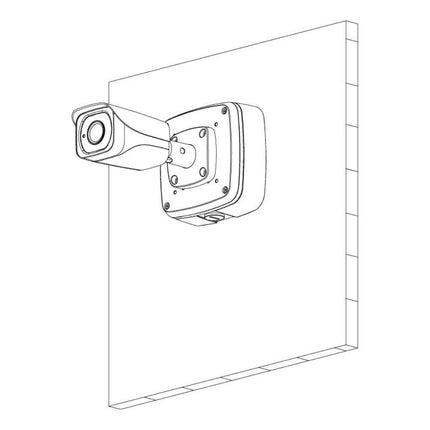

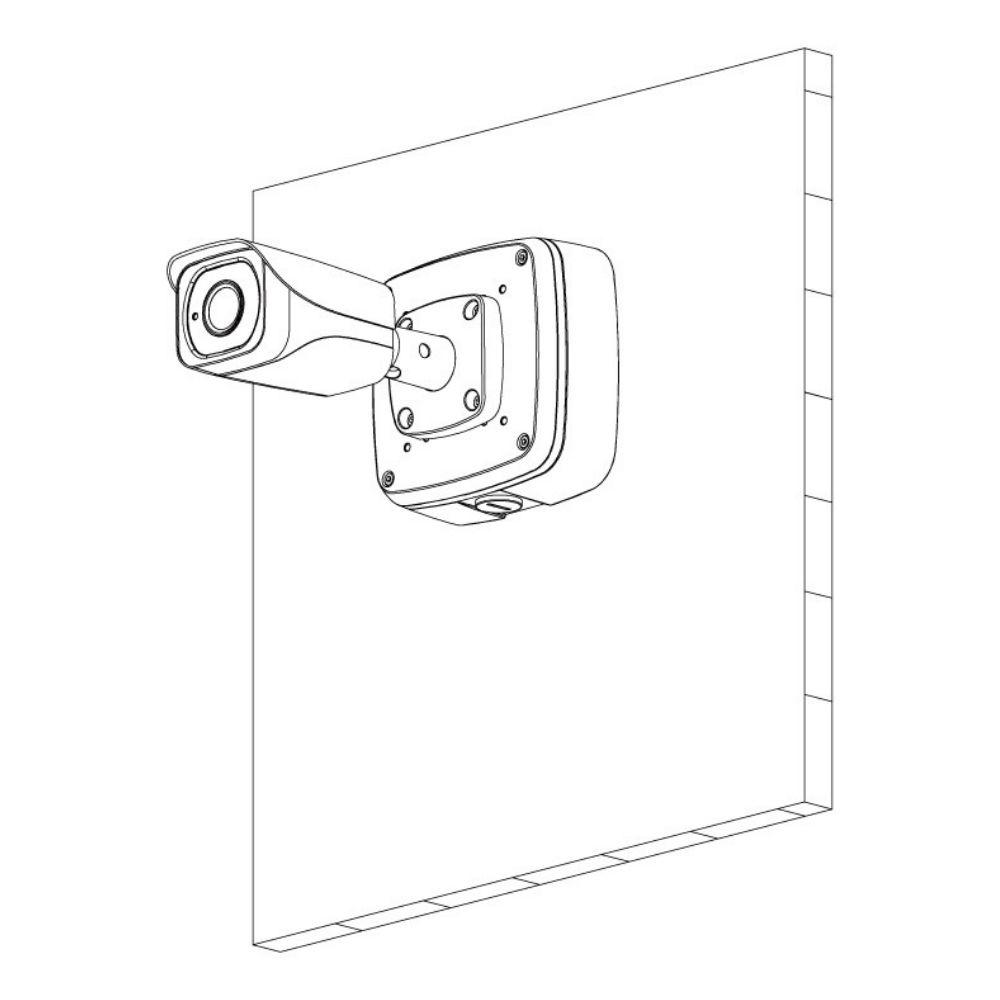

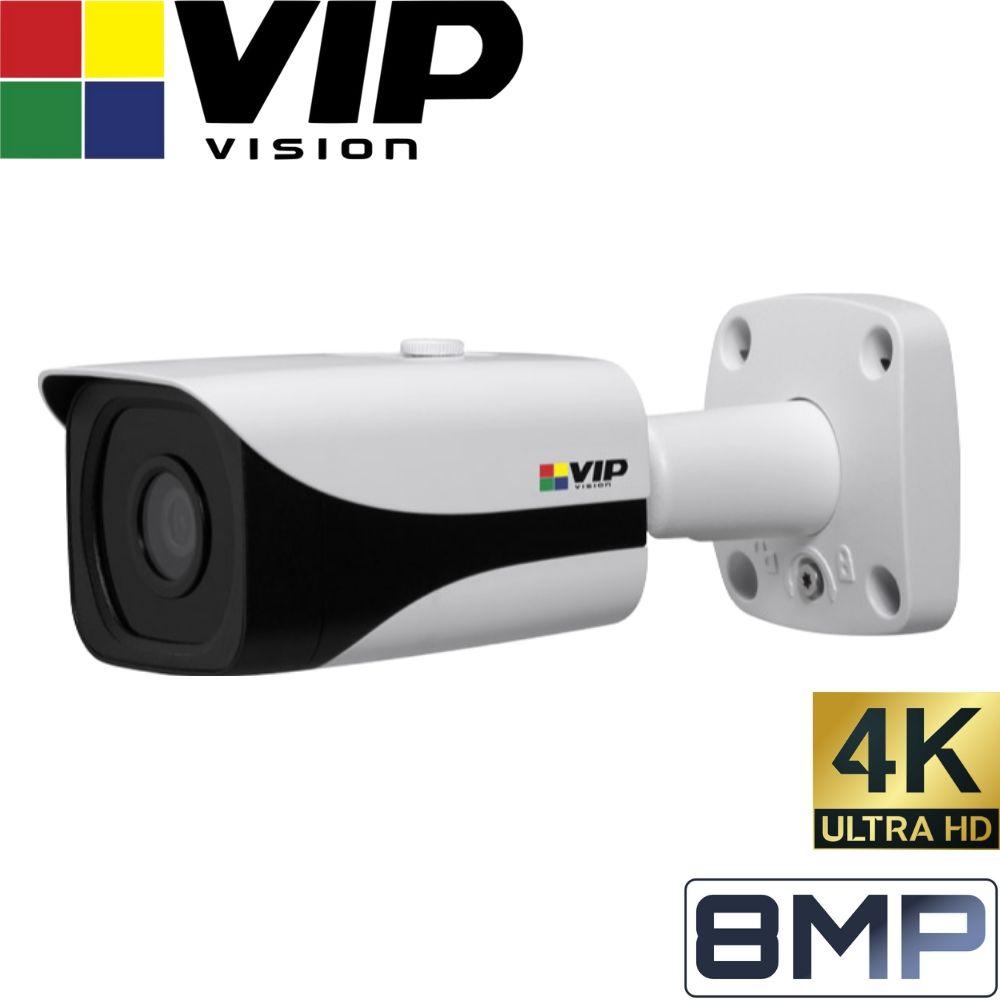

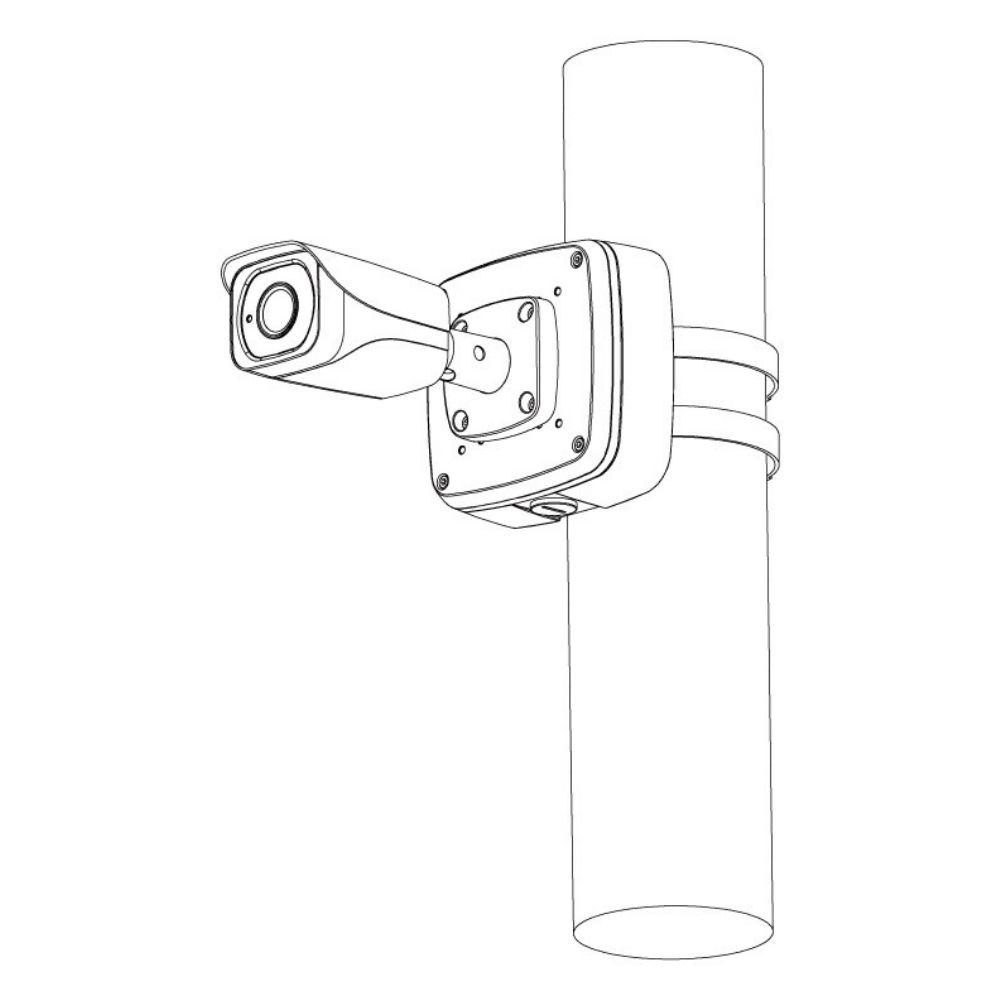

VIP Vision Professional Security Camera: 8MP (4K) Mini Bullet, 2.8mm Fixed Lens
- VSIPE8MPFBMINIIR2.8

Camera
Image Sensor 1/2.5’’ 8.0MP Progressive Scan CMOS
Max. Resolution 8.0 Megapixel
Effective Pixels 3840 (H) x 2160 (V)
RAM / ROM 512MB / 32MB
Ultra Low Light Colour No
Min Illumination 0.06 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System 2 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris 2.8mm F1.6 Fixed Lens
Field of View Horizontal: 112°, Vertical: 69°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 69m
Observe (63px/m) 28m
Recognise (125px/m) 14m
Identify (250px/m) 7m
Video
Resolution 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main) 8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 50fps)
Frame Rate (Third) 1080p (1~25fps)
Video Compression H.265+ / H.265 / H.264+ / H.264
Bit Rate H.265: 14 ~ 9984Kbps / H.264: 24 ~10240 Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS Yes
Intelligent Functions Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Support Yes
Interface
Video Interface N/A
Audio Interface N/A
Alarm Interface N/A
RS485 N/A
Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability ONVIF Profile S&G / API
Environmental
Power Supply 12VDC / PoE (802.3af) (Class 0)
Power Consumption <6.5W
Operating Conditions -30° ~ +60° C / Less than 95% RH
Ingress Protection IP67
Weather Resistance Yes
Vandal Resistance N/A
Series Professional Series
Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°
Tri-Axis Mounting Yes
ePoE Yes

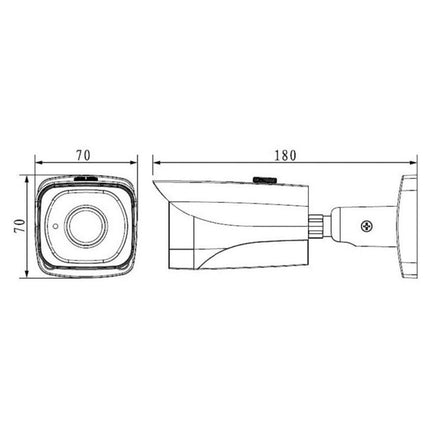

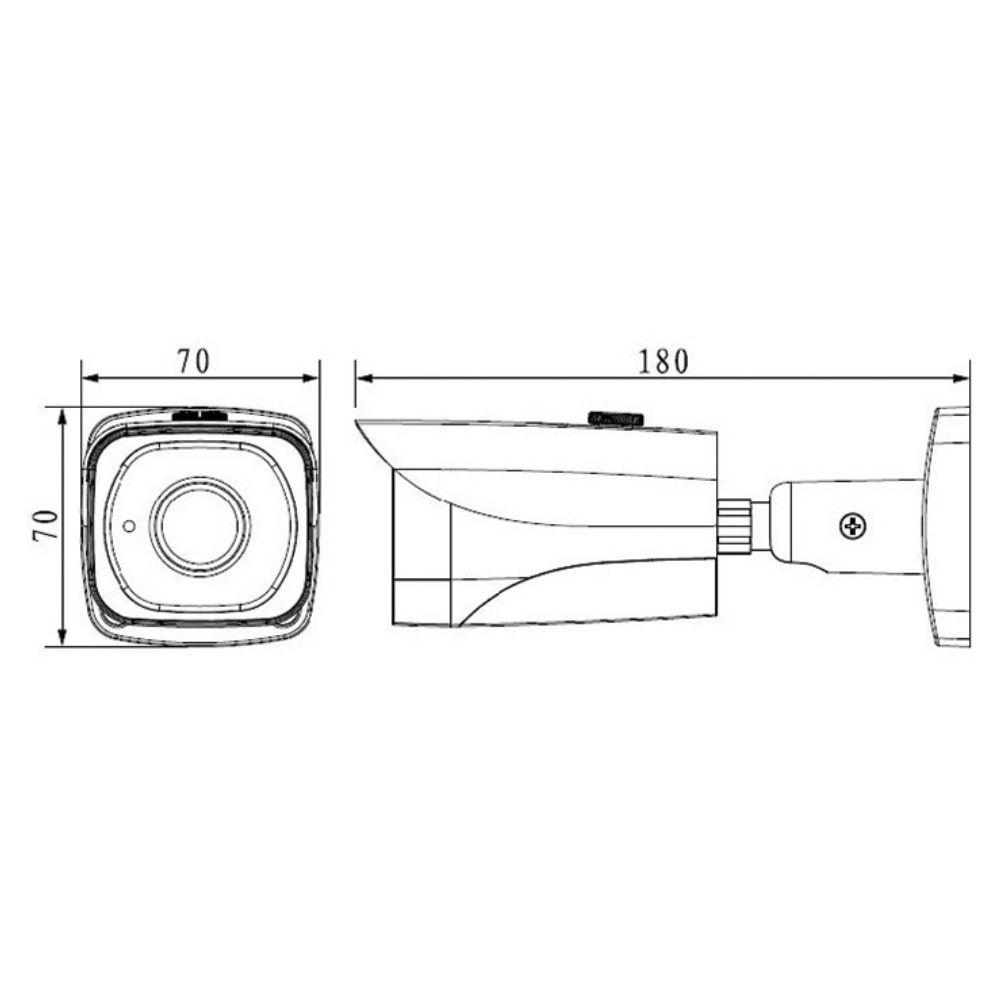

Dimensions 180mm x 70mm x 70mm
Net Weight 0.41kg
Warranty (Years) 4

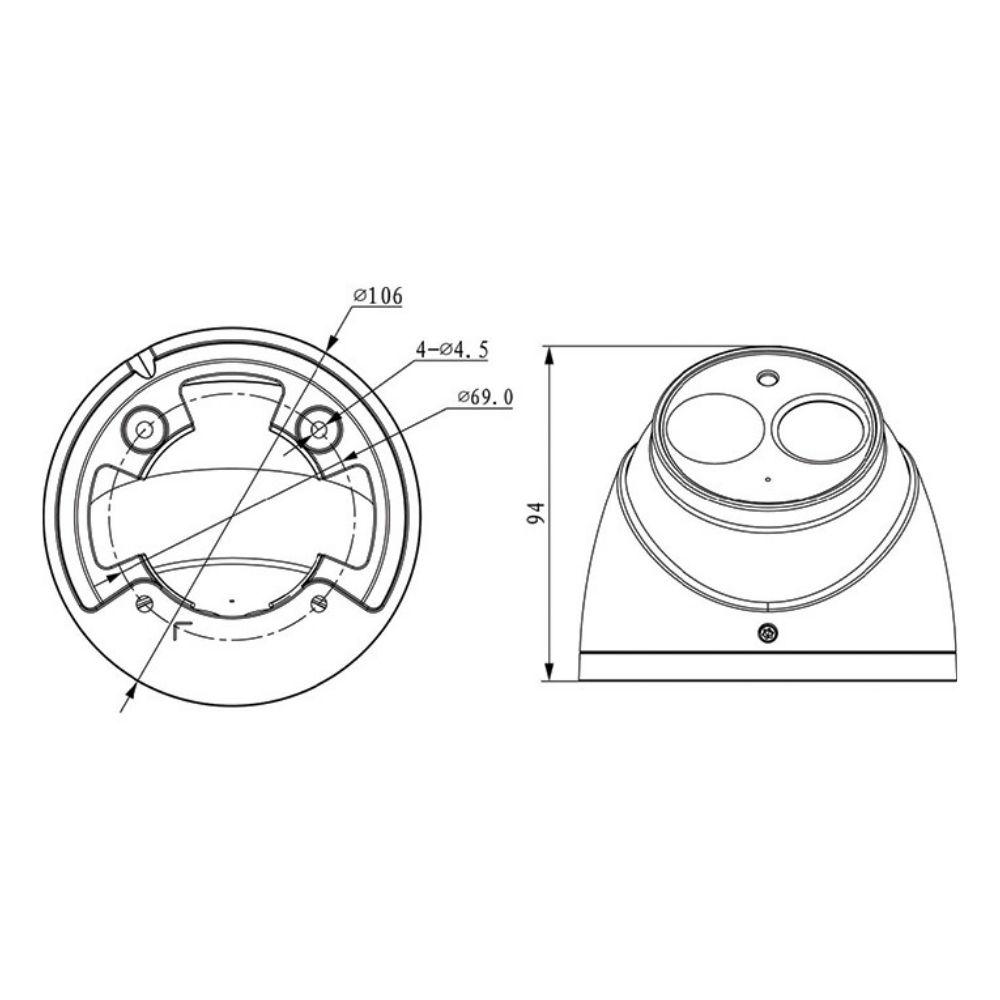

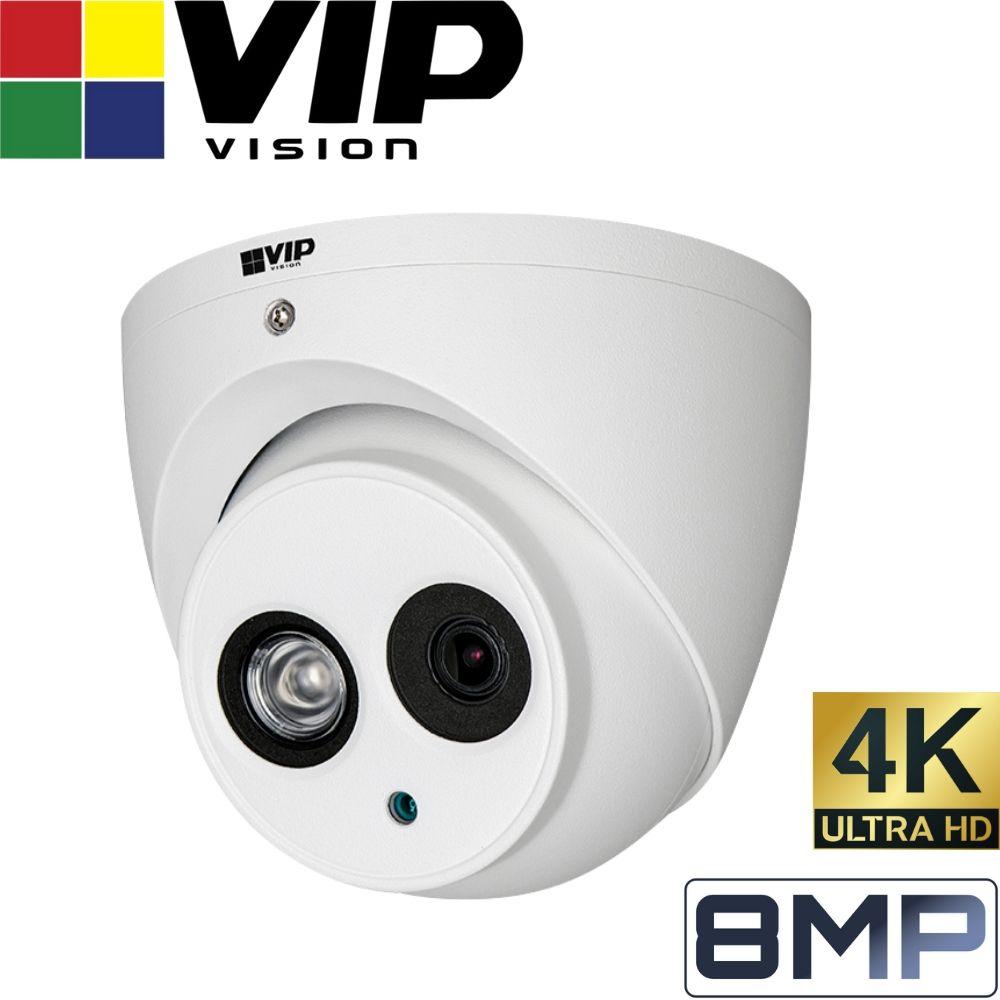

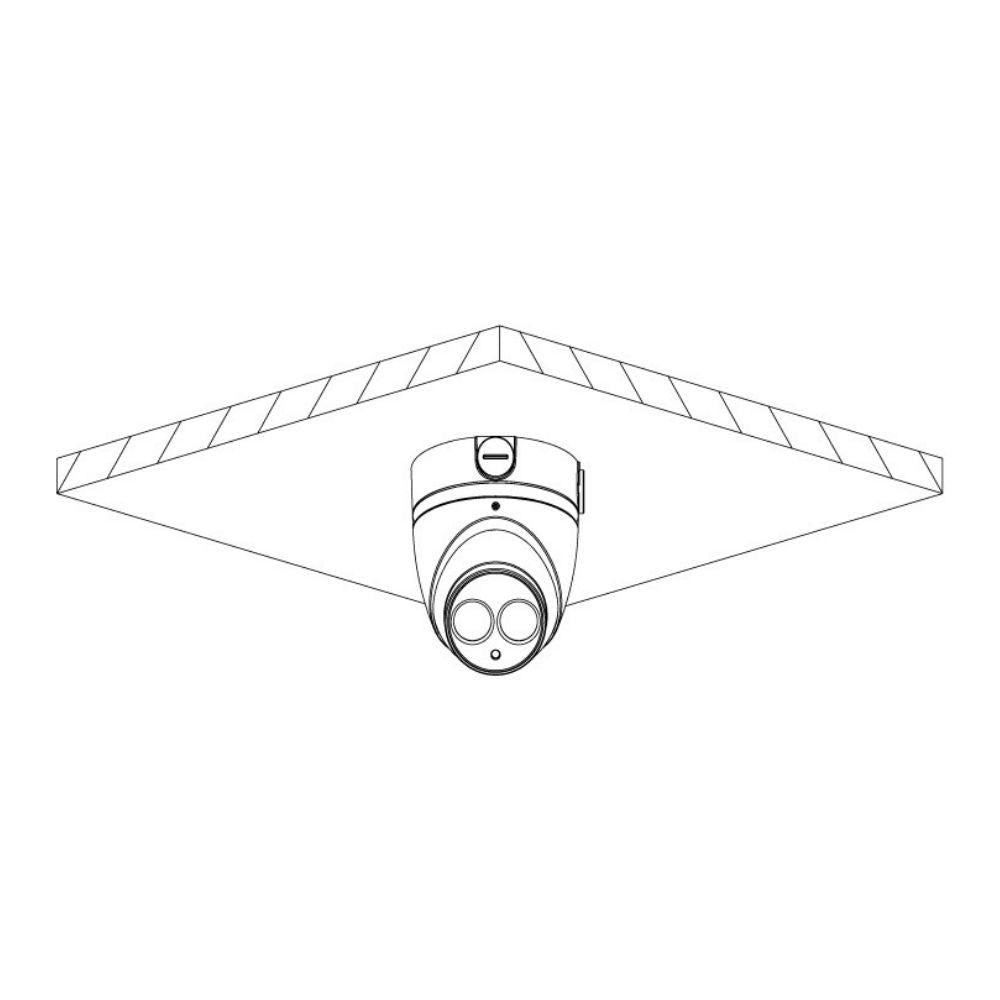

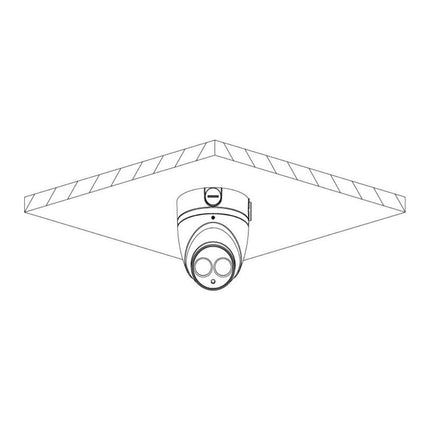

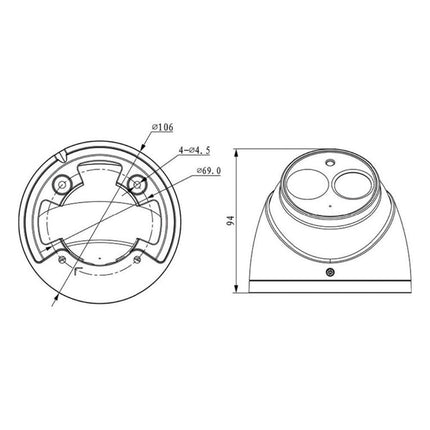

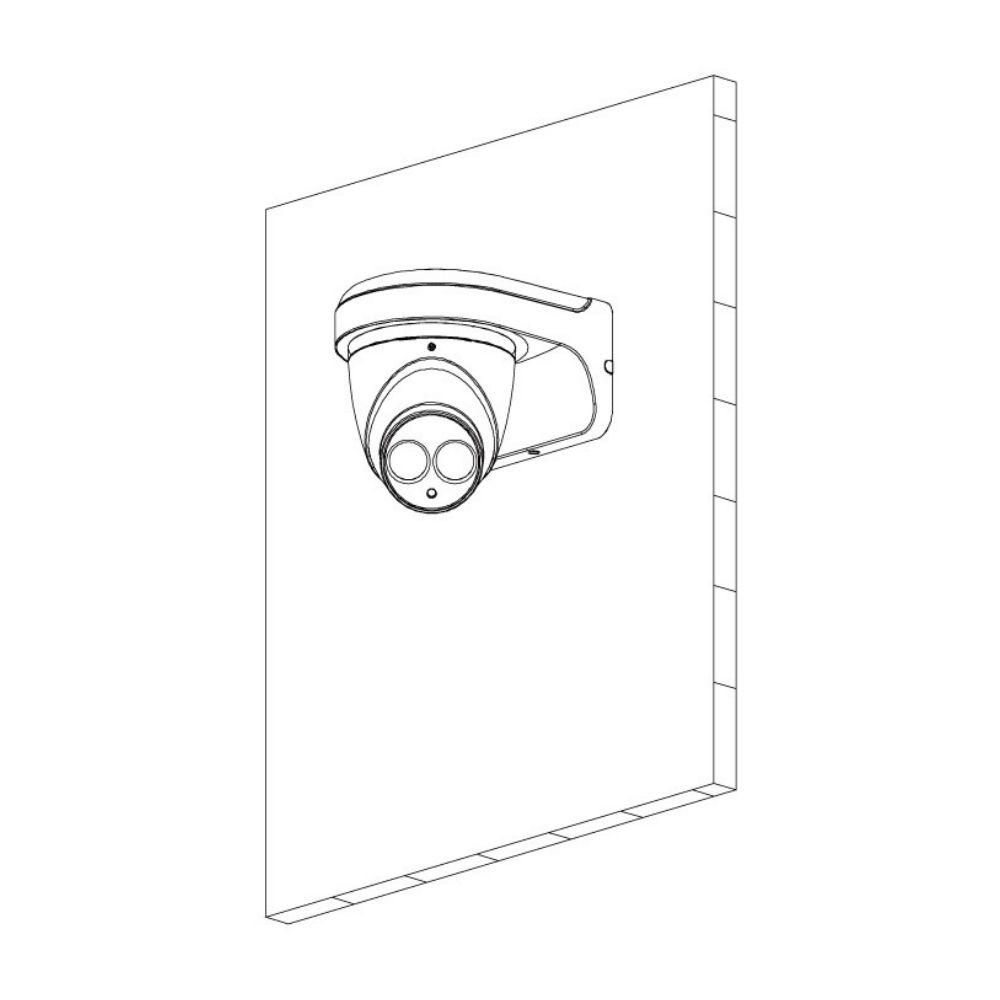

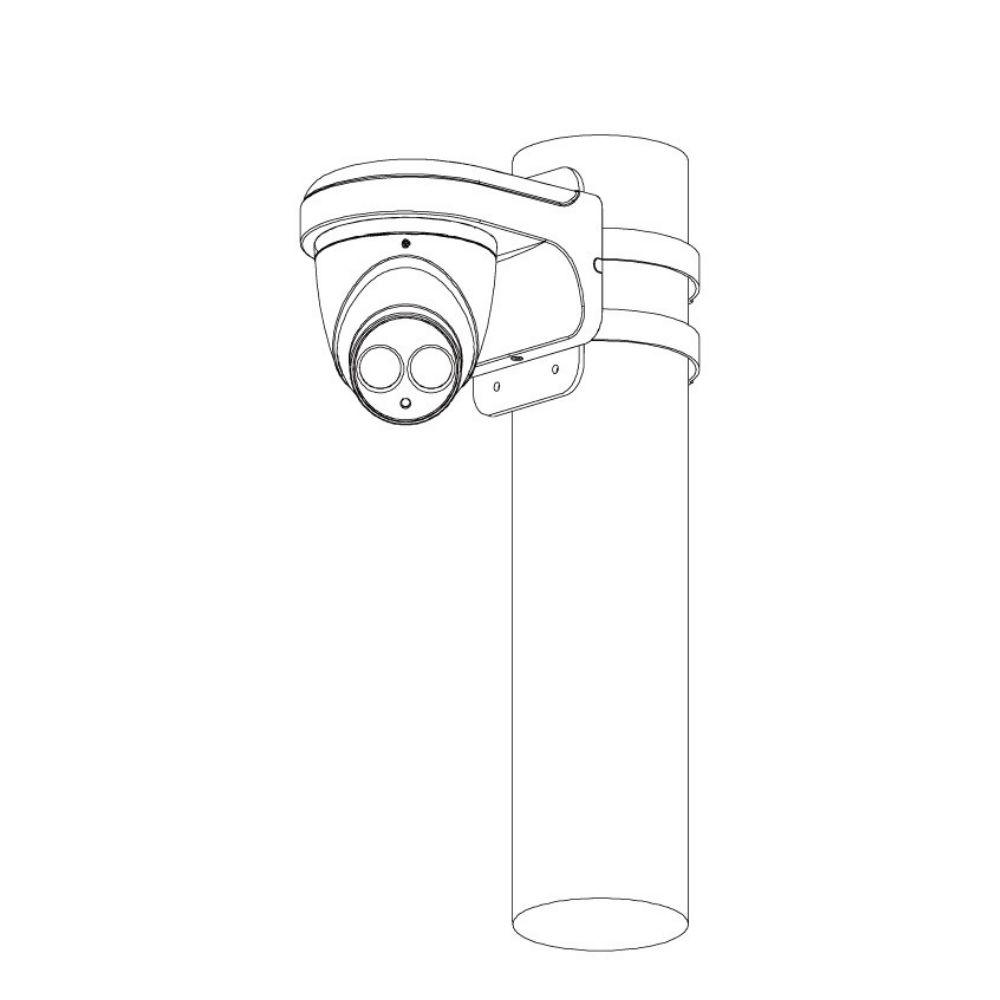

VIP Vision Professional Security Camera: 8 MP (4K) Mini Dome, 2.8mm Fixed Lens
- VSIPE8MPVDMINIIRC2.8

Camera
Image Sensor 1/2.5’’ 8.0MP Progressive Scan CMOS
Max. Resolution 8.0 Megapixel
Effective Pixels 3840 (H) x 2160 (V)
RAM / ROM 512MB / 32MB
Ultra Low Light Colour No
Min Illumination 0.06 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio > 50dB
Infrared Yes
Infrared System 1 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type Fixed
Lens / Iris 2.8mm F1.6 Fixed Lens
Field of View Horizontal: 112°, Vertical: 69°
Focus Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 69m
Observe (63px/m) 28m
Recognise (125px/m) 14m
Identify (250px/m) 7m
Video
Resolution 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main) 8.0MP (1 ~ 15fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) 1080p (1 ~ 25fps)
Video Compression H.265 / H.264
Bit Rate H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS Yes
Intelligent Functions Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Sup
