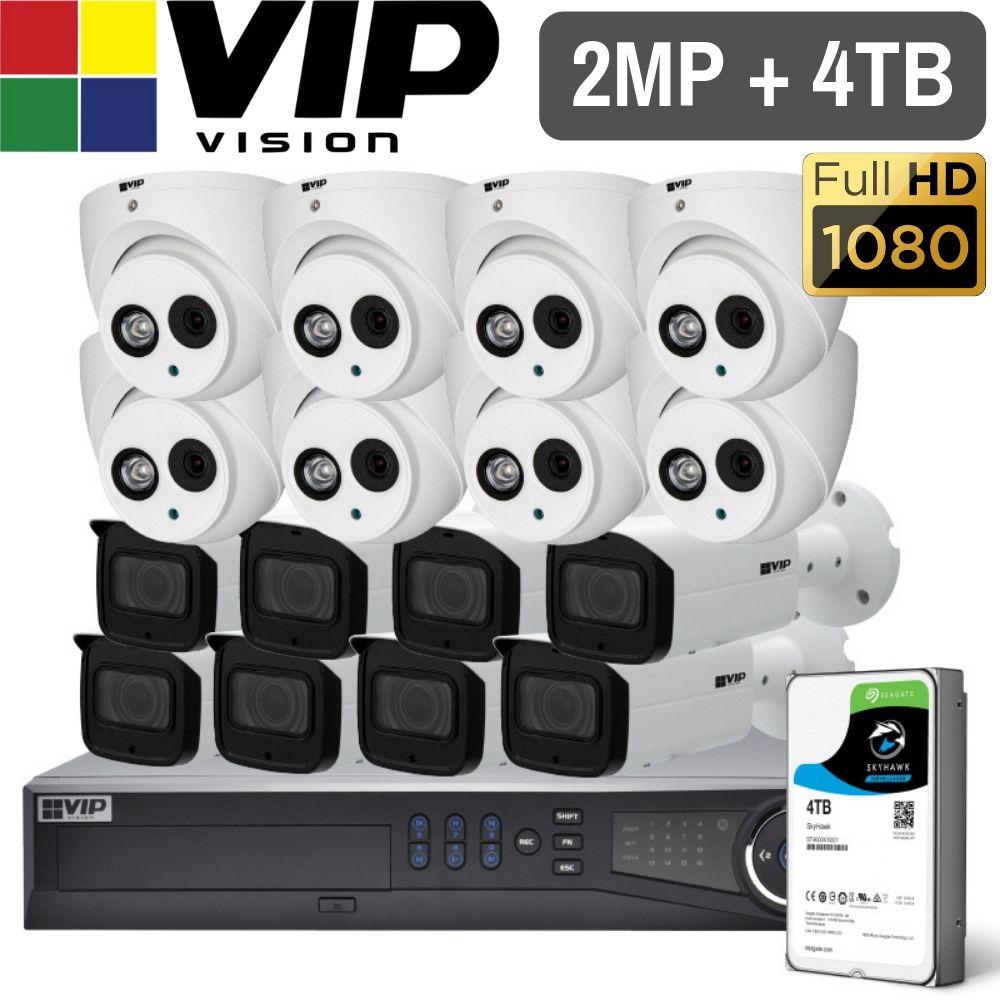

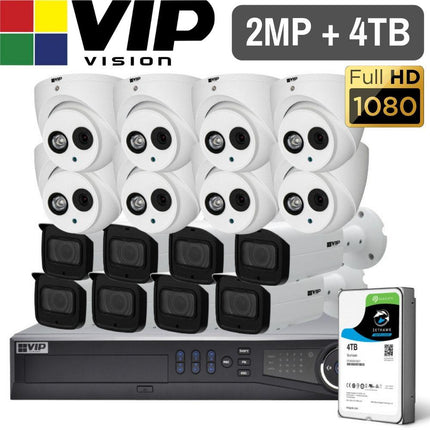

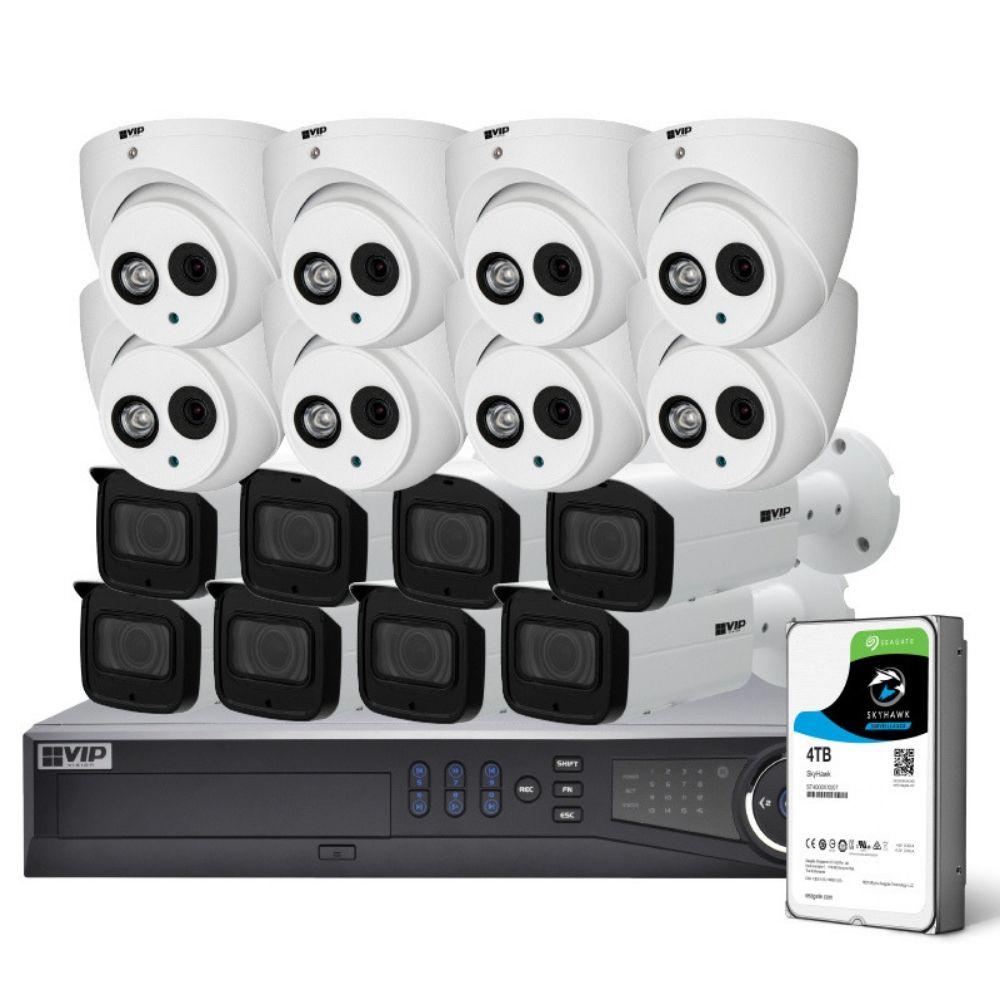

Name: VIP Vision Pro 16 Channel Security Kit: 12MP NVR, 8 X 2MP Bullets, 8 X 2MP Turrets, 4TB HDD - NVRKIT-P1624F
Brand: VIP Vision
SKU: NVRKIT-P1624F
Price: 3579.0 AUD

VIP Vision Pro 16 Channel Security Kit: 12MP NVR, 8 X 2MP Bullets, 8 X 2MP Turrets, 4TB HDD - NVRKIT-P1624F

VendorVIP Vision
Share
- WhatsApp
- Deel
- Messenger
- Email

Product form

VIP Vision Pro 16 Channel Security Kit: 12MP NVR, 8 X 2MP Bullets, 8 X 2MP Turrets, 4TB HDD - NVRKIT-P1624F

VendorVIP Vision
Share
- WhatsApp
- Deel
- Messenger
- Email

SKU:

🔴 OUT OF STOCK

Discontinued. Contact us for a replacement.

💾 Customize Your Storage:
HDDs are sold separately, so you can choose the exact size you need. 🟢 Surveillance-Grade Hard Drive Western Digital Purple or Seagate SkyHawk

$3,579.00 Incl. GST

Trusted by 5000+ happy customers

FREE Express Delivery over $200

Easy 30-Day Returns Policy

Australian Warranty & Tech Support

4-Year VIP Vision Warranty

Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

We Sell Australian Stock Only, No Grey Import Products

Order before 2pm for same day dispatch

Click & Collect Learn More

Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

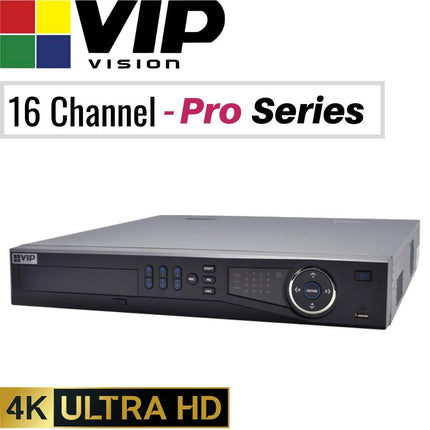

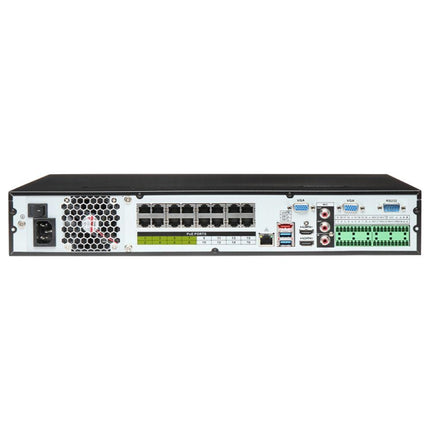

General
Main Processor	Quad-core embedded processor
Operating System	Embedded Linux
Video Input	16 channels
Two-way Talk	1 channel input, 2 channel output, RCA
Interoperability	ONVIF 2.4, CGI conformant
Display
Video Output	2 x HDMI, 2 x VGA
Display Resolution	Configurable from 3840 x 2160 to 1024 x 768
Display Split	1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution	Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth	320Mbps
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate	16kbps ~ 20Mbps per channel
Record Modes	Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval	1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output	16 channels input / 6 channels relay output (N.O/N.C)
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection	Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync	1/4/9/16
Search Modes	Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes	USB Device / Network
Network
Ethernet	1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet	16 ports (IEEE802.3at/af) / ePoE & EoC support (Ports 1-8)
Network Functions	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, Easy4IP

Optical Interface	N/A
Max. User Access	128 users
Remote View	iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD	4 x SATA ports up to 10TB, max. 40TB HDD capacity
HDD Modes	Single (no RAID compatibility)
USB Interface	3 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs	1 x RS232 / 1 x RS485 / 1 x eSATA
Environment
Power Supply	100 ~ 240VAC, 50 ~ 60Hz

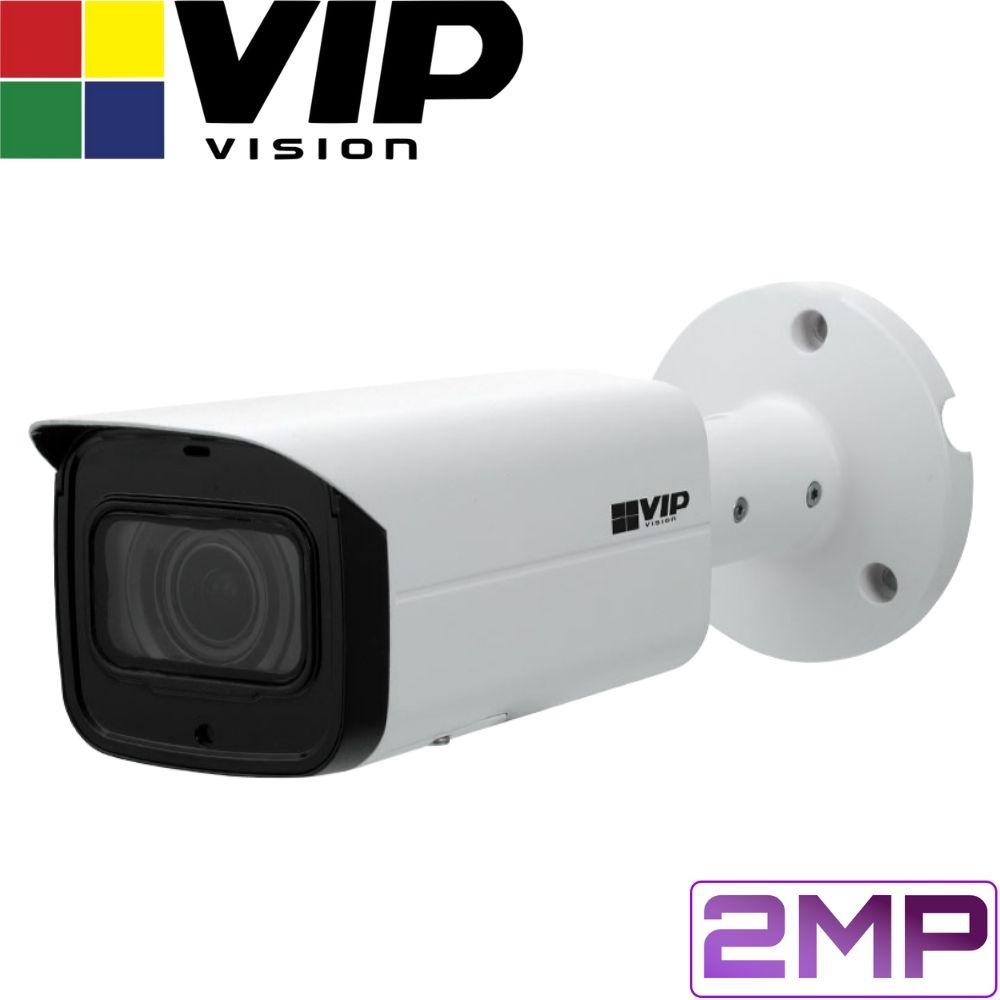

Camera
Image Sensor	1/2.8" 2.0MP Progressive Scan CMOS
Max. Resolution	2.0 Megapixel
Effective Pixels	1920 (H) x 1080 (V)
RAM / ROM	256MB / 32MB
Ultra Low Light Colour	Yes
Min Illumination	0.009 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)
S/N Ratio	> 50dB
Infrared	Yes
Infrared System	4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type	Fixed
Lens / Iris	3.6mm F1.6 Fixed Lens
Field of View	Horizontal: 87°, Vertical: 46°
Focus	Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)	55m
Observe (63px/m)	22m
Recognise (125px/m)	11m
Identify (250px/m)	6m
Video
Resolution	2.0MP (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)	2.0MP (1 ~ 50fps)
Frame Rate (Sub)	D1 (1 ~ 50fps)
Frame Rate (Third)	1080p (1 ~ 25fps)
Video Compression	H.265+ / H.265 / H.264+ / H.264
Bit Rate	H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control	Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night	Auto (ICR) / Color / B&W
Lighting Compensation	BLC / HLC / WDR (120dB)
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Picture Control	Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS	Yes
Intelligent Functions	Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

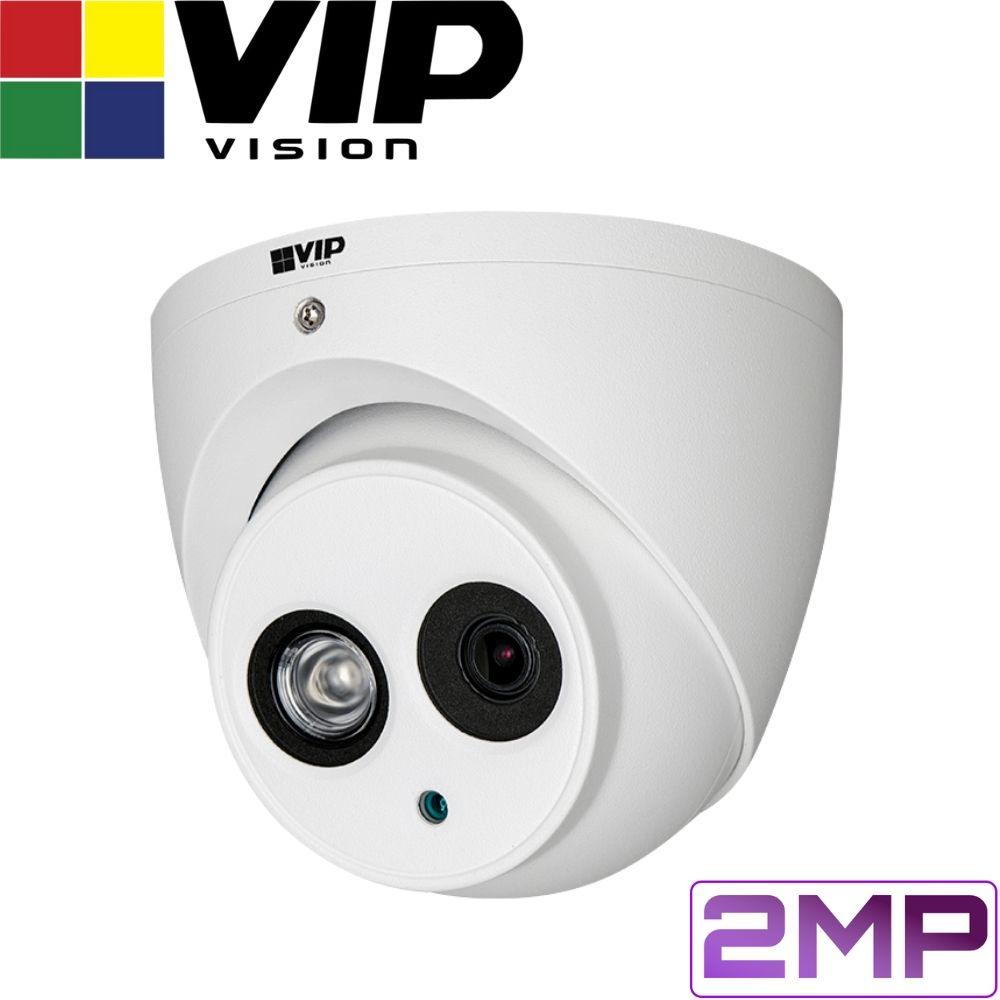

Camera
Image Sensor	1/2.8’’ 2.0MP Progressive Scan Exmor CMOS
Max. Resolution	2.0 Megapixe
Effective Pixels	1920 (H) x 1080 (V)
RAM / ROM	256MB / 32MB
Ultra Low Light Colour	Yes
Min Illumination	0.009 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on)
S/N Ratio	> 50dB
Infrared	Yes
Infrared System	1 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type	Fixed
Lens / Iris	2.8mm F2.0 Fixed Lens
Field of View	Horizontal: 104°, Vertical: 57°
Focus	Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)	43m
Observe (63px/m)	17m
Recognise (125px/m)	119mm
Identify (250px/m)	4m
Video
Resolution	1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)	1080p (1 ~ 50fps)
Frame Rate (Sub)	D1 (1 ~ 50fps)
Frame Rate (Third)	1080p (1 ~ 25fps)
Video Compression	H.265 / H.264
Bit Rate	H.265: 14 ~ 5632Kbps / H.264: 24 ~ 9472Kbps
Bit Rate Control	Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night	Auto (ICR) / Color / B&W
Lighting Compensation	BLC / HLC / WDR (120dB)
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Picture Control	Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS	Yes
Intelligent Functions	Tripwire, Intrusion, Object Abandoned/Missing, Face Detection, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

General
Main Processor	Quad-core embedded processor
Operating System	Embedded Linux
Video Input	16 channels
Two-way Talk	1 channel input, 2 channel output, RCA
Interoperability	ONVIF 2.4, CGI conformant
Display
Video Output	2 x HDMI, 2 x VGA
Display Resolution	Configurable from 3840 x 2160 to 1024 x 768
Display Split	1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution	Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth	320Mbps
Video Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate	16kbps ~ 20Mbps per channel
Record Modes	Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval	1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output	16 channels input / 6 channels relay output (N.O/N.C)
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection	Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync	1/4/9/16
Search Modes	Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes	USB Device / Network
Network
Ethernet	1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet	16 ports (IEEE802.3at/af) / ePoE & EoC support (Ports 1-8)
Network Functions	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, Easy4IP

Optical Interface	N/A
Max. User Access	128 users
Remote View	iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD	4 x SATA ports up to 10TB, max. 40TB HDD capacity
HDD Modes	Single (no RAID compatibility)
USB Interface	3 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs	1 x RS232 / 1 x RS485 / 1 x eSATA
Environment
Power Supply	100 ~ 240VAC, 50 ~ 60Hz
