VIP Vision Pro 16 Channel Security Kit: 12MP NVR, 8 X 4MP VF Bullet, 8 X 4MP VF Dome, 4TB HDD - NVRKIT-P1644M

Description

This product has been superseded by the VIP Vision 16-Channel Security Kit: 12MP NVR, 16 X 4MP Motorised Dome/Bullet, Professional Series.

VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

The VIP Vision NVR16PRO7 is a 16 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.

The VSIP4MPFBIRMD can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change. The VSIP4MPVDIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.

KIT FEATURES:

  • 16CH NVR with 16 Power over Ethernet PoE ports (ePoE & EoC support ports 1-8)
  • 4 x SATA ports up to 10TB, max. 40TB HDD capacity
  • Remote view in seconds with setup via QR code
  • Live view, playback & record via your phone/tablet
  • Motion Detection, Motion Zones, Video Loss & Tampering
  • Stream up to 4.0MP (2688 x 1520) at 20fps
  • 2.7 ~ 13.5mm motorised varifocal lens with fixed iris
  • 104°~28°(H) - 55°~16°(V) field of view with 5x optical zoom
  • H.265 encoding for efficient storage & streaming
  • Long 60m infrared range; true day/night (auto ICR)
  • MicroSD slot for recording at the edge up to 128GB
  • Back/highlight compensation & true WDR (120dB)
  • 3D digital noise reduction 3DDNR & auto white balance AWB
  • ONVIF, PSIA and CGI compliance
  • Weatherproof IP67 & Vandalproof IK10
  • Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
  • WARRANTY: 4 years back-to-base manufacturer warranty
KIT INCLUDES:
  • 1 x 16 channel ePoE NVR + pre-installed 4TB HDD
  • 8 x 4.0MP 2.7~13.5mm WDR 30m IR motorised dome cameras
  • 8 x 4.0MP 2.7~13.5mm WDR 60m IR motorised bullet cameras
  • 1 x 1.5m CAT5 patch cable for networking
  • 1 x 1m HDMI output cable
  • 1 x NVR Remote
  • 1 x Mouse

Tech Specs

VIP Vision Professional 16 Channel Network Video Recorder: 12MP (4K) Ultra HD - NVR16PRO7

General
Main Processor Quad-core embedded processor
Operating System Embedded Linux
Video Input 16 channels
Two-way Talk 1 channel input, 2 channel output, RCA
Interoperability ONVIF 2.4, CGI conformant
Display
Video Output 2 x HDMI, 2 x VGA
Display Resolution Configurable from 3840 x 2160 to 1024 x 768
Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution Configurable from 12.0MP (4000 x 3000) to CIF (352 x 288)
Incoming Bandwidth 320Mbps
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate 16kbps ~ 20Mbps per channel
Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
Features
Alarm Input / Output 16 channels input / 6 channels relay output (N.O/N.C)
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
Playback Sync 1/4/9/16
Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes USB Device / Network
Network
Ethernet 1 x RJ-45 port (10/100/1000Mbps)
Power over Ethernet 16 ports (IEEE802.3at/af) / ePoE & EoC support (Ports 1-8)
Network Functions HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, Easy4IP
Optical Interface N/A
Max. User Access 128 users
Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
Storage
Internal HDD 4 x SATA ports up to 10TB, max. 40TB HDD capacity
HDD Modes Single (no RAID compatibility)
USB Interface 3 ports: Rear USB3.0 / Front USB2.0
Auxiliary Inputs 1 x RS232 / 1 x RS485 / 1 x eSATA
Environment
Power Supply 100 ~ 240VAC, 50 ~ 60Hz
Power Consumption < 17.5W (without HDD) / PoE: 25.5W per port, 150W total
PoE Yes, w/ ePoE
Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Rackmountable Yes (included)
Rackmount Units 1.5RU
Dimensions 440 x 411 x 76mm
Weight 4.65kg (without HDD)
Warranty (Years) 4

VIP Vision Professional Security Camera: 4MP Bullet, 2.7 ~ 13.5mm VF Lens - VSIP4MPFBIRMD

Camera
Image Sensor 1/3’’ 4.0MP Progressive Scan Exmor CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2688 (H) x 1520 (V)
RAM / ROM 512MB / 32MB
Ultra Low Light Colour No
Min Illumination 0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio > 45dB
Infrared Yes
Infrared System 4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type Motorised Varifocal
Lens / Iris 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View Horizontal: 104°~28°, Vertical: 55°~16° (5x Optical Zoom)
Focus Auto Focus / 0.2m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 64m (wide) / 222m (tele)
Observe (63px/m) 26m (wide) / 89m (tele
Recognise (125px/m) 13m (wide) / 44m (tele)
Identify (250px/m) 6m (wide) / 22m (tele)
Video
Resolution 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) N/A
Video Compression H.265 / H.264
Bit Rate H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS No
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
RTMP Support No
Interface
Video Interface N/A
Audio Interface N/A
Alarm Interface N/A
RS485 N/A
Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability ONVIF / PSIA / CGI
Environmental
Power Supply 12VDC / PoE (802.3af) (Class 0)
Power Consumption <13W
Operating Conditions -30° ~ +60° C / Less than 95% RH
Ingress Protection IP67
Weather Resistance Yes
Vandal Resistance N/A
Series Professional Series
Camera Type Bullet
Housing Metal
Pan/Tilt/Rotation Pan: 0° ~ 360 ° ; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360°
Tri-Axis Mounting No
ePoE No
Dimensions Ø72mm x 80mm x 213mm
Net Weight 0.685kg
Warranty (Years) 4

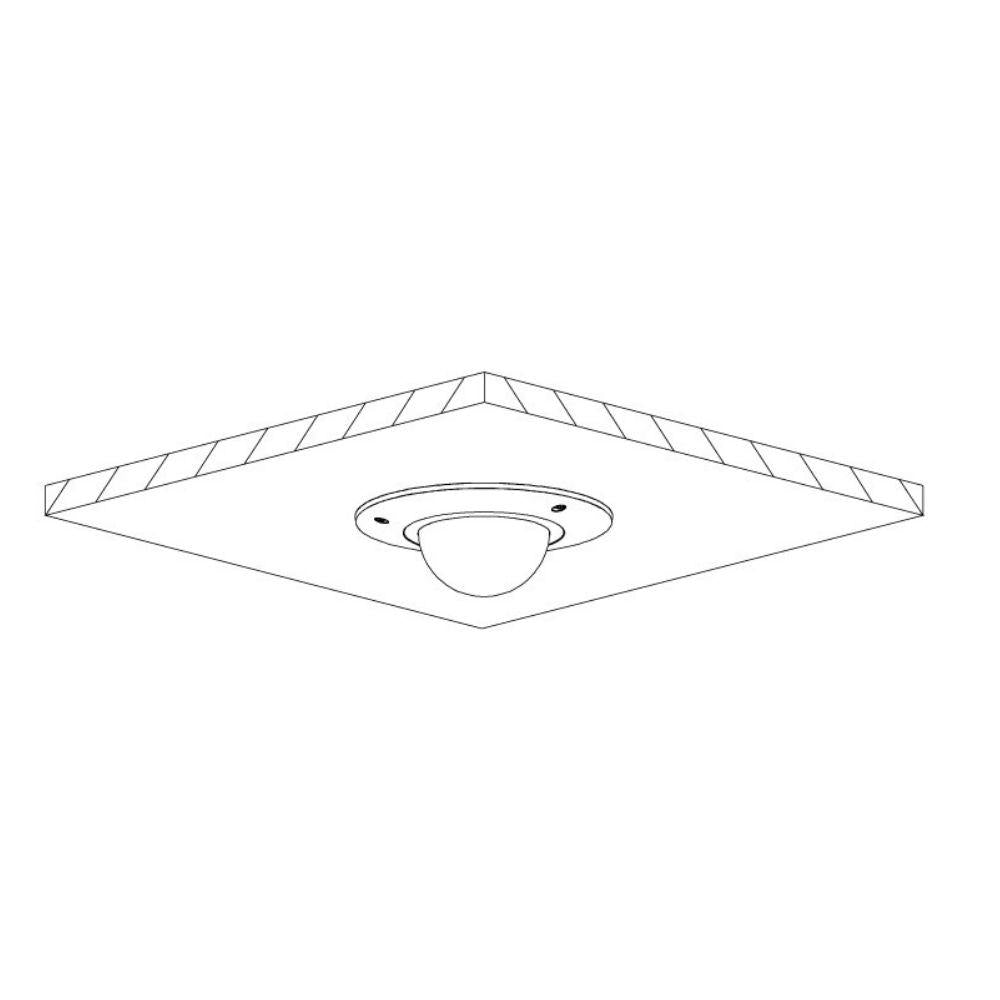

VIP Vision Professional Security: 4MP DOME, 2.7 ~ 13.5mm VF Lens - VSIP4MPVDIRMD

Camera
Image Sensor 1/3’’ 4.0MP Progressive Scan Exmor CMOS
Max. Resolution 4.0 Megapixel
Effective Pixels 2688 (H) x 1520 (V)
RAM / ROM 512MB / 32MB
Ultra Low Light Colour No
Min Illumination 0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio > 45dB
Infrared Yes
Infrared System 2 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type Motorised Varifocal
Lens / Iris 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View Horizontal: 104~28°, Vertical: 55°~16° (5x Optical Zoom)
Focus N/A
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m) 64m (wide)/222m (tele)
Observe (63px/m) 26m (wide)/89m (tele)
Recognise (125px/m) 13m (wide) / 44m (tele)
Identify (250px/m) 6m (wide) / 22m (tele)
Video
Resolution 4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main) 4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub) D1 (1 ~ 25fps)
Frame Rate (Third) N/A
Video Compression H.265 / H.264
Bit Rate H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps
Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night Auto (ICR) / Color / B&W
Lighting Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS No
Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; IC
