VIP Vision Pro 4 Channel Security Kit: 8MP NVR, 2 X 4MP VF Bullet, 2 X 4MP VF Dome, 1TB HDD

SKU NVRKIT-P441M
Sold out
Original price $1,244.00 - Original price $1,244.00
Original price
$1,244.00
$1,244.00 - $1,244.00
Current price $1,244.00
Description
Description

This product has been superseded by the VIP Vision 4-Channel Security Kit: 8MP NVR, 4 X 4MP Motorised Dome/Bullet, Professional Series.

VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

    The VIP Vision™ Professional Series 4 channel NVR4PRO3 features recording in Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265 video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.

    The VSIP4MPVDIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.

    KIT FEATURES:

    • 4CH NVR with 4 Power over Ethernet (PoE) ports
    • Up to 200Mbps incoming bandwidth
    • 2 x SATA ports up to 10TB, max. 20TB HDD capacity
    • Supports real-time viewing & recording via your phone/tablet.
    • Stream up to 4.0MP (2688 x 1520) at
    • 2.7 ~ 13.5mm motorised varifocal lens with fixed iris
    • 104°~28°(H) - 55°~16°(V) field of view with 5x optical zoom
    • H.265 encoding for efficient storage & streaming
    • Long 60m infrared range; true day/night (auto ICR)
    • MicroSD slot for recording at the edge up to 128GB
    • Back/highlight compensation & true WDR (120dB)
    • 3D digital noise reduction 3DDNR & auto white balance AWB
    • Weatherproof IP67 & Vandalproof IK10
    • ONVIF, PSIA and CGI compliance
    • Motion Detection, Region of Interest, Privacy Masking, Smart Infrared
    • WARRANTY: 4 years back-to-base manufacturer warranty

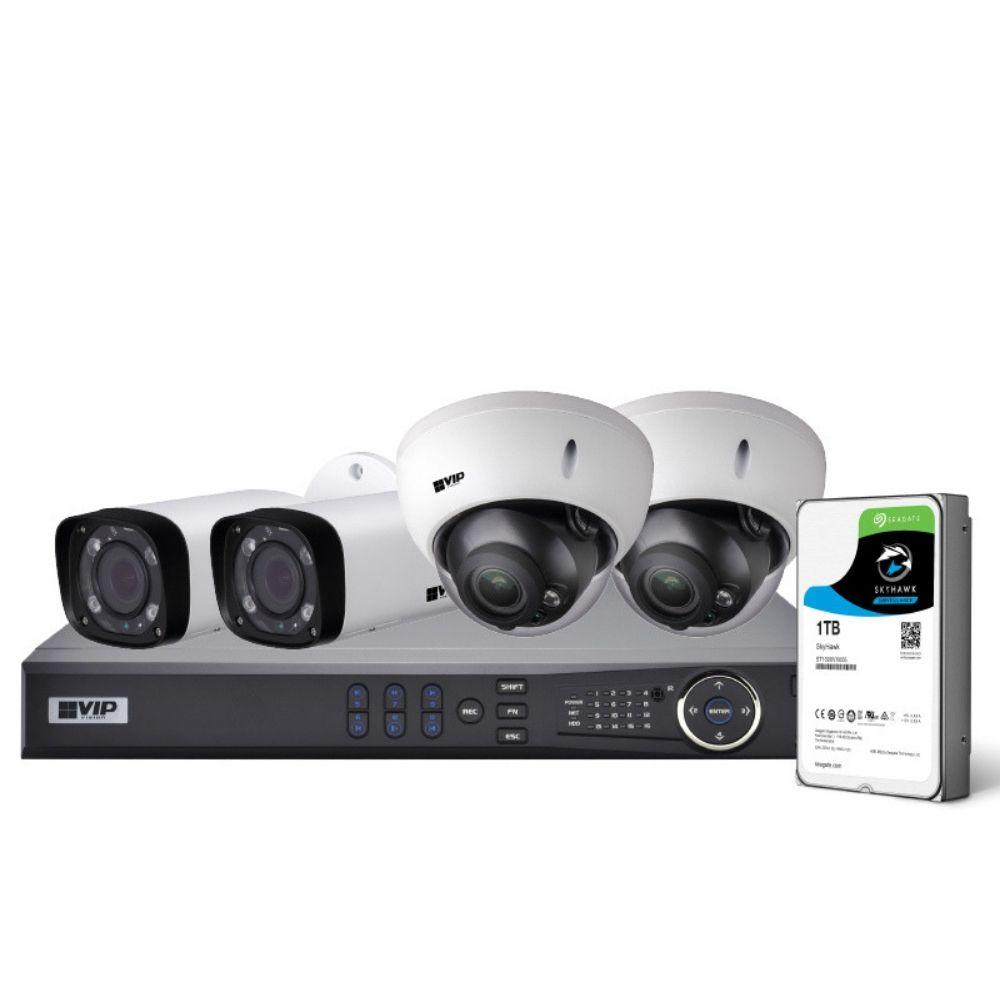

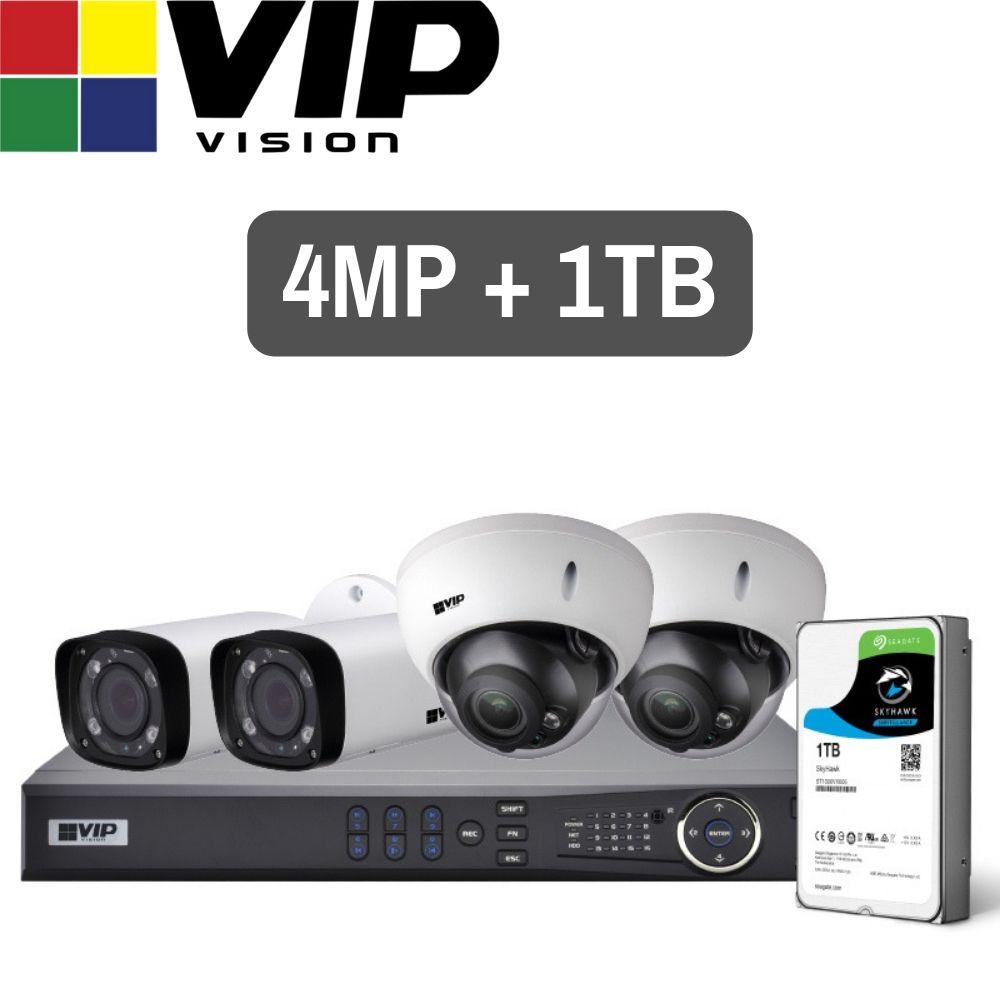

    KIT INCLUDES:

    • 1 x 4 channel PoE NVR + pre-installed 1TB HDD
    • 2 x 4.0MP 2.7~13.5mm WDR 30m IR motorised dome cameras
    • 2 x 4.0MP 2.7~13.5mm WDR 60m IR motorised bullet cameras
    • 1 x 1.5m CAT5 patch cable for networking
    • 1 x 1m HDMI output cable
    • 1 x NVR Remote
    • 1 x Mouse

    Tech Specs
    Tech Specs

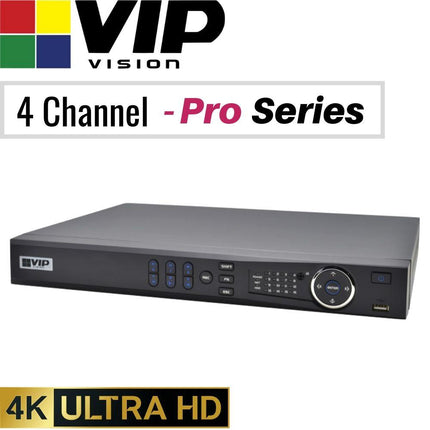

    VIP Vision Professional 4 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR4PRO3

    General
    Main Processor Quad-core embedded processor
    Operating System Embedded Linux
    Video Input 4 channels
    Two-way Talk 1 channel input, 1 channel output, RCA
    Interoperability ONVIF 2.4, CGI conformant
    Display
    Video Output 1 x HDMI, 1 x VGA
    Display Resolution Configurable from 3840 x 2160 to 1024 x 768
    Display Split 1/4
    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Recording
    Recording Resolution Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
    Incoming Bandwidth 200Mbps
    Video Compression H.265 / H.264
    Bit Rate 16kbps ~ 20Mbps per channel
    Record Modes Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop
    Record Interval 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s
    Features
    Alarm Input / Output 4 channels input / 2 channels relay output (N.O/N.C)
    Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips
    Video Detection Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering
    Playback Sync 1/4
    Search Modes Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
    Backup Modes USB Device / Network
    Network
    Ethernet 1 x RJ-45 port (10/100/1000Mbps)
    Power over Ethernet 4 ports (IEEE802.3at/af)
    Network Functions HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
    Optical Interface N/A
    Max. User Access 128 users
    Remote View iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality)
    Storage
    Internal HDD 2 x SATA ports up to 10TB, max. 20TB HDD capacity
    HDD Modes Single (no RAID compatibility)
    USB Interface 2 ports: Rear USB3.0 / Front USB2.0
    Auxiliary Inputs N/A
    Environment
    Power Supply 48VDC / 2A
    Power Consumption < 9W (without HDD)
    PoE Yes
    Operating Environment -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
    Rackmountable No
    Rackmount Units 1RU

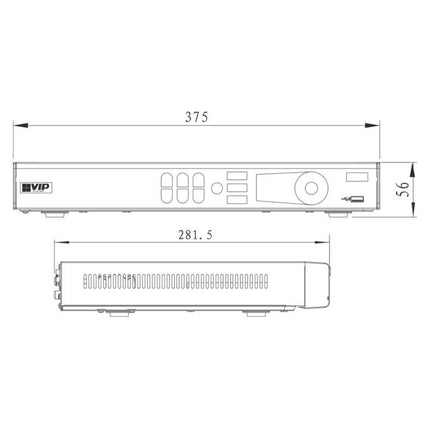

    Dimensions 375 x 282 x 56mm
    Weight 1.60kg (without HDD)
    Warranty (Years) 4

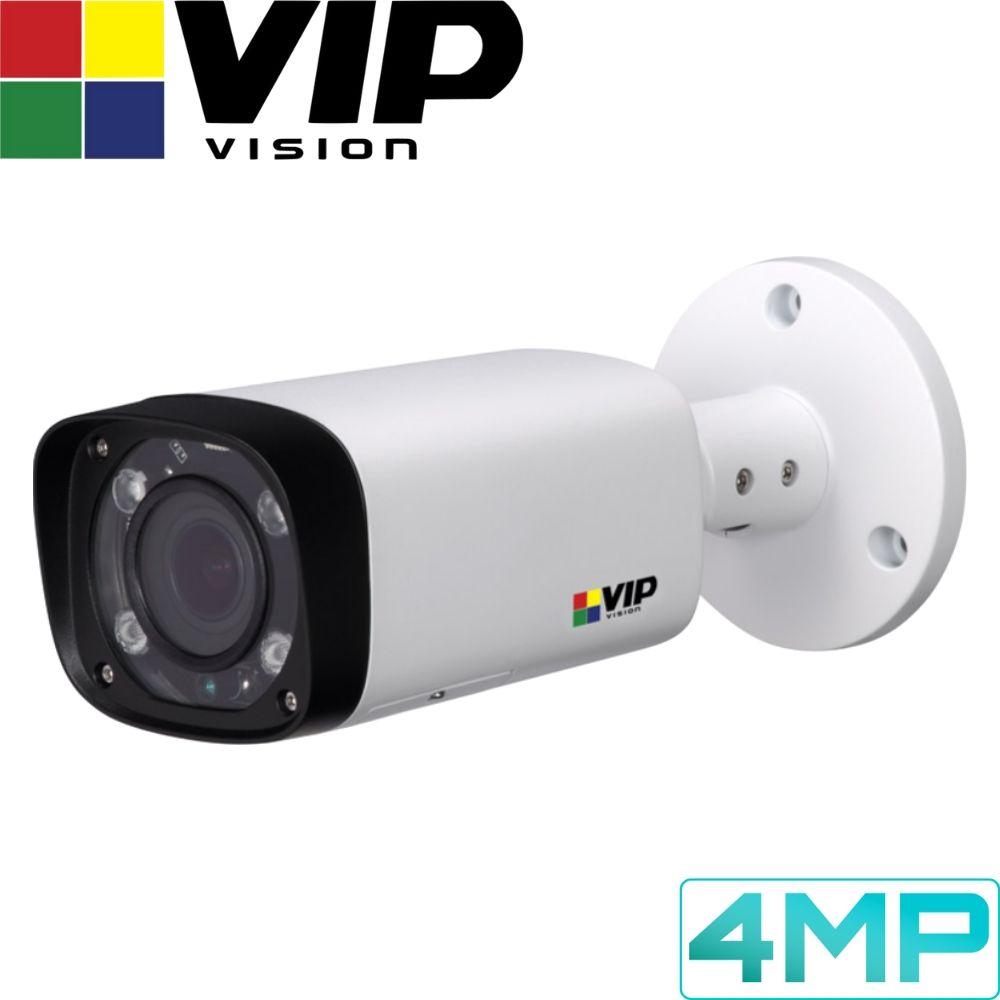

    VIP Vision Professional Security Camera: 4MP Bullet, 2.7 ~ 13.5mm VF Lens - VSIP4MPFBIRMD

    Camera
    Image Sensor 1/3’’ 4.0MP Progressive Scan Exmor CMOS
    Max. Resolution 4.0 Megapixel
    Effective Pixels 2688 (H) x 1520 (V)
    RAM / ROM 512MB / 32MB
    Ultra Low Light Colour No
    Min Illumination 0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
    S/N Ratio > 45dB
    Infrared Yes
    Infrared System 4 x Infrared LED, 60m range, Auto/manual on/off control
    Lens
    Lens Type Motorised Varifocal
    Lens / Iris 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
    Field of View Horizontal: 104°~28°, Vertical: 55°~16° (5x Optical Zoom)
    Focus Auto Focus / 0.2m Min. Focus Distance
    DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
    Detect (25px/m) 64m (wide) / 222m (tele)
    Observe (63px/m) 26m (wide) / 89m (tele
    Recognise (125px/m) 13m (wide) / 44m (tele)
    Identify (250px/m) 6m (wide) / 22m (tele)
    Video
    Resolution 4.0MP (2688 x 1520) to CIF (352 x 288)
    Frame Rate (Main) 4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
    Frame Rate (Sub) D1 (1 ~ 25fps)
    Frame Rate (Third) N/A
    Video Compression H.265 / H.264
    Bit Rate H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps
    Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
    Day/Night Auto (ICR) / Color / B&W
    Lighting Compensation BLC / HLC / WDR (120dB)
    White Balance Auto / Natural / Street Lamp / Outdoor / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D DNR
    Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
    IVS
    IVS No
    Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users / 20 Users
    RTMP Support No
    Interface
    Video Interface N/A
    Audio Interface N/A
    Alarm Interface N/A
    RS485 N/A
    Edge Storage MicroSD Card (up to 128GB) / NAS / Local PC
    Interoperability ONVIF / PSIA / CGI
    Environmental
    Power Supply 12VDC / PoE (802.3af) (Class 0)
    Power Consumption <13W
    Operating Conditions -30° ~ +60° C / Less than 95% RH
    Ingress Protection IP67
    Weather Resistance Yes
    Vandal Resistance N/A
    Series Professional Series
    Camera Type Bullet
    Housing Metal
    Pan/Tilt/Rotation Pan: 0° ~ 360 ° ; Tilt: 0° ~ 78° ; Rotation: 0° ~ 360°
    Tri-Axis Mounting No
    ePoE No
    Dimensions Ø72mm x 80mm x 213mm
    Net Weight 0.685kg
    Warranty (Years) 4

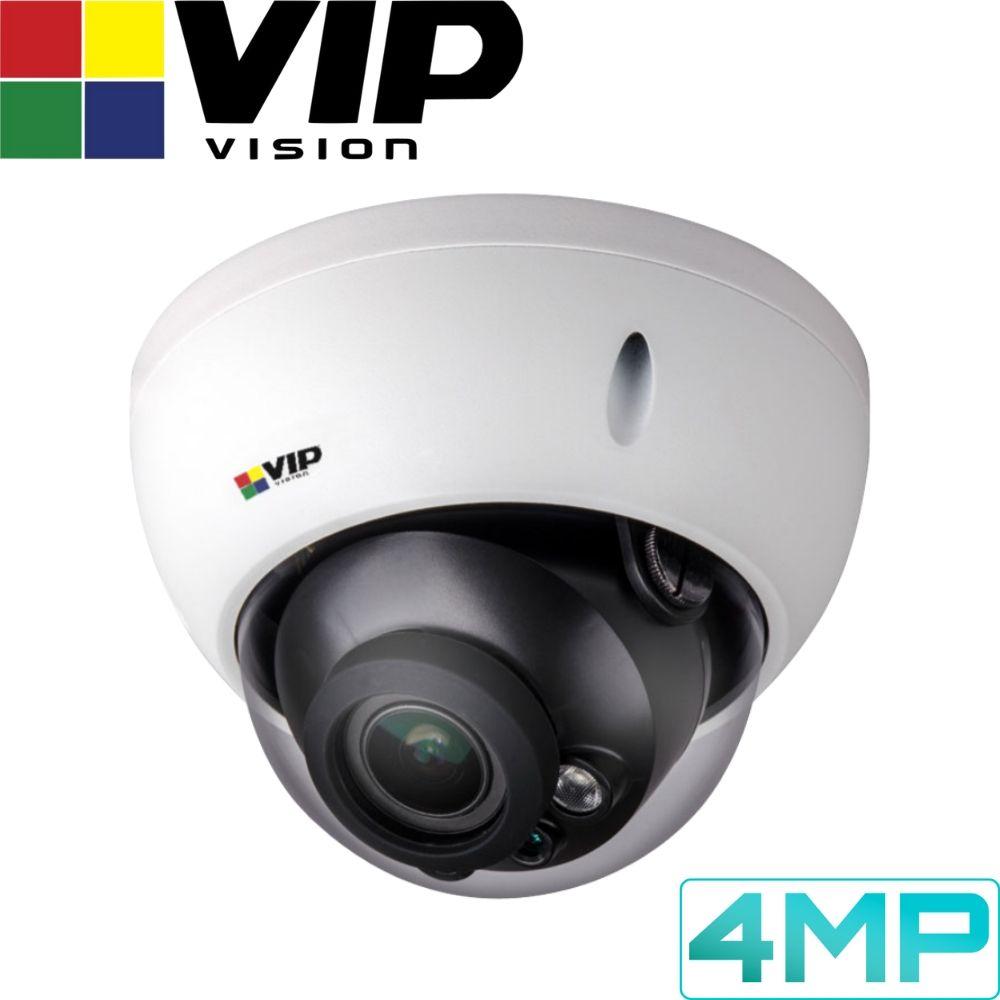

    VIP Vision Professional Security: 4MP DOME, 2.7 ~ 13.5mm VF Lens - VSIP4MPVDIRMD

    Camera
    Image Sensor 1/3’’ 4.0MP Progressive Scan Exmor CMOS
    Max. Resolution 4.0 Megapixel
    Effective Pixels 2688 (H) x 1520 (V)
    RAM / ROM 512MB / 32MB
    Ultra Low Light Colour No
    Min Illumination 0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
    S/N Ratio > 45dB
    Infrared Yes
    Infrared System 2 x Infrared LED, 30m range, Auto/manual on/off control
    Lens
    Lens Type Motorised Varifocal
    Lens / Iris 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
    Field of View Horizontal: 104~28°, Vertical: 55°~16° (5x Optical Zoom)
    Focus N/A
    DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
    Detect (25px/m) 64m (wide)/222m (tele)
    Observe (63px/m) 26m (wide)/89m (tele)
    Recognise (125px/m) 13m (wide) / 44m (tele)
    Identify (250px/m) 6m (wide) / 22m (tele)
    Video
    Resolution 4.0MP (2688 x 1520) to CIF (352 x 288)
    Frame Rate (Main) 4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
    Frame Rate (Sub) D1 (1 ~ 25fps)
    Frame Rate (Third) N/A
    Video Compression H.265 / H.264
    Bit Rate H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps
    Bit Rate Control Constant bit rate (CBR) / Variable bit rate (VBR)
    Day/Night Auto (ICR) / Color / B&W
    Lighting Compensation BLC / HLC / WDR (120dB)
    White Balance Auto / Natural / Street Lamp / Outdoor / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D DNR
    Picture Control Mirror / Flip (0°, 90°, 180°, 270°)
    IVS
    IVS No
    Intelligent Functions Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users / 20 Users
    RTMP Support No
    In
