VIP Vision Pro 4 Channel Security Kit: 8MP NVR, 2 X 8MP VF Bullet, 2 X 8MP VF Dome, 2TB HDD
- Record Ultra HD/8.0MP (3840 x 2160)
- 4CH NVR with 4 Power over Ethernet (PoE) ports
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Supports real-time viewing & recording via your phone/tablet.
- Stream up to 8.0MP (3840 x 2160) at 25fps
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- IP67 weatherproof rated housing for outdoor use, IK10 Vandal Resistance
- ONVIF, PSIA and CGI compliance
- Product SKU: NVRKIT-P482M
- Order within
The VIP Vision™ Professional Series 4 channel NVR4PRO3 features recording in Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265 video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.
The VSIP8MPFBIRMD can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.
KIT FEATURES:
- Record Ultra HD/8.0MP (3840 x 2160)
- 4CH NVR with 4 Power over Ethernet (PoE) ports
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Supports real-time viewing & recording via your phone/tablet.
- Stream up to 8.0MP (3840 x 2160) at 25fps
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- IP67 weatherproof rated housing for outdoor use, IK10 Vandal Resistance
- ONVIF, PSIA and CGI compliance
- WARRANTY: 4 years back-to-base manufacturer warranty

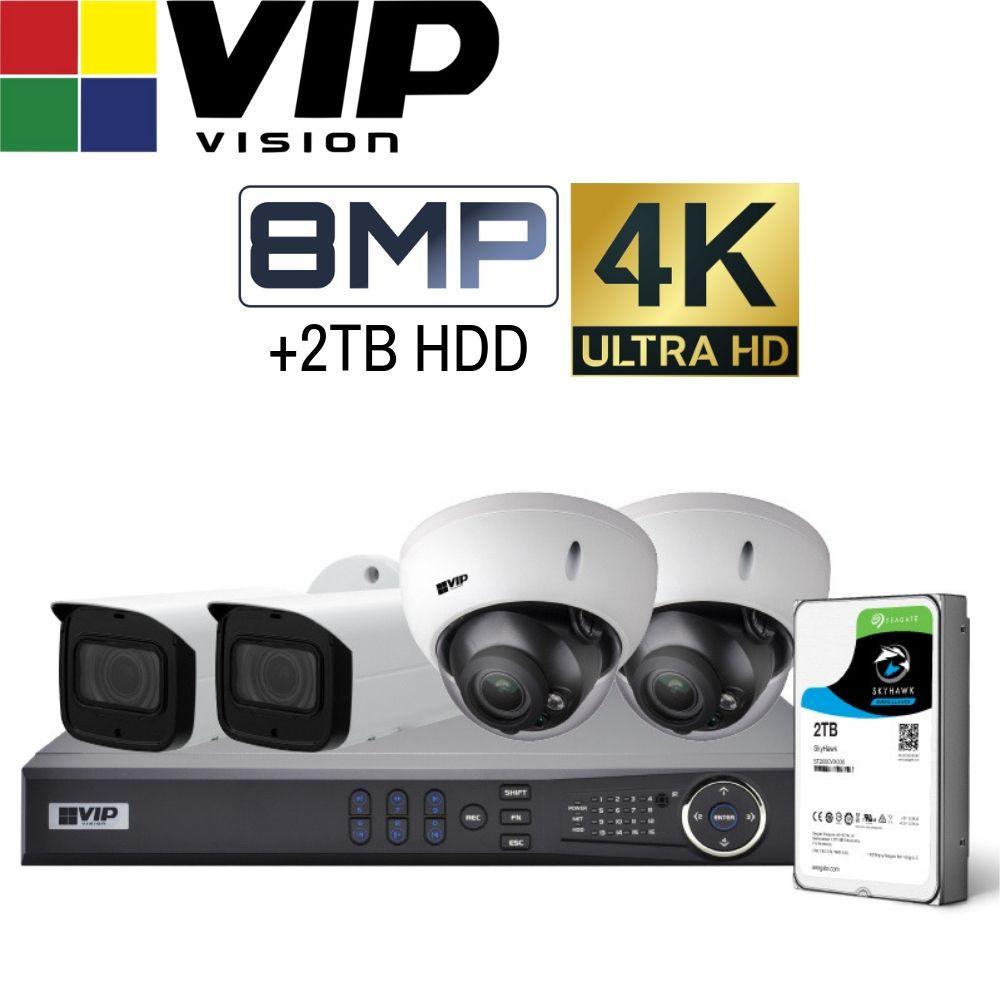

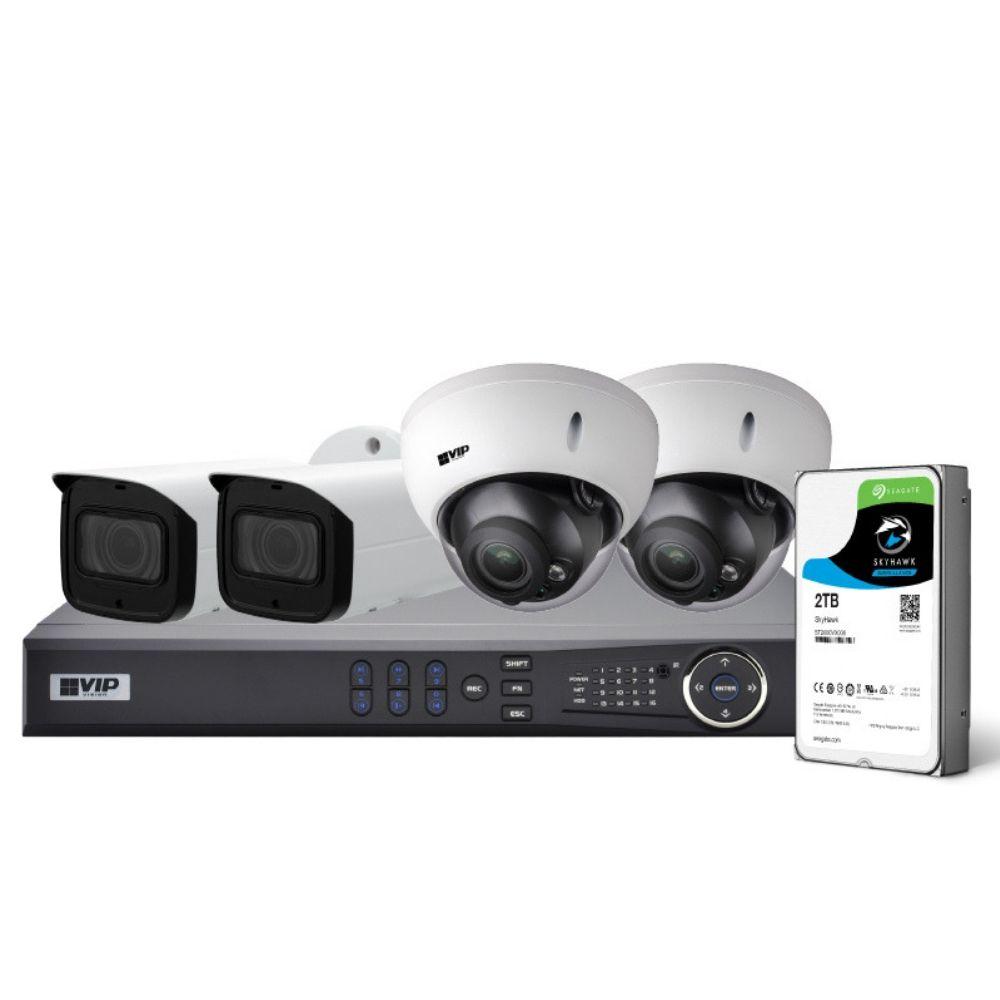

KIT INCLUDES:
- 1 x 4 channel PoE NVR + pre-installed 2TB HDD
- 2 x 8.0MP 3.7~11mm WDR 30m IR motorised dome cameras
- 2 x 8.0MP 3.7~11mm WDR 60m IR motorised bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
The VIP Vision™ Professional Series 4 channel NVR4PRO3 features recording in Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265 video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.
The VSIP8MPFBIRMD can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.
KIT FEATURES:
- Record Ultra HD/8.0MP (3840 x 2160)
- 4CH NVR with 4 Power over Ethernet (PoE) ports
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Supports real-time viewing & recording via your phone/tablet.
- Stream up to 8.0MP (3840 x 2160) at 25fps
- 3.7 ~ 11mm motorised varifocal lens with fixed iris
- 112°~46°(H) - 60°~26°(V) field of view with 5x optical zoom
- H.265 encoding for efficient storage & streaming
- Long 60m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 128GB
- Back/highlight compensation & true WDR (120dB)
- 3D digital noise reduction 3DDNR & auto white balance AWB
- IP67 weatherproof rated housing for outdoor use, IK10 Vandal Resistance
- ONVIF, PSIA and CGI compliance
- WARRANTY: 4 years back-to-base manufacturer warranty
KIT INCLUDES:
- 1 x 4 channel PoE NVR + pre-installed 2TB HDD
- 2 x 8.0MP 3.7~11mm WDR 30m IR motorised dome cameras
- 2 x 8.0MP 3.7~11mm WDR 60m IR motorised bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse

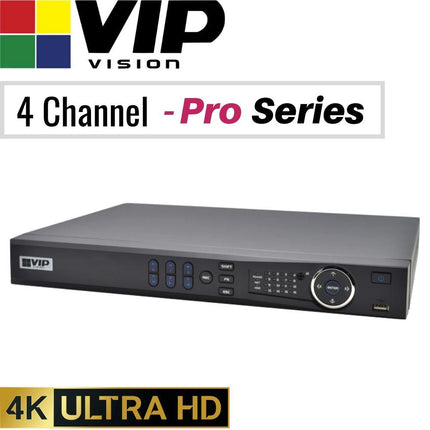

VIP Vision Professional 4 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR4PRO3
| General | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded Linux |
| Video Input | 4 channels |
| Two-way Talk | 1 channel input, 1 channel output, RCA |
| Interoperability | ONVIF 2.4, CGI conformant |
| Display | |
| Video Output | 1 x HDMI, 1 x VGA |
| Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split | 1/4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Recording Resolution | Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Incoming Bandwidth | 200Mbps |
| Video Compression | H.265 / H.264 |
| Bit Rate | 16kbps ~ 20Mbps per channel |
| Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
| Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
| Features | |
| Alarm Input / Output | 4 channels input / 2 channels relay output (N.O/N.C) |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
| Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
| Playback Sync | 1/4 |
| Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Backup Modes | USB Device / Network |
| Network | |
| Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
| Power over Ethernet | 4 ports (IEEE802.3at/af) |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P |
| Optical Interface | N/A |
| Max. User Access | 128 users |
| Remote View | iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
| Storage | |
| Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| HDD Modes | Single (no RAID compatibility) |
| USB Interface | 2 ports: Rear USB3.0 / Front USB2.0 |
| Auxiliary Inputs | N/A |
| Environment | |
| Power Supply | 48VDC / 2A |
| Power Consumption | < 9W (without HDD) |
| PoE | Yes |
| Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
| Rackmountable | No |
| Rackmount Units | 1RU |

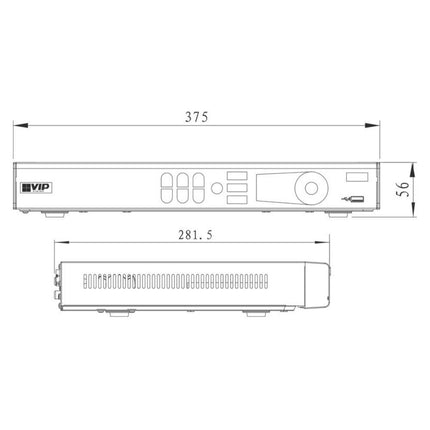

| Dimensions | 375 x 282 x 56mm |
| Weight | 1.60kg (without HDD) |
| Warranty (Years) | 4 |

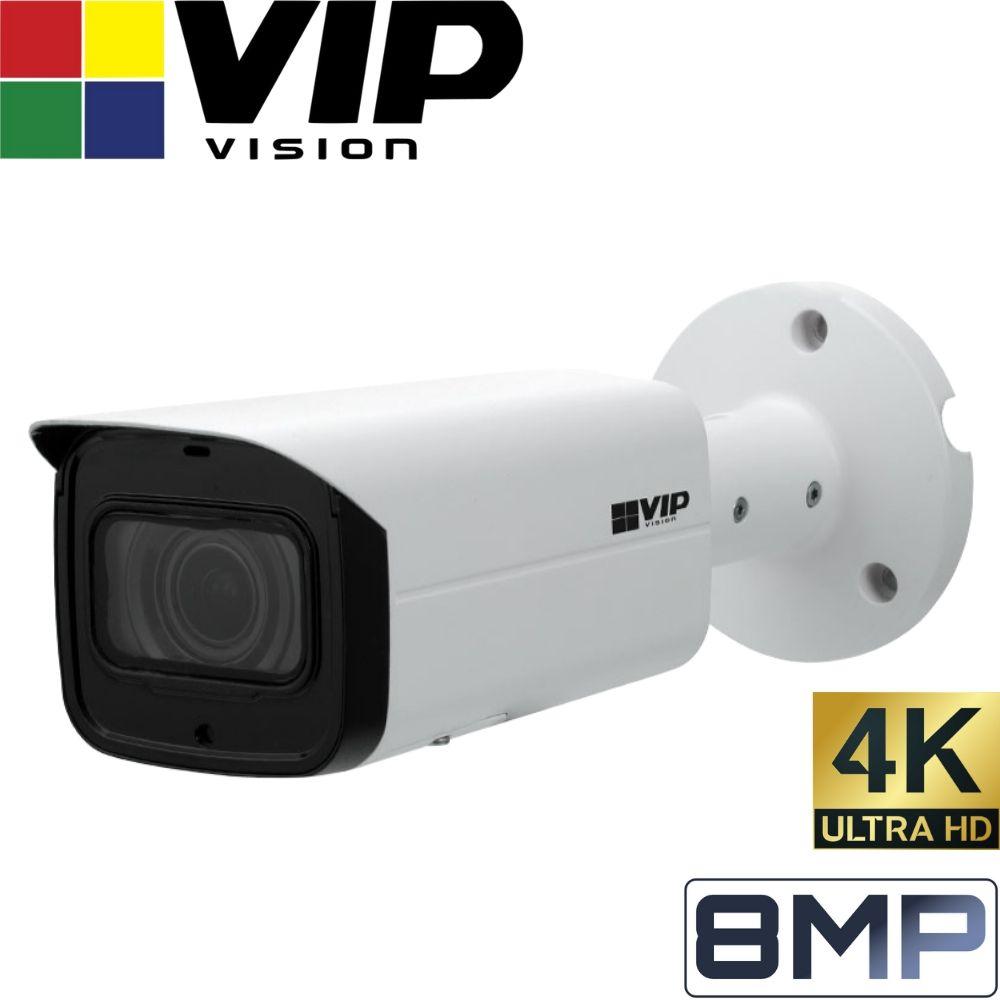

VIP Vision Pro Security Camera: 8MP (4K) Bullet, 3.7 ~ 11mm VF Lens - VSIP8MPFBIRMD
| Camera | |
| Image Sensor | 1/2’’ 8.0MP Progressive Scan CMOS |
| Max. Resolution | 8.0 Megapixel |
| Effective Pixels | 3840 (H) x 2160 (V) |
| RAM / ROM | 512MB / 32MB |
| Ultra Low Light Colour | Yes |
| Min Illumination | 0.004 Lux/F1.9 (Color), 0 Lux/F1.9 (IR on) |
| S/N Ratio | >50dB |
| Infrared | Yes |
| Infrared System | 4 x Infrared LED, 60m range, Auto/manual on/off control |
| Lens | |
| Lens Type | Motorised Varifocal |
| Lens / Iris | 3.7 ~ 11mm F1.9 Motorised Varifocal Lens with Fixed Iris |
| Field of View | 3.7 ~ 11mm F1.9 Motorised Varifocal Lens with Fixed Iris |
| Focus | Auto Focus / 0.2m Min. Focus Distance |
| DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
| Detect (25px/m) | 83m (wide) / 190m (tele) |
| Observe (63px/m) | 33m (wide) / 76m (tele) |
| Recognise (125px/m) | 17m (wide) / 38m (tele) |
| Identify (250px/m) | 8m (wide) / 19m (tele) |
| Video | |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate (Main) | 8.0MP (1~25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | N/A |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bit Rate | H.265: 16 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night | Auto (ICR) / Color / B&W |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS | |
| IVS | Yes |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users |
| RTMP Support | No |
| Interface | |
| Video Interface | N/A |
| Audio Interface | N/A |
| Alarm Interface | N/A |
| RS485 | N/A |
| Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
| Interoperability | ONVIF / PSIA / CGI |
| Environmental | |
| Power Supply | 12VDC / PoE (802.3af) (Class 0) |
| Power Consumption | <14.3W |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Ingress Protection | IP67 |
| Weather Resistance | Yes |
| Vandal Resistance | N/A |
| Series | Professional Series |
| Camera Type | Bullet |
| Housing | Metal |
| Pan/Tilt/Rotation | Pan: 0° ~ 360 °; Tilt: 0° ~ 90°; Rotation: 0° ~ 360° |
| Tri-Axis Mounting | No |
| ePoE | No |
| Dimensions | 244 x 79 x 76mm |
| Net Weight | 0.82kg |
| Warranty (Years) | 4 |

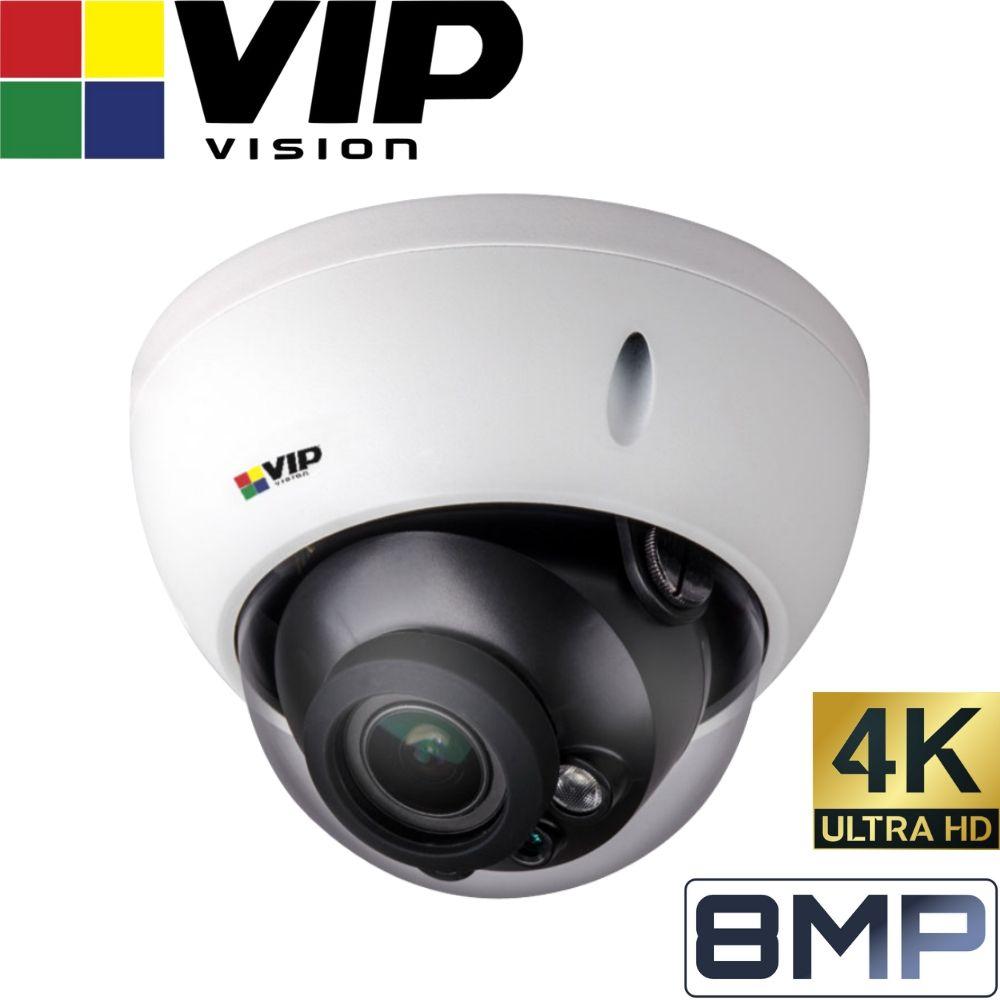

VIP Vision Professional Security Camera: 8MP (4K) Dome, 3.7mm~11mm VF Lens -VSIP8MPVDIRMD
| Camera | |
| Image Sensor | 1/1.8” 8Megapixel progressive CMOS |
| Max. Resolution | 8.0 Megapixel |
| Effective Pixels | 3840 (H) x 2160 (V) |
| RAM / ROM | 512MB / 32MB |
| Ultra Low Light Colour | No |
| Min Illumination | 0.004Lux/F1.9( Color,1/3s,30IRE) 0.09Lux/F1.9 Color,1/30s,30IRE) 0Lux/F1.9(IR on) |
| S/N Ratio | ≥50dB |
| Infrared | Yes |
| Infrared System | 2 x Infrared LED, 30m range, Auto/manual on/off control |
| Lens | |
| Lens Type | Motorised Varifocal |
| Lens / Iris | 3.7mm~11mm |
| Field of View | H:112°~46°, V:60°~26° |
| Focus | Fixed |
| DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) | |
| Detect (25px/m) | 83m (wide) / 190m (tele) |
| Observe (63px/m) | 33m (wide) / 76m (tele) |
| Recognise (125px/m) | 17m (wide) / 38m (tele) |
| Identify (250px/m) | 8m (wide) / 19m (tele) |
| Video | |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate (Main) | 8.0MP (1~25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | N/A |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Bit Rate | H.265: 16Kbps~8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night | Auto (ICR) / Color / B&W |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS | |
| IVS | Yes |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users / 20 Users |
| RTMP Support | No |
| Interface | |
| Video Interface | N/A |
| Audio Interface | N/A |
| Alarm Interface | N/A |
| RS485 | N/A |
| Edge Storage | MicroSD Card (up to 128GB) / NAS / Local PC |
| Interoperability | ONVIF / PSIA / CGI |
| Environmental | |
| Power Supply | 12VDC / PoE (802.3af) (Class 0) |
| Power Consumption | <10.9W |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Ingress Protection | IP67 |
| Weather Resistance | Yes |
| Vandal Resistance | IK10 |
| Series | Professional Series |
| Camera Type | Dome |
| Housing | Metal & Polycarbonate Dome |
| Pan/Tilt/Rotation | Pan: 0° ~355 ° ; Tilt: 0° ~ 70° ; Rotation: 0° ~ 355° |
| Tri-Axis Mounting | Yes |
| ePoE | No |
| Dimensions | Ø122mm x 89mm |
| Net Weight | 0.49kg |
| Warranty (Years) | 4 |
VIP Vision Professional 4 Channel Network Video Recorder: 8MP (4K) Ultra HD - NVR4PRO3
VIP Vision Pro Security Camera: 8MP (4K) Bullet, 3.7 ~ 11mm VF Lens - VSIP8MPFBIRMD
VIP Vision Professional Security Camera: 8MP (4K) Dome, 3.7mm~11mm VF Lens -VSIP8MPVDIRMD
Standard Shipping is a $25 flat rate for orders under $200.
Orders are processed: Monday – Friday from 8am – 5pm.
Orders are shipped within 24 - 48 hours (business days) of being placed.
Shipping Times: For customers within the express post network (capital cities) delivery times are typically next business day. For areas outside the express post network delivery times are 2 - 3 business days.
Please Note: As we use courier shipping, we cannot ship to PO Boxes.
(Public Holidays Excluded)
Order Confirmation: After placing an order, you will receive an order confirmation by e-mail. This means we’ve received your order in our system and have pre-authorised your credit card for the purchase. If your item is unavailable, we will void the pre-authorisation charge and contact you to inform you by e-mail. If your item(s) are available for immediate shipment (within 2 business days), we will process the charges and submit the order for shipment.
Tracking Numbers will be sent to your email within 24 hours of being shipped.
In some cases, we may need to contact you before your order can be shipped. To ensure there is no delay, please respond to any email/phone call from our Customer Service team.
We use Star Track couriers, Couriers Please and VT Freight depending on the location of each order. Shipping times are the same.
RETURNS
You have 14 calendar days to return an item from the date you received it. Your item must be in the same condition that you received it with original packaging. You must contact us before returning your item so that we can give you an RMA number and the most suitable shipping address based on your location. We will need your order number to confirm your order. You can contact us by email at: info@spymonkey.com.au or by phone on 1300049519.
For more information on what items our return policy covers, refer to our full policy here: 14-Day Return Policy
Related items
- WARRANTY: 3 years back-to-base manufacturer warranty
- 4 X 6MP Turret Cameras- 1/3” Progressive scan CMOS
- Fixed 2.8 mm (3.6 mm optional) Lens - H:104°/87°, V:57°/48°
- NVR Supports 8MP(4K Ultra HD) Recording and Playback
- 4 POE Channels support up to 4 IP Cameras, PoE for easy plug and play installation.
- 1 X SATA III Port, Up to 6TB capacity for each HDD
- ONVIF, PSIA,and CGI Compliant
- Wide Dynamic Range 120dB WDR, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC, Back Light Compensation BLC, Region of Interest ROI,
- IR Night Vision LED's Range 50 Metres.
- Supports real-time viewing and playback from Dahua smartphone app for Android and iOS from anywhere in the world.
- Cutting-Edge H.265+ Video Encoding - Record longer than H.264 with the same HDD
- Durable IP67 Weatherproof Metal Housing Encased in airtight heavy-duty metal housing for better heat dissipation, performance & longer service life, wide operating temperatures -30 °C – 60 °C
- WARRANTY: 3 years back-to-base manufacturer warranty
- WARRANTY: 3 years back-to-base manufacturer warranty
- WARRANTY: 3 years back-to-base manufacturer warranty
- WARRANTY: 3 years back-to-base manufacturer warranty
