| Image Sensor |
1/2.9" 4.0MP Progressive Scan CMOS |
| Maximum Resolution |
4.0 Megapixel (2688 × 1520) |
| Effective Pixels |
2688 (H) × 1520 (V) |
| RAM / ROM |
1GB / 256MB |
| Minimum Illumination |
0.005 Lux @ F1.4 (Colour), 0.0005 Lux @ F1.4 (B/W), 0 Lux (Illuminator On) |
| S/N Ratio |
>56dB |
| Infrared System |
2 × Warm LEDs, 2 × Infrared LEDs, Up to 50m Range, Auto/Manual Control |
| Lens Type |
Fixed |
| Lens |
2.8mm Fixed Focal Lens, Fixed Iris |
| Field of View |
100° Horizontal, 56° Vertical |
| Focus |
Fixed Focus, 1.0m Minimum Focus Distance |
| DORI Detection |
Detect: 62m / Observe: 25m / Recognise: 12m / Identify: 6m |
| Recording Resolution |
4.0MP (2688 × 1520) to CIF (352 × 288) |
| Main Stream |
4.0MP (1–25fps) |
| Sub Stream |
1080P (1–25fps) |
| Third Stream |
1080P (1–25fps) |
| Video Compression |
AI H.265 / H.265 / AI H.264 / H.264H / H.264 / H.264B / MJPEG |
| Bit Rate |
H.265: 19–16384Kbps / H.264: 32–16384Kbps |
| Bit Rate Control |
CBR / VBR |
| Day/Night Mode |
Auto (ICR) / Colour / B&W |
| Lighting Compensation |
BLC / HLC / WDR (120dB) / AI SSA |
| Smart Scene Adaptive |
No |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Intelligent Functions |
Motion Detection (4 Zones), Region of Interest (4 Zones), Privacy Masking (8 Zones), Smart Infrared |
| Perimeter Protection |
AI Tripwire & Intrusion with Human & Vehicle Classification |
| Face Detection |
N/A |
| People Counting |
N/A |
| Heat Map |
N/A |
| Event Triggers |
Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Intelligent Search |
Acupick Search Across Compatible Cameras, Smart NVR Search, Human & Vehicle Event Search |
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1X, SNMP |
| Streaming Method |
Unicast / Multicast |
| Maximum User Access |
20 Users (64MB Total Bandwidth) |
| Audio |
Built-in Microphone (G.711a, G.711Mu, G726, G.723, PCM) |
| Edge Storage |
MicroSD Card (up to 512GB), NAS |
| Interoperability |
ONVIF / P2P / CGI |
| Power Supply |
12VDC / PoE (IEEE 802.3af) |
| Power Consumption |
<7.1W (12VDC), 9.2W (PoE Max) |
| Operating Environment |
-40°C ~ +60°C / ≤95% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
N/A |
| Series |
Professional AI Series |
| Camera Type |
Turret |
| Housing |
Metal |
| Pan / Tilt / Rotation |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| ePoE |
No |

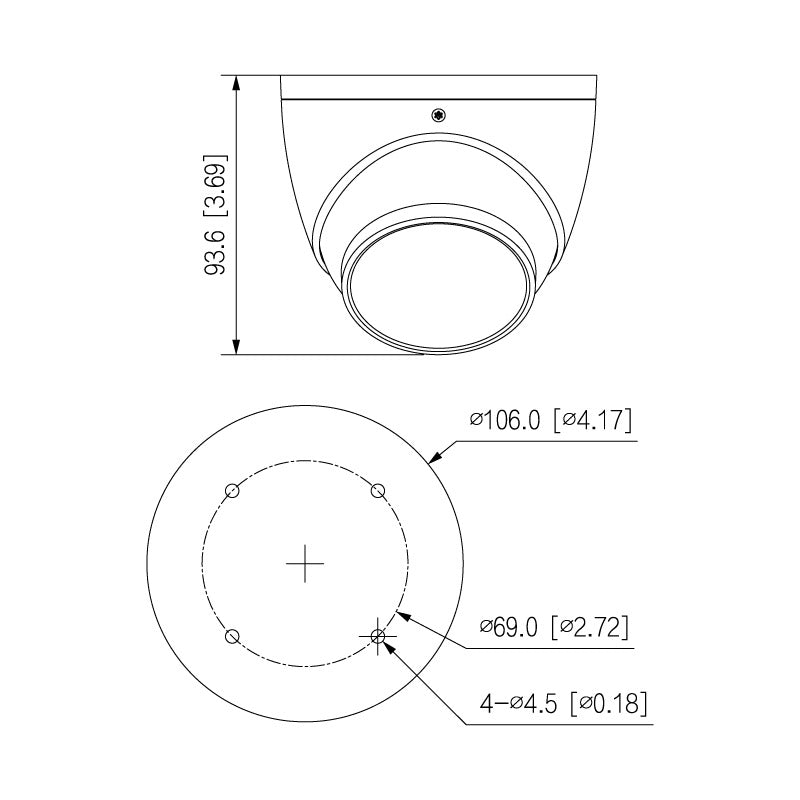

| Dimensions |
Ø94mm × 106mm |
| Weight |
0.53kg |
